WEG’s cooling tower motors are designed for operation in 100% humidity and the most corrosive environments. They are designed to operate in either horizontal or vertical mounting.
WEG’s W22 cast iron platform has a superior cooling system and solid feet for cool operation, low vibration and noise reduction which extends the life of the motor.
IC410 - TEAO, IP55, 143T Frame, 200 VAC 60Hz 3 Phase, 12126083, NEMA Premium Efficiency, Foot Mount, Cast Iron Frame, F-2 Mounting, 7/8" Keyed Shaft
00118AT3PCT143T-W22
IC410 - TEAO, IP55, 143T/145T Frame, 200VAC 60Hz 3 Phase, 12126102, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F-2 Mounting, 7/8" Keyed Shaft
00158AT3PCT145T-W22
IC410 - TEAO, IP55, 182T/184T Frame, 230/460VAC 60Hz 3 Phase, 14391833, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-1/8" Keyed Shaft
00212AT3ECT184T-W22
IC410 - TEAO, IP55, 182T/184T Frame, 575VAC 60Hz 3 Phase, 14382586, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-1/8" Keyed Shaft
00212AT3HCT184T-W22

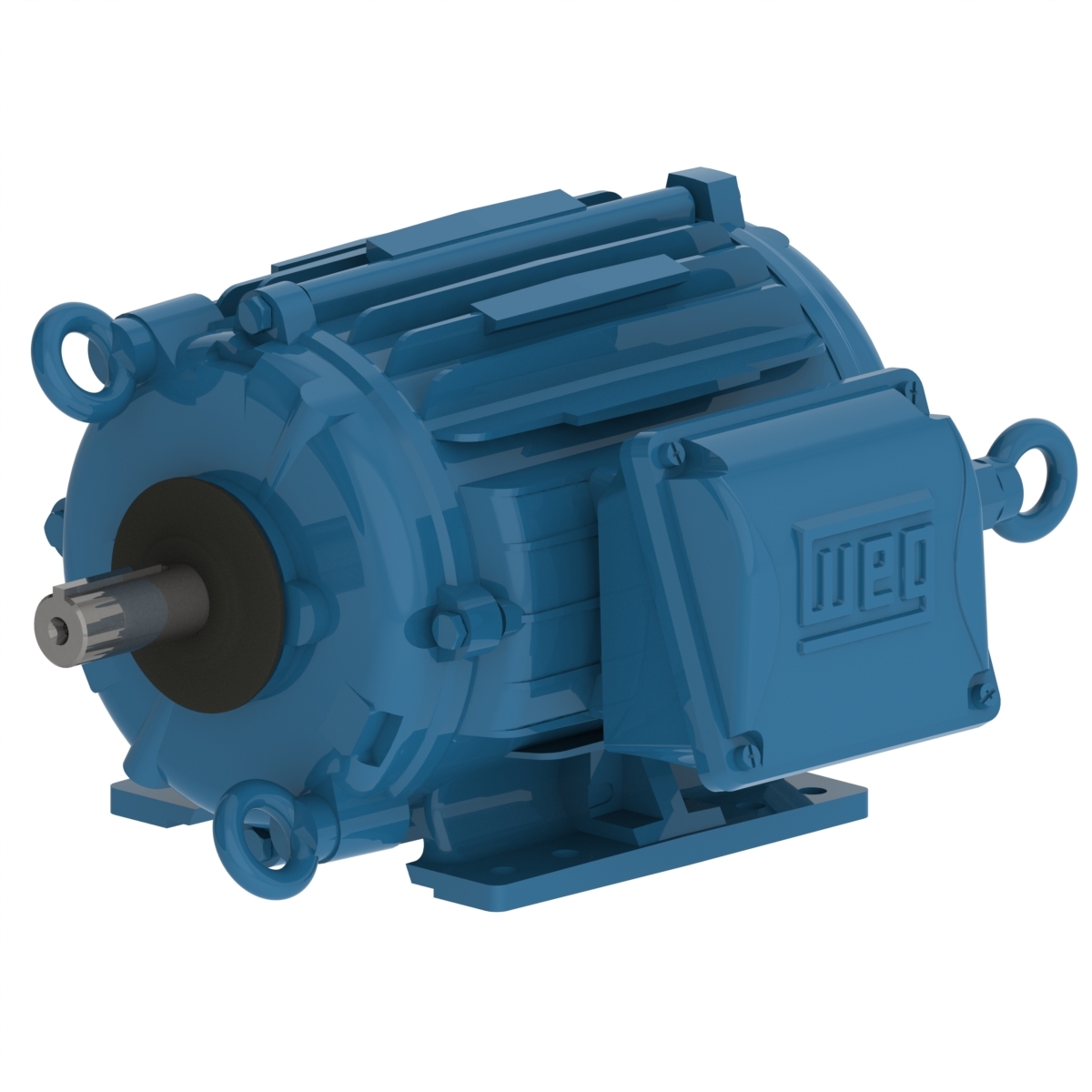

IC410 - TEAO, IP55, 182T/184T Frame, 200VAC 60Hz 3 Phase, 14382698, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-1/8" Keyed Shaft
00212AT3PCT184T-W22
IC410 - TEAO, IP55, 143T/145T Frame, 208-230/460VAC 60Hz 3 Phase, 12126219, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 7/8" Keyed Shaft
00218AT3ECT145T-W22
IC410 - TEAO, IP55, 143T/145T Frame, 200VAC 60Hz 3 Phase, 12126223, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, 7/8" Keyed Shaft
00218AT3PCT145T-W22
IC410 - TEAO, IP55, 213T/215T Frame, 208-230/460VAC 60Hz 3 Phase, 14382705, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft
00312AT3ECT213T-W22
IC410 - TEAO, IP55, 213T/215T Frame, 575VAC 60Hz 3 Phase, 14382706, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, 1-3/8" Keyed Shaft
00312AT3HCT213T-W22
IC410 - TEAO, IP55, 213T/215T Frame, 200VAC 60Hz 3 Phase, 14382808, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft
00312AT3PCT213T-W22
IC410 - TEAO, IP55, 182T Frame, 208-230/460VAC 60Hz 3 Phase, 12126744, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-1/8" Keyed Shaft
00318AT3ECT182T-W22
IC410 - TEAO, IP55, 182T Frame, 575VAC 60Hz 3 Phase, 12126779, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-1/8" Keyed Shaft
00318AT3HCT182T-W22
IC410 - TEAO, IP55, 182T Frame, 200VAC 60Hz 3 Phase, 12126782, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, 1-1/8" Keyed Shaft
00318AT3PCT182T-W22
IC410 - TEAO, IP55, 213T/215T Frame, 208-230/460VAC 60Hz 3 Phase, 14382813, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft
00512AT3ECT215T-W22
IC410 - TEAO, IP55, 213T/215T Frame, 575VAC 60Hz 3 Phase, 14382815, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft
00512AT3HCT215T-W22

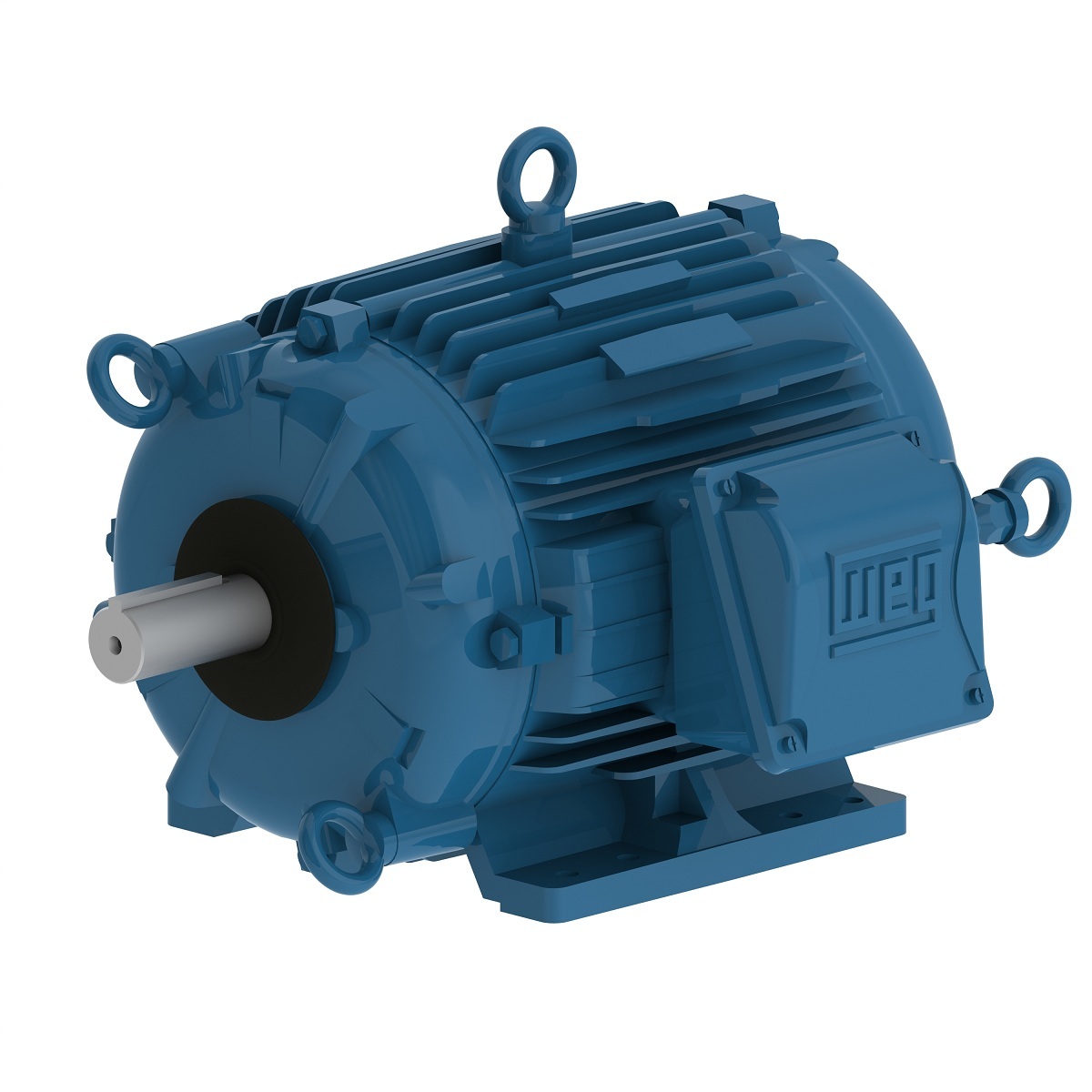

IC410 - TEAO, IP55, 213T/215T Frame, 200VAC 60Hz 3 Phase, 14382842, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft
00512AT3PCT215T-W22
IC410 - TEAO, IP55, 182T/184T Frame, 208-230/460VAC 60Hz 3 Phase, 12127631, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-1/8" Keyed Shaft
00518AT3ECT184T-W22
IC410 - TEAO, IP55, 182T/184T Frame, 200VAC 60Hz 3 Phase, 12127767, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-1/8" Keyed Shaft
00518AT3PCT184T-W22

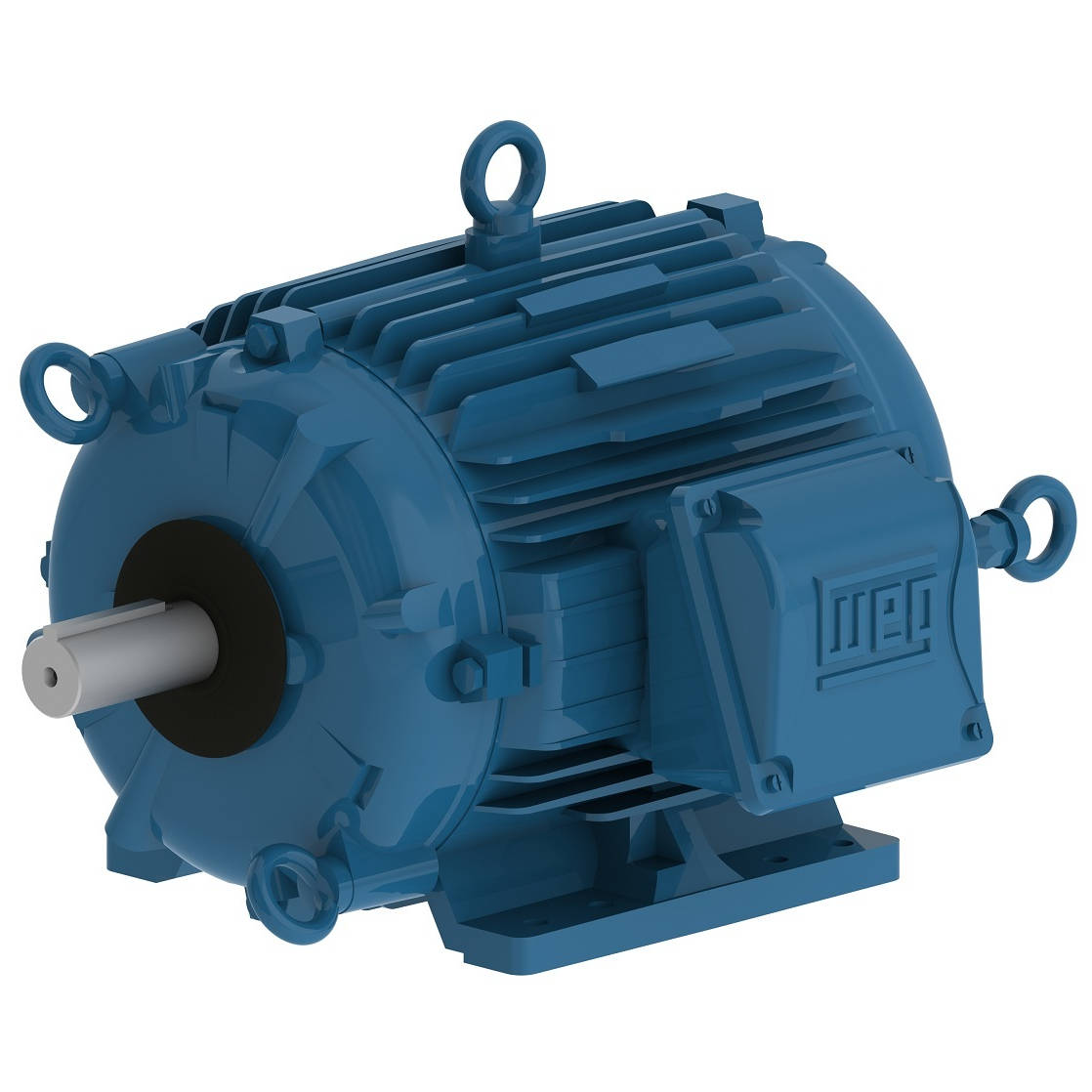

IC410 - TEAO, IP55, 213T Frame, 208-230/460/380VAC 50/60Hz 3 Phase, 12128164, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, 1-3/8" Keyed Shaft
00718AT3ECT213T-W22
IC410 - TEAO, IP55, 213T Frame, 575VAC 60Hz 3 Phase, 12128166, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, 1-3/8" Keyed Shaft
00718AT3HCT213T-W22
IC410 - TEAO, IP55, 213T Frame, 200VAC 60Hz 3 Phase, 12128168, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, 1-3/8" Keyed Shaft
00718AT3PCT213T-W22
IC418-TEAO, IP55, 254/256T Frame,200VAC, 60Hz, 3Phase
12128172, Foot Mounted, Cast Iron Frame, NEMA Premium Efficiency, 1 5/8" Keyed Shaft
01012AT3PCT256T-W22
IC410 - TEAO, IP55, 213T/215T Frame, 208-230/460VAC 60Hz 3 Phase, 12128174, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft
01018AT3ECT215T-W22
IC418-TEAO, IP55, 213/215T Frame, 575VAC, 60Hz, 3Phase
12124183, Foot Mounted, Cast Iron Frame, NEMA Premium Efficiency, 1 3/8" Keyed Shaft
01018AT3HCT215T-W22
IC418-TEAO, IP55, 213/215T Frame, 200VAC, 60Hz, 3Phase,
12126113, Foot Mounted, NEMA Premium Efficiency, Cast Iron Frame, 1 3/8" Keyed Shaft
01018AT3PCT215T-W22
