Product ID: 00718AT3PCT213T-W22

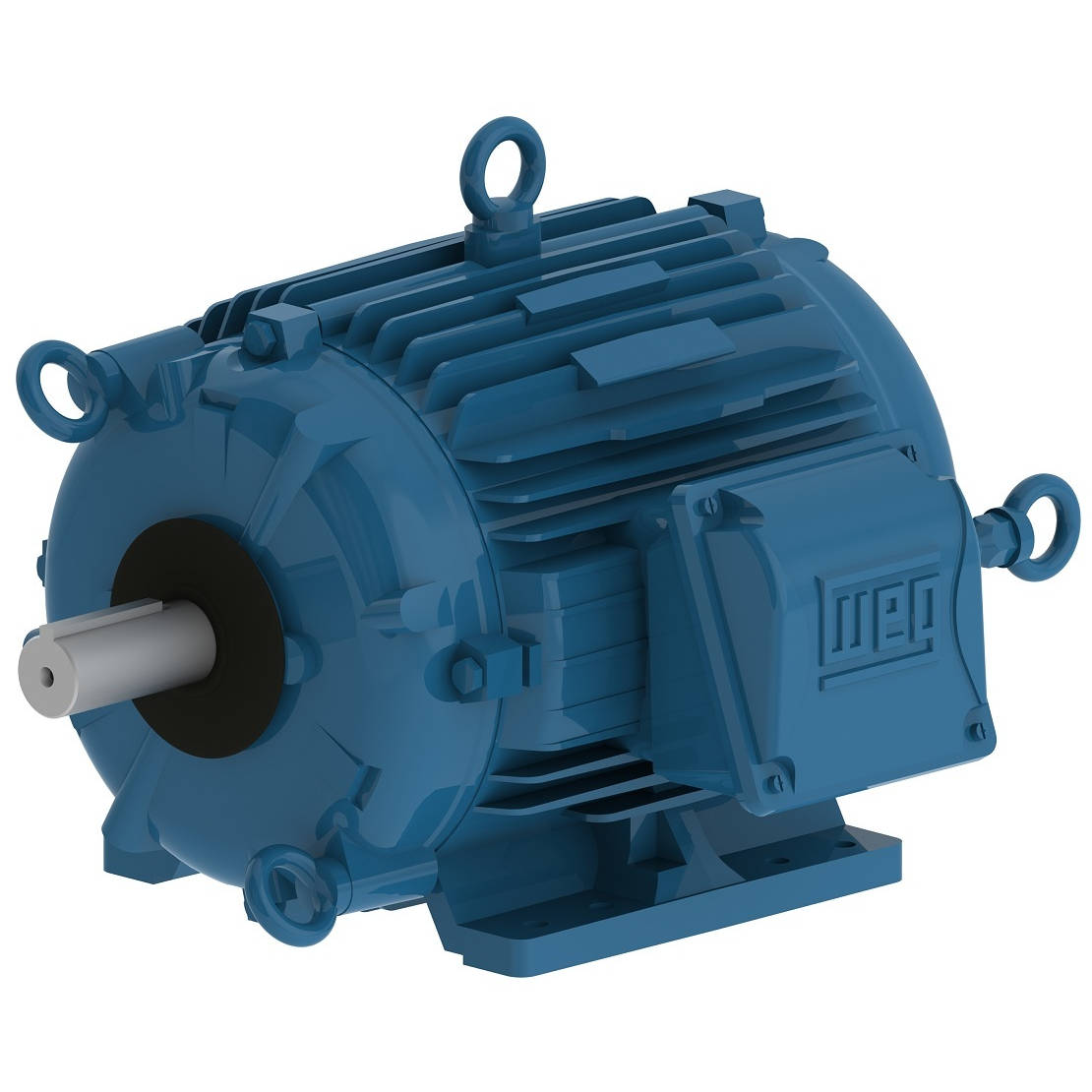

00718AT3PCT213T-W22 WEG 7.5 HP Cooling Tower Electric Motor, 1800 RPM

MFG: WEG Electric Corporation
MFG Part Number: 00718AT3PCT213T-W22

Selected accessories will also be added to cart
$999.00 / Each
Quantity:
IC410 - TEAO, IP55, 213T Frame, 200VAC 60Hz 3 Phase, 12128168, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, 1-3/8" Keyed Shaft

Electric Motors

Frame 213T
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 200 V
Rated current 21.1 A
L. R. Amperes 150 A
LRC 7.1x(Code H)
No load current 10.1 A
Rated torque 22.3 ft.lb
Locked rotor torque 220 %
Breakdown torque 310 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 1.34 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
Approx. weight³ 160 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.5  91.0  91.7

Power factor

50% 75% 100%
0.66  0.76  0.82

Features

Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Without fan
Bearing cap No-Without Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector

Bearing details

  Drive End Non Drive End
Bearing type 6308 2RS   6207 2RS
Sealing V'Ring  V'Ring
Lubrication interval
Lubricant amount
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
310 lb  470 lb
