/Products/Ball Bearings/6300 Series Ball Bearings/63082RDC3 Koyo Ball Bearing, Rubber Sealed
Click Image to Expand

Product ID: 6308-2RS

63082RDC3 Koyo Ball Bearing, Rubber Sealed

MFG: JTEKT Corporation
MFG Part Number: 63082RDC3

Available Stock: 6
Selected accessories will also be added to cart
$42.51 / Each
Quantity:
6308-2RS

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 63082RDC3
Group Deep Groove Ball Bearings

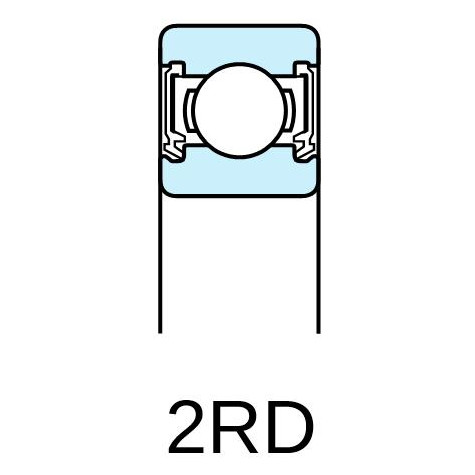

Type Extremely Light Contact Sealed (2RD)

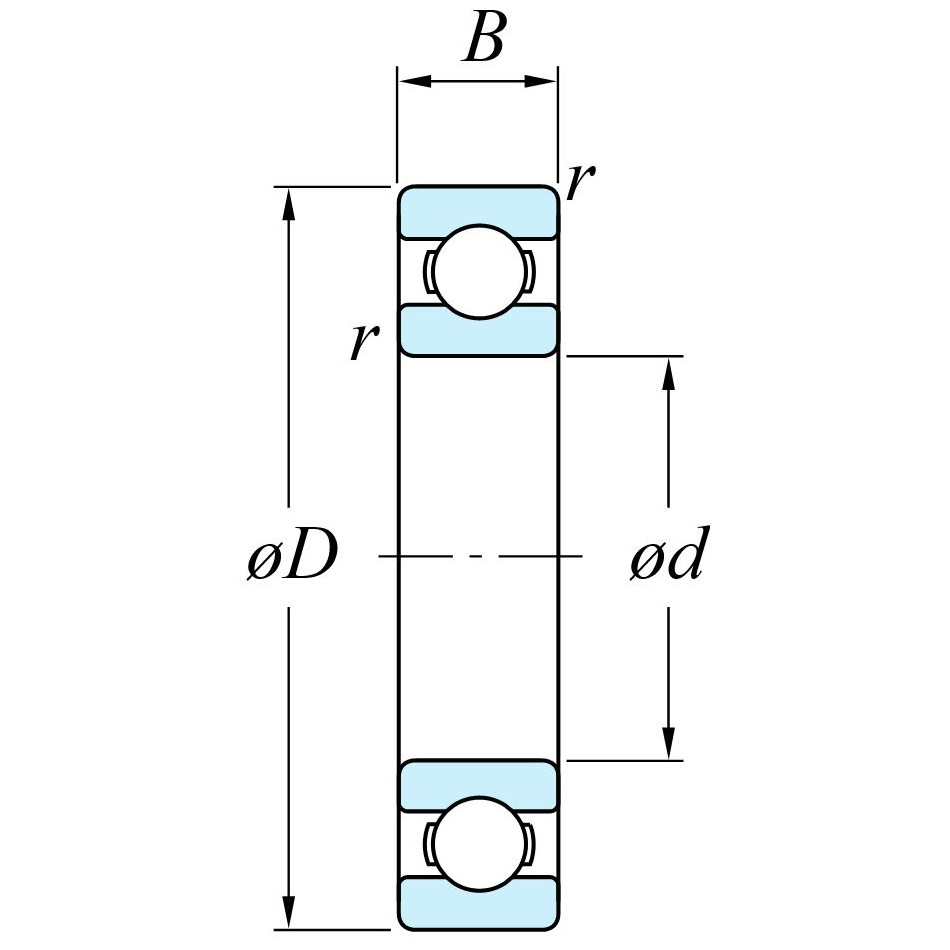

Bore / Inside Diameter (d) 40 mm
Housing / Outside Diameter (D) 90 mm
Width (B) 23 mm
Minimum Radius (r) 1.5 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 40.7 kN
C0r 24.0 kN
Limiting Speeds (Grease Lubrication) 6,900 min-1
Mass 0.633 kg
1.40 lbs
UPC 4549250171000
Country of Manufacture Japan
