/Products/Ball Bearings/6200 Series Ball Bearings/62072RDC3 Koyo Ball Bearing, Rubber Sealed
Click Image to Expand

Product ID: 6207-2RS

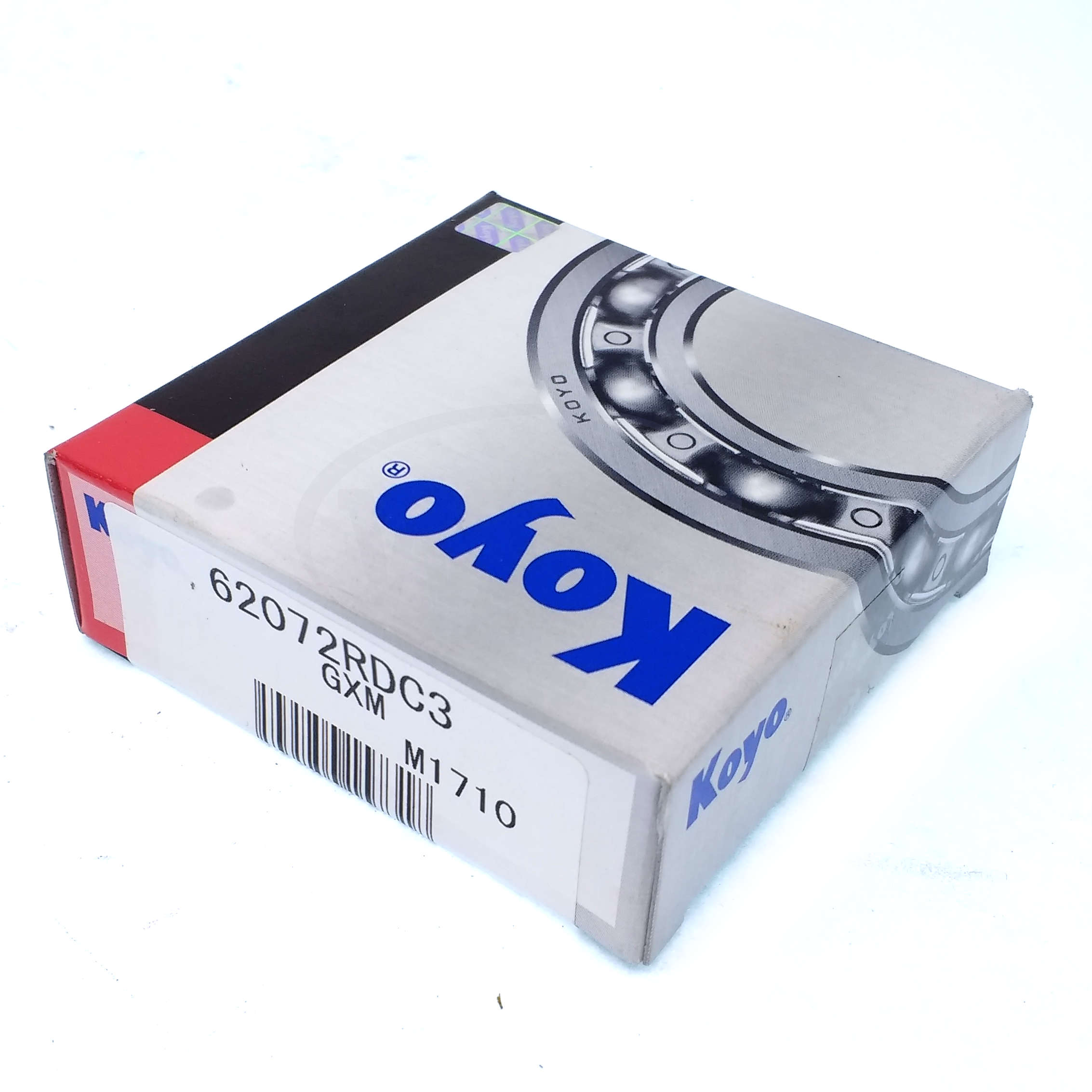

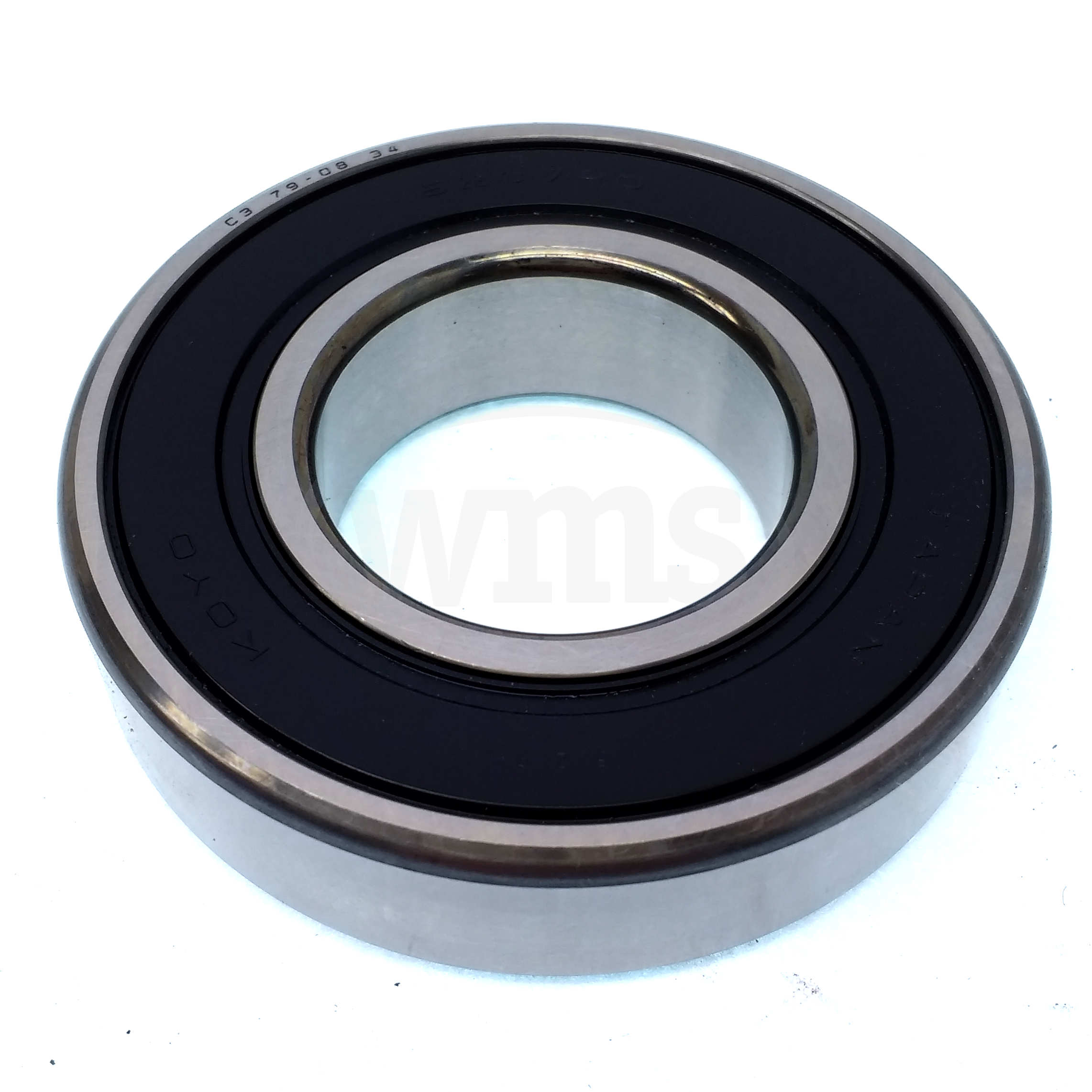

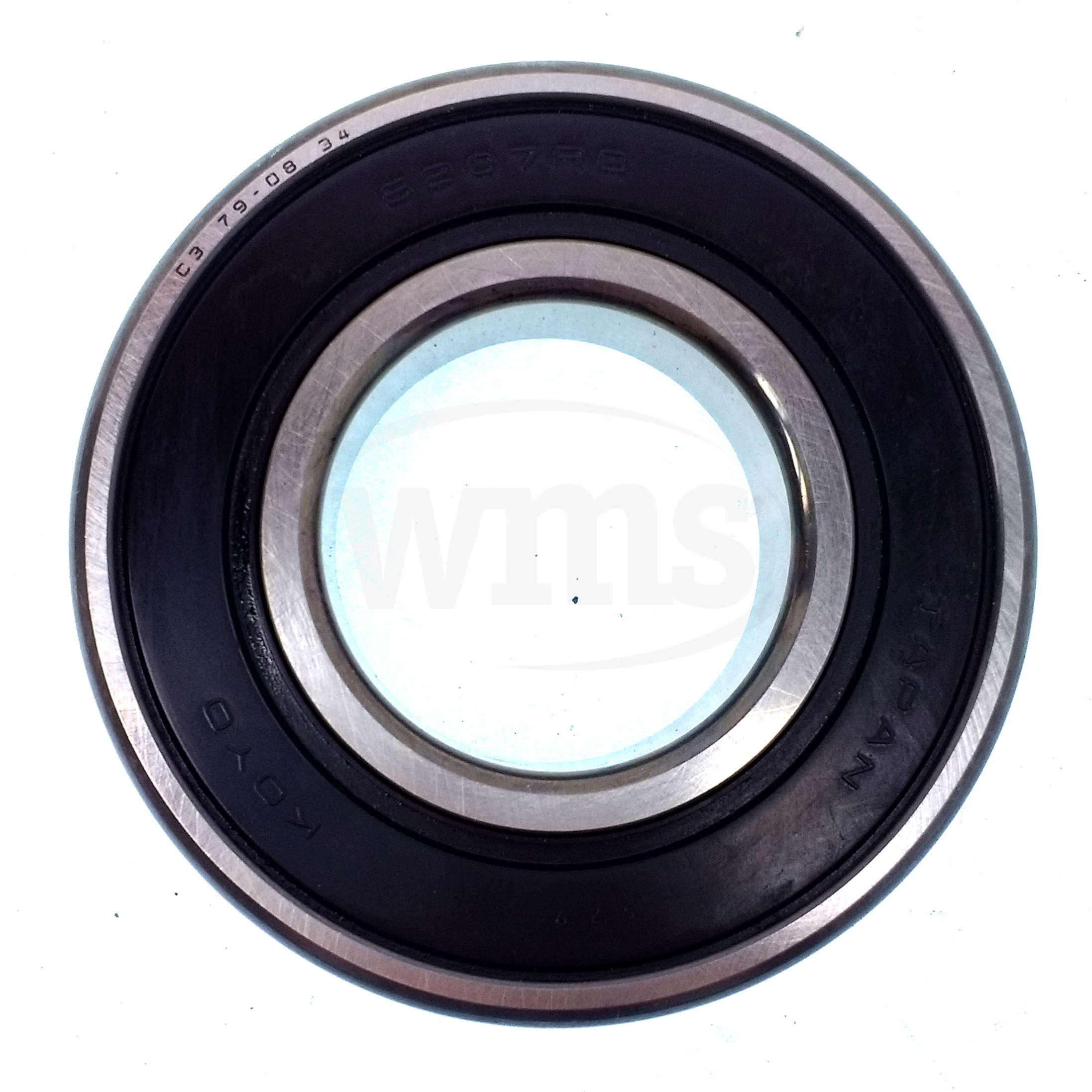

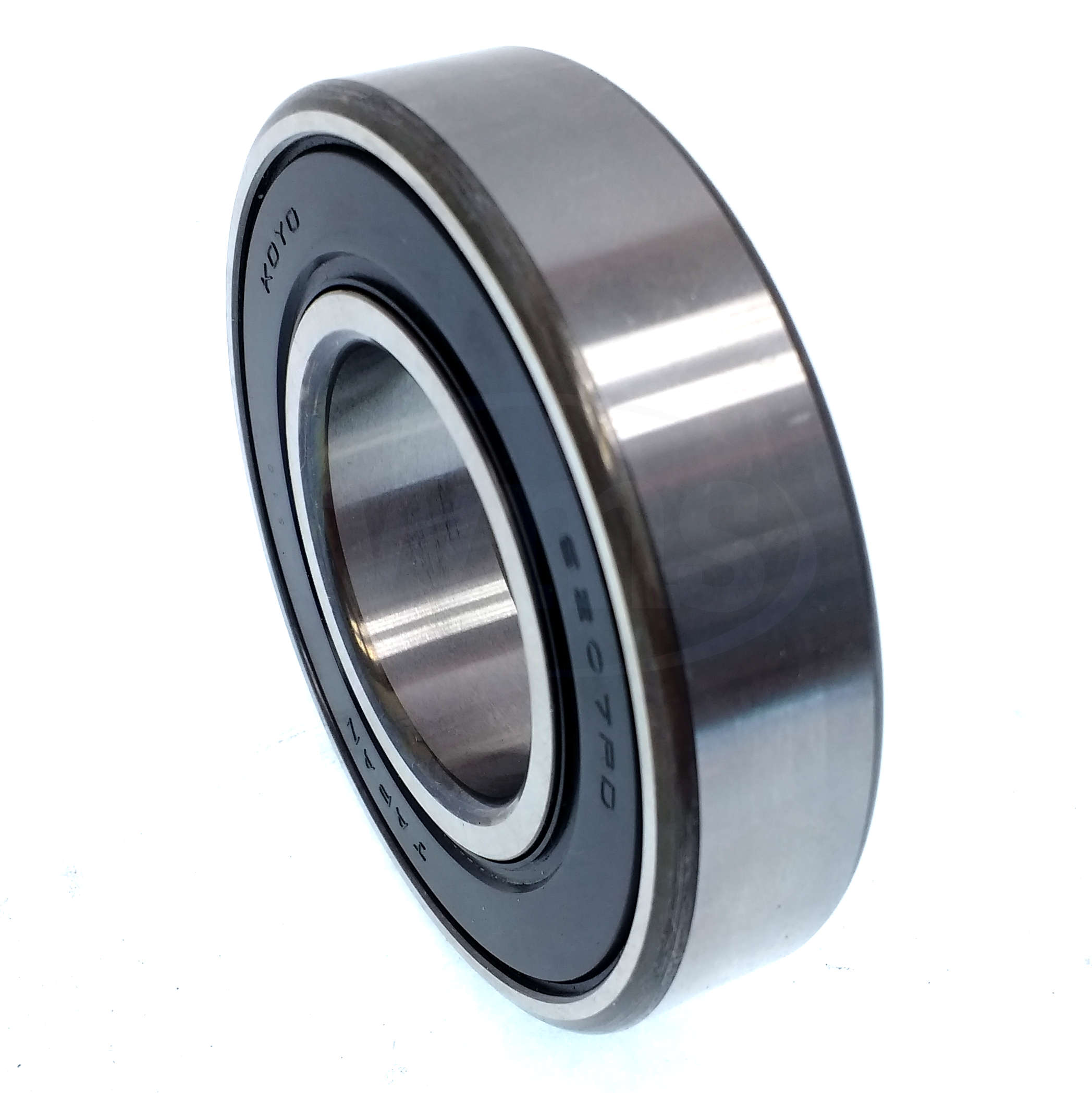

62072RDC3 Koyo Ball Bearing, Rubber Sealed

MFG: JTEKT Corporation
MFG Part Number: 62072RDC3

Available Stock: 11
Selected accessories will also be added to cart
$22.65 / Each
Quantity:
6207-2RS, 35mm x 72mm x 17mm

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 62072RDC3
Group Deep Groove Ball Bearings

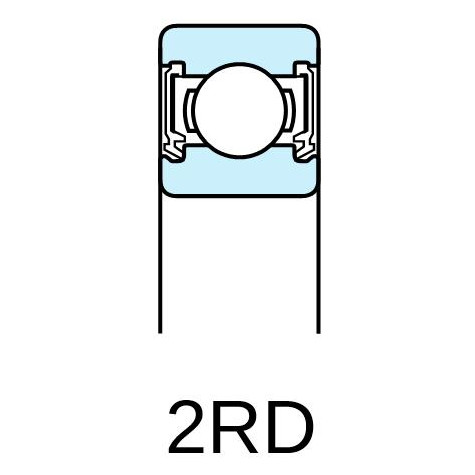

Type Extremely Light Contact Sealed (2RD)

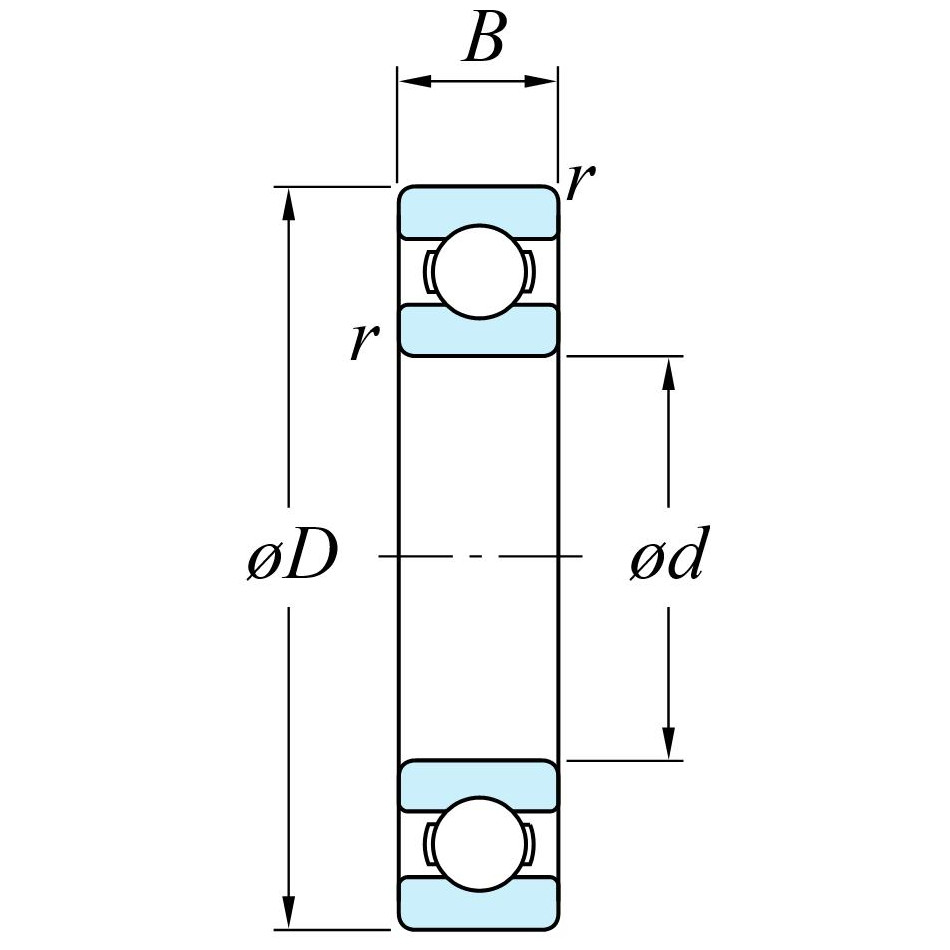

Bore / Inside Diameter (d) 35 mm
Housing / Outside Diameter (D) 72 mm
Width (B) 17 mm
Minimum Radius (r) 1.1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 25.7 kN
C0r 15.4 kN
Limiting Speeds (Grease Lubrication) 8,300 min-1
Mass 0.288 kg
0.64 lbs
UPC 4549250157318
Country of Manufacture Japan
