/Products/Electric Motors/3 Phase/WEG/Air Handling/Cooling Tower/TEAO, F-2 Mounting/00212AT3ECT184T-W22 WEG 2HP Cooling Tower Electric Motor, 1200RPM
Click Image to Expand

Product ID: 00212AT3ECT184T-W22

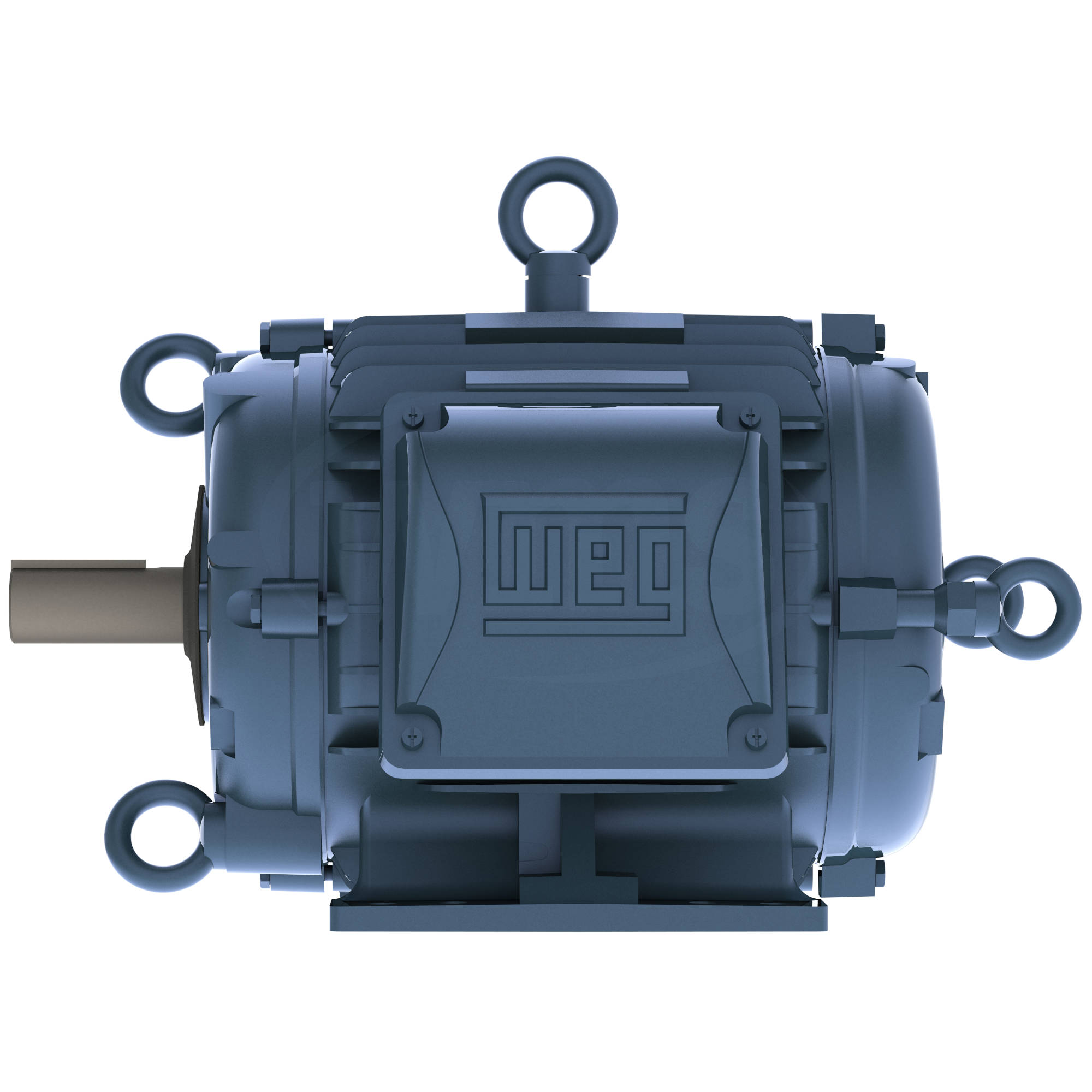

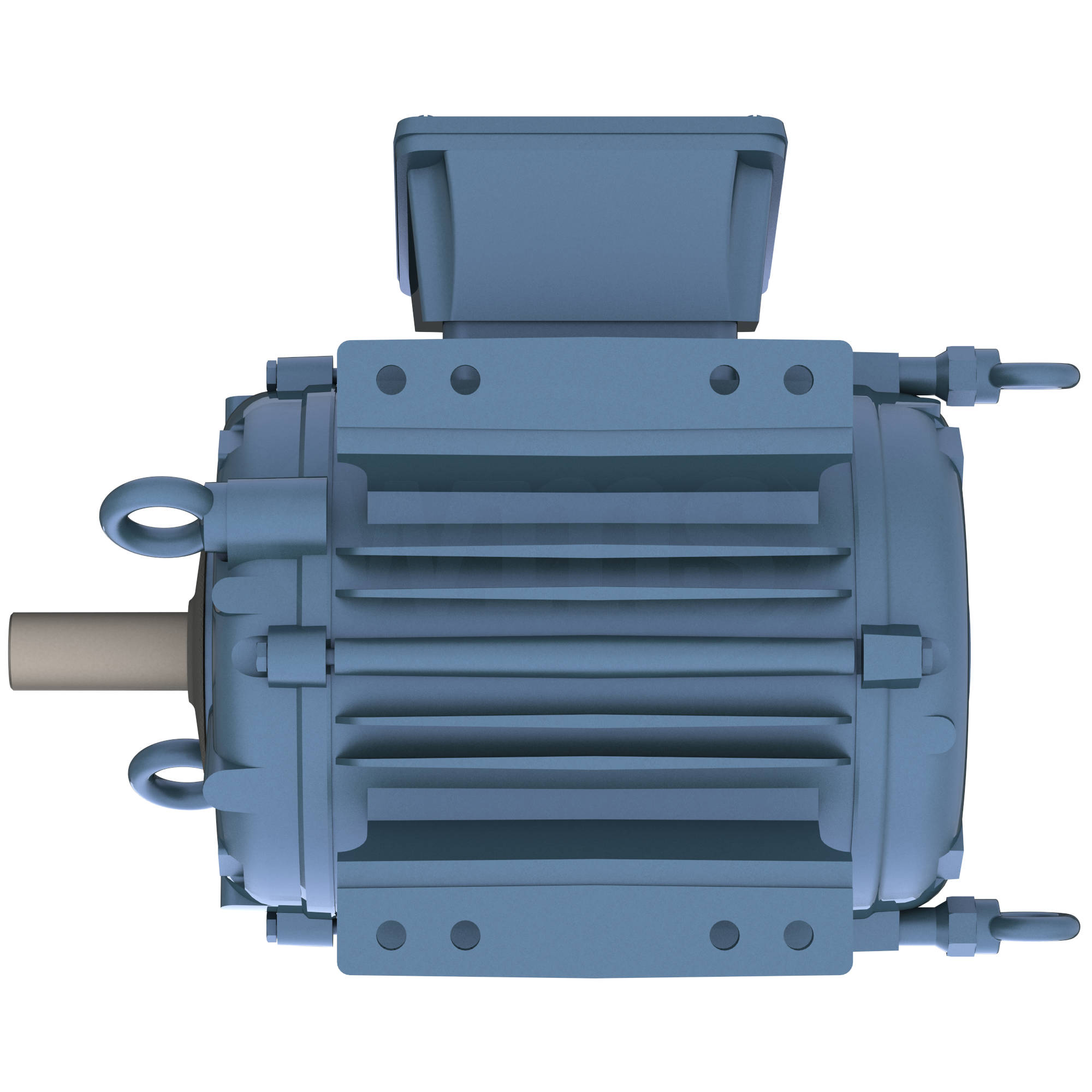

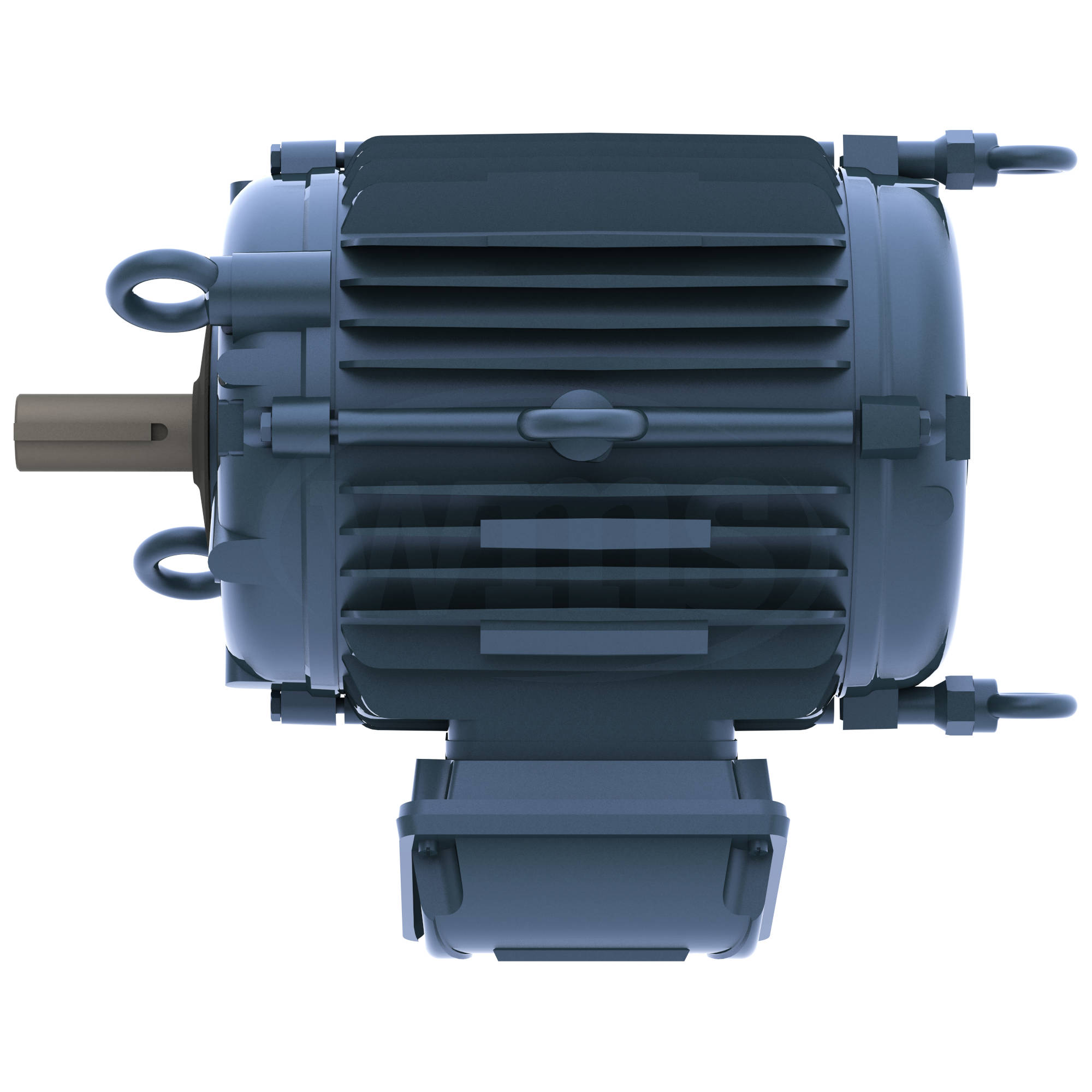

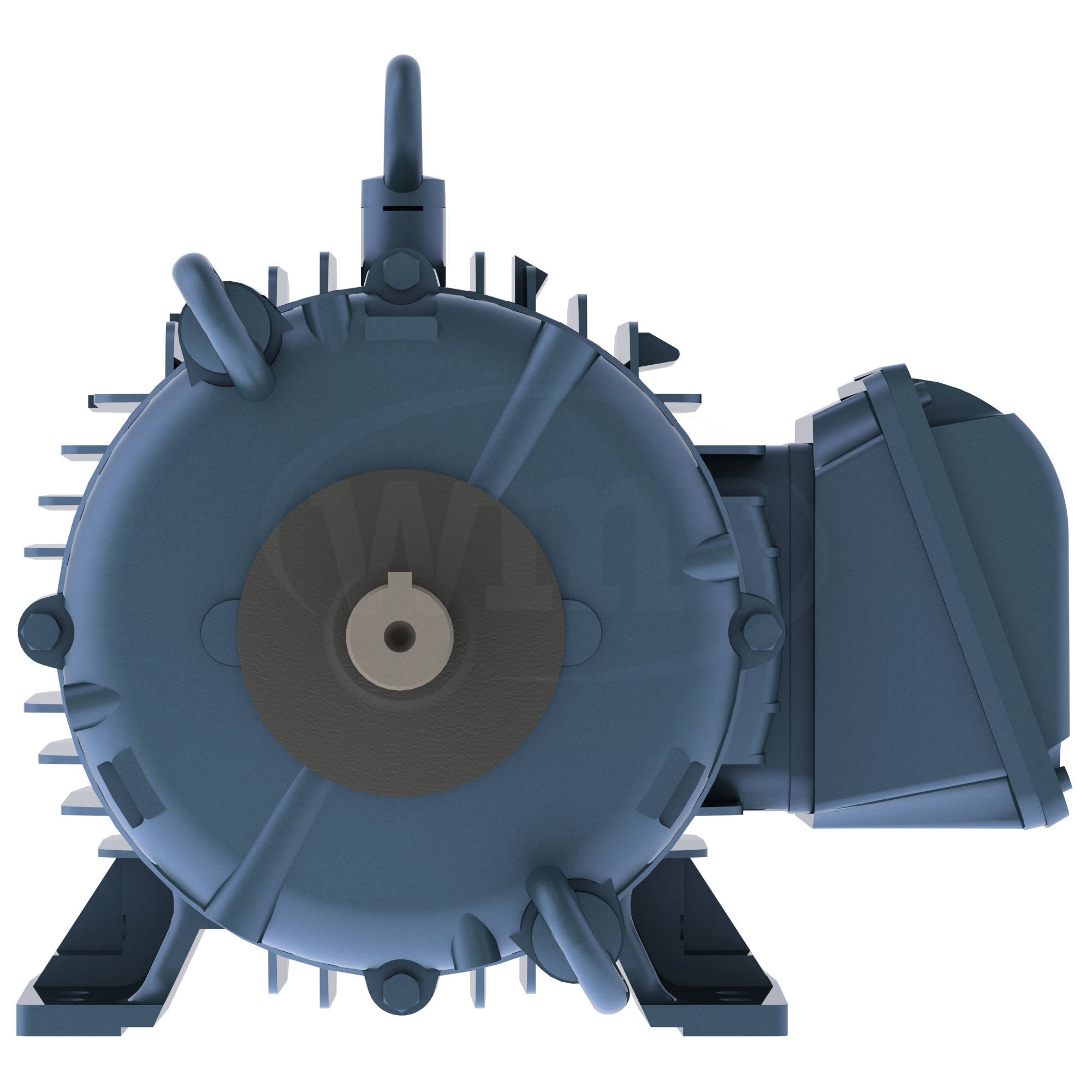

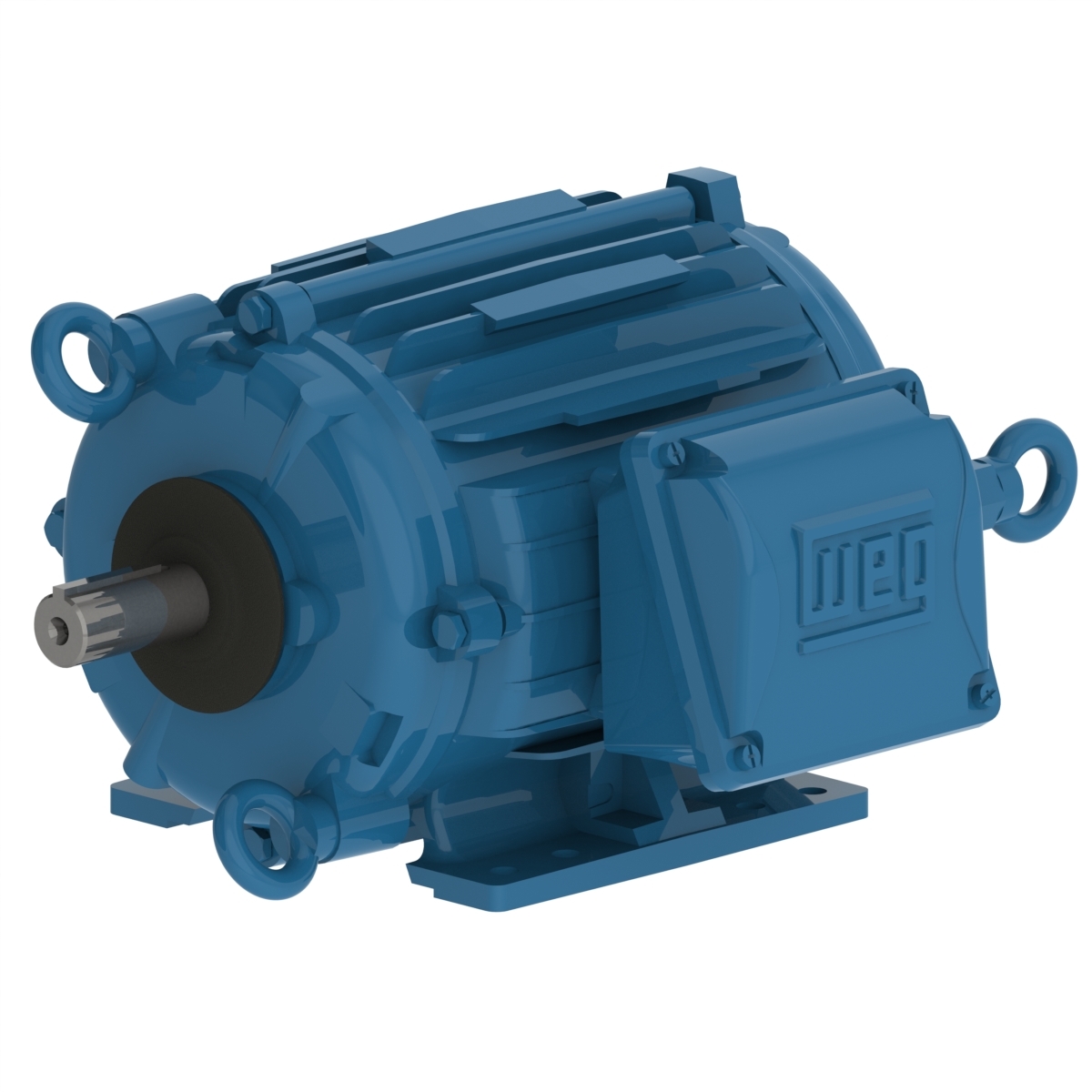

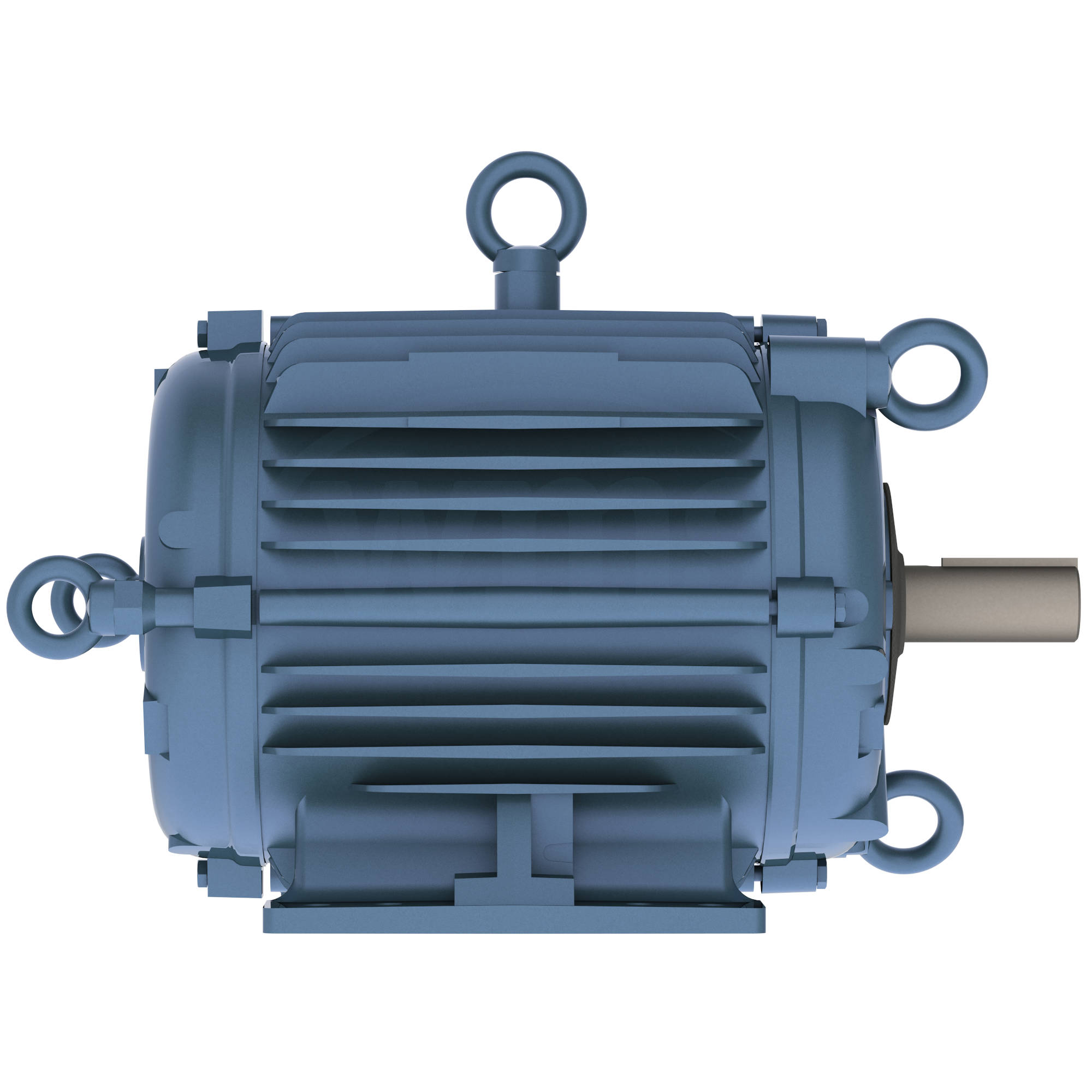

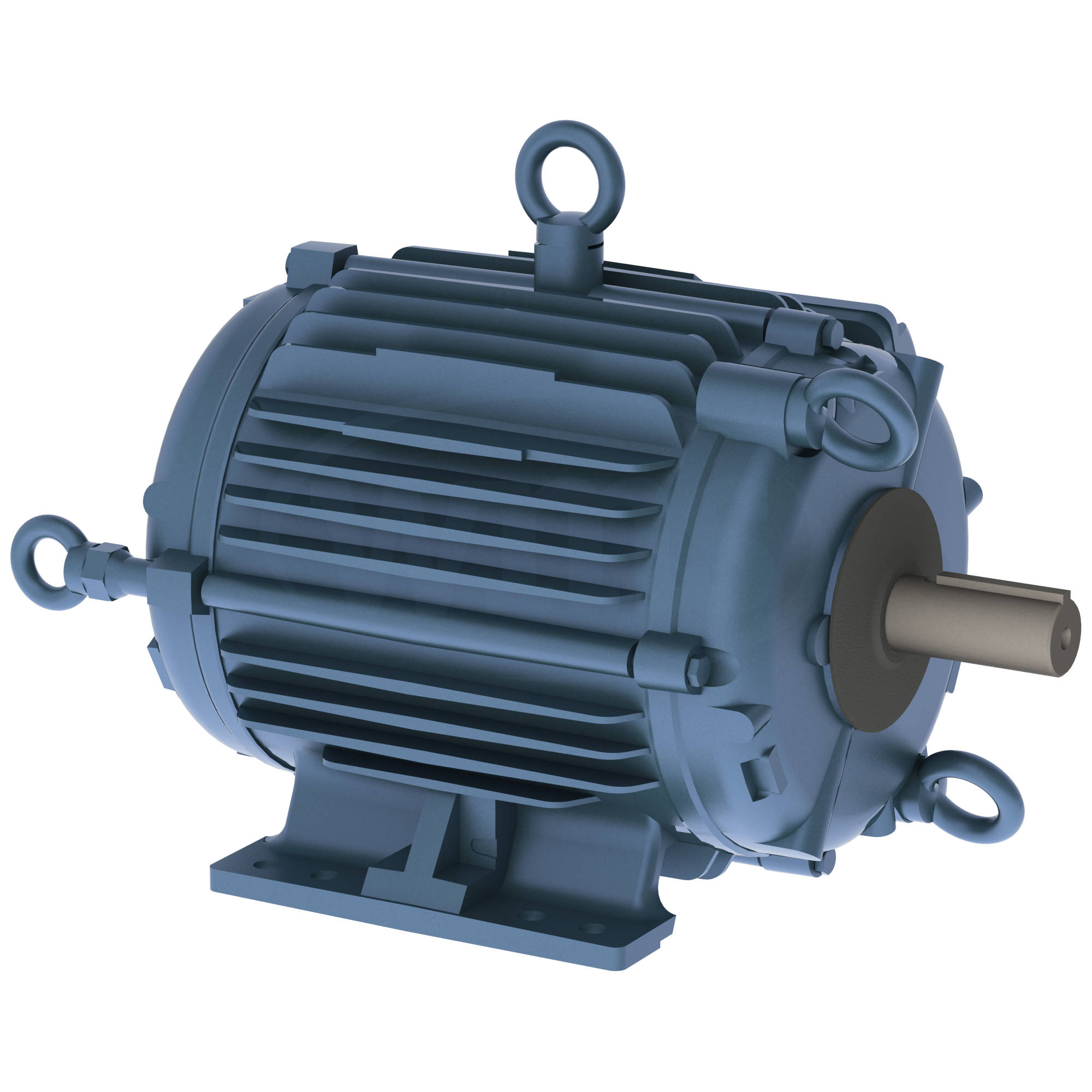

00212AT3ECT184T-W22 WEG 2HP Cooling Tower Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00212AT3ECT184T-W22

Selected accessories will also be added to cart
$757.50 / Each
Quantity:
IC410 - TEAO, IP55, 182T/184T Frame, 230/460VAC 60Hz 3 Phase, 14391833, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-1/8" Keyed Shaft

Electric Motors

Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 6.44/3.22 A
L. R. Amperes 48.3/24.2 A
LRC 7.5x(Code L)
No load current 3.80/1.90 A
Rated torque 8.98 ft.lb
Locked rotor torque 300 %
Breakdown torque 350 %
Locked rotor time 55s (cold) 31s (hot)
Moment of inertia (J) 0.6210 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 87.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.5  87.5  88.5

Power factor

50% 75% 100%
0.46  0.58  0.66
Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 960 rpm
Slip 4.00 %
Rated voltage 380 V
Rated current 3.66 A
L. R. Amperes 22.0 A
LRC 6.0x(Code J)
No load current 1.90 A
Rated torque 10.9 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.6210 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 87.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  86.0  86.5

Power factor

50% 75% 100%
0.53  0.65  0.72
Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 400 V
Rated current 3.61 A
L. R. Amperes 24.2 A
LRC 6.7x(Code K)
No load current 2.05 A
Rated torque 10.9 ft.lb
Locked rotor torque 280 %
Breakdown torque 310 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.6210 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 87.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  86.5  87.0

Power factor

50% 75% 100%
0.49  0.62  0.69
Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 415 V
Rated current 3.58 A
L. R. Amperes 25.4 A
LRC 7.1x(Code L)
No load current 2.15 A
Rated torque 10.9 ft.lb
Locked rotor torque 310 %
Breakdown torque 340 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.6210 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 87.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.0  86.5  87.0

Power factor

50% 75% 100%
0.46  0.59  0.67

Features

Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Without fan
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
