/Products/Ball Bearings/6200 Series Ball Bearings/62062RDC3 Koyo Ball Bearing, Rubber Sealed
Click Image to Expand

Product ID: 6206-2RS

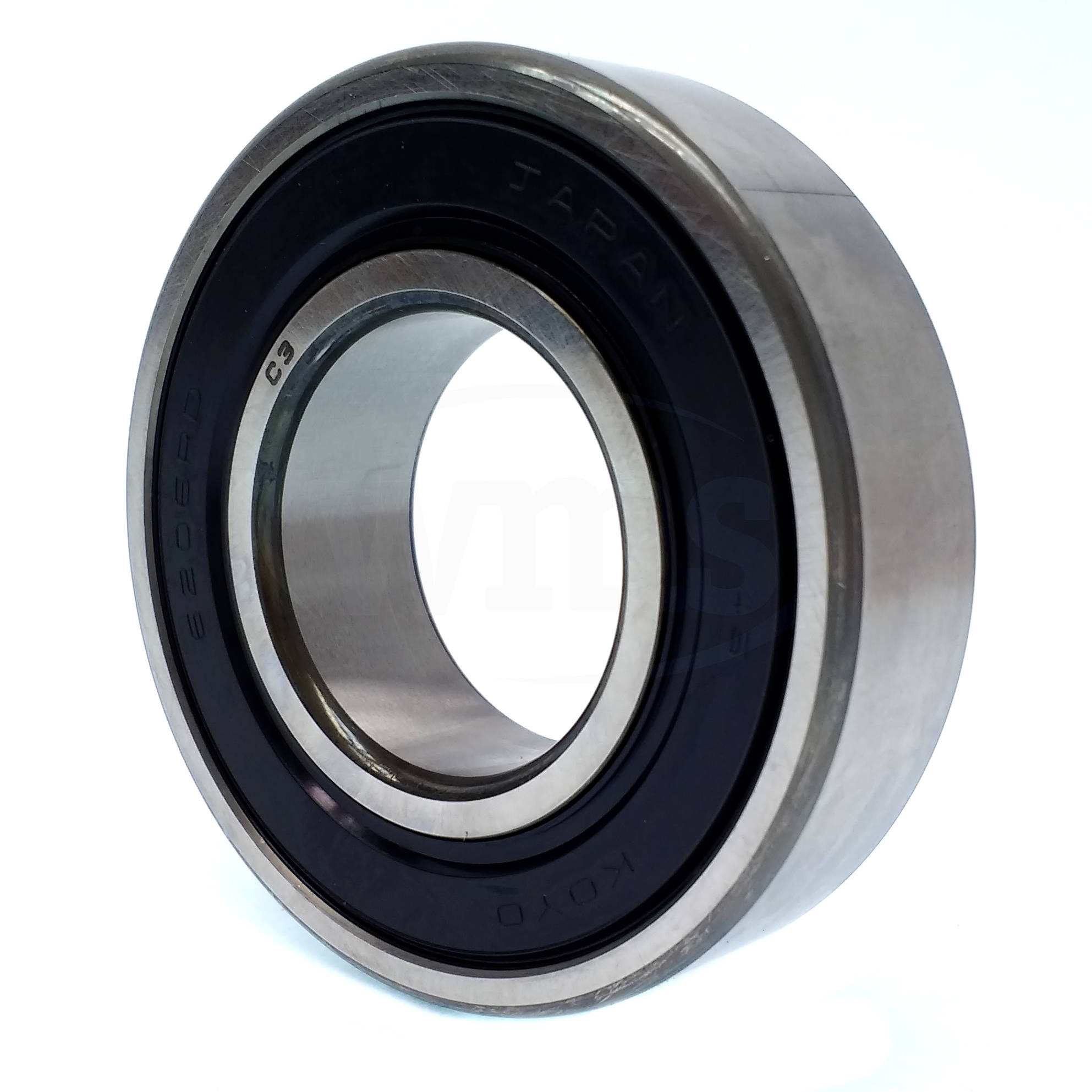

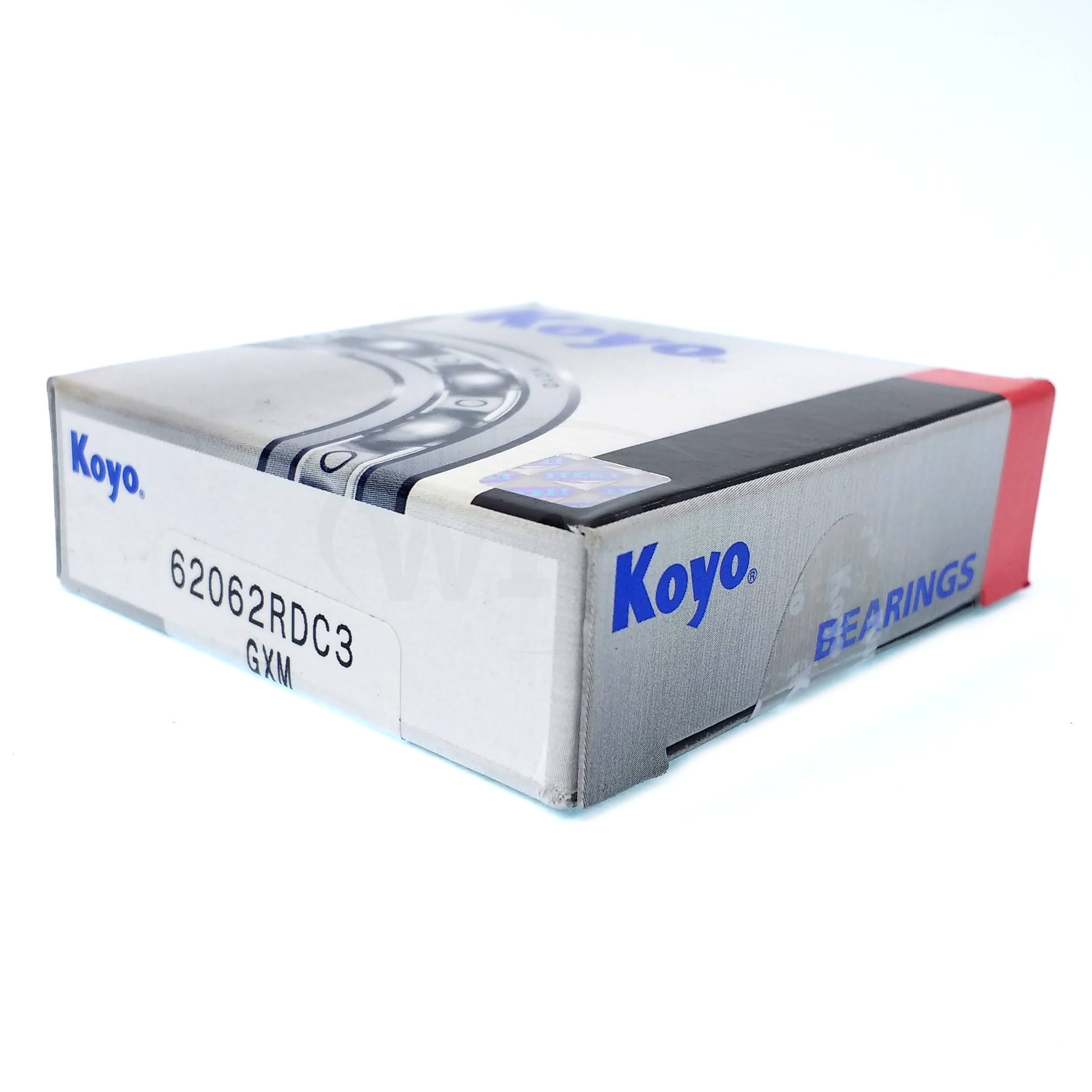

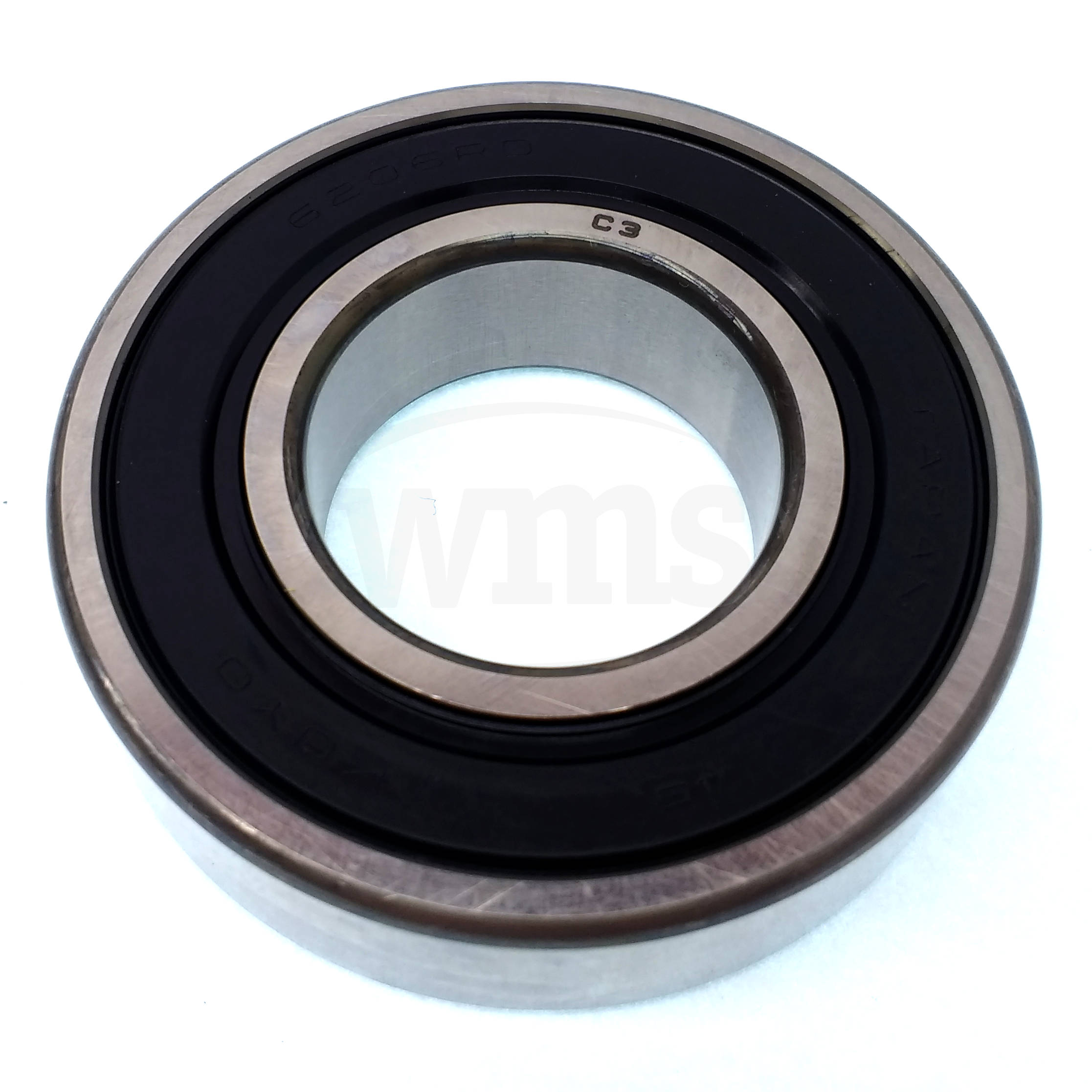

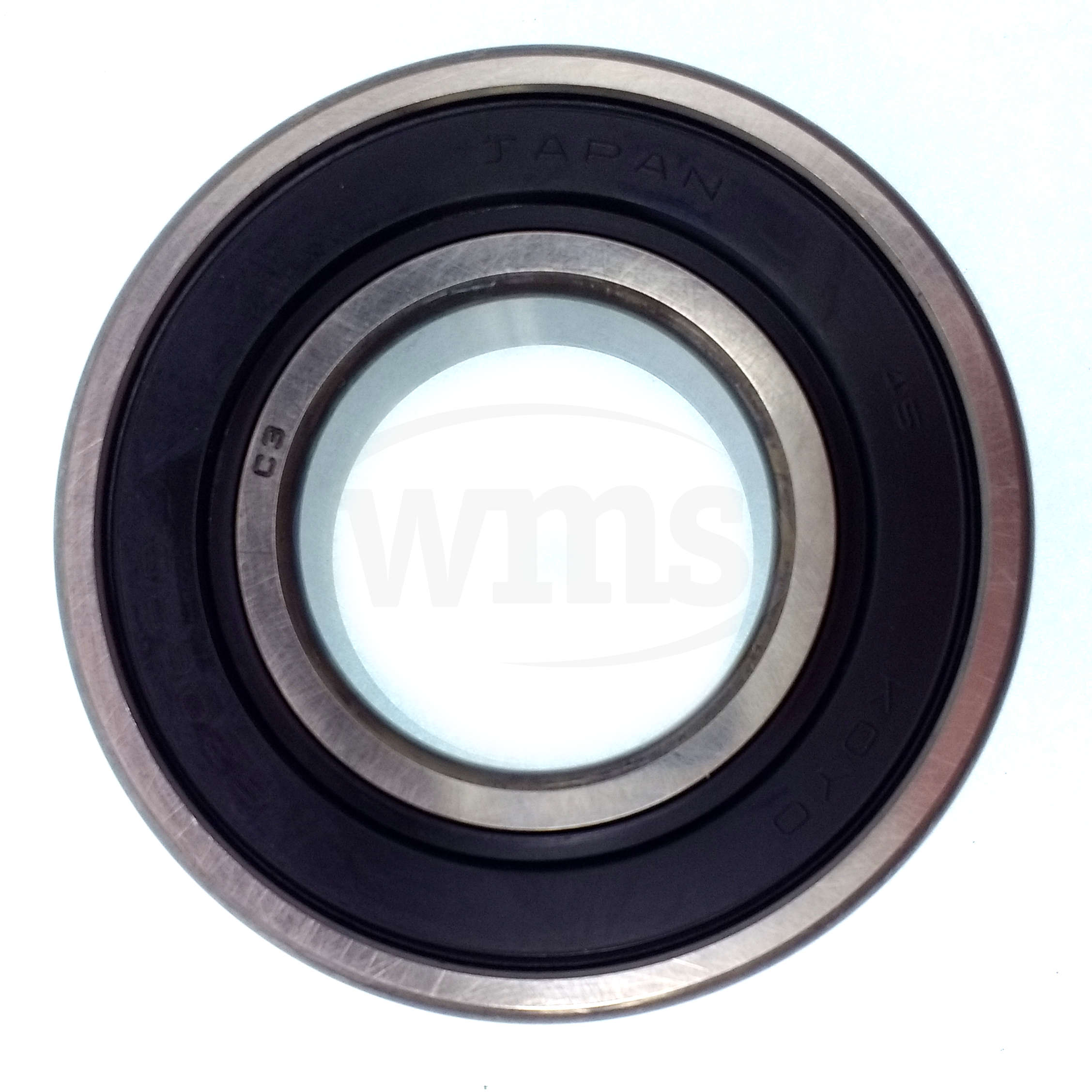

62062RDC3 Koyo Ball Bearing, Rubber Sealed

MFG: JTEKT Corporation
MFG Part Number: 62062RDC3

Temporarily out of stock
Selected accessories will also be added to cart
$16.48 / Each
6206-2RS, 30mm x 62mm x 16mm

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 62062RDC3
Group Deep Groove Ball Bearings

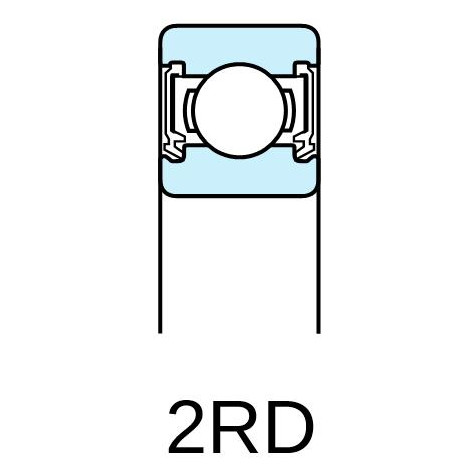

Type Extremely Light Contact Sealed (2RD)
Bore / Inside Diameter (d) 30 mm
Housing / Outside Diameter (D) 62 mm
Width (B) 16 mm
Minimum Radius (r) 1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 19.5 kN
C0r 11.3 kN
Limiting Speeds (Grease Lubrication) 9,900 min-1
Mass 0.199 kg
0.44 lbs
UPC 4549250156359
Country of Manufacture Japan
