/Products/Electric Motors/3 Phase/WEG/Air Handling/Cooling Tower/TEAO, F-2 Mounting/00718AT3HCT213T-W22 WEG 7.5 HP Cooling Tower Electric Motor, 1800 RPM

Product ID: 00718AT3HCT213T-W22

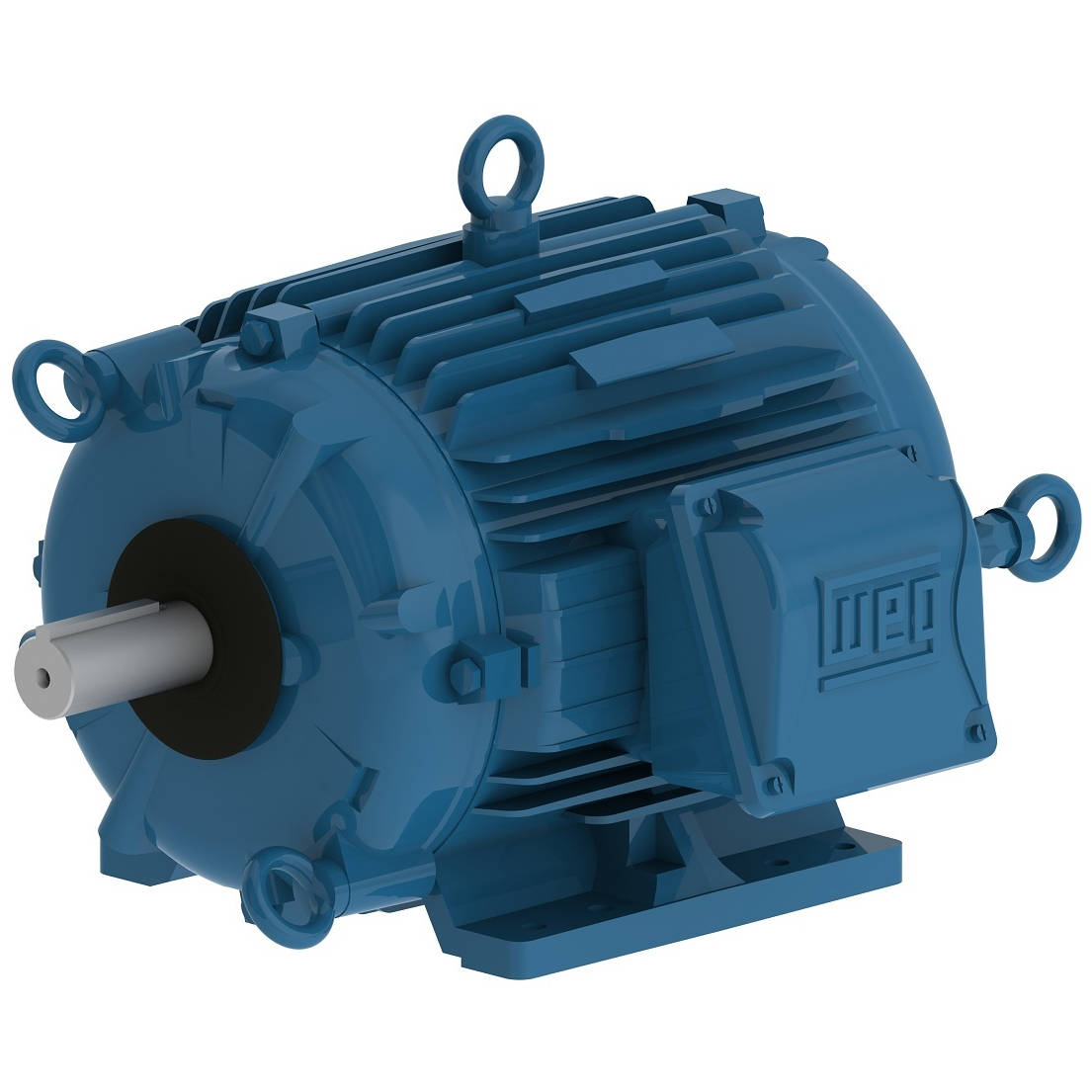

00718AT3HCT213T-W22 WEG 7.5 HP Cooling Tower Electric Motor, 1800 RPM

MFG: WEG Electric Corporation
MFG Part Number: 00718AT3HCT213T-W22

Selected accessories will also be added to cart

$999.00 / Each

Quantity:

IC410 - TEAO, IP55, 213T Frame, 575VAC 60Hz 3 Phase, 12128166, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213T
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	575 V
Rated current	7.34 A
L. R. Amperes	52.1 A
LRC	7.1x(Code H)
No load current	3.52 A
Rated torque	22.3 ft.lb
Locked rotor torque	220 %
Breakdown torque	310 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	1.34 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	58.0 dB(A)
Approx. weight³	160 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	91.0	91.7

Power factor

50%	75%	100%
0.66	0.76	0.82

Features

Frame Material	Cast Iron
Impregnation Method	Double impregnation polyester
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
