/Products/Electric Motors/3 Phase/WEG/Air Handling/Cooling Tower/TEAO, F-2 Mounting/01018AT3ECT215T-W22 WEG 10HP Cooling Tower Electric Motor, 1800RPM

Product ID: 01018AT3ECT215T-W22

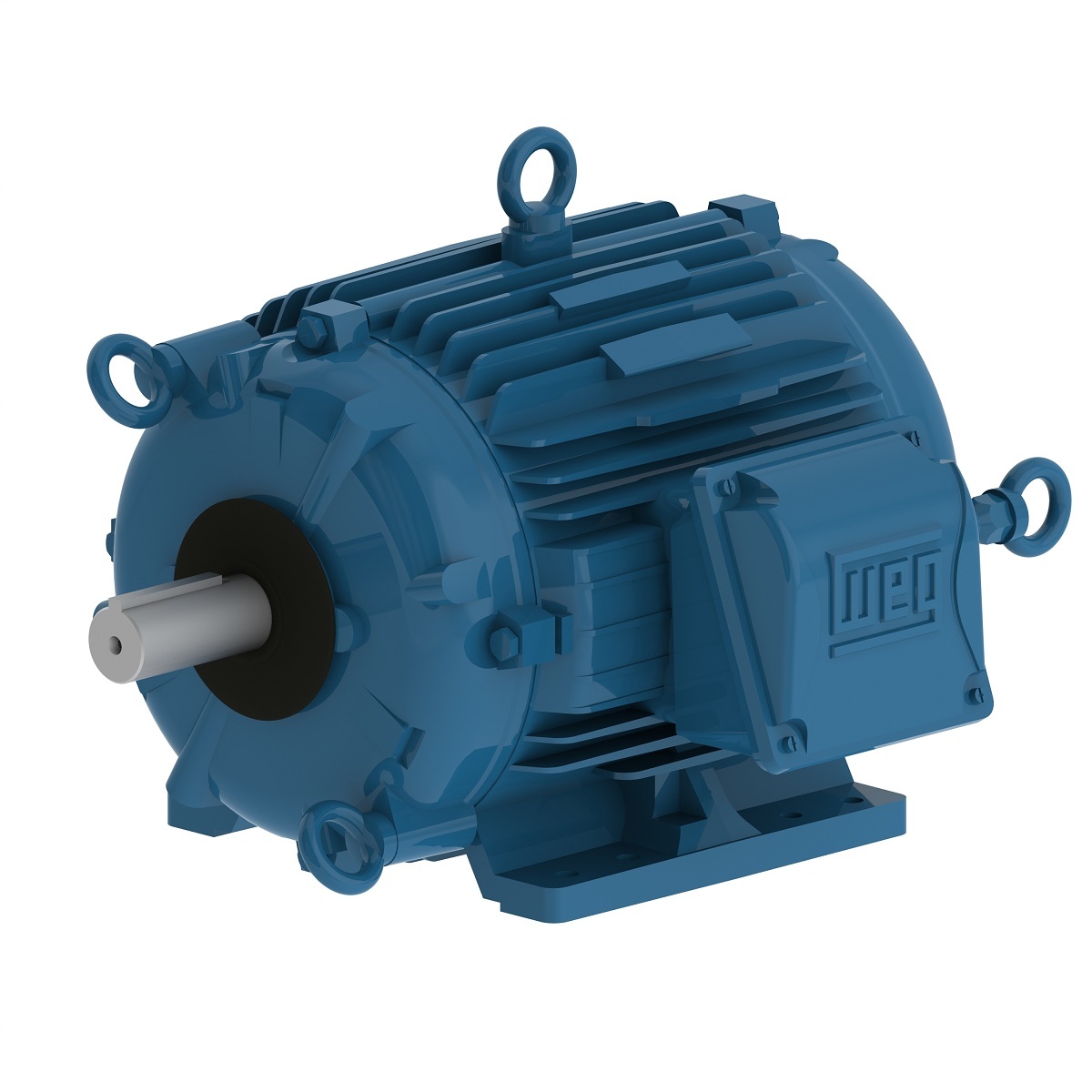

01018AT3ECT215T-W22 WEG 10HP Cooling Tower Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01018AT3ECT215T-W22

Selected accessories will also be added to cart

$1,139.25 / Each

Quantity:

IC410 - TEAO, IP55, 213T/215T Frame, 208-230/460VAC 60Hz 3 Phase, 12128174, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5T
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	208-230/460 V
Rated current	27.4-24.8/12.4 A
L. R. Amperes	176-159/79.4 A
LRC	6.4x(Code H)
No load current	9.74-11.3/5.65 A
Rated torque	29.8 ft.lb
Locked rotor torque	200 %
Breakdown torque	295 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	1.51 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	58.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	91.7

Power factor

50%	75%	100%
0.66	0.77	0.83

Frame	213/5T
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	380 V
Rated current	11.2 A
L. R. Amperes	75.0 A
LRC	6.7x(Code H)
No load current	5.60 A
Rated torque	26.9 ft.lb
Locked rotor torque	200 %
Breakdown torque	300 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	1.51 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.0	90.0	89.8

Power factor

50%	75%	100%
0.62	0.76	0.83

Frame	213/5T
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	11.0 A
L. R. Amperes	78.1 A
LRC	7.1x(Code J)
No load current	6.00 A
Rated torque	26.8 ft.lb
Locked rotor torque	240 %
Breakdown torque	340 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	1.51 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.2	89.9	90.1

Power factor

50%	75%	100%
0.58	0.73	0.80

Frame	213/5T
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	10.9 A
L. R. Amperes	81.7 A
LRC	7.5x(Code J)
No load current	6.35 A
Rated torque	26.8 ft.lb
Locked rotor torque	260 %
Breakdown torque	360 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	1.51 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.7	89.8	90.3

Power factor

50%	75%	100%
0.55	0.70	0.78

Frame	213/5T
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1450 rpm
Slip	3.33 %
Rated voltage	380 V
Rated current	15.0 A
L. R. Amperes	76.5 A
LRC	5.1x(Code F)
No load current	5.60 A
Rated torque	36.2 ft.lb
Locked rotor torque	150 %
Breakdown torque	220 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	1.51 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.3	90.2	88.5

Power factor

50%	75%	100%
0.73	0.82	0.86

Frame	213/5T
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	400 V
Rated current	14.2 A
L. R. Amperes	79.5 A
LRC	5.6x(Code F)
No load current	6.00 A
Rated torque	36.1 ft.lb
Locked rotor torque	180 %
Breakdown torque	250 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	1.51 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.3	90.2	89.5

Power factor

50%	75%	100%
0.69	0.80	0.85

Frame	213/5T
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	13.8 A
L. R. Amperes	82.8 A
LRC	6.0x(Code G)
No load current	6.35 A
Rated torque	36.0 ft.lb
Locked rotor torque	190 %
Breakdown torque	270 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	1.51 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.3	90.2	90.2

Power factor

50%	75%	100%
0.66	0.78	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Double impregnation polyester
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
