/Products/Electric Motors/3 Phase/WEG/Air Handling/Cooling Tower/TEAO, F-2 Mounting/00518AT3PCT184T-W22 WEG 5HP Cooling Tower Electric Motor, 1800RPM

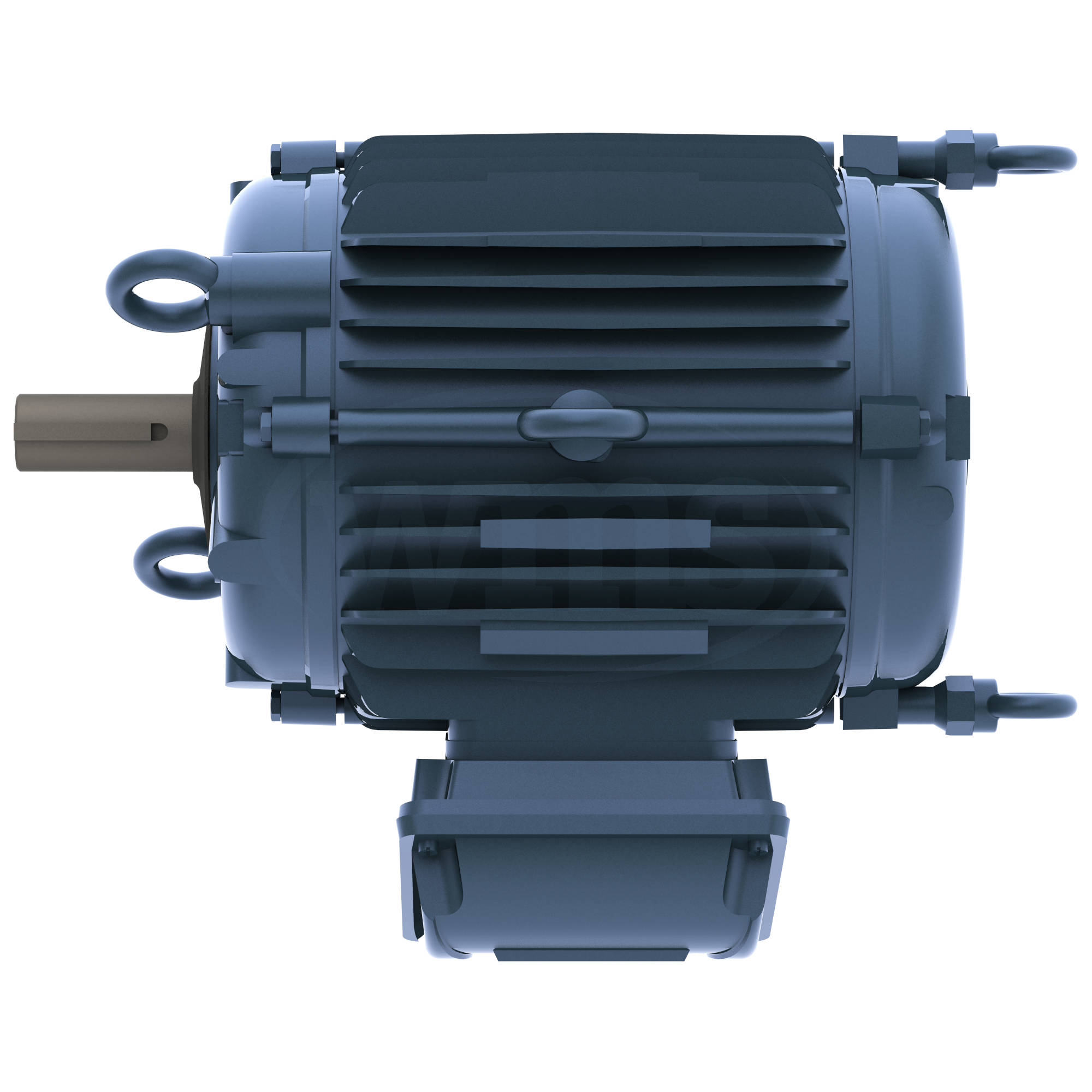

Click Image to Expand

Product ID: 00518AT3PCT184T-W22

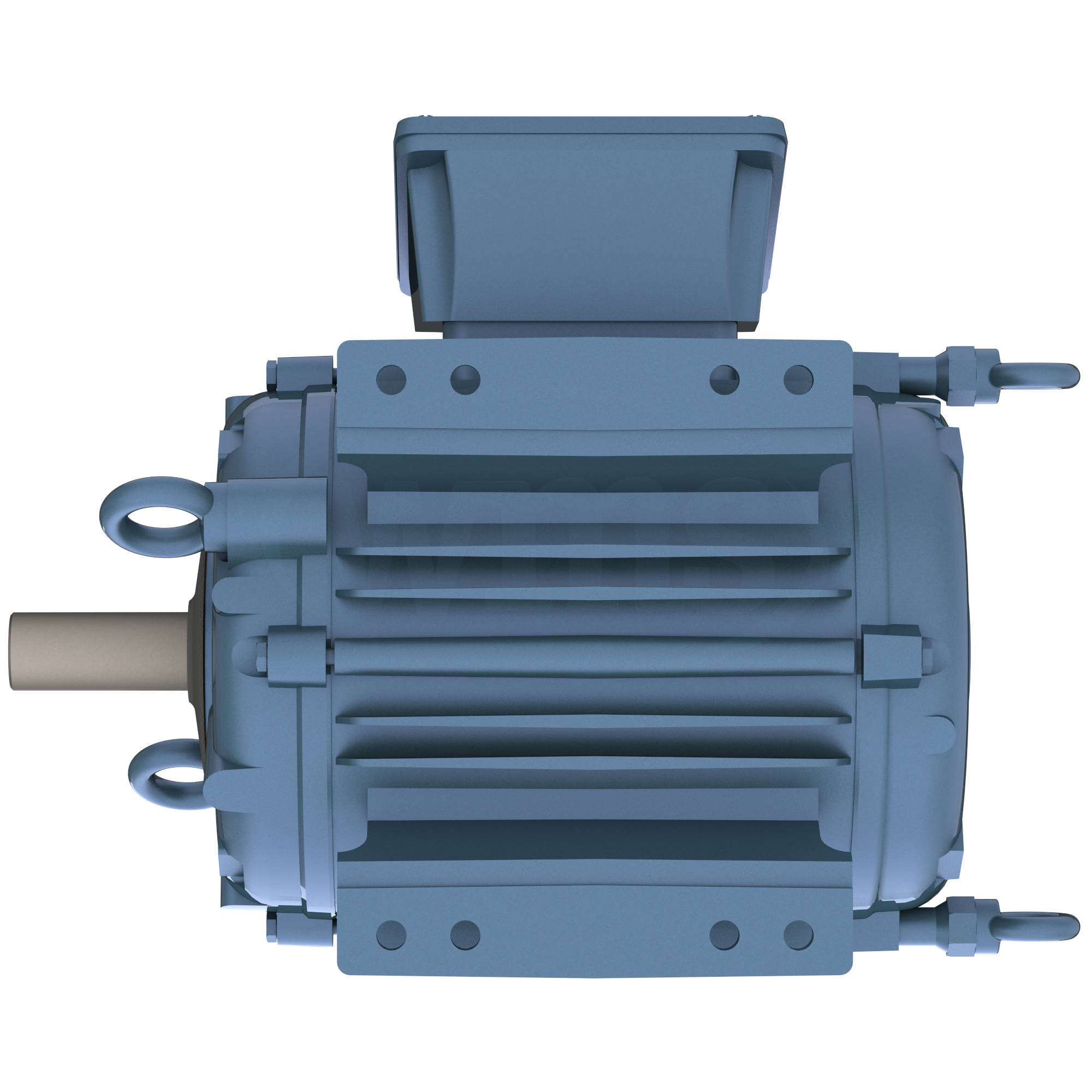

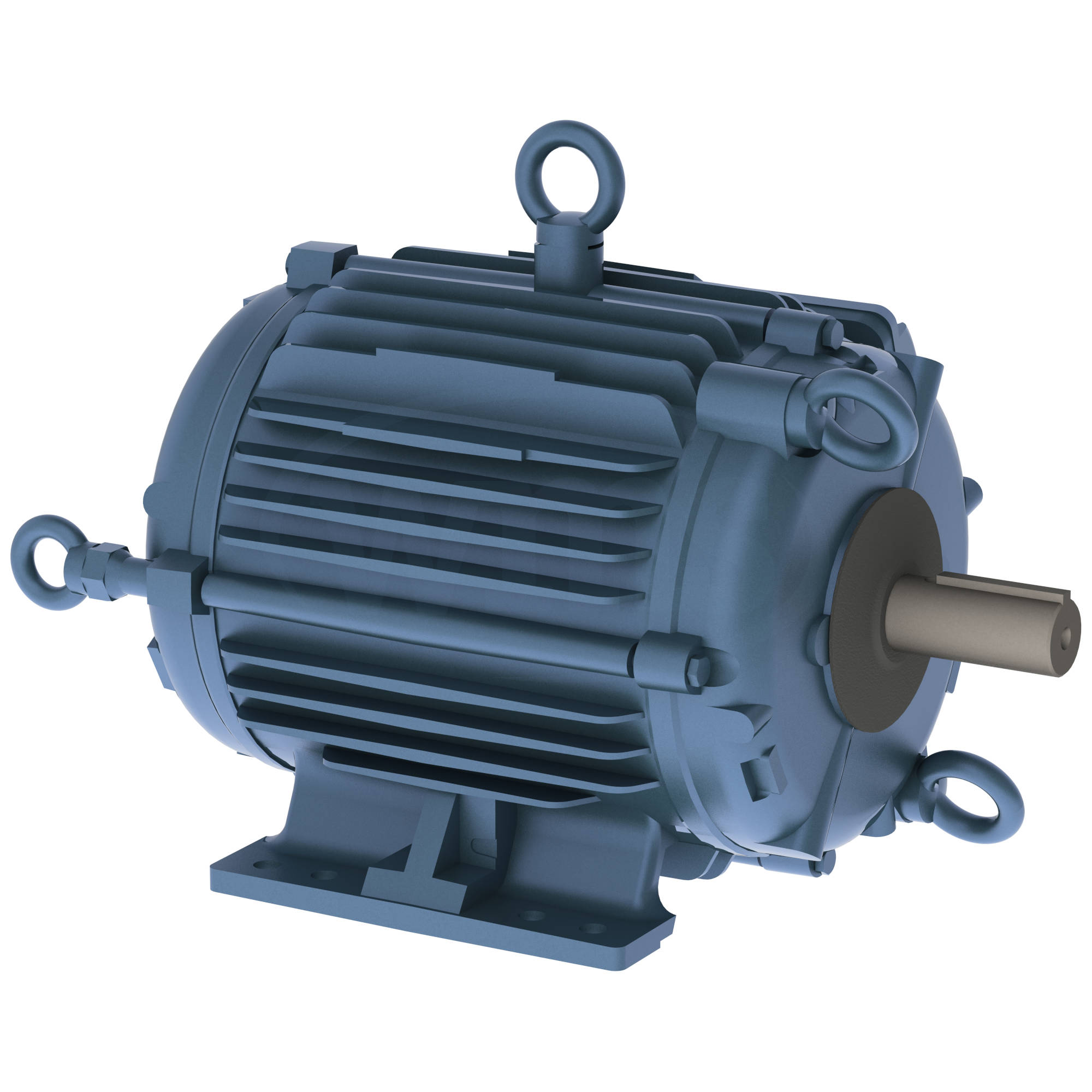

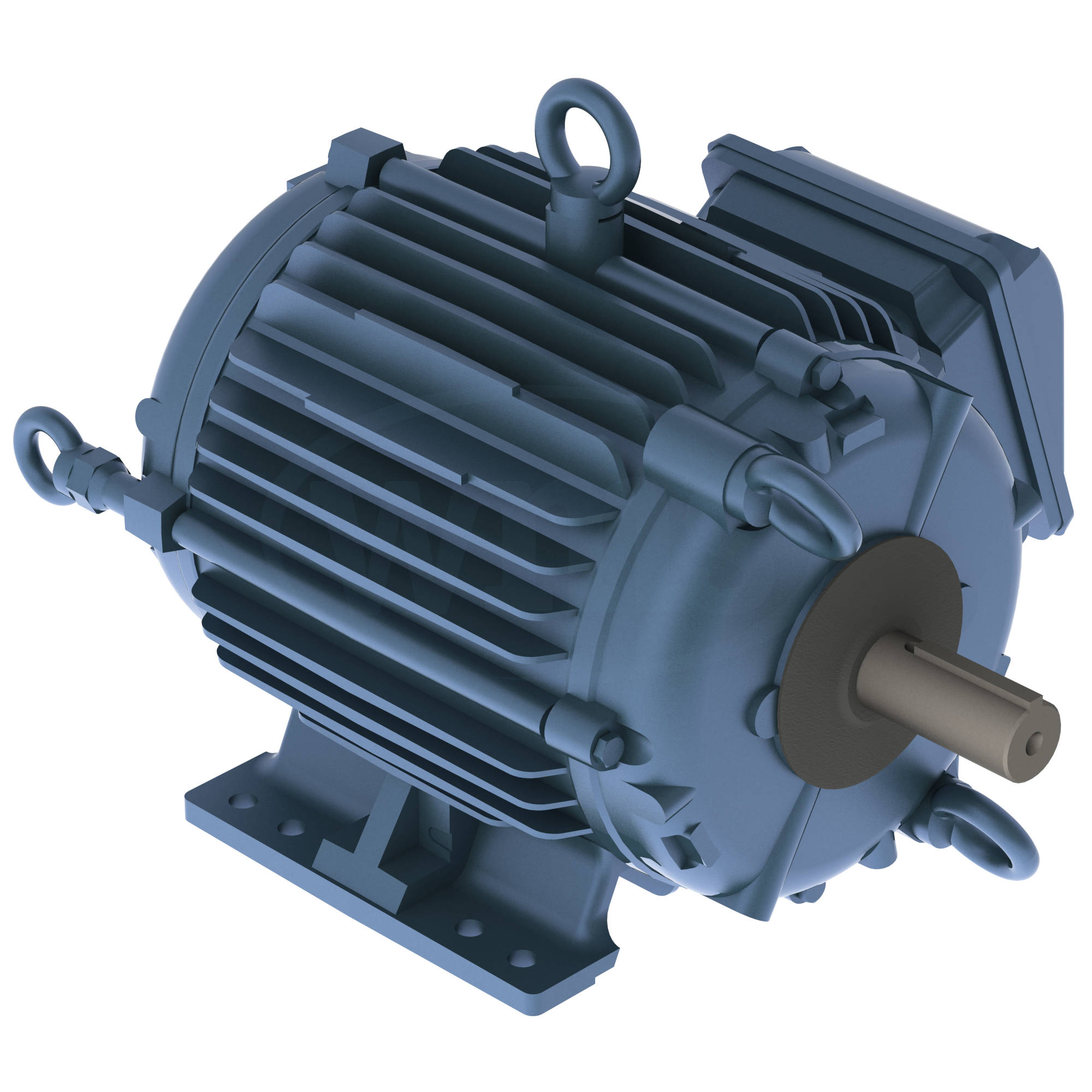

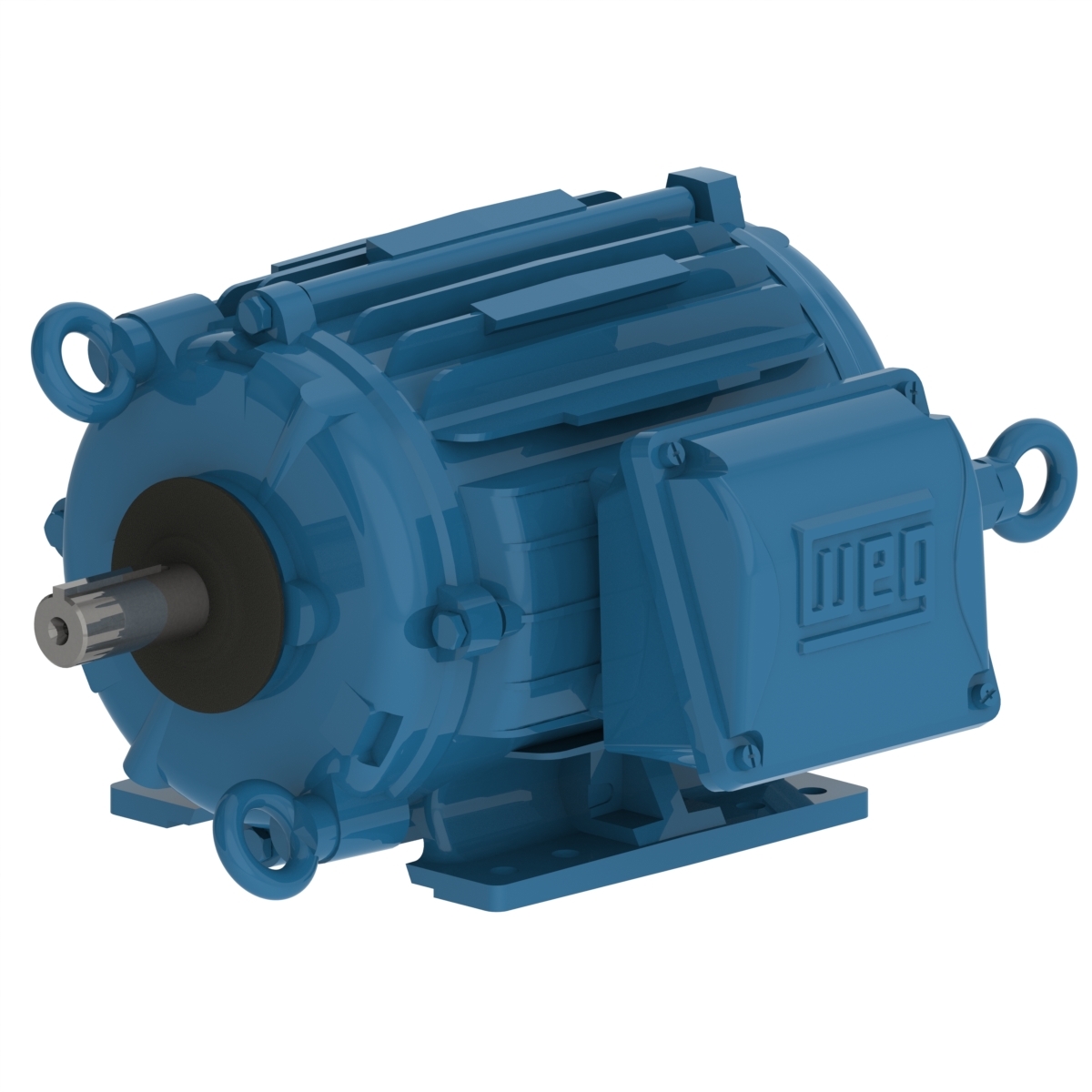

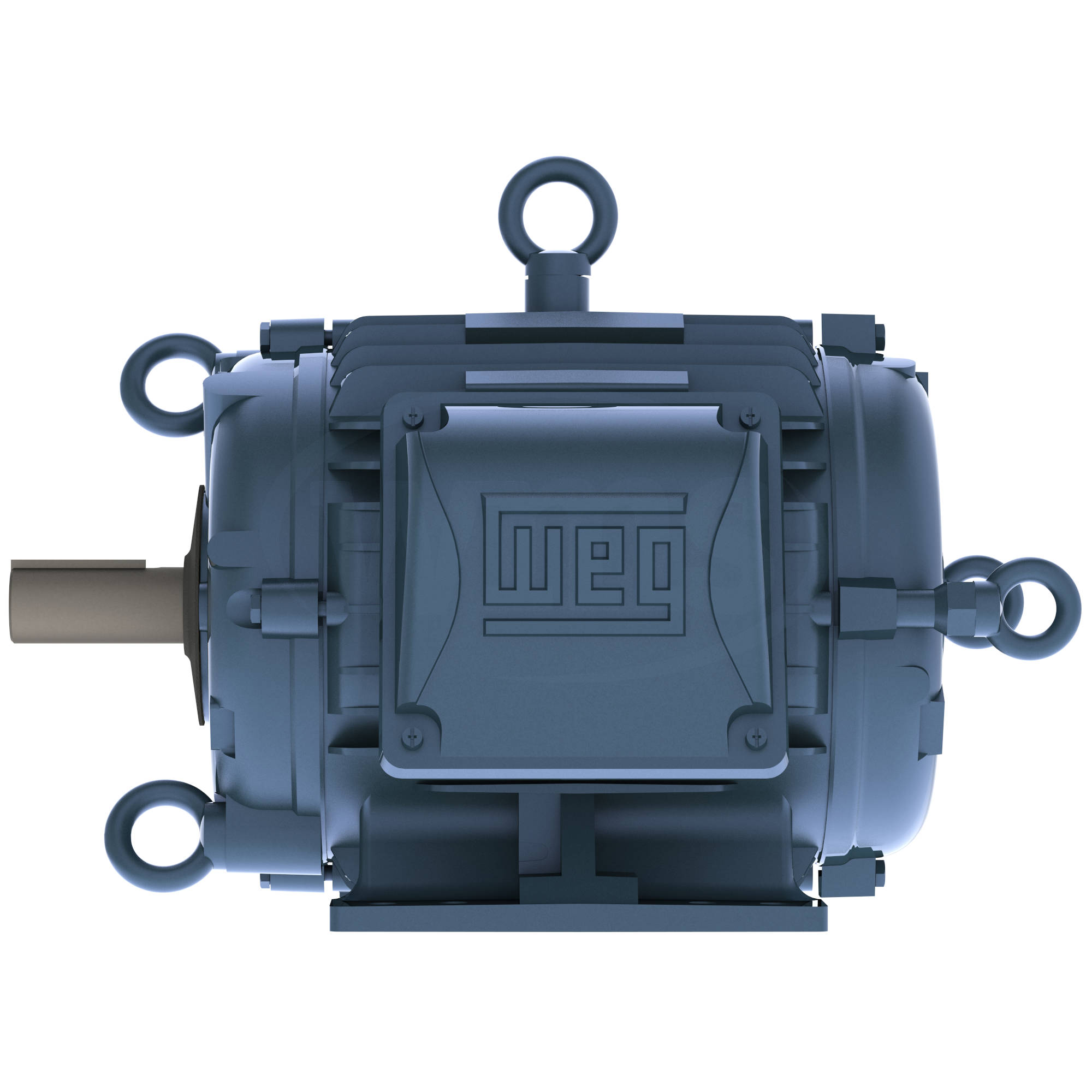

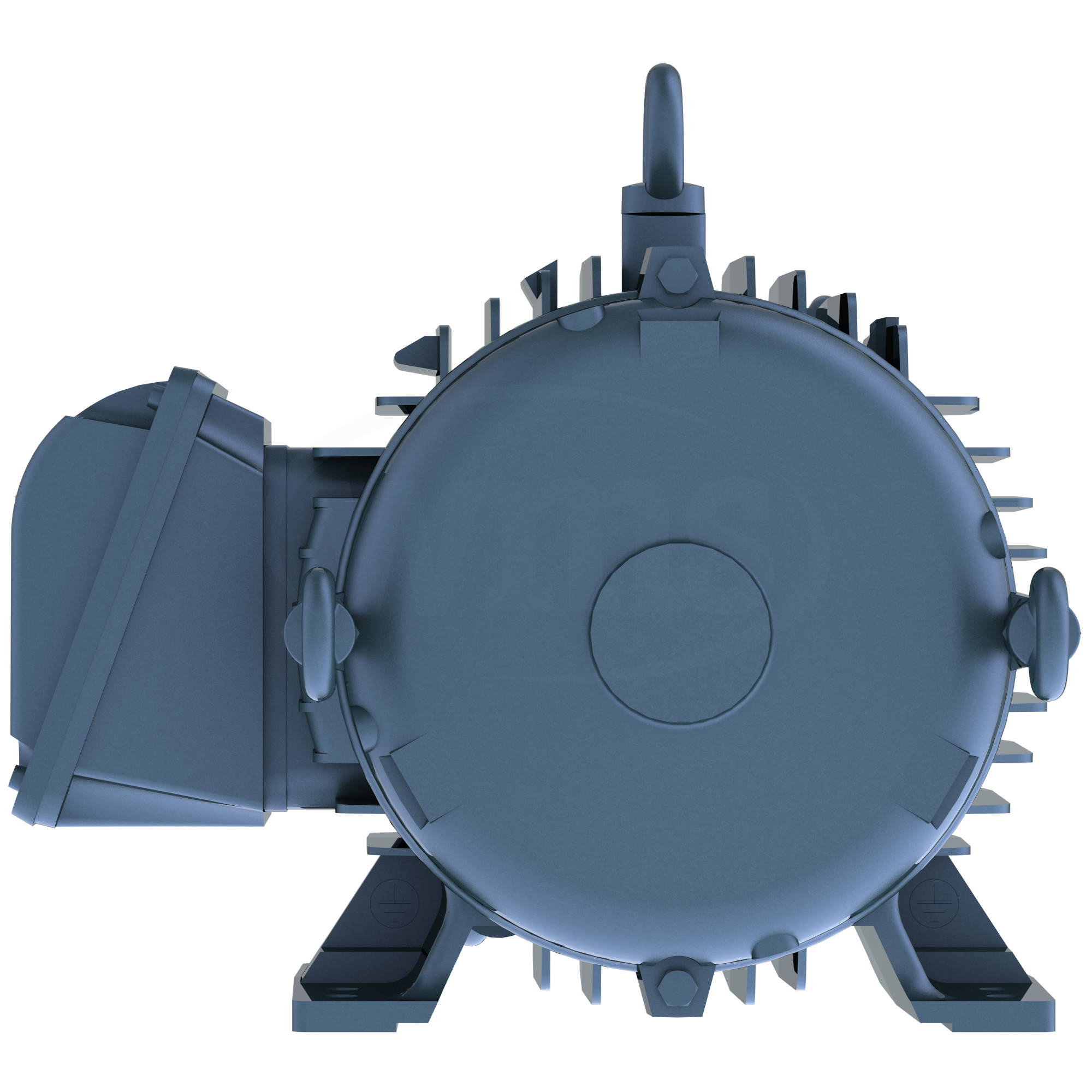

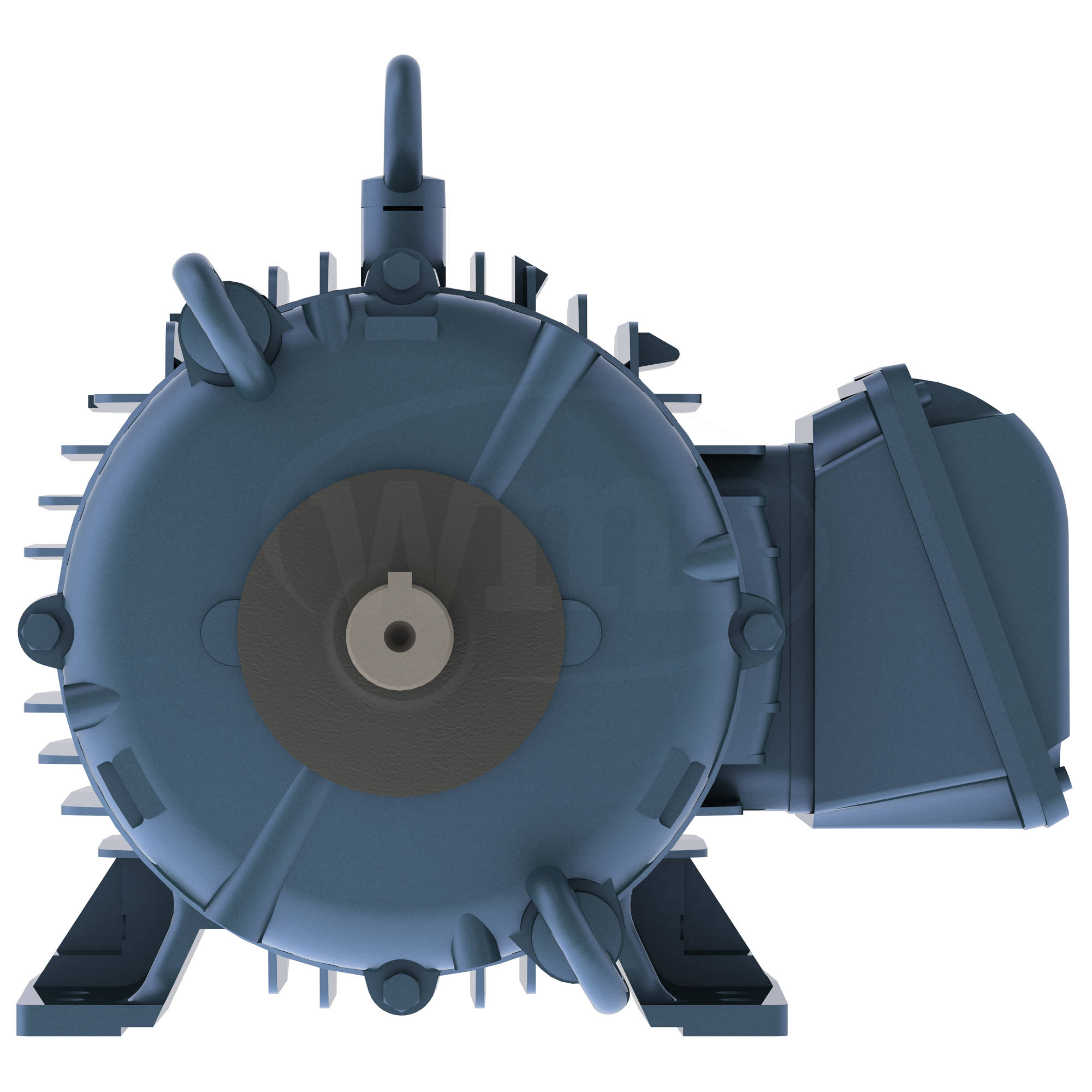

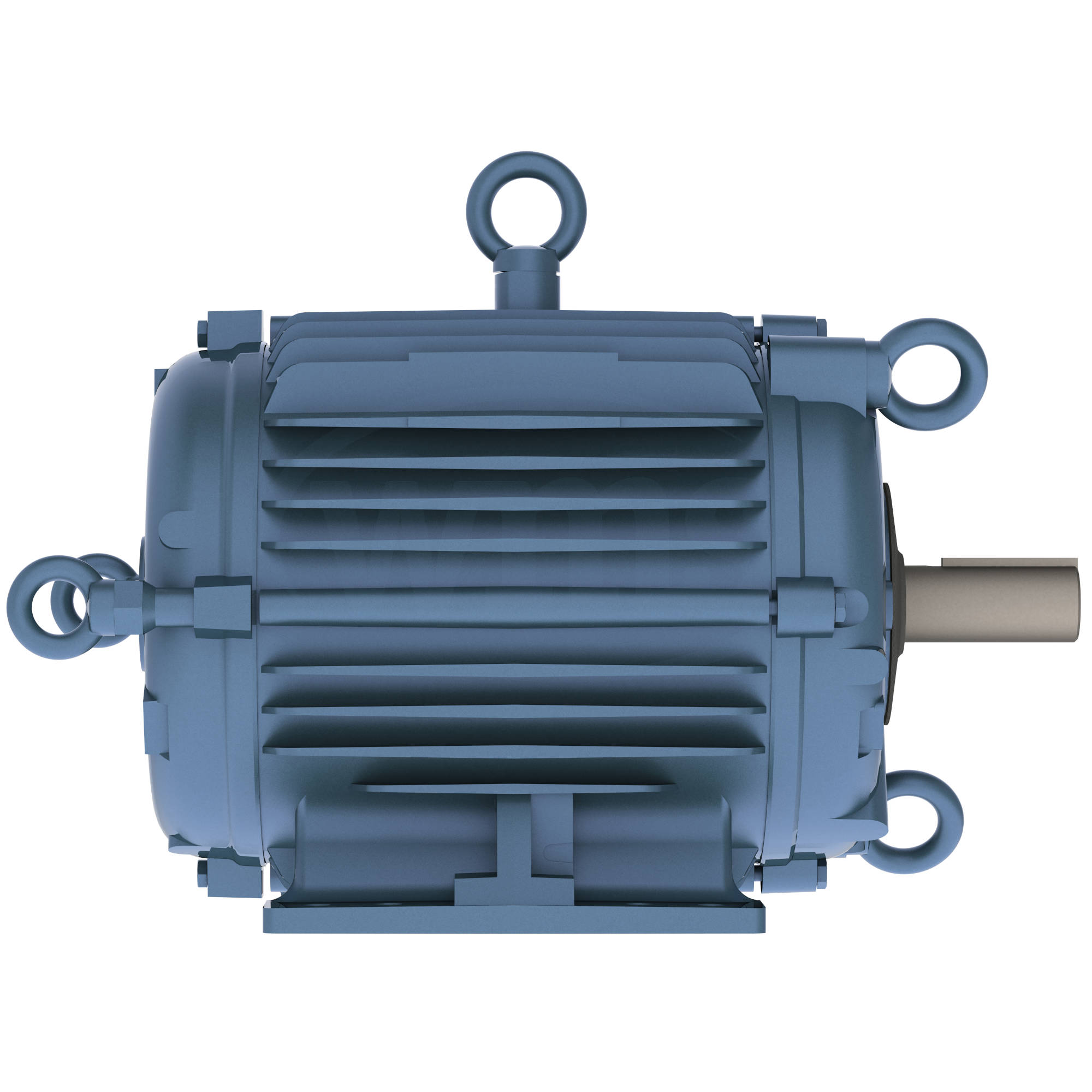

00518AT3PCT184T-W22 WEG 5HP Cooling Tower Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00518AT3PCT184T-W22

Selected accessories will also be added to cart
$690.75 / Each
Quantity:
IC410 - TEAO, IP55, 182T/184T Frame, 200VAC 60Hz 3 Phase, 12127767, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-1/8" Keyed Shaft

Electric Motors

Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 200 V
Rated current 14.8 A
L. R. Amperes 111 A
LRC 7.5x(Code J)
No load current 7.36 A
Rated torque 15.0 ft.lb
Locked rotor torque 229 %
Breakdown torque 320 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 102 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  89.5  89.5

Power factor

50% 75% 100%
0.62  0.74  0.80

Features

Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Without fan
Bearing cap No-Without Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
