/Products/Electric Motors/Air Compressor/Leeson/5HP Compressor Motor, Ingersoll Rand Replacement 23220064, 23378805 & 54421193
Click Image to Expand

Product ID: 120554RB

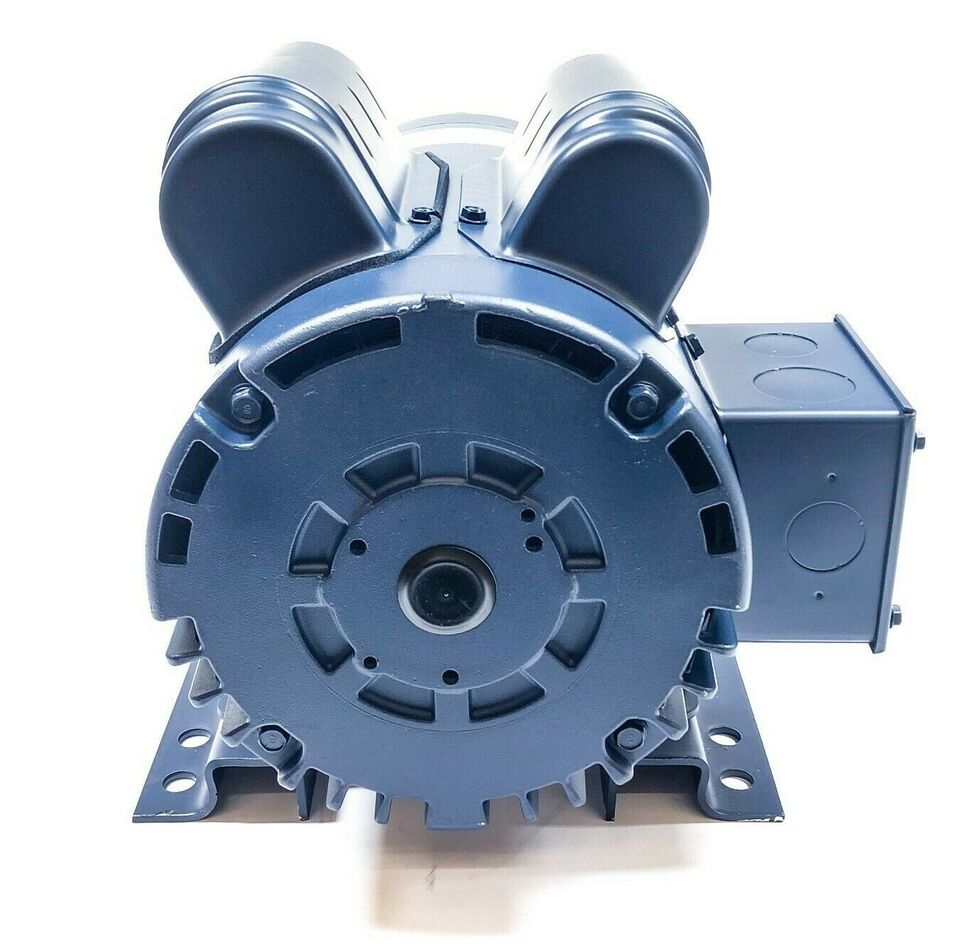

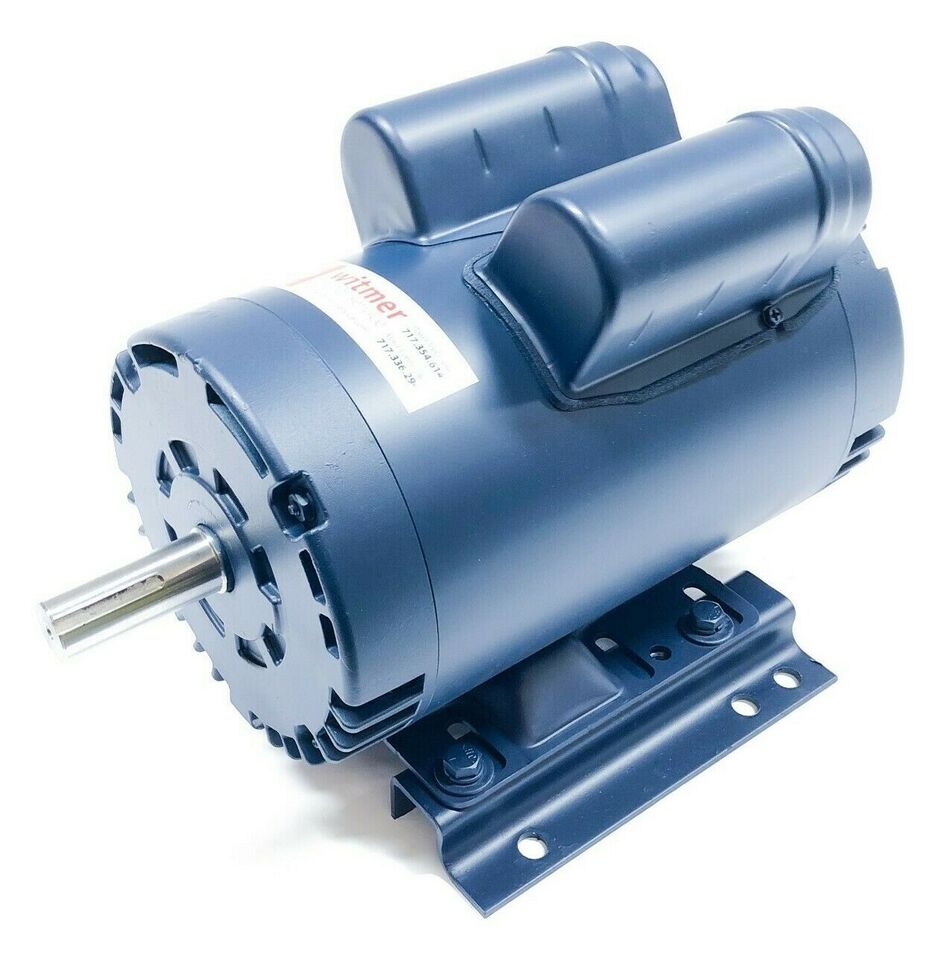

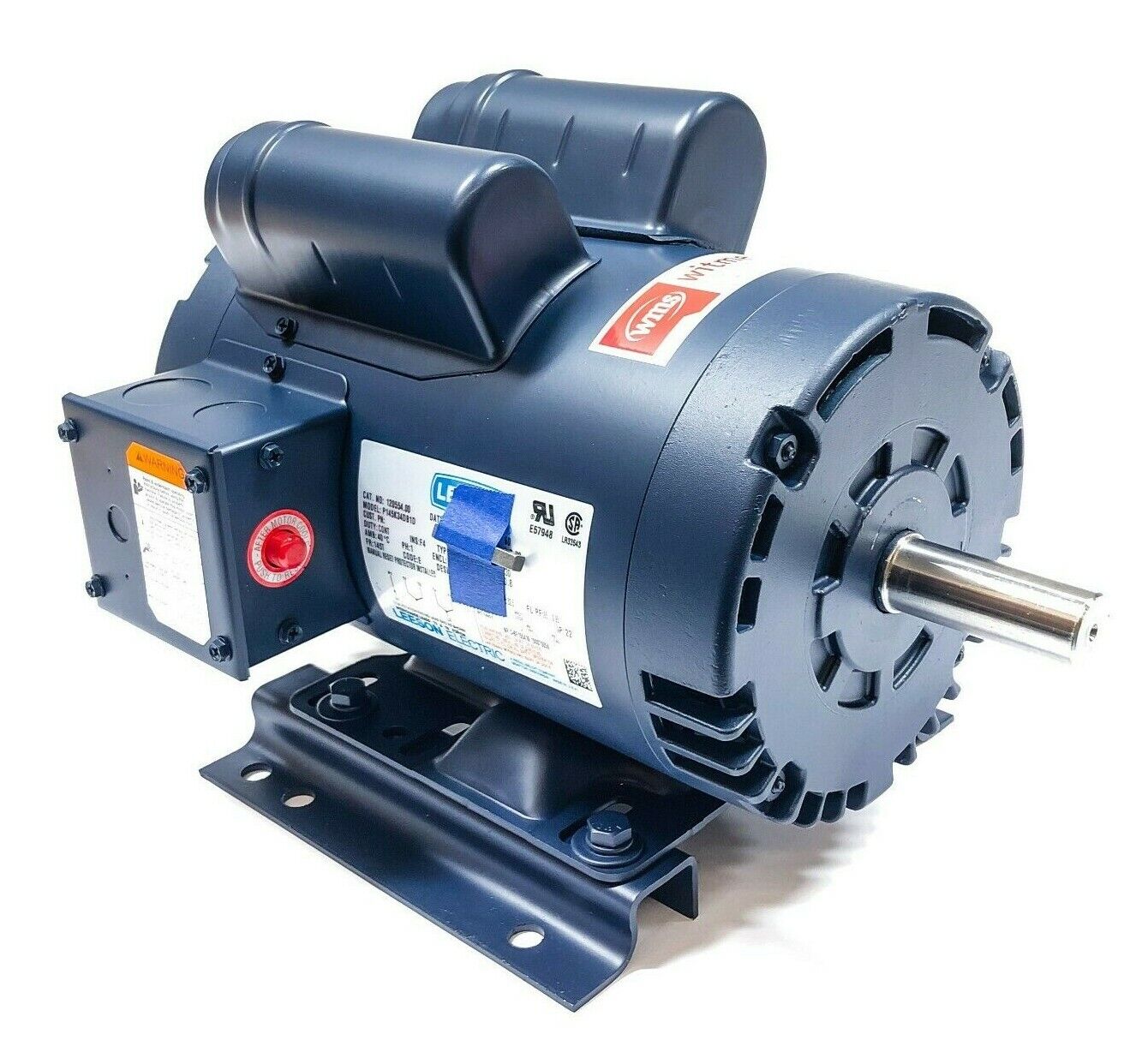

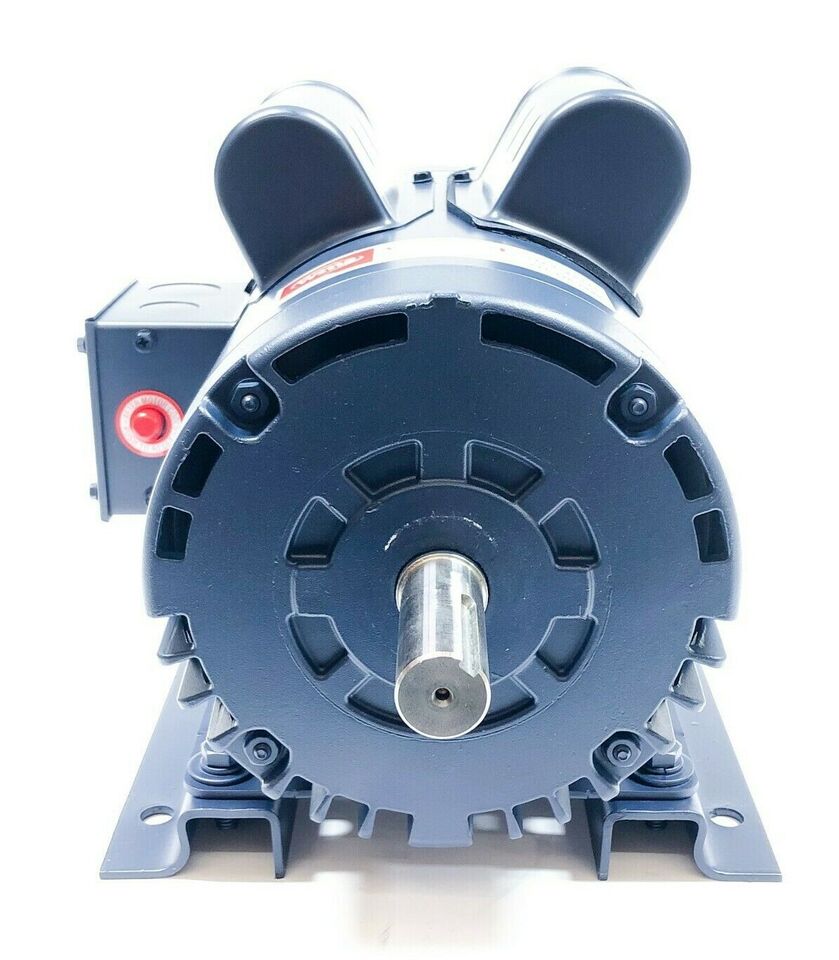

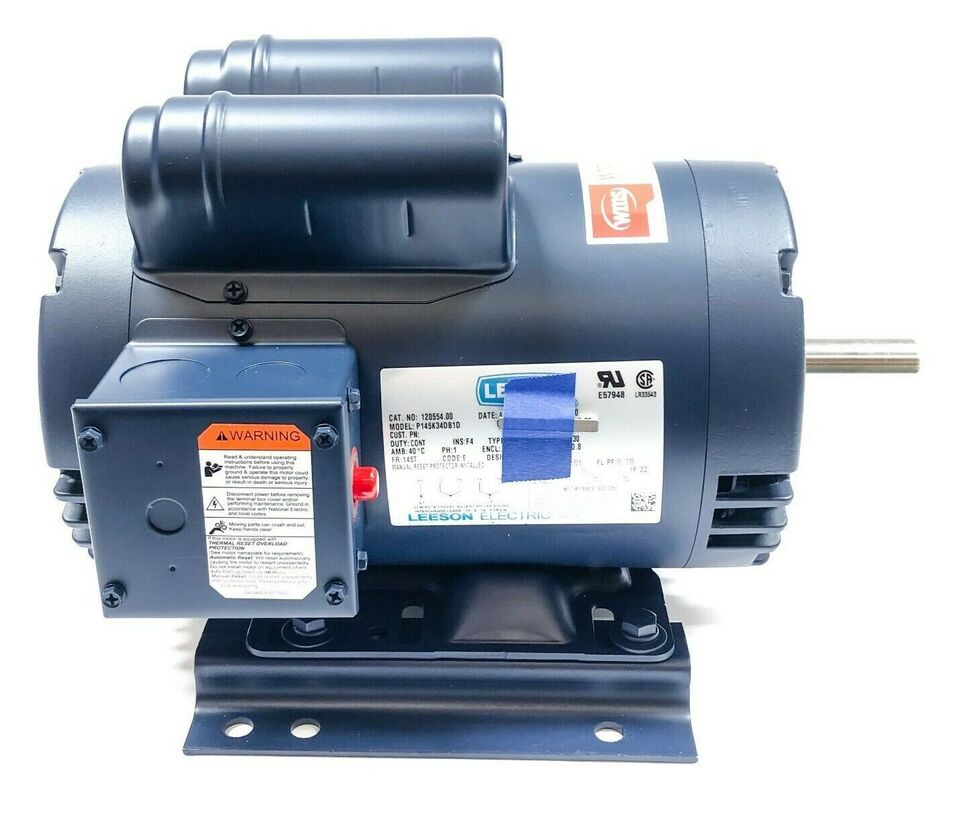

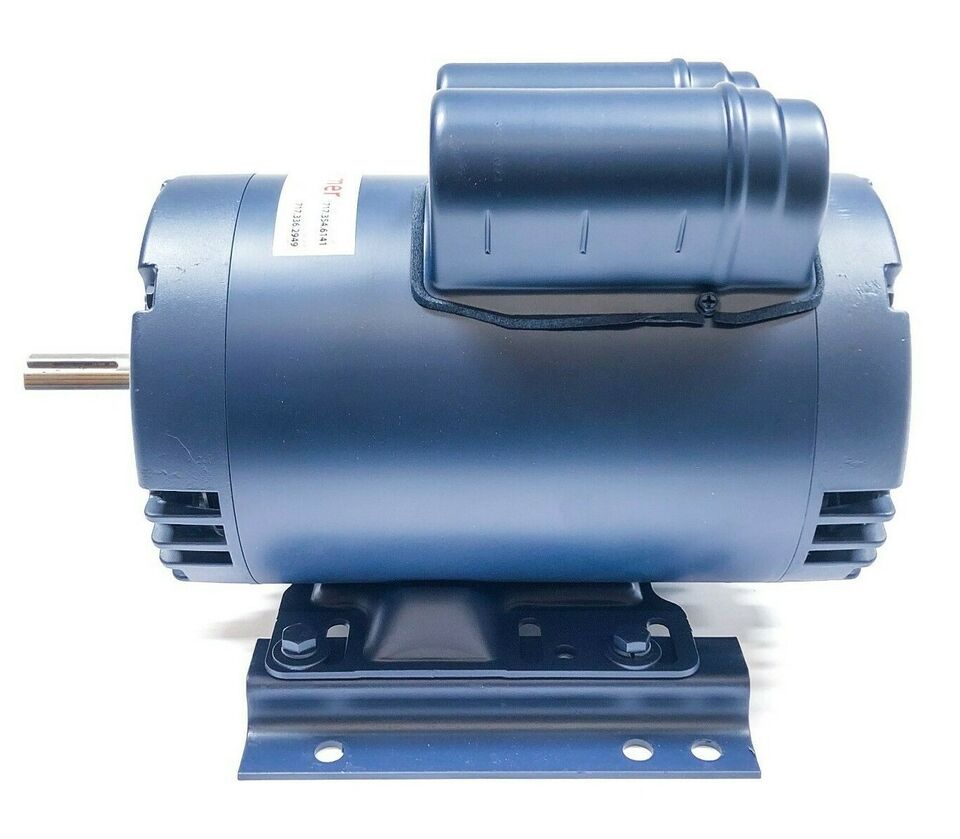

5HP Compressor Motor, Ingersoll Rand Replacement 23220064, 23378805 & 54421193

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 120554RB

Available Stock: 1
Selected accessories will also be added to cart
$499.97 / Each
Quantity:
Accessories
Select any of the accessories below to purchase them with this inventory item:
Leeson 5HP Replacement Electric Motor for Air Compressors

Replaces WEG 00636OS1XCD182/4Y, Ingersoll Rand 23220064, 23378805 & 54421193, A.O. Smith Century B384, & others.
Comes with a 1 Year Warranty

This motor is made in the U.S.A.

HP: 5

RPM: 3450

Frame 56Y/182/184Y

Voltage: 230

Amps: 20.8

SF: 1.0

Efficiency: 82.5 %

Rotation: Reversible

Weight: 51 lbs

Shaft: 7/8"
