/Products/Ball Bearings/6200 Series Ball Bearings/6205ZZC3 Koyo Ball Bearing, Shielded
Click Image to Expand

Product ID: 6205-ZZC3

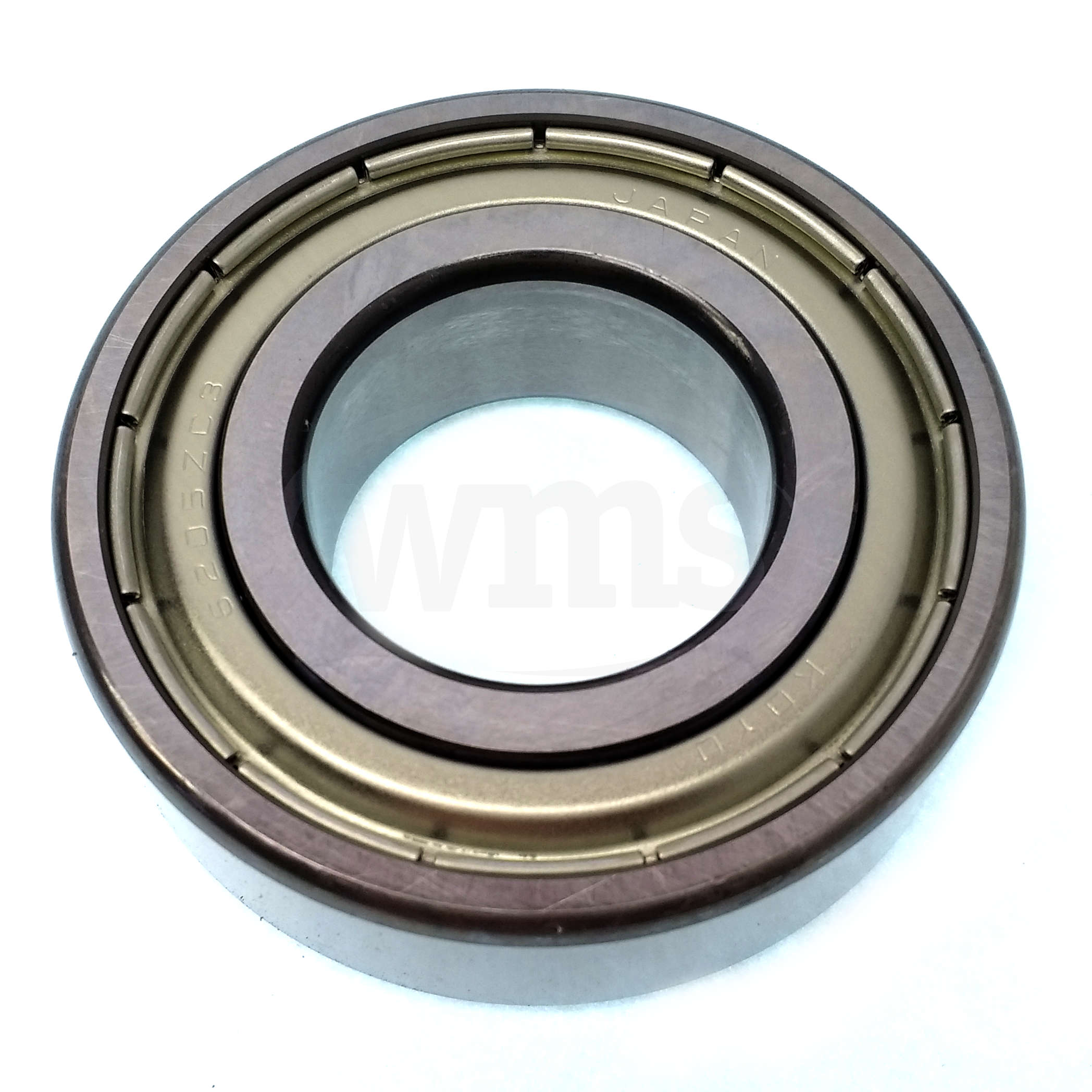

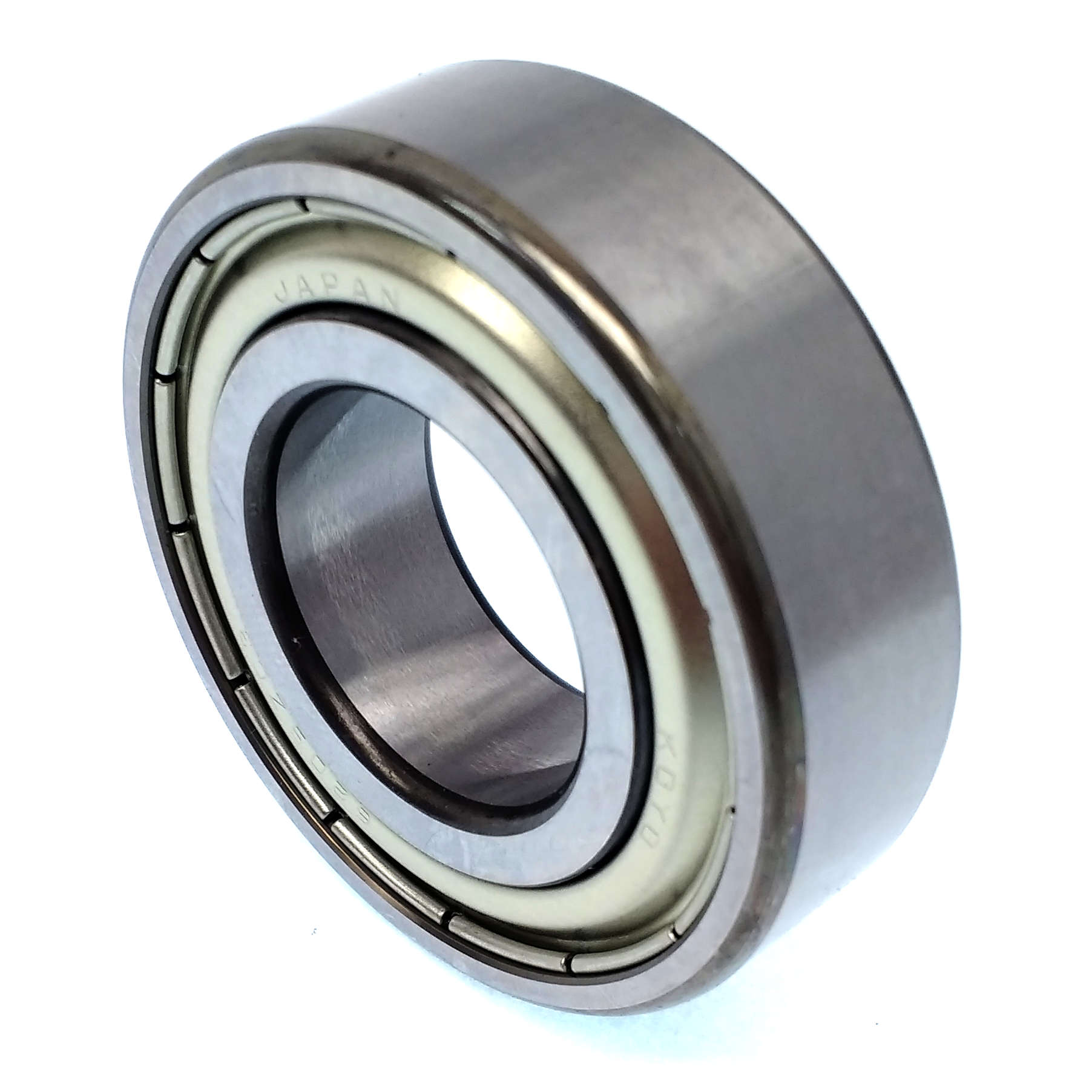

6205ZZC3 Koyo Ball Bearing, Shielded

MFG: JTEKT Corporation
MFG Part Number: 6205ZZC3

Available Stock: 11
Selected accessories will also be added to cart
$11.84 / Each
Quantity:
6205-ZZC3, 25mm x 52mm x 15mm
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6205ZZC3
Group Deep Groove Ball Bearings

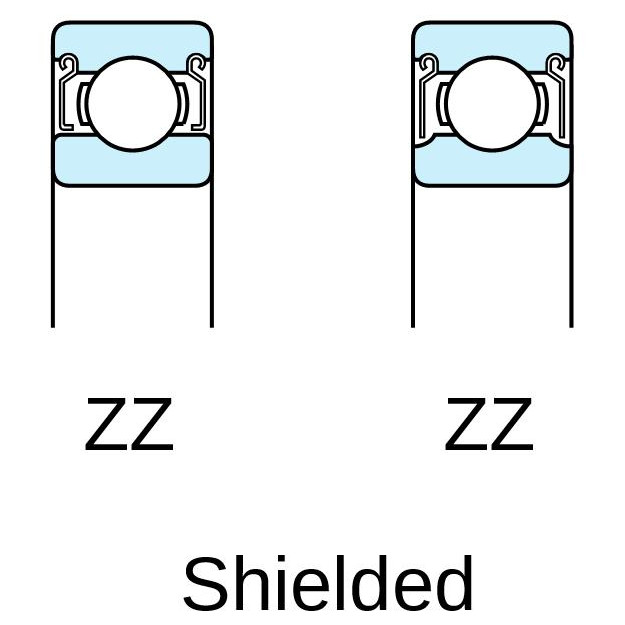

Type Shielded (ZZ)

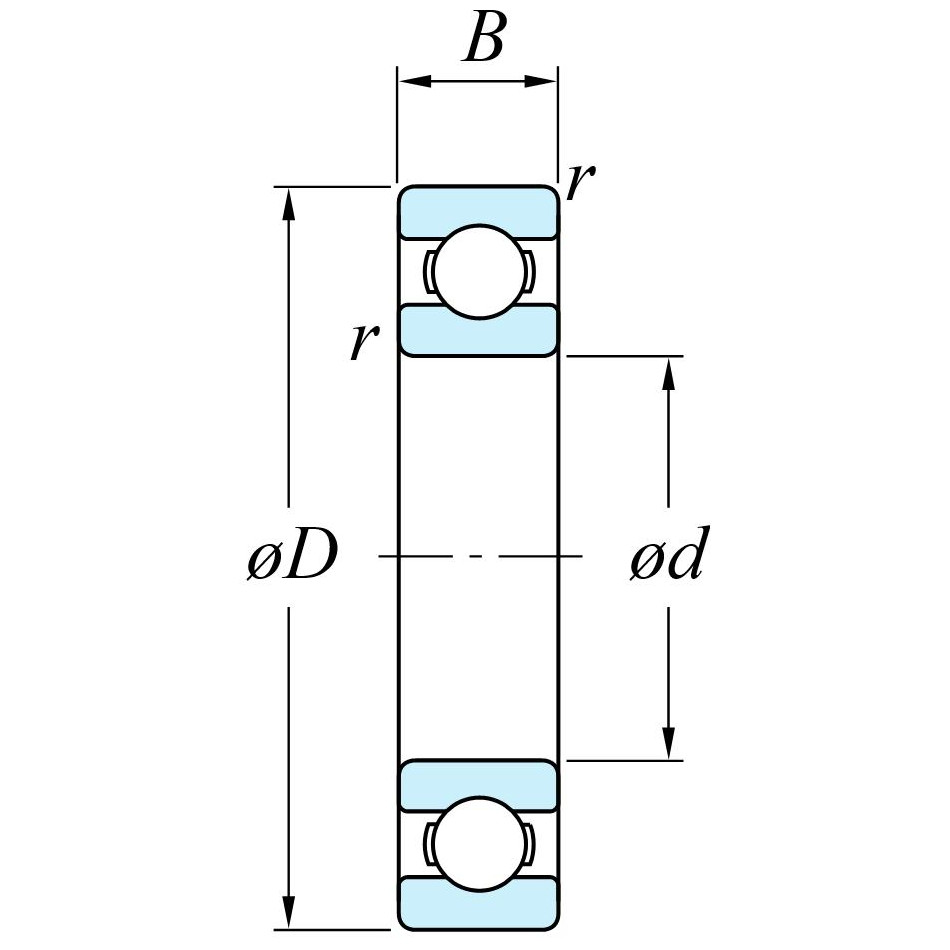

Bore / Inside Diameter (d) 25 mm
Housing / Outside Diameter (D) 52 mm
Width (B) 15 mm
Minimum Radius (r) 1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 14.0 kN
C0r 7.85 kN
Fatigue Load Limit (Cu) 0.550 kN
Factor (f0) 13.9
Limiting Speeds (Grease Lubrication) 13,000 min-1
Shaft Shoulder Mounting Dimension (da) 30 mm Minimum
31.5 mm Maximum
Housing Shoulder Mounting Dimension (Da) 47 mm Maximum
Shoulder Radius (ra) 1 mm Maximum
Mass 0.128 kg
0.29 lbs
UPC 4549250155154
Country of Manufacture Japan
