/Products/Ball Bearings/6200 Series Ball Bearings/62052RDC3 Koyo Ball Bearing, Rubber Sealed
Click Image to Expand

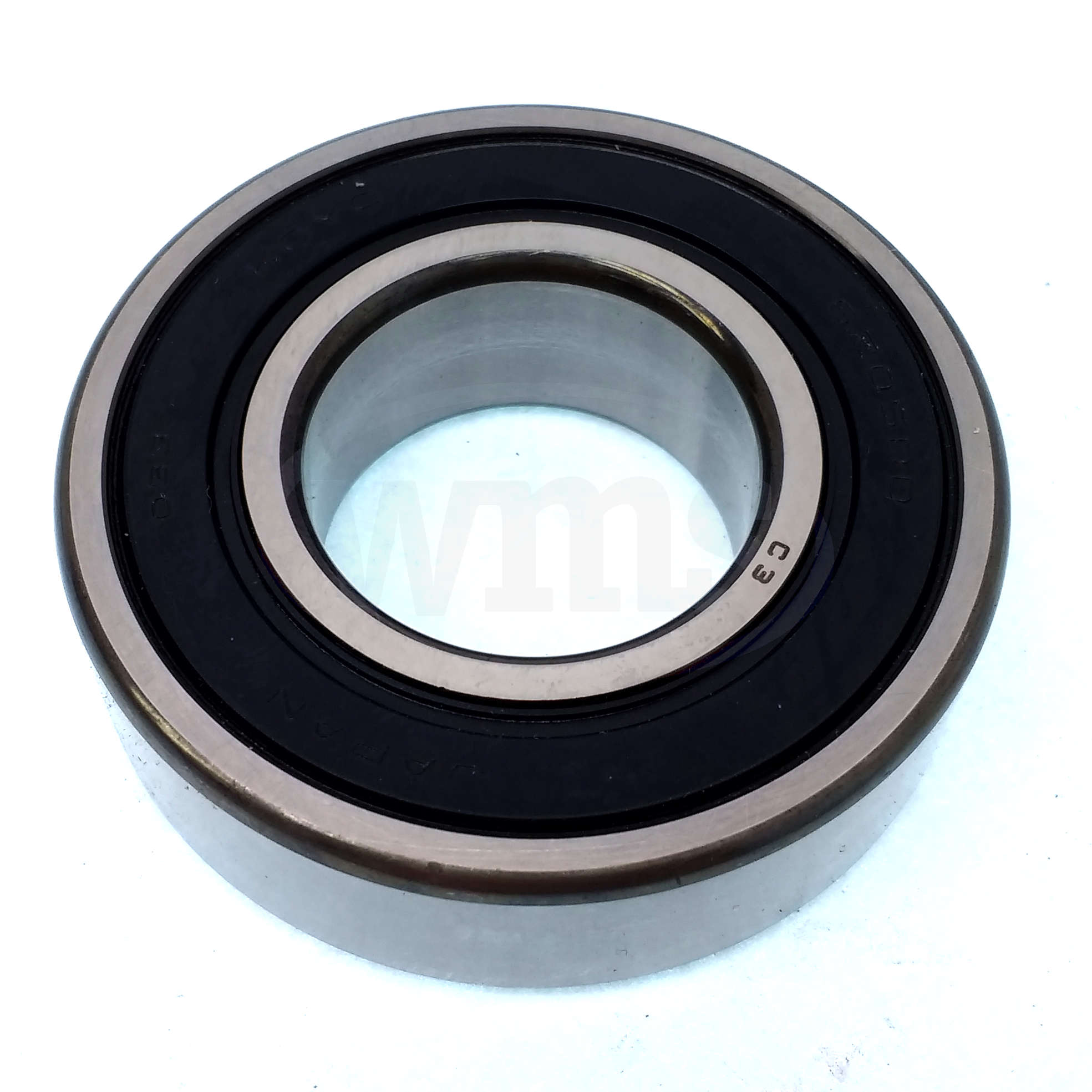

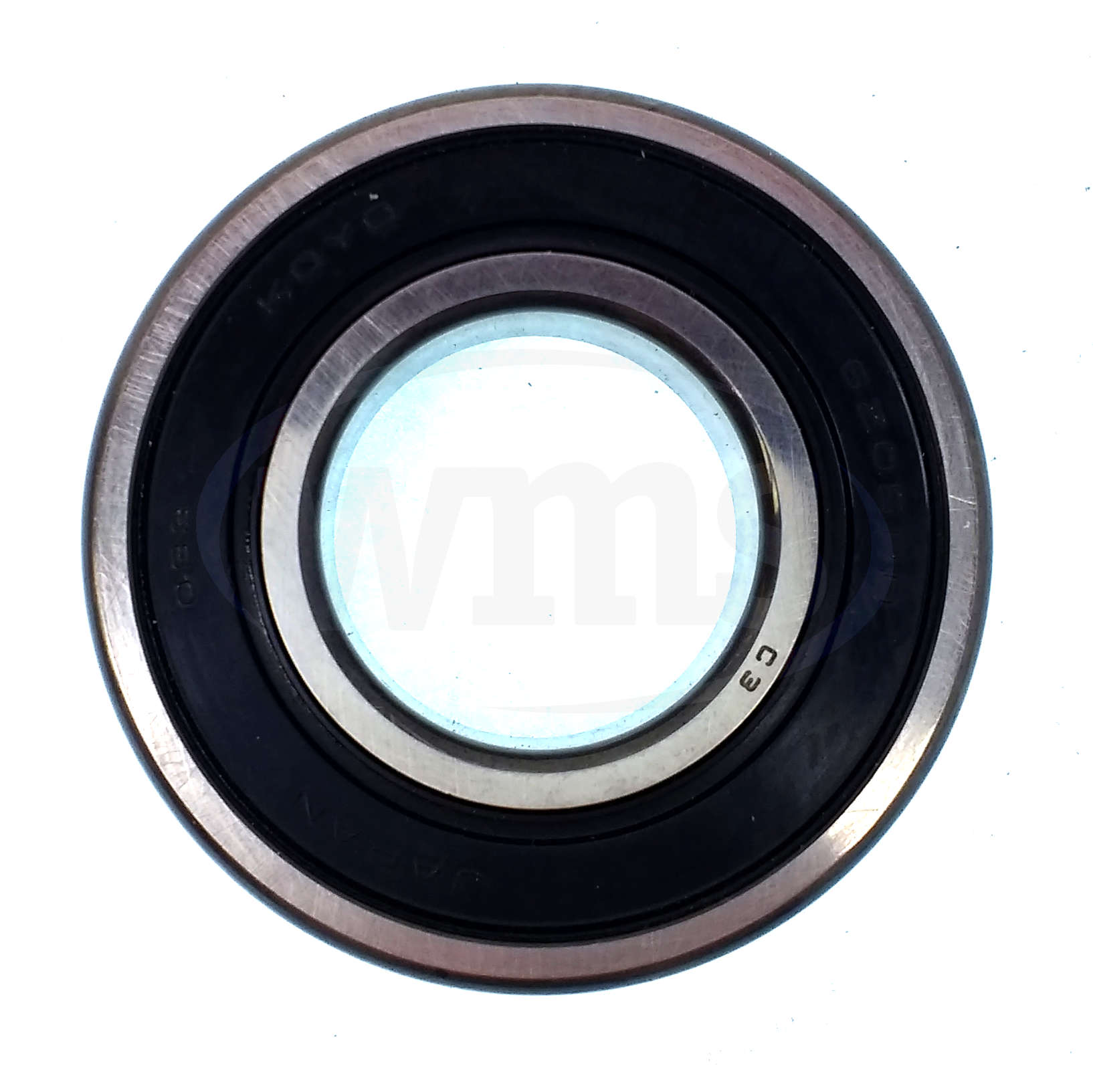

62052RDC3 Koyo Ball Bearing, Rubber Sealed

Product ID: 6205-2RS

MFG: JTEKT Corporation
MFG Part Number: 62052RDC3

Available Stock: 11
Selected accessories will also be added to cart
$13.28 / Each
Quantity:
6205-2RS

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 62052RDC3
Group Deep Groove Ball Bearings
Type Extremely Light Contact Sealed (2RD)

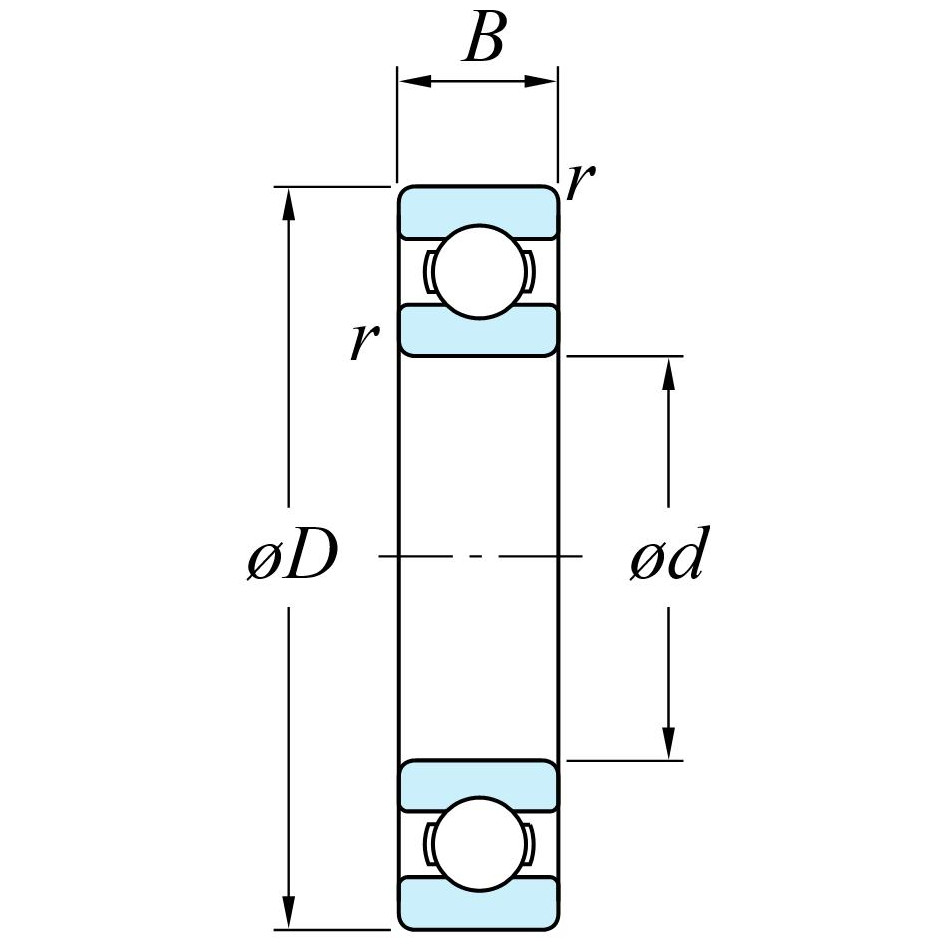

Bore / Inside Diameter (d) 25 mm
Housing / Outside Diameter (D) 52 mm
Width (B) 15 mm
Minimum Radius (r) 1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 14.0 kN
C0r 7.85 kN
Limiting Speeds (Grease Lubrication) 12,000 min-1
Mass 0.128 kg
0.29 lbs
UPC 4549250155338
Country of Manufacture Japan
