/Products/Ball Bearings/6200 Series Ball Bearings/6203ZZC3 Koyo Ball Bearing, Shielded
Click Image to Expand

Product ID: 6203-ZZC3

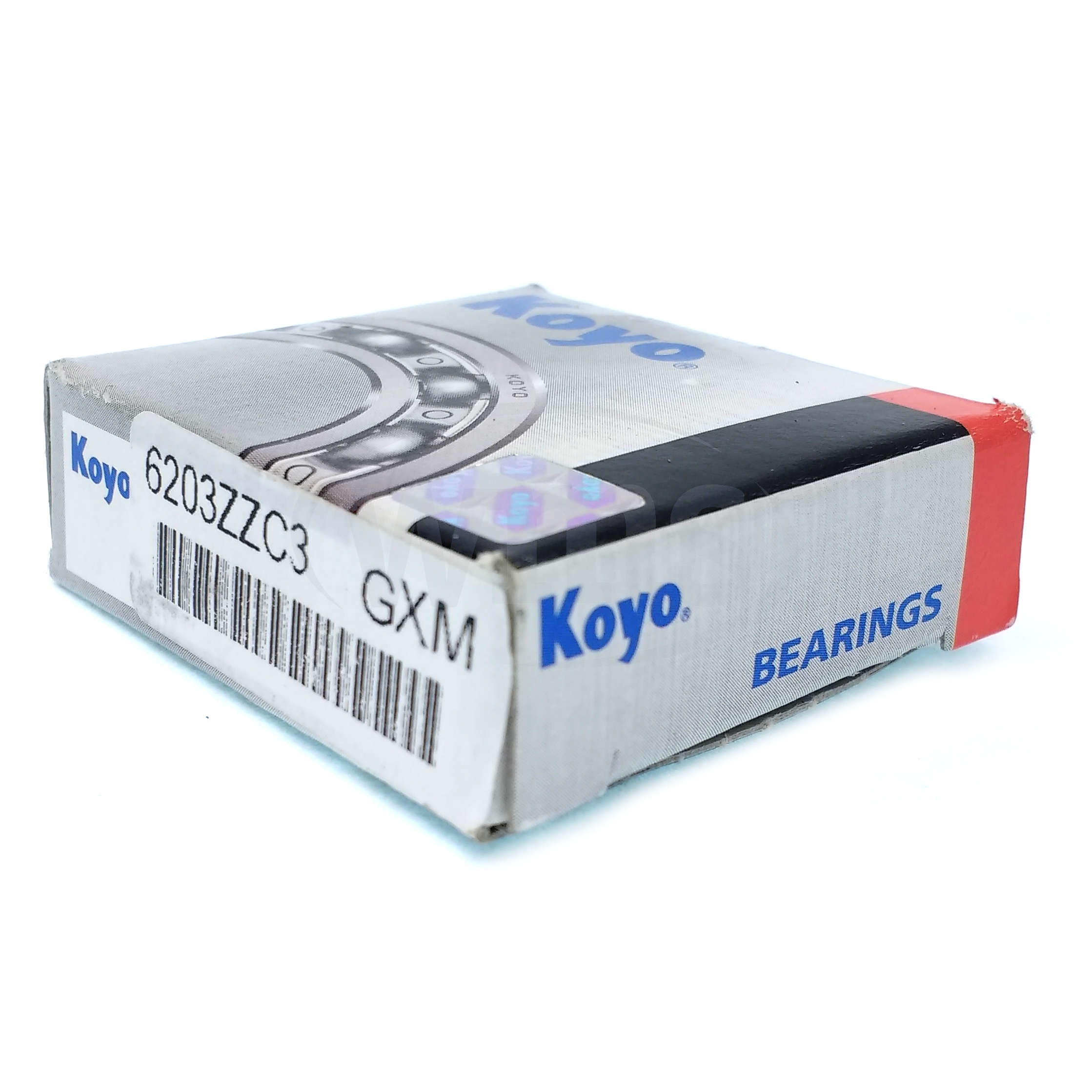

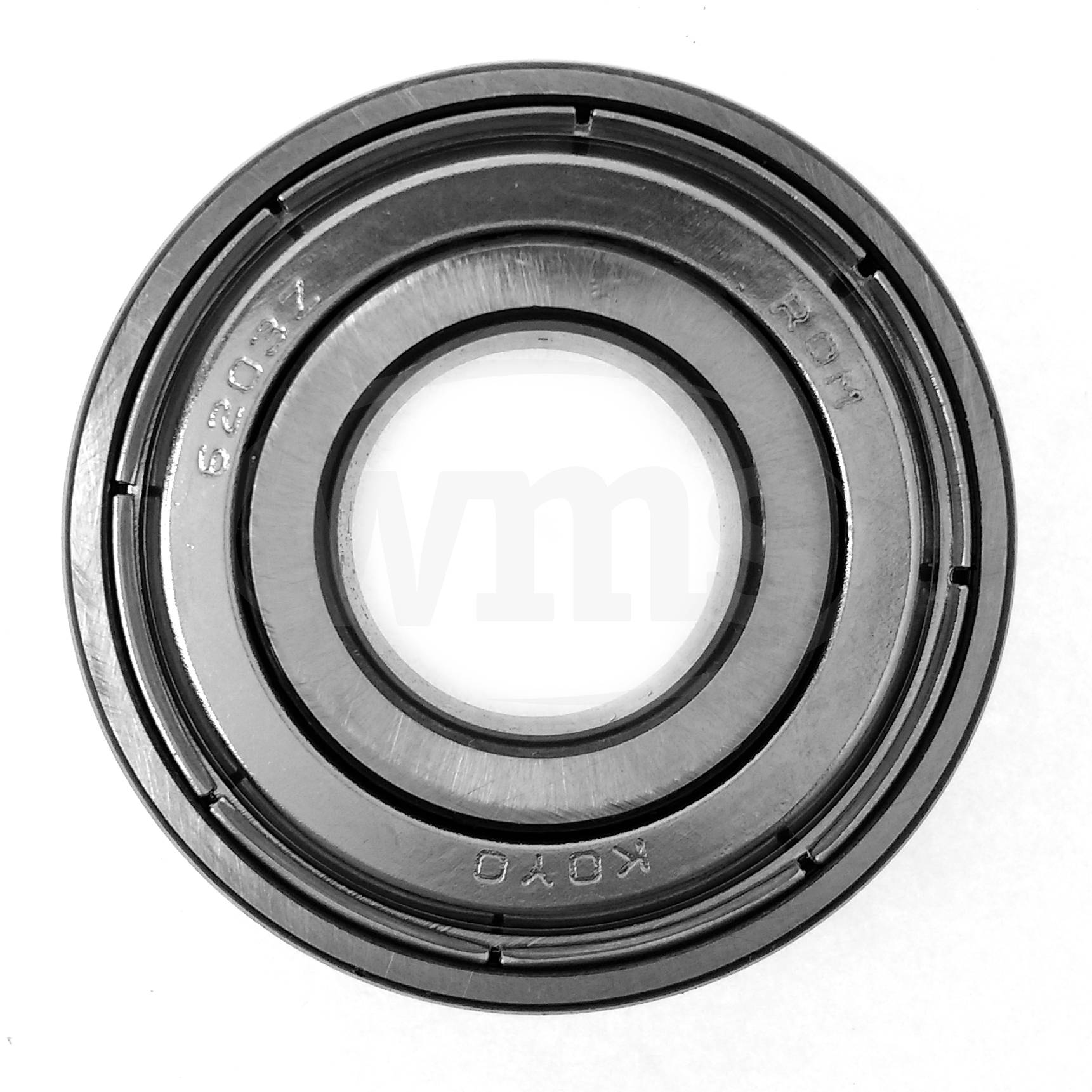

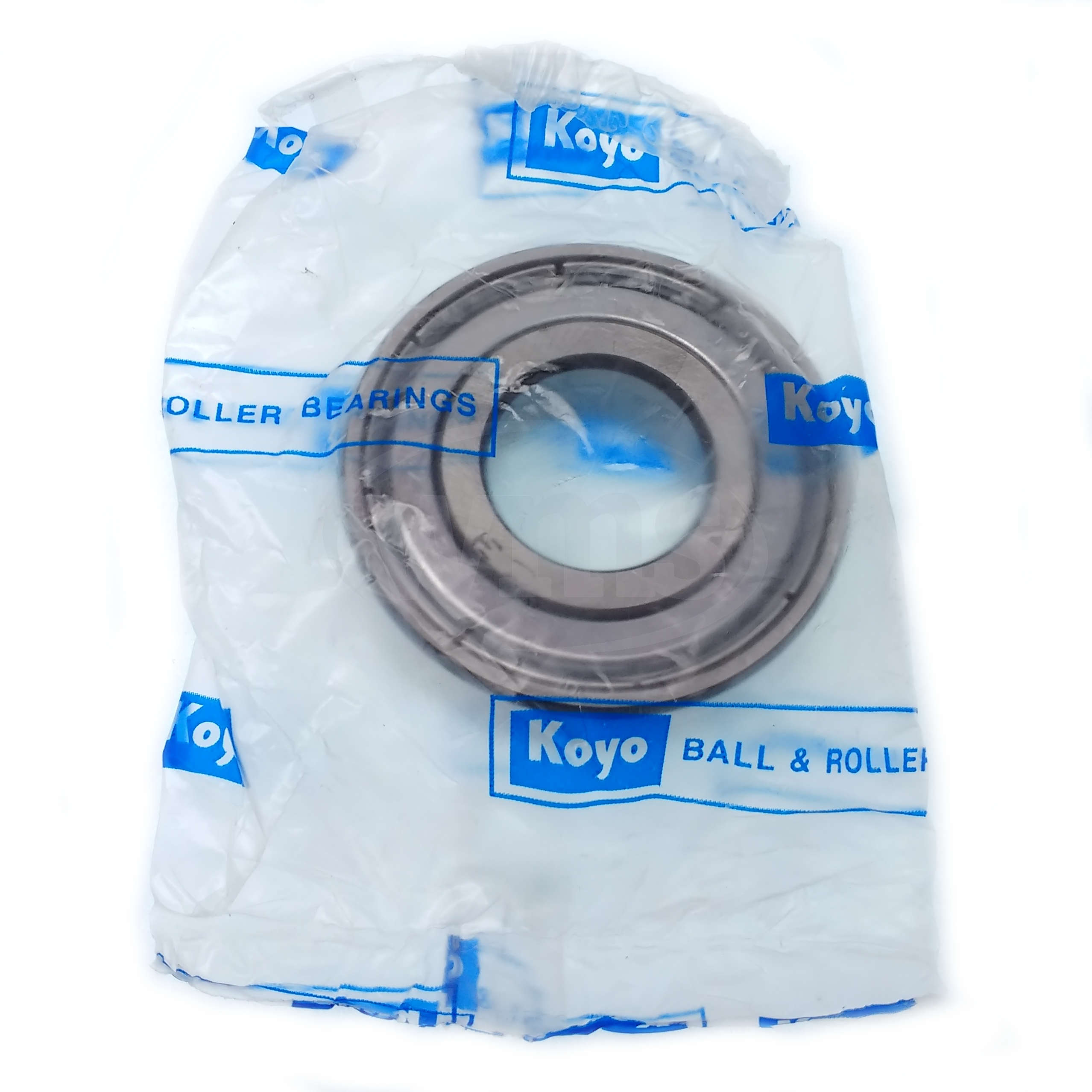

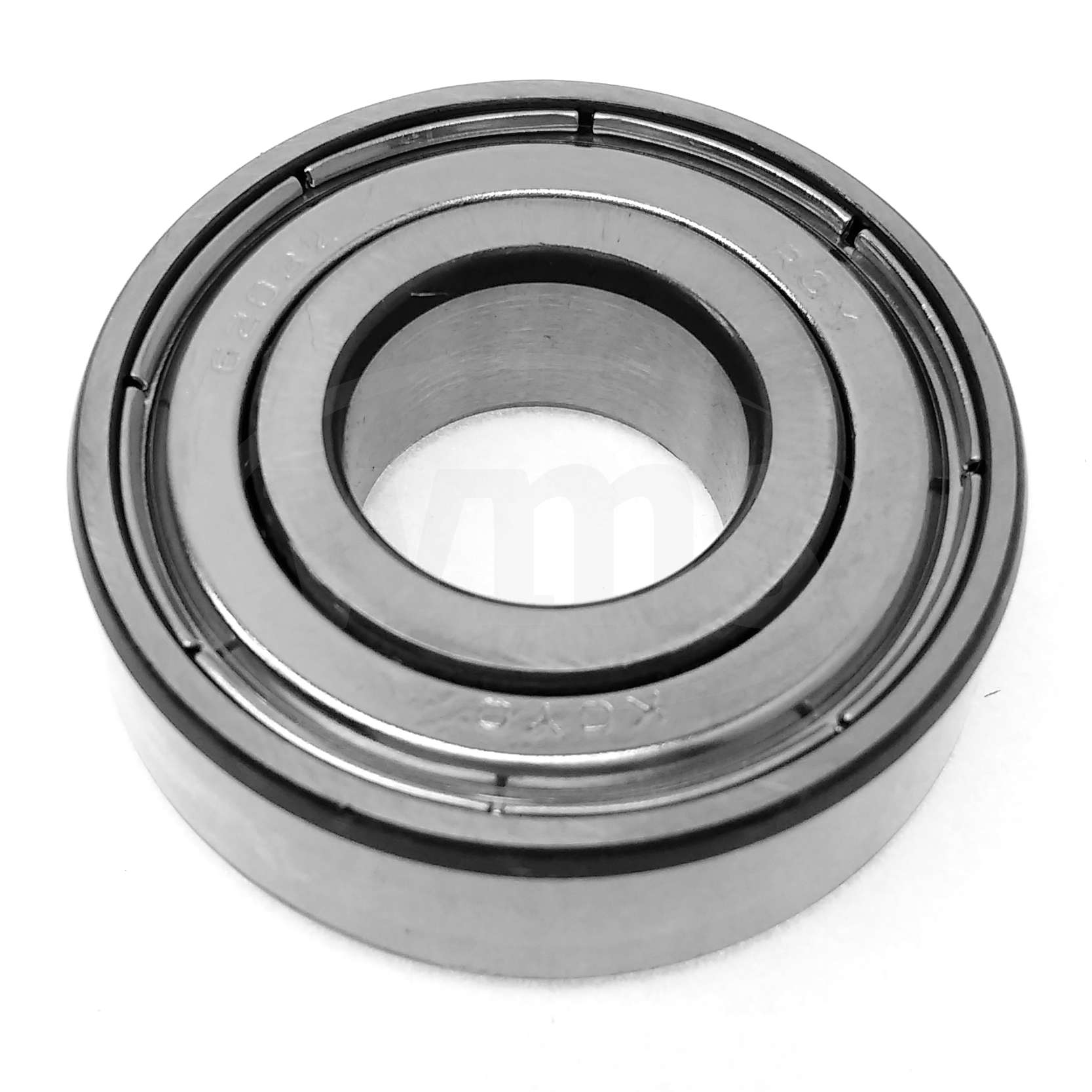

6203ZZC3 Koyo Ball Bearing, Shielded

MFG: JTEKT Corporation
MFG Part Number: 6203-ZZC3

Available Stock: 17
Selected accessories will also be added to cart
$5.65 / Each
Quantity:
6203-ZZC3, 17mm x 40mm x 12mm

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6203ZZC3
Group Deep Groove Ball Bearings
Type Shielded (ZZ)
Bore / Inside Diameter (d) 17 mm
Housing / Outside Diameter (D) 40 mm
Width (B) 12 mm
Minimum Radius (r) 0.6 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 12.8 kN
C0r 6.65 kN
Fatigue Load Limit (Cu) 0.370 kN
Factor (f0) 13.2
Limiting Speeds (Grease Lubrication) 17,000 min-1
Shaft Shoulder Mounting Dimension (da) 21 mm Minimum
22 mm Maximum
Housing Shoulder Mounting Dimension (Da) 36 mm Maximum
Shoulder Radius (ra) 0.6 mm Maximum
Mass 0.065 kg
0.15 lbs
UPC
Country of Manufacture Japan
