/Products/Electric Motors/3 Phase/WEG/Air Handling/Cooling Tower/TEFC, F-2 Mounting/00512ET3ECT215T-W22 WEG 5HP Cooling Tower Electric Motor, 1200RPM

Product ID: 00512ET3ECT215T-W22

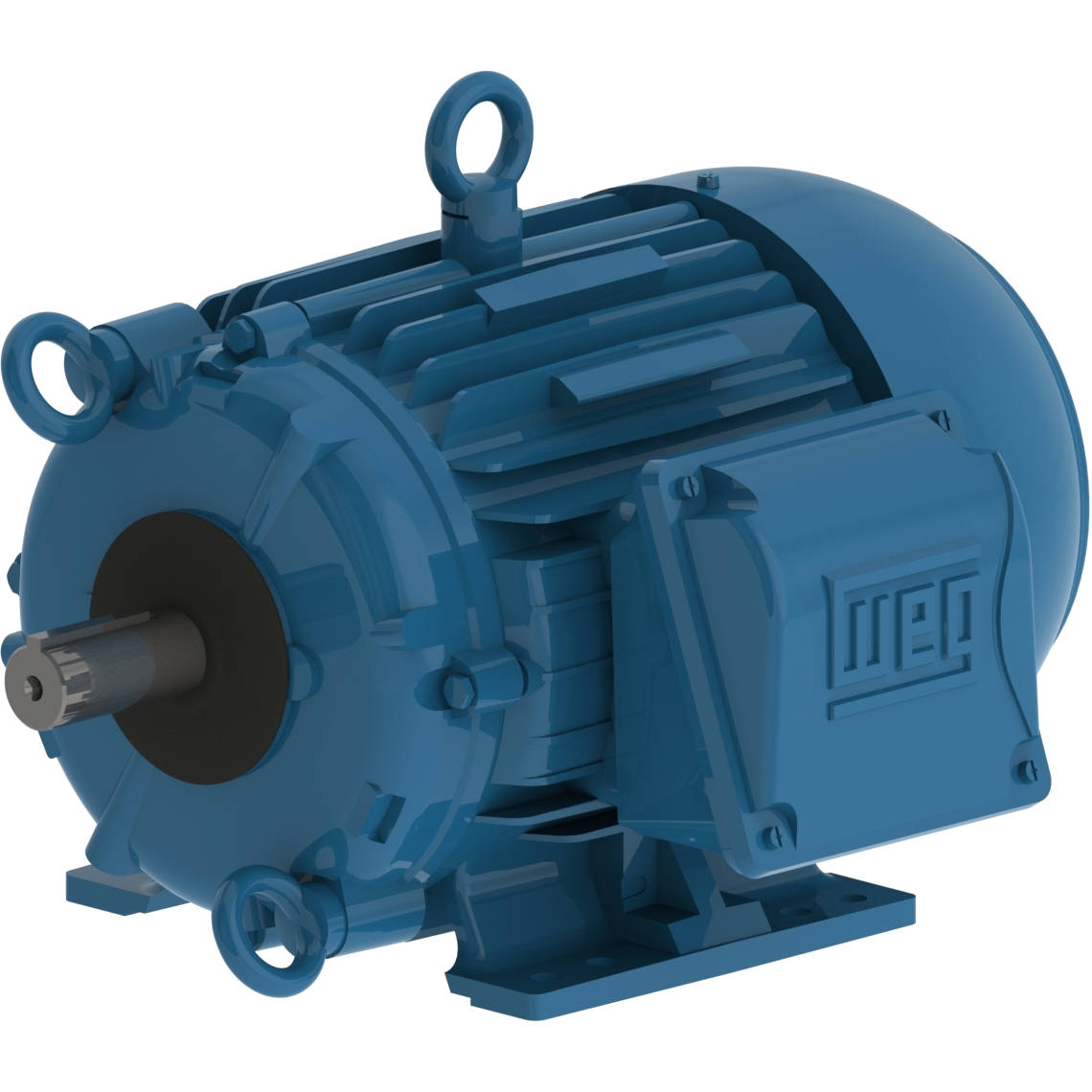

00512ET3ECT215T-W22 WEG 5HP Cooling Tower Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00512ET3ECT215T-W22

Selected accessories will also be added to cart

$1,137.75 / Each

Quantity:

IC411 - TEFC, IP55, 213T/215T Frame, 230/460/380VAC 50/60Hz 3 Phase, 11972805, NEMA Premium Efficiency, Foot Mounted, F-2 Mounting, Cast Iron Frame, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5T
Output	5 HP (3.7 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1170 rpm
Slip	2.50 %
Rated voltage	230/460 V
Rated current	13.7/6.83 A
L. R. Amperes	92.9/46.4 A
LRC	6.8x(Code J)
No load current	6.90/3.45 A
Rated torque	22.4 ft.lb
Locked rotor torque	170 %
Breakdown torque	260 %
Locked rotor time	102s (cold) 57s (hot)

Moment of inertia (J)	1.47 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	55.0 dB(A)
Approx. weight³	177 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.5

Power factor

50%	75%	100%
0.58	0.70	0.76

Frame	213/5T
Output	5 HP (3.7 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	960 rpm
Slip	4.00 %
Rated voltage	380/380 V
Rated current	8.10/8.10 A
L. R. Amperes	44.5/44.5 A
LRC	5.5x(Code G)
No load current	3.41/3.41 A
Rated torque	27.4 ft.lb
Locked rotor torque	140 %
Breakdown torque	200 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	1.47 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	177 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	88.5	86.8

Power factor

50%	75%	100%
0.65	0.76	0.80

Frame	213/5T
Output	5 HP (3.7 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	965 rpm
Slip	3.50 %
Rated voltage	400 V
Rated current	7.82 A
L. R. Amperes	47.7 A
LRC	6.1x(Code H)
No load current	3.68 A
Rated torque	27.2 ft.lb
Locked rotor torque	160 %
Breakdown torque	229 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	1.47 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	177 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	88.5	87.5

Power factor

50%	75%	100%
0.61	0.73	0.78

Frame	213/5T
Output	5 HP (3.7 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	970 rpm
Slip	3.00 %
Rated voltage	415 V
Rated current	7.55 A
L. R. Amperes	49.1 A
LRC	6.5x(Code H)
No load current	3.90 A
Rated torque	27.1 ft.lb
Locked rotor torque	190 %
Breakdown torque	250 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	1.47 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	177 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	88.5

Power factor

50%	75%	100%
0.58	0.71	0.77

Features

Frame Material	Cast Iron
Impregnation Method	Double impregnation polyester
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
