WEG’s cooling tower motors are designed for operation in 100% humidity and the most corrosive environments. They are designed to operate in either horizontal or vertical mounting.
WEG’s W22 cast iron platform has a superior cooling system and solid feet for cool operation, low vibration and noise reduction which extends the life of the motor.
IC411 - TEFC, IP55, 143T/145T Frame, 230/460/380VAC 50/60Hz 3 Phase, 11976534, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F-2 Box Mounting, 7/8" Keyed Shaft
00112ET3ECT145T-W22
IC411 - TEFC, IP55, 143T/145T Frame, 200VAC 60Hz 3 Phase, 12096001, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F-2 Box Mounting, 7/8" Keyed Shaft
00112ET3PCT145T-W22

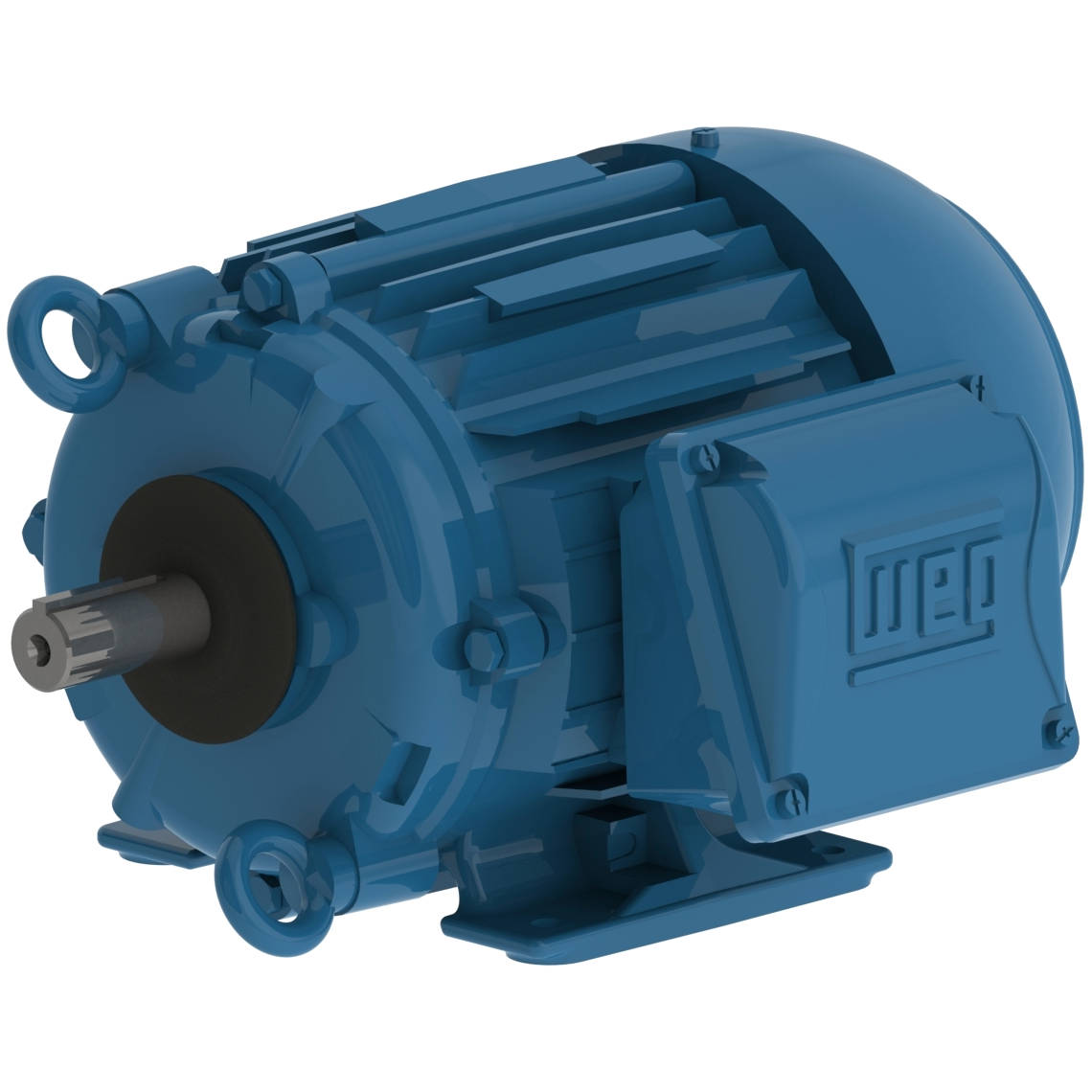

IC411 - TEFC, IP55, 143T Frame, 230/460/380VAC 50/60Hz 3 Phase, 11976363, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F-2 Box Mounting, 7/8" Keyed Shaft
00118ET3ECT143T-W22
IC411 - TEFC, IP55, 143T Frame, 200VAC 60Hz 3 Phase, 11999439, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F-2 Box Mounting, 7/8" Keyed Shaft
00118ET3PCT143T-W22
IC411 - TEFC, IP55, 182T Frame, 230/460/380VAC 50/60Hz 3 Phase, 11976567, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F-2 Box Mounting, 1-1/8" Keyed Shaft
00152ET3ECT182T-W22
IC411 - TEFC, IP55, 182T Frame, 200VAC 60Hz 3 Phase, 12096004, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F-2 Box Mounting, 1-1/8" Keyed Shaft
00152ET3PCT182T-W22

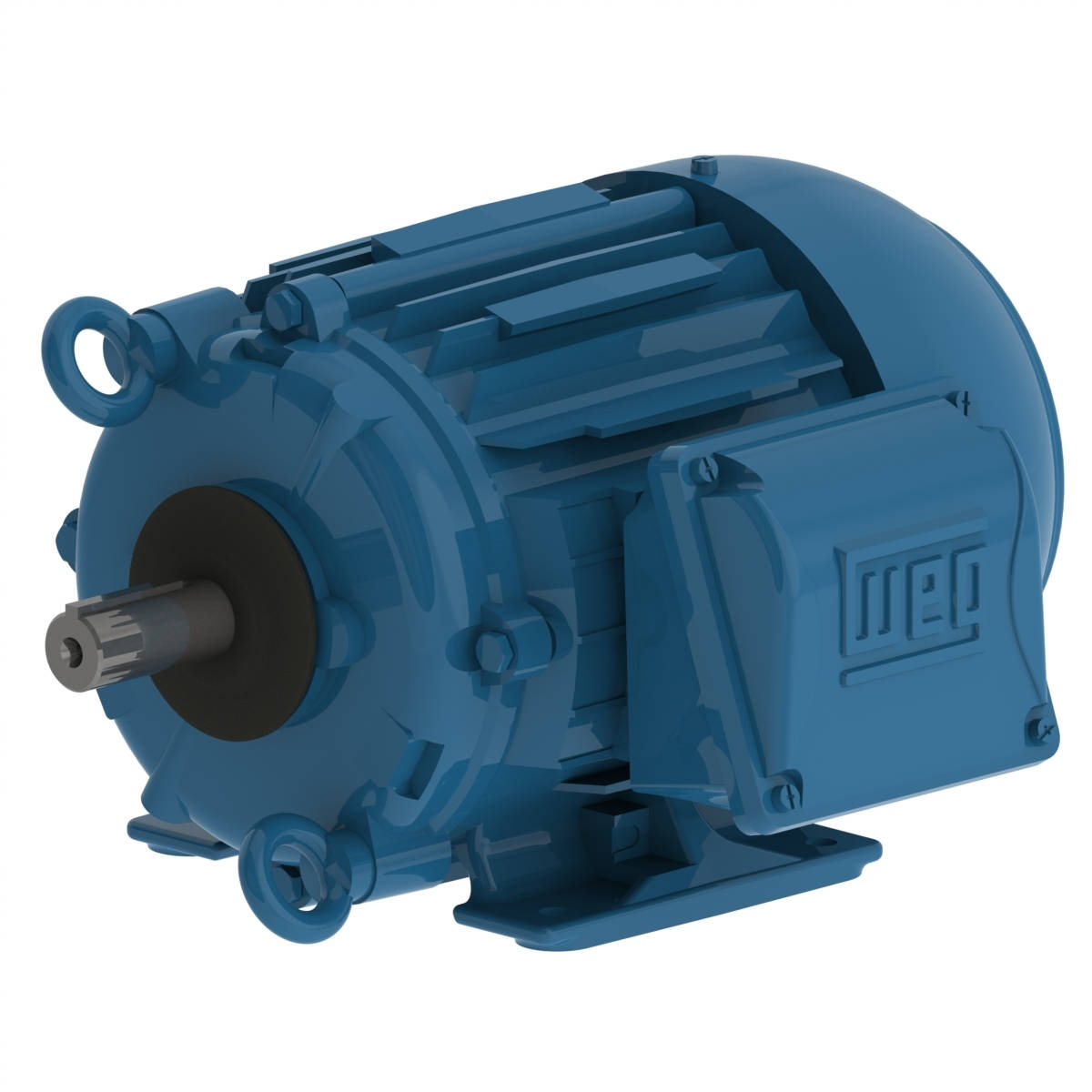

IC411 - TEFC, IP55, 143T/145T Frame, 230/460/380VAC 50/60Hz 3 Phase, 11976535, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F2 Box Mounting, 7/8" Keyed Shaft
00158ET3ECT145T-W22
IC411 - TEFC, IP55, 182T/184T Frame, 230/460/380VAC 50/60Hz, 11972995, NEMA Premium Efficiency, Foot Mounted, F-2 Mounting, Cast Iron Frame, 1-1/8" Keyed Shaft
00212ET3ECT184T-W22
IC411 - TEFC, IP55, 182T/184T Frame, 200VAC 60Hz 3 Phase, 12096009, NEMA Premium Efficiency, Foot Mounted, F-2 Mounting, Cast Iron Frame, 1-1/8" Keyed Shaft
00212ET3PCT184T-W22
IC411 - TEFC, IP55, 143T/145T Frame, 230/460/380VAC 60Hz 3 Phase, 11972988, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F2 Box Mounting, 7/8" Keyed Shaft
00218ET3ECT145T-W22

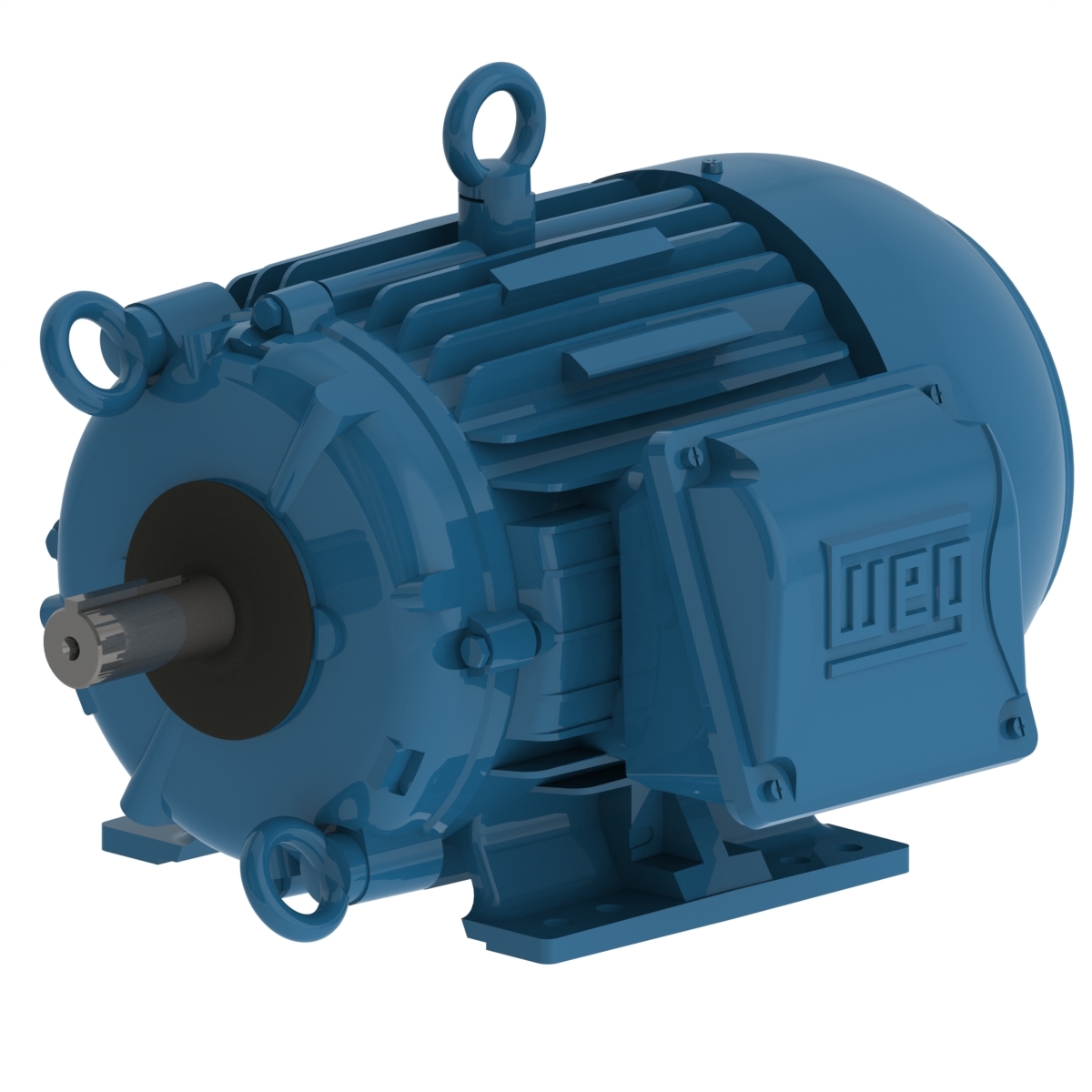

IC411 - TEFC, IP55, 213T Frame, 230/460VAC 60Hz 3 Phase, 11972706, NEMA Premium Efficiency, Severe Duty, Foot Mounted, Cast Iron Frame, F2 Box Mounting, 1-3/8" Keyed Shaft
00312ET3ECT213T-W22
IC411 - TEFC, IP55, 182T Frame, 230/460/380VAC 50/60Hz 3 Phase, 11972705, NEMA Premium Efficiency, Foot Mounted, F-2 Mounting, Cast Iron Frame, 1-1/8" Keyed Shaft
00318ET3ECT182T-W22
IC410 - TEAO, IP55, 182T Frame, 575VAC 60Hz 3 Phase, 12024064, NEMA Premium Efficiency, Foot Mounted, F-2 Mounting, Cast Iron Frame, 1-1/8" Keyed Shaft
00318ET3HCT182T-W22
IC411 - TEFC, IP55, 213T/215T Frame, 230/460/380VAC 50/60Hz 3 Phase, 11972805, NEMA Premium Efficiency, Foot Mounted, F-2 Mounting, Cast Iron Frame, 1-3/8" Keyed Shaft
00512ET3ECT215T-W22
IC411 - TEFC, IP55, 213T/215T Frame, 575VAC 60Hz 3 Phase, 13729963, NEMA Premium Efficiency, Foot Mounted, F-2 Mounting, Cast Iron Frame, 1-3/8" Keyed Shaft
00512ET3HCT215T-W22
IC411 - TEFC, IP55, 182T/184T Frame, 230/460/380VAC 50/60Hz 3 Phase, 11972332, NEMA Premium Efficiency, Foot Mounted, F-2 Mounting, Cast Iron Frame, 1-1/8" Keyed Shaft
00518ET3ECT184T-W22

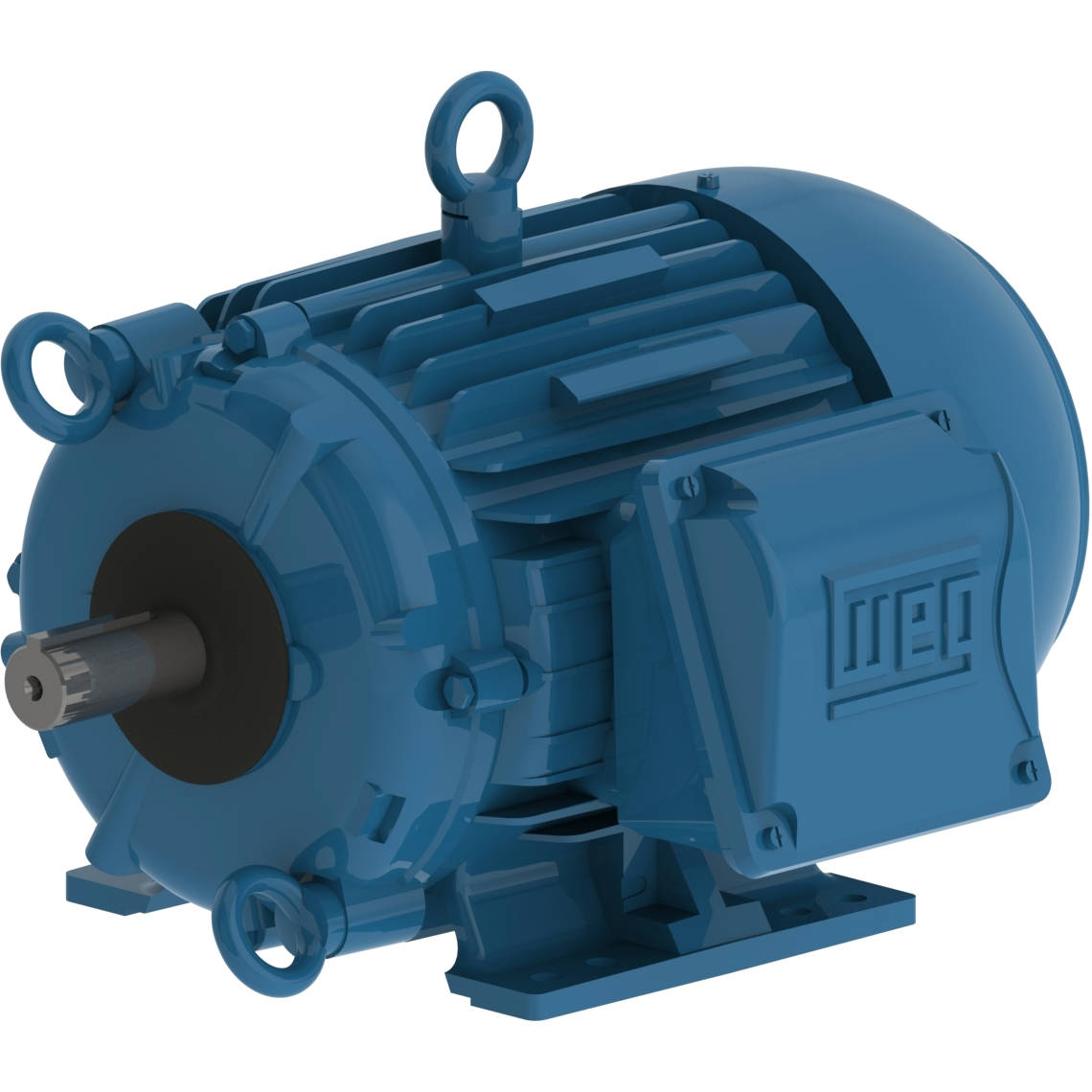

IC410 - TEAO, IP55, 182T/184T Frame, 575VAC 60Hz 3 Phase, 12024061, NEMA Premium Efficiency, Foot Mounted, F-2 Mounting, Cast Iron Frame, 1-1/8" Keyed Shaft
00518ET3HCT184T-W22
IC411 - TEFC, IP55, 213T/215T Frame, 230/460/380VAC 60Hz 3 Phase, 11972215, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F2 Box Mounting, 1-3/8" Keyed Shaft
01018ET3ECT215T-W22
IC411 - TEFC, 284T Frame, 230/460VAC 60Hz 3 Phase, 11976558, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, F2 Box Mounting, 1-7/8" Keyed Shaft
01512ET3ECT284T-W22
IC411 - TEFC, IP55, 254T Frame, 230/460/380VAC 50/60Hz 3 Phase, 11972281, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F2 Box Mounting, 1-5/8" Keyed Shaft
01518ET3ECT254T-W22
IC411-TEFC, IP55, 284/286T Frame, 575VAC, 60Hz, 3 Phase, 14319099, Foot Mounted, Cast Iron Frame, 1 7/8" Keyed Shaft
01526EP3HCT286V-W22
IC411-TEFC, IP55, 284/286T Frame, 200VAC, 60Hz, 3 Phase, 14324021, Foot Mounted, Cast Iron Frame, High Efficiency1 7/8"Keyed Shaft
01526EP3PCT286V-W22
IC411-TEFC, IP55, 284/286T Frame, 460VAC, 60Hz, 3 Phase, 14324023, Foot Mounted, Cast Iron Frame, High Efficiency, 1 7/8" Keyed Shaft
01526EP3QCT286V-W22
IC411-TEFC, IP55, 254T Frame, 575VAC, 60Hz, 3 Phase, 12173034, Foot Mounted, Cast Iron Frame, High Efficiency, 1 5/8" Keyed Shaft
01589EP3HCT254V-W22

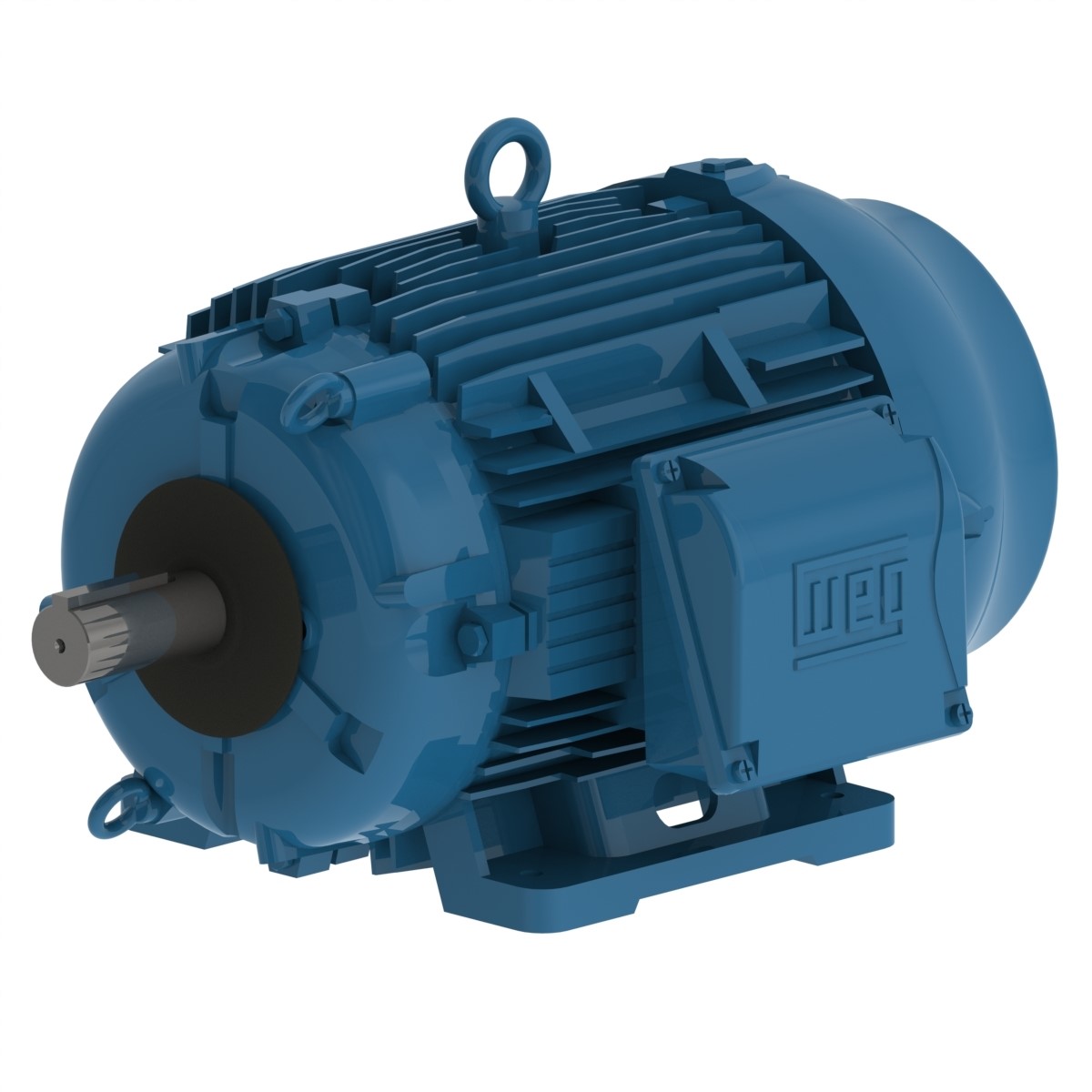

IC411-TEFC, IP55, 254T Frame, 200VAC, 60Hz, 3 Phase
01589EP3PCT254V-W22
Catalogs & Documentation :
