/Products/Electric Motors/3 Phase/WEG/Air Handling/Cooling Tower/TEFC, F-2 Mounting/00218ET3ECT145T-W22 WEG 2HP Cooling Tower Electric Motor, 1800RPM

Product ID: 00218ET3ECT145T-W22

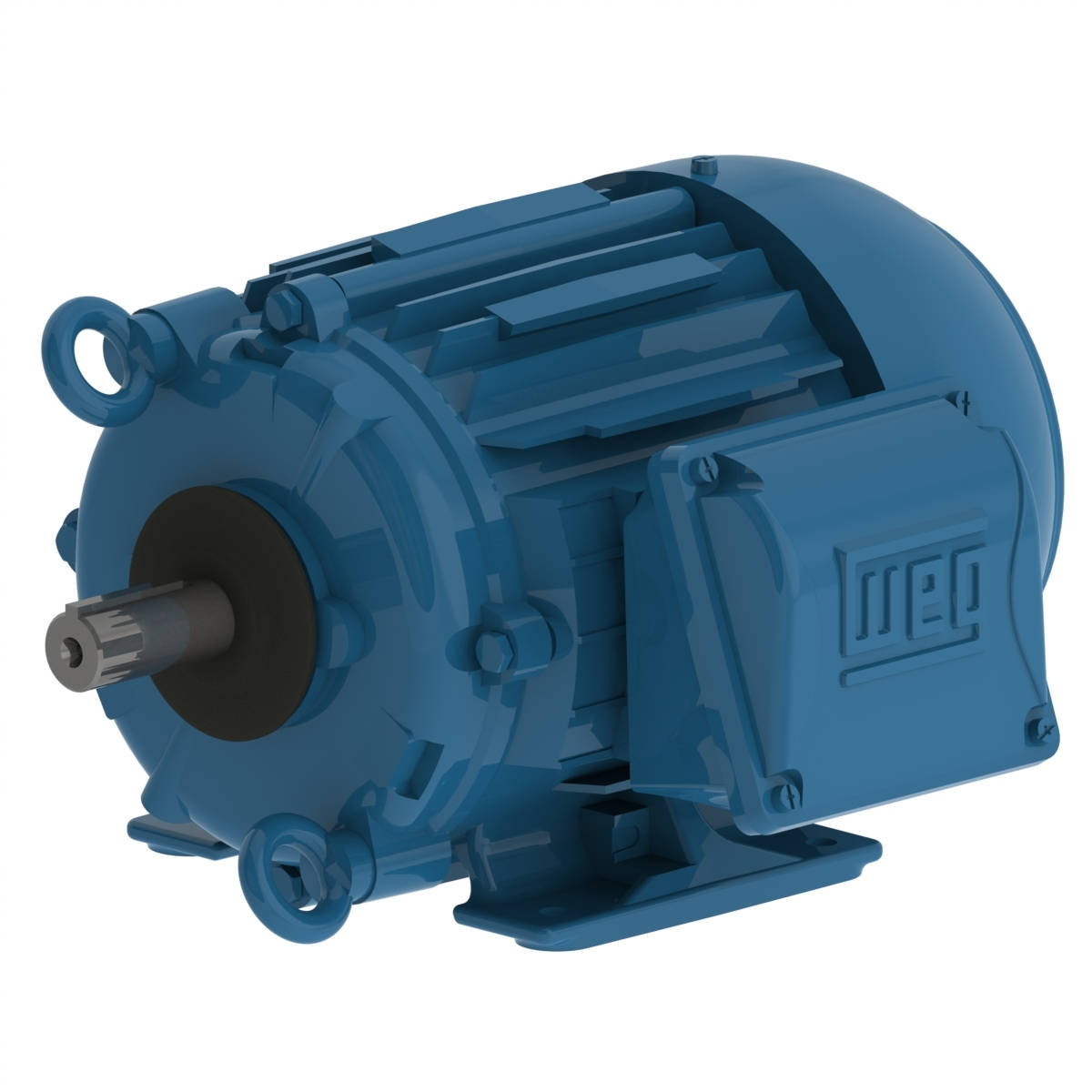

00218ET3ECT145T-W22 WEG 2HP Cooling Tower Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218ET3ECT145T-W22

Selected accessories will also be added to cart

$564.00 / Each

Quantity:

IC411 - TEFC, IP55, 143T/145T Frame, 230/460/380VAC 60Hz 3 Phase, 11972988, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F2 Box Mounting, 7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	143/5T
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1755 rpm
Slip	2.50 %
Rated voltage	230/460 V
Rated current	5.52/2.76 A
L. R. Amperes	45.8/22.9 A
LRC	8.3x(Code L)
No load current	3.26/1.63 A
Rated torque	5.98 ft.lb
Locked rotor torque	270 %
Breakdown torque	320 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	51.0 dB(A)
Approx. weight³	52.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	86.5	86.5

Power factor

50%	75%	100%
0.57	0.70	0.79

Frame	143/5T
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	380 V
Rated current	2.57 A
L. R. Amperes	21.1 A
LRC	8.2x(Code L)
No load current	1.61 A
Rated torque	5.40 ft.lb
Locked rotor torque	290 %
Breakdown torque	330 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	52.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	84.2	84.5

Power factor

50%	75%	100%
0.55	0.69	0.77

Frame	143/5T
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	400 V
Rated current	2.57 A
L. R. Amperes	22.4 A
LRC	8.7x(Code M)
No load current	1.80 A
Rated torque	5.38 ft.lb
Locked rotor torque	320 %
Breakdown torque	380 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	52.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.0	83.5	84.5

Power factor

50%	75%	100%
0.50	0.64	0.73

Frame	143/5T
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	415 V
Rated current	2.56 A
L. R. Amperes	21.5 A
LRC	8.4x(Code M)
No load current	1.97 A
Rated torque	5.38 ft.lb
Locked rotor torque	350 %
Breakdown torque	409 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	52.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.4	83.1	84.1

Power factor

50%	75%	100%
0.47	0.61	0.71

Frame	143/5T
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1435 rpm
Slip	4.33 %
Rated voltage	380 V
Rated current	3.33 A
L. R. Amperes	20.0 A
LRC	6.0x(Code H)
No load current	1.61 A
Rated torque	7.32 ft.lb
Locked rotor torque	220 %
Breakdown torque	240 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	52.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	84.0	82.5

Power factor

50%	75%	100%
0.66	0.78	0.83

Frame	143/5T
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1440 rpm
Slip	4.00 %
Rated voltage	400 V
Rated current	3.22 A
L. R. Amperes	21.3 A
LRC	6.6x(Code J)
No load current	1.80 A
Rated torque	7.29 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	52.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	84.0	84.0

Power factor

50%	75%	100%
0.62	0.74	0.80

Frame	143/5T
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1450 rpm
Slip	3.33 %
Rated voltage	415 V
Rated current	3.14 A
L. R. Amperes	22.9 A
LRC	7.3x(Code K)
No load current	1.97 A
Rated torque	7.24 ft.lb
Locked rotor torque	250 %
Breakdown torque	290 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	52.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	84.0	84.0

Power factor

50%	75%	100%
0.60	0.72	0.79

Features

Frame Material	Cast Iron
Impregnation Method	Double impregnation polyester
Space Heater Voltage	200 - 240 V
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
