Product ID: SP0032

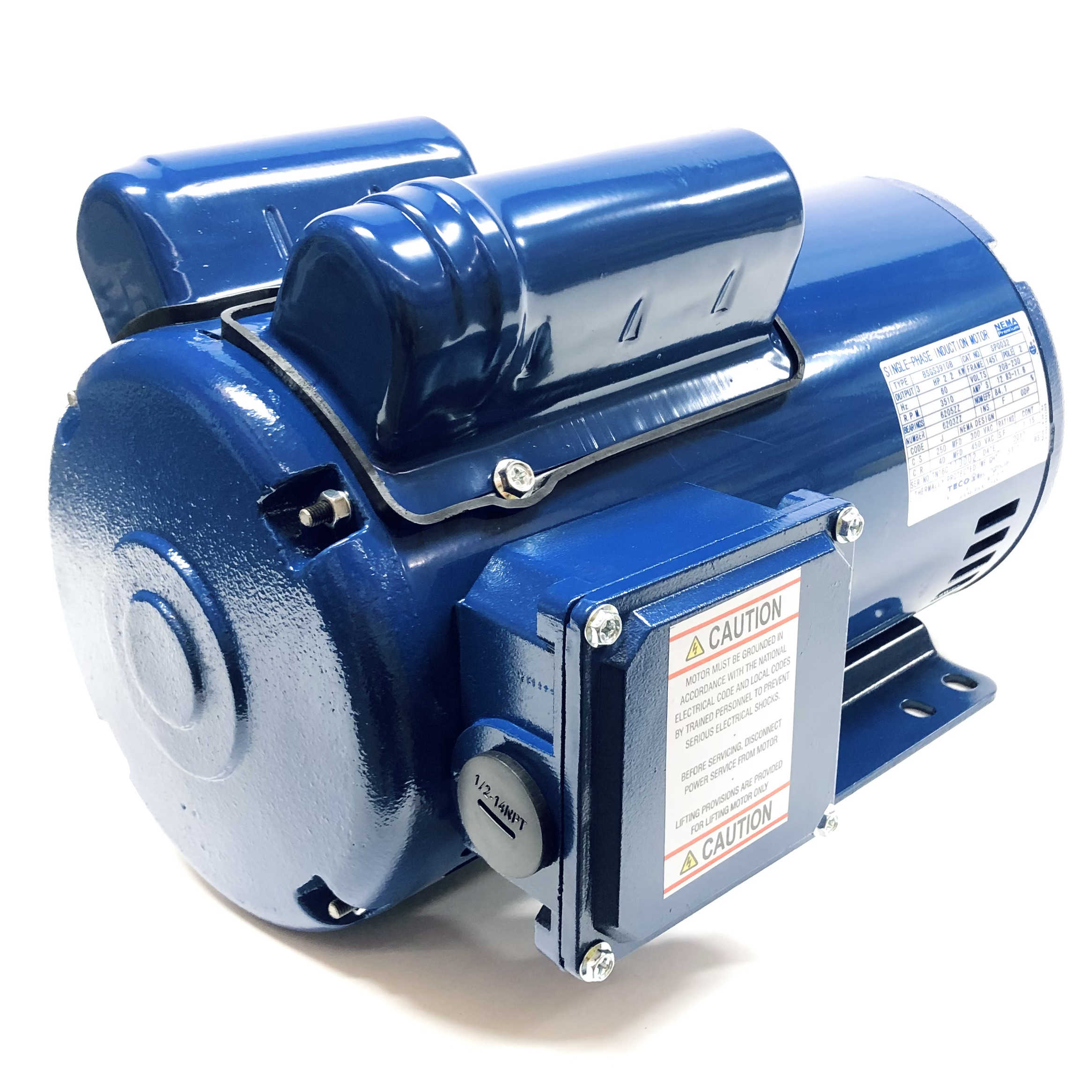

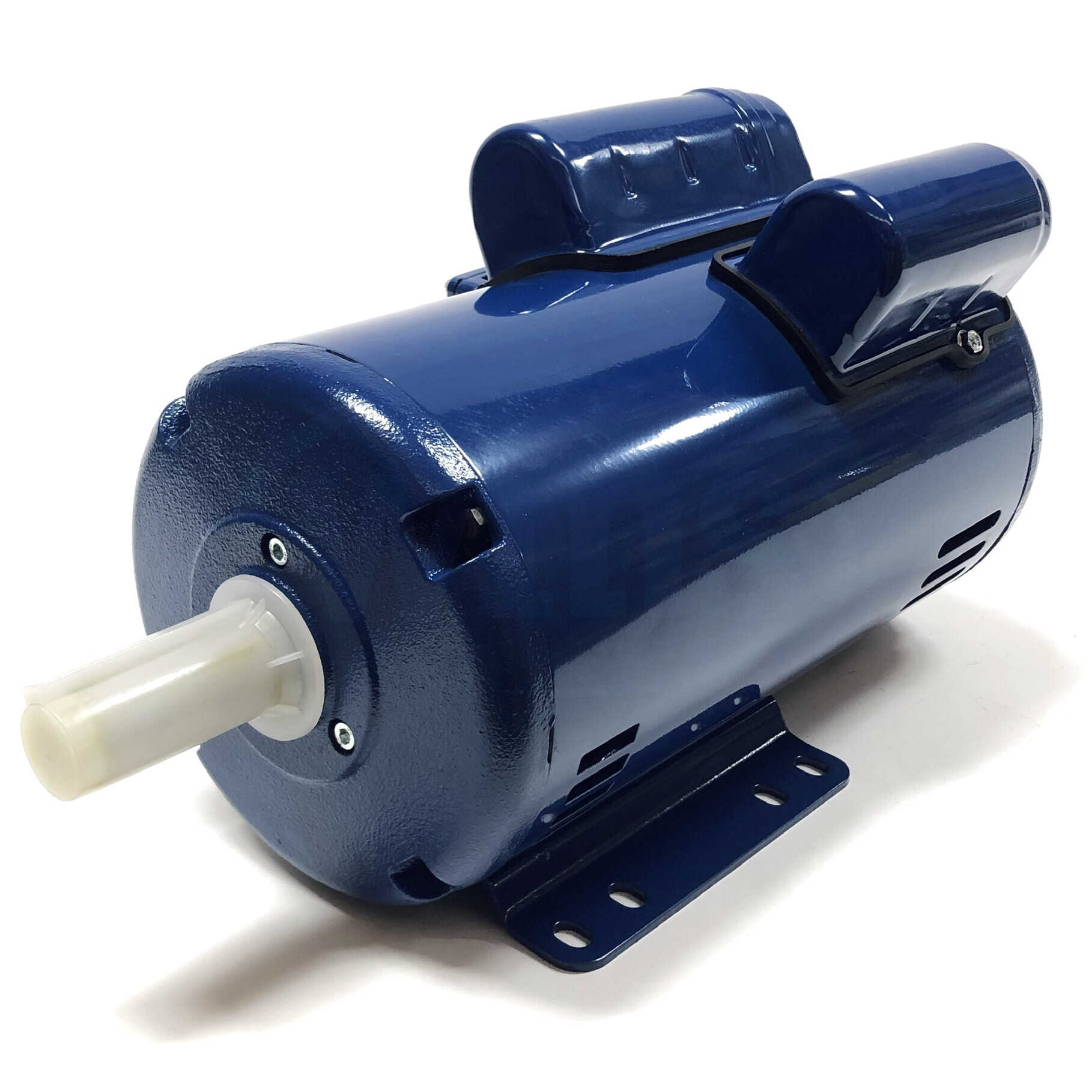

SP0032 Teco-Westinghouse 3HP HVAC Electric Motor, 3600RPM

MFG: TECO-Westinghouse
MFG Part Number: SP0032

Available Stock: 1

Selected accessories will also be added to cart

$375.97 / Each

Quantity:

ODP, 145T Frame, 115/208-230V Single Phase 60Hz, Rigid Base

Details
Purchase Components

Specifications

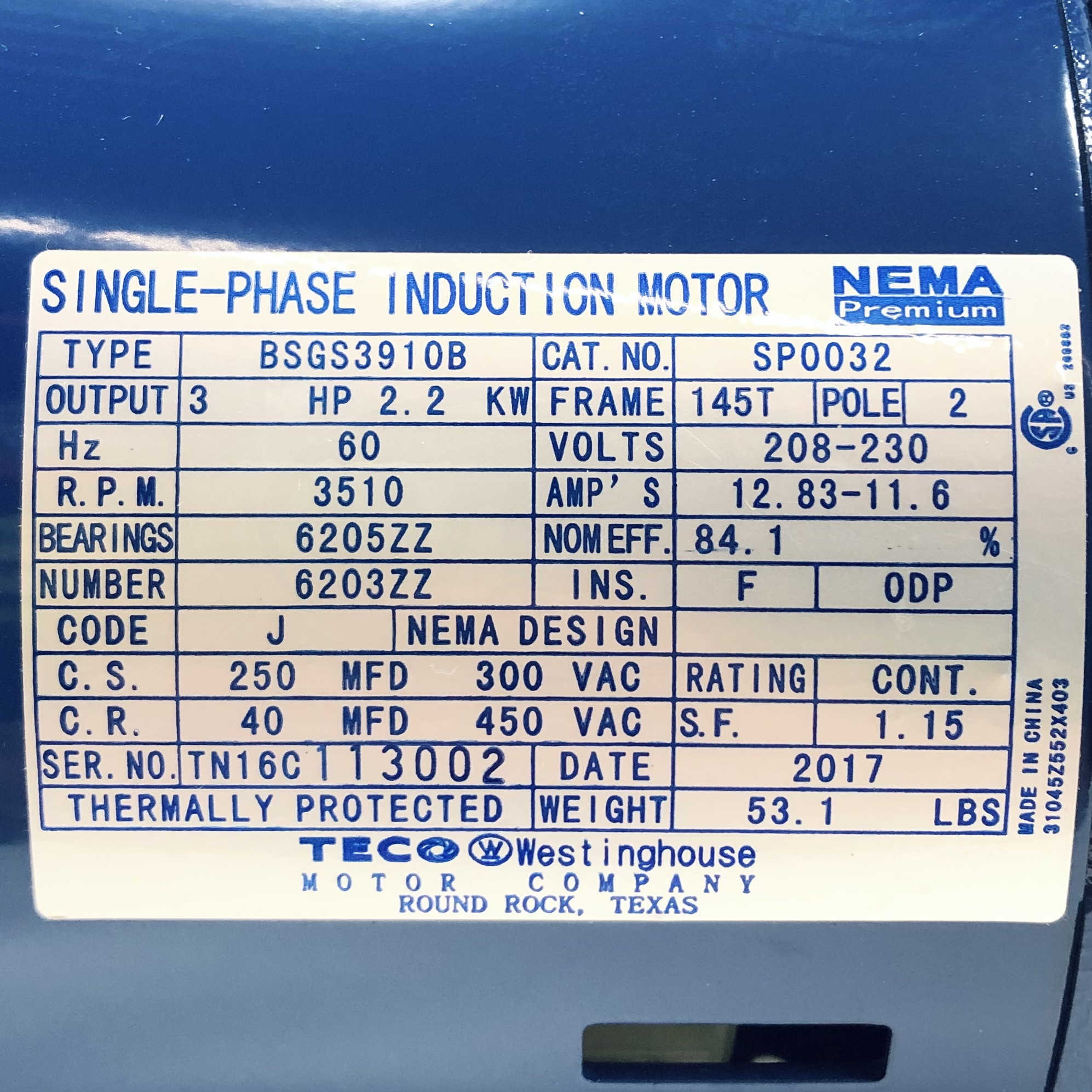

Manufacturer	Teco-Westinghouse
Catalog Number	SP0032
Type	BSGS39
Power	3 HP 2.2 kW
Speed	3600 RPM
Frame	145T
Voltage	208-230V Single Phase 60Hz
Full Load Efficiency	84.1 %
Full Load Power Factor	98.0 %
Full Load Amps	11.6 Amps @ 230VAC
Shipping Weight	55 lbs

Features

Enclosure: Open Drip Proof (IP22)
Voltage: 115/208/230V (Tri-Voltage)
Single Phase, 60 Hz
1.15 Service Factor for 115V & 230V
1.0 Service Factor for 208V
Capacitor Start, Capacitor Run
Class F Insulation
Automatic Reset Overload
Class B Temperature Rise
Designed for 40°C Ambient Temperature
Designed for 3300 ft. Elevation
Bi-Directional Rotation
Rolled Steel Frame
Cast Aluminum Terminal Box
1045 Carbon Steel Shaft
Aluminum Die Cast Squirrel Cage Rotor Construction
Paint System: Phenolic Rust Proof Base Plus Lacquer Top Coat
Paint Color: Blue - Munsell 5 PB 3/8
Double Shielded Bearings Pre-Packed with Lithium Base Grease
No Terminals; Lead End Peel-Off Insulation
Grounding Terminal Inside Main Box
Stainless Steel Nameplate
Motors are UL Recognized for United States and Canada
