/Products/Electric Motors/3 Phase Metric/Marathon/R431B Marathon 10HP/7.5kW IEC Metric Electric Motor, 1800RPM
Click Image to Expand

Product ID: TCA7P52AP211GAA009

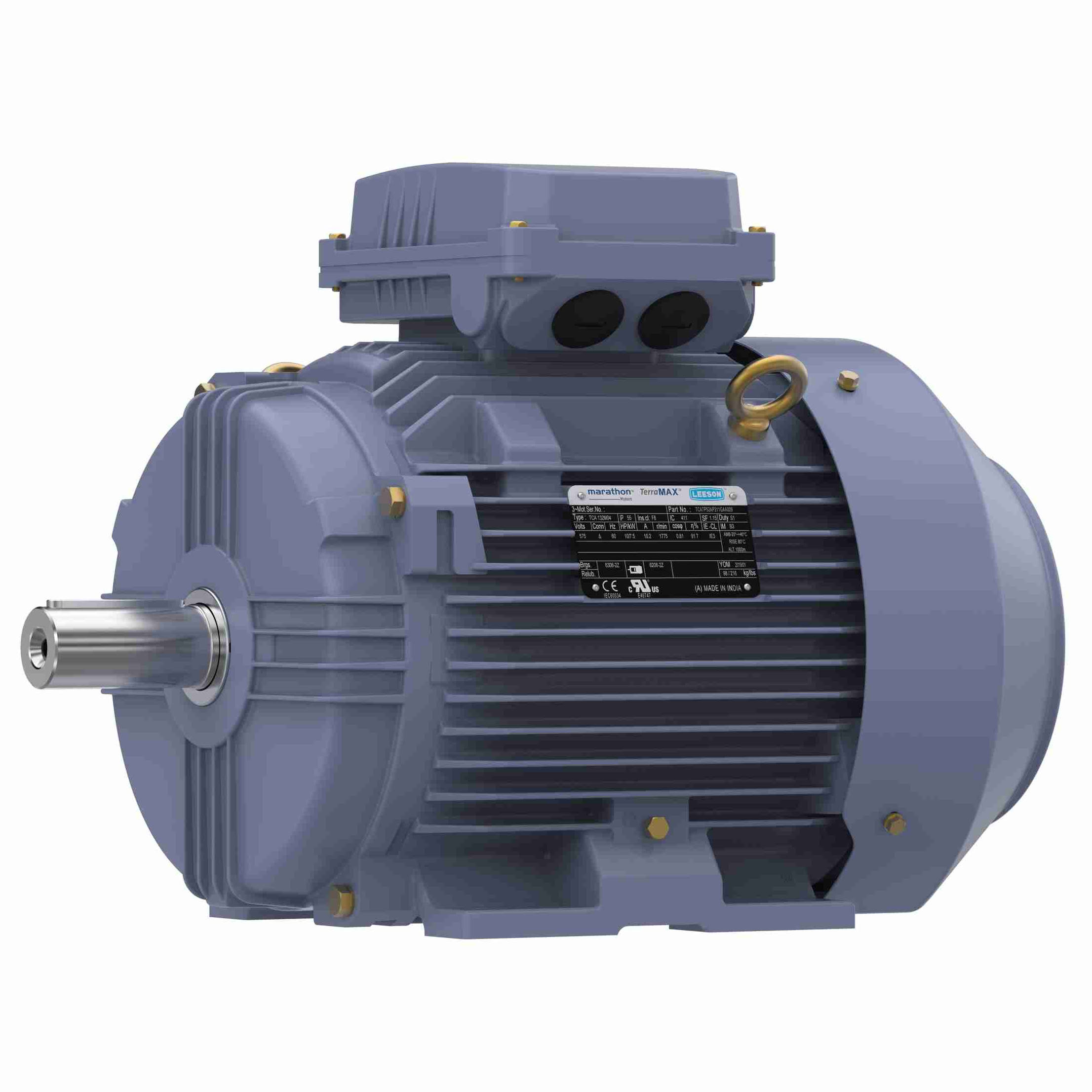

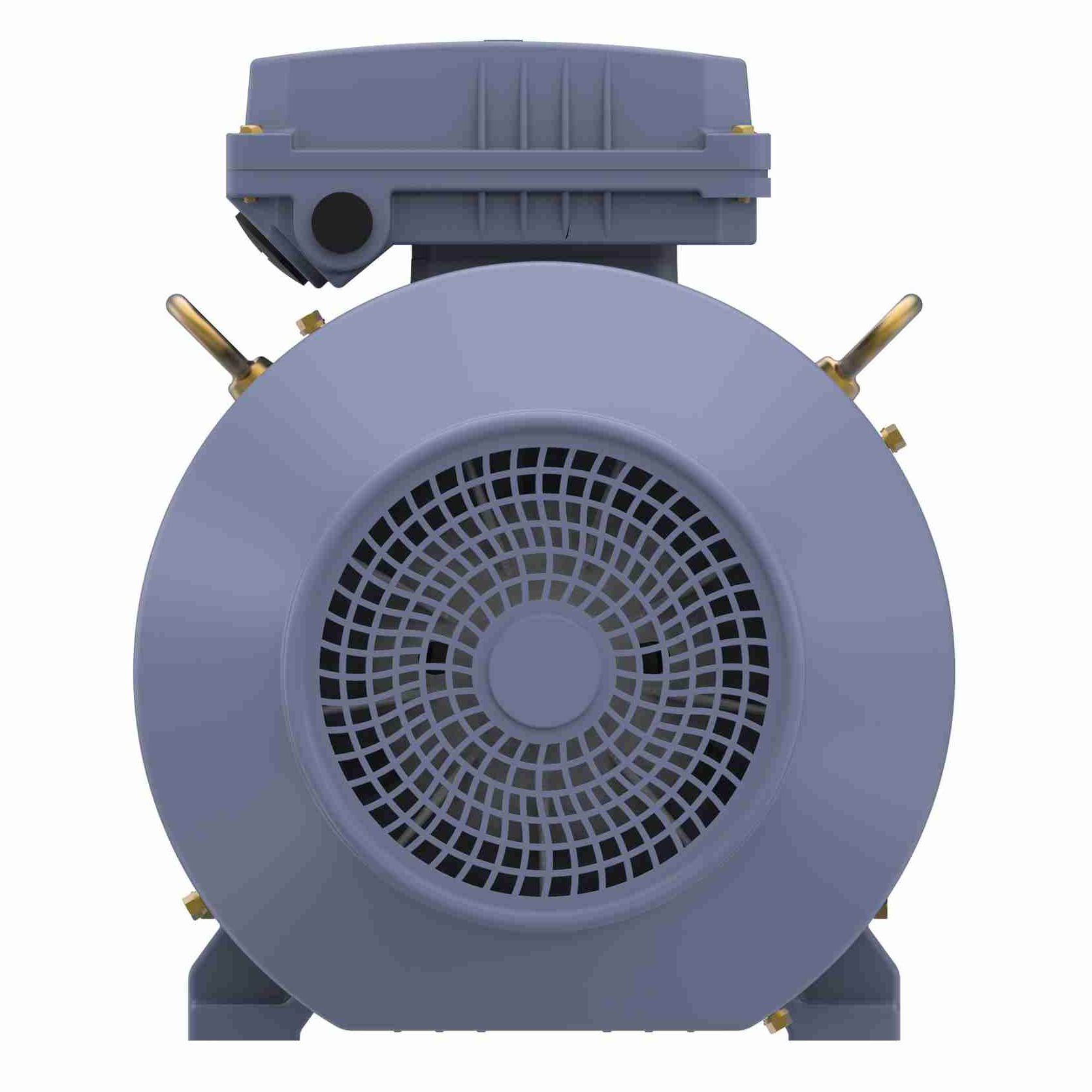

R431B Marathon 10HP/7.5kW IEC Metric Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: TCA7P52AP211GAA009

Selected accessories will also be added to cart
$1,771.97 / Each
Quantity:
TEFC, IP55, 132M Frame, 575VAC 3-Phase 50/60Hz, TCA7P52AP211GAA009, Rigid Base, Cast Iron Housing, 38mm Shaft

Features

Features
  • Meets IE3 European and NEMA premium efficiency standards
  • 60/50 Hz interchangeability
  • UL listed and CSA certified
  • Wye Start-Delta Run as optional feature above 3kW
  • 10:1 variable torque, 2:1 constant torque speed range as noted
  • Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty
  • IEC design “N” with NEMA “B” torques
  • Meets IEC 34 electrical standards
  • Meets IEC 72 dimensions and tolerances
  • CE marked

General Specifications

General Specifications
Model : TCA7P52AP211GAA009 Catalog No : R431B
Part Description : 7.5KW-10HP,1800,TEFC,132M,3/60/575 Category : IE3 Efficiency
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Output HP : 10 HP Output KW : 7.5 kW
Frequency : 60 Hz Voltage : 575 V
Current : 10.2 A Speed : 1775 RPM
Service Factor : 1.15 Phase : 3
Efficiency : 91.7 % Duty : Continuous
Insulation Class : F Design Code : N (IEC)
KVA Code : K Frame : 132M
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6308
Opp Drive End Bearing Size : 6208 UL : Recognized
CSA : N CE : Y
IP Code : 55

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated Starting Method : Line Or Inverter
Poles : 4 Rotation : Reversible
Mounting : B3 Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Cast Iron Shaft Type : IEC
Overall Length : 19.80 in Frame Length : 9.45 in
Shaft Diameter : 1.496 in Shaft Extension : 3.15 in
Assembly/Box Mounting : F3 UPC : 722856075222
Weight : 98.00 KG

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
1/3 104.60 824.0 85.48 289.0 600 43.03 0.0 10.00
Break-Down 59.20 466.0 95.70 323.0 1,572 104.60 83.2 10.00
Full Load 12.70 100.0 29.62 100.0 1,775 8.18 90.3 10.00
No Load 5.90 46.0 0.00 0.0 1,800 0.31 10.0 10.00
Pull-Up 104.60 824.0 85.48 289.0 600 43.03 0.0 10.00
2/3 93.60 737.0 76.48 258.0 1,200 38.50 0.0 10.00
Locked-Rotor 110.10 867.0 89.98 304.0 0 45.30 63.4 10.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.72
  • 0.310
  • 0.0
  • 7.0
  • 1,799
  • 0.0
  • 0.00
  • 25 %
  • 5.52
  • 2.200
  • 84.7
  • 40.0
  • 1,794
  • 0.0
  • 7.30
  • 50 %
  • 6.56
  • 4.140
  • 90.1
  • 64.0
  • 1,787
  • 0.0
  • 14.70
  • 75 %
  • 8.24
  • 6.140
  • 91.7
  • 75.0
  • 1,781
  • 0.0
  • 22.10
  • 100 %
  • 10.16
  • 8.180
  • 91.7
  • 81.0
  • 1,775
  • 80.0
  • 29.60
  • 115 %
  • 11.44
  • 9.460
  • 90.7
  • 83.0
  • 1,769
  • 0.0
  • 34.20
  • 125 %
  • 12.32
  • 10.330
  • 90.3
  • 84.0
  • 1,766
  • 0.0
  • 37.20
