/Products/Ball Bearings/6200 Series Ball Bearings/62082RDC3 Koyo Ball Bearing, Rubber Sealed
Click Image to Expand

Product ID: 6208-2RS

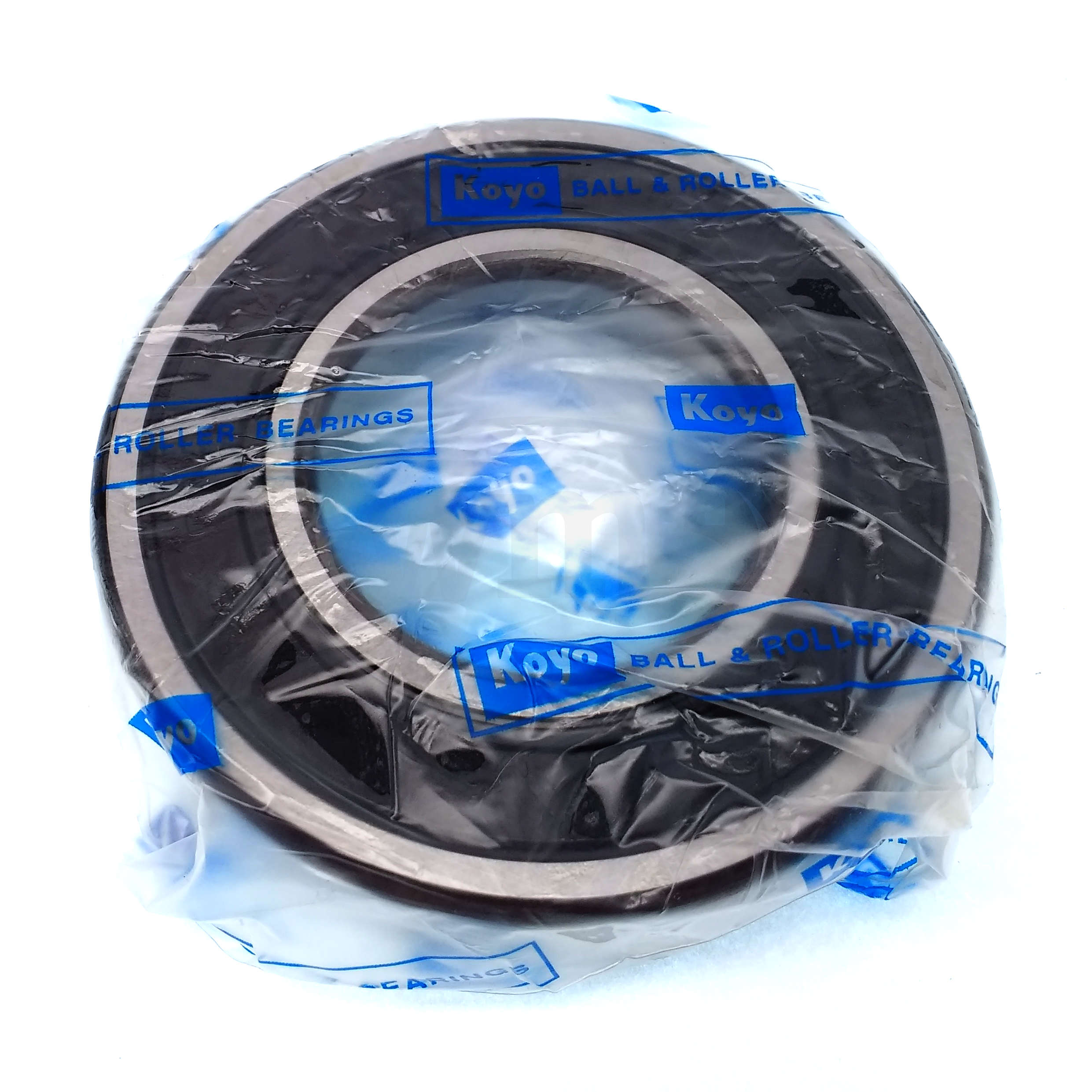

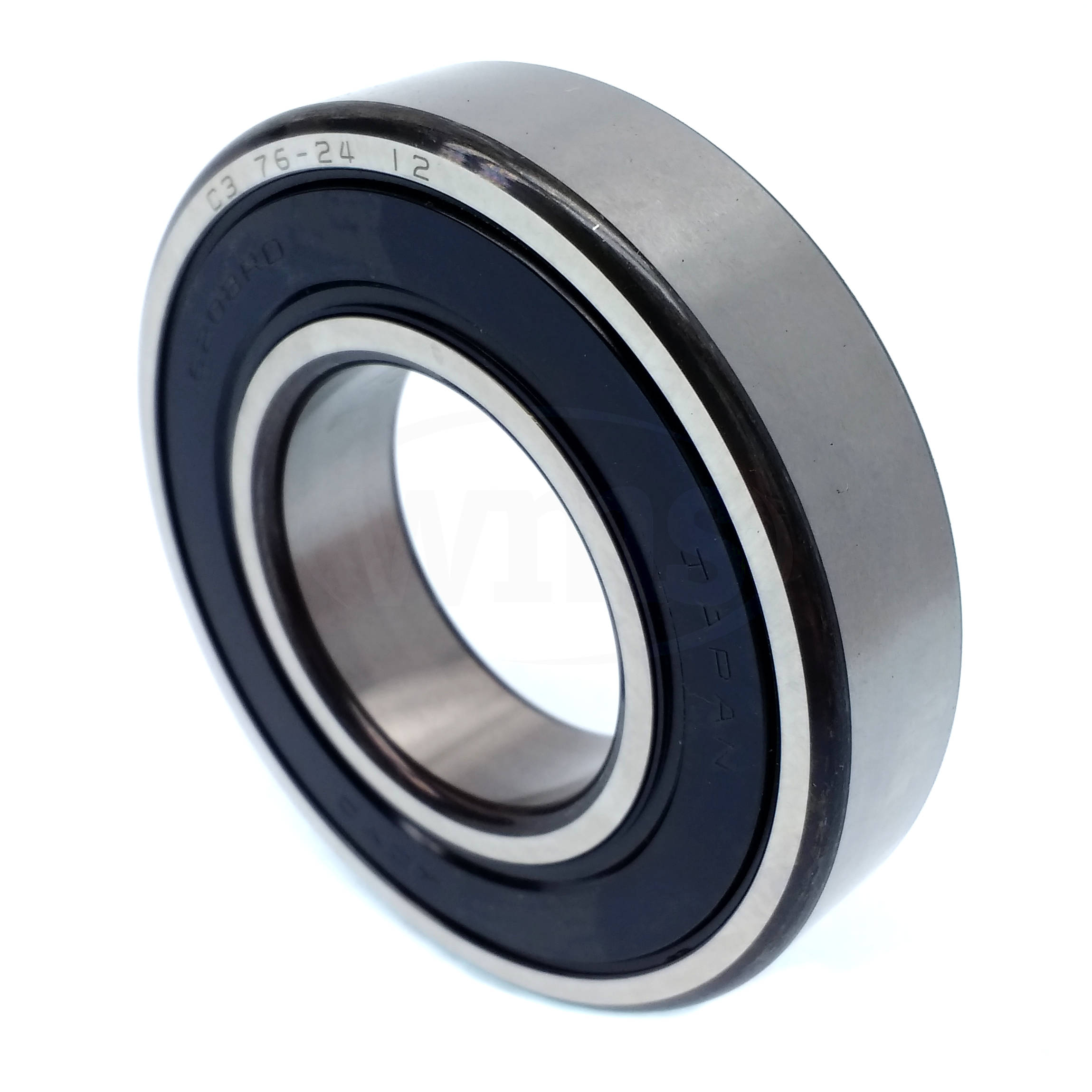

62082RDC3 Koyo Ball Bearing, Rubber Sealed

MFG: JTEKT Corporation
MFG Part Number: 62082RDC3

Available Stock: 10
Selected accessories will also be added to cart
$33.60 / Each
Quantity:
6208-2RS, 40mm x 80mm x 18mm

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 62082RDC3
Group Deep Groove Ball Bearings

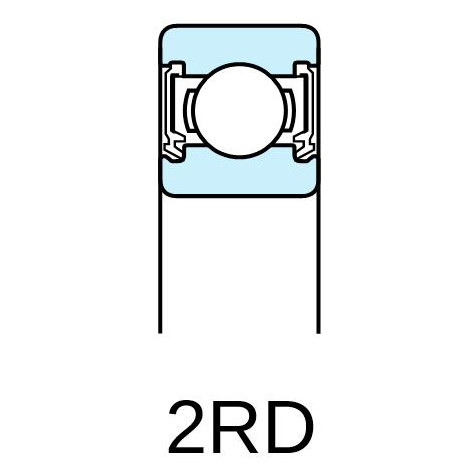

Type Extremely Light Contact Sealed (2RD)

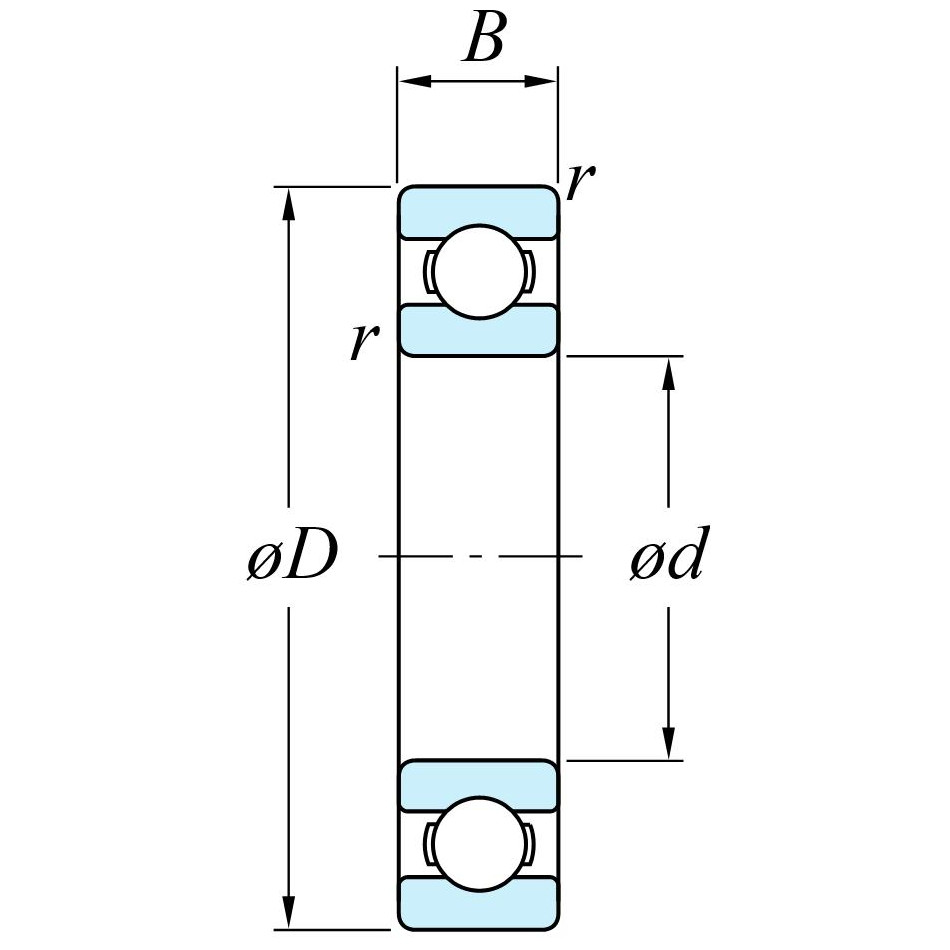

Bore / Inside Diameter (d) 40 mm
Housing / Outside Diameter (D) 80 mm
Width (B) 18 mm
Minimum Radius (r) 1.1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 29.1 kN
C0r 17.8 kN
Limiting Speeds (Grease Lubrication) 7,500 min-1
Mass 0.366 kg
0.81 lbs
UPC 4549250158292
Country of Manufacture Japan
