/Products/Electric Motors/3 Phase Metric/Marathon/Rigid Base/R317 Marathon 1.5HP/1.1kW IEC Metric Globetrotter Electric Motor, 1200RPM
Click Image to Expand

Product ID: 100LTFC6586

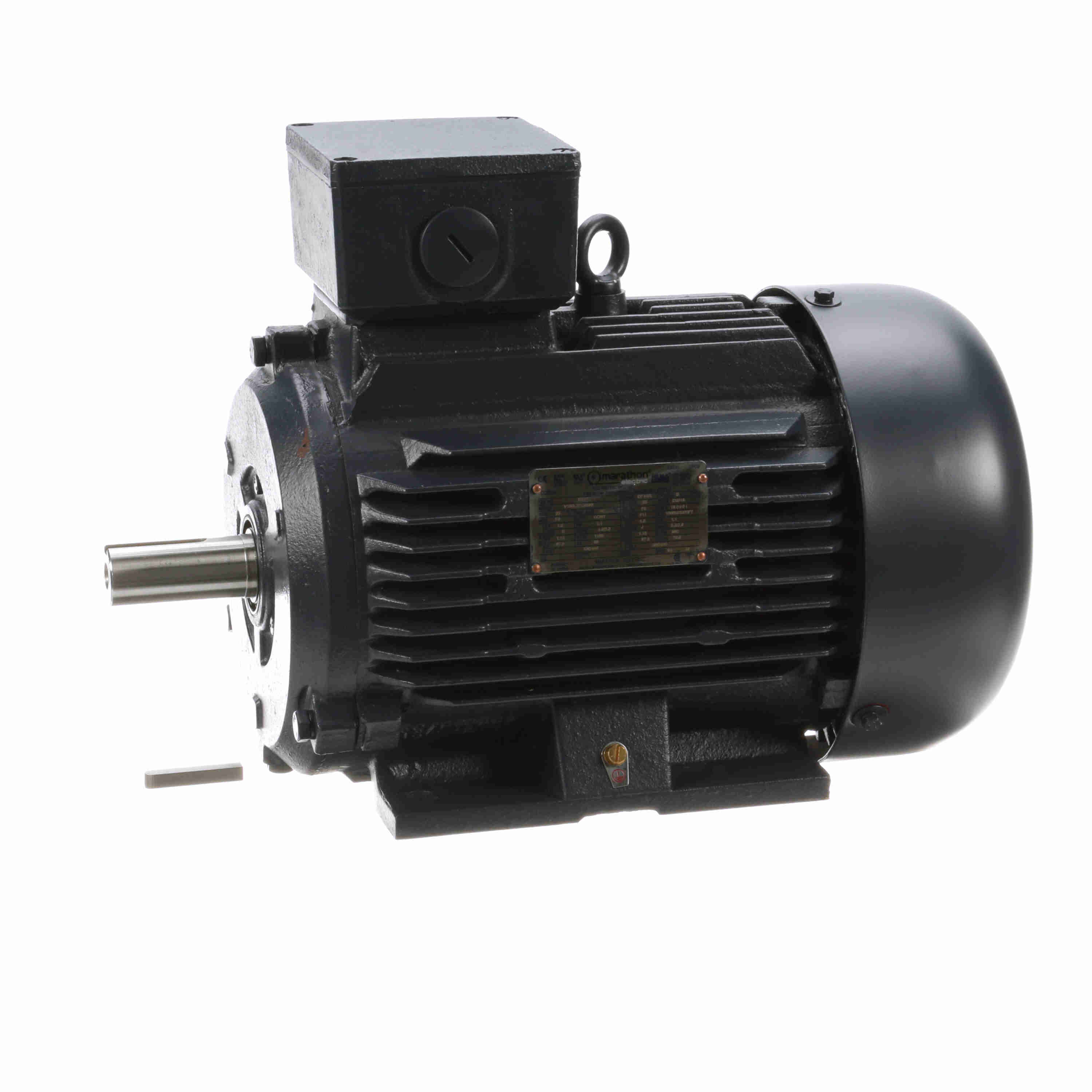

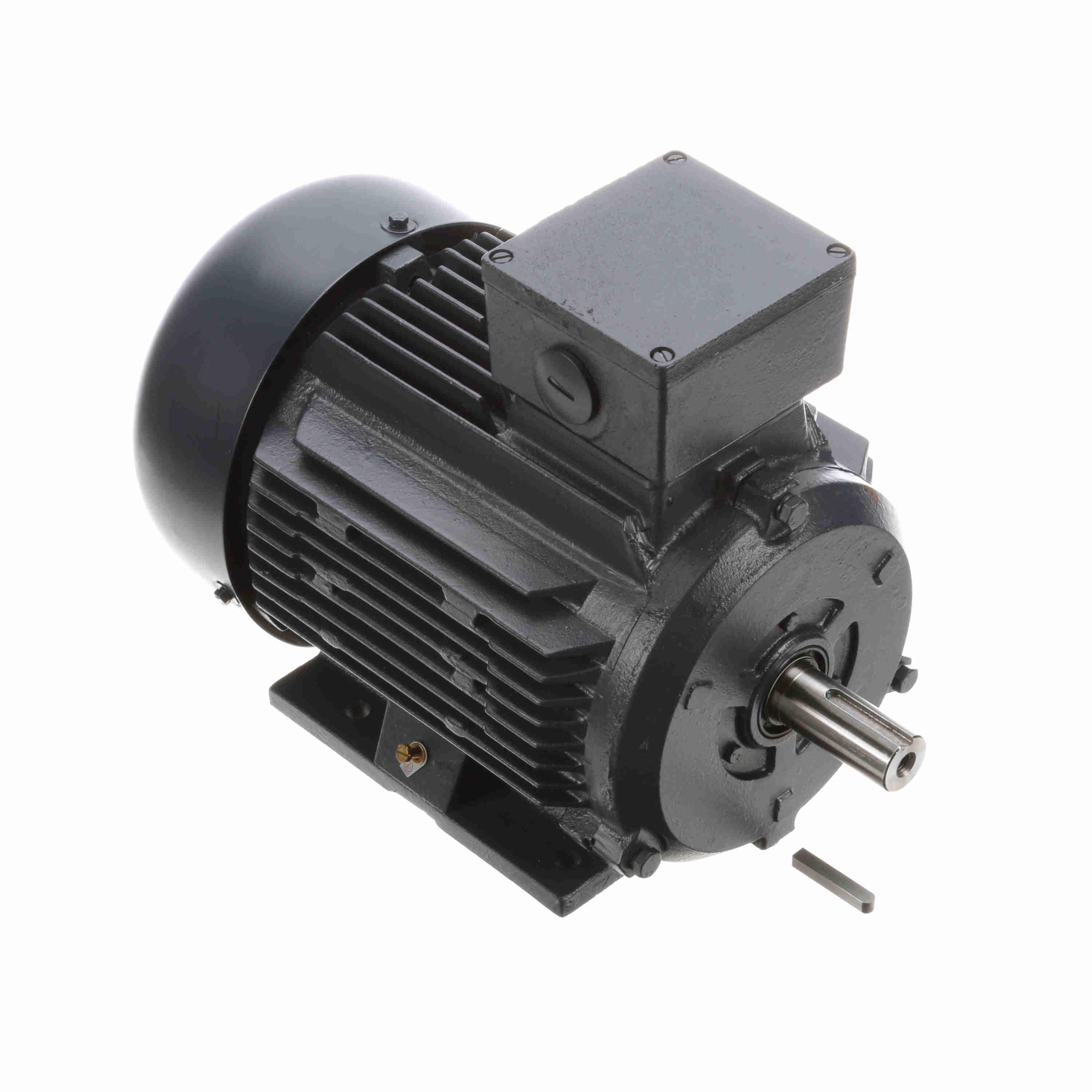

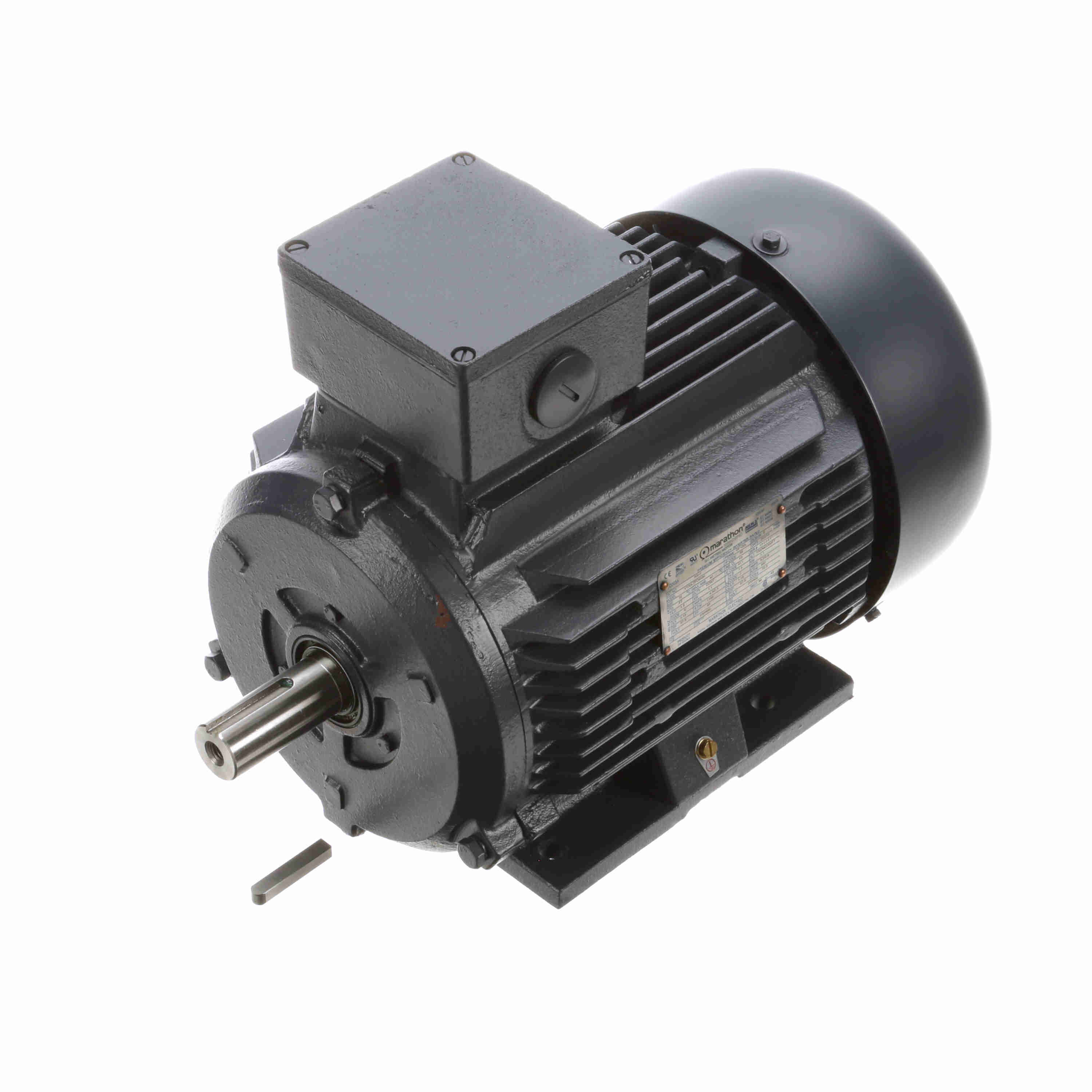

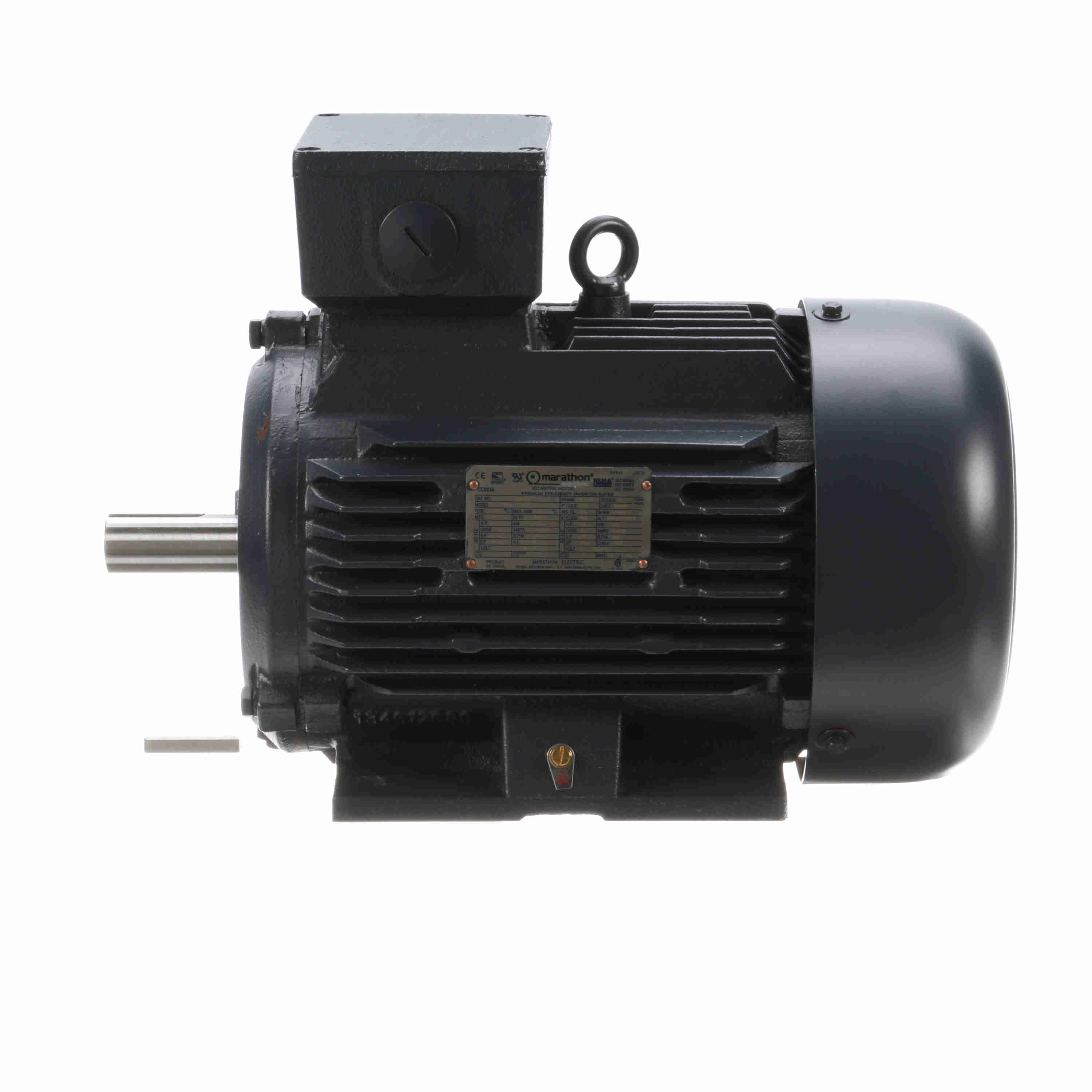

R317 Marathon 1.5HP/1.1kW IEC Metric Globetrotter Electric Motor, 1200RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 100LTFC6586

Selected accessories will also be added to cart
$893.97 / Each
Quantity:
TEFC, IP55, 100L Frame, 230/460VAC 3-Phase 60Hz, 100LTFC6586, Rigid Base, Cast Iron Frame, 28mm Keyed Shaft

Features

  • Meets IE3 European and NEMA Premium® efficiencies
  • Aluminum (63-90 frame) or Cast Iron (100-315 frame) frame construction
  • Nameplated 60/50 hertz at same HP, above 90 frame is 60/50 Hz at next lower HP
  • MAX GUARD® Class F Insulation, Class B rise @ rated KW
  • IP55 weatherproof enclosure, Rotatable/Removable Base (63-90 frame)
  • Wye Start-Delta Run on 160 Frame and larger
  • 1.15 Service Factor on 60 Hz sine wave, 1.0 SF or VFD, IEC Design “N” with NEMA “B” Torques
  • Top Mounted/Oversized gasketed terminal box
  • Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty (63-90 frame “Below Deck”)
  • CE marked

General Specifications

UPC: 722856026316 Weight: 90.00 LB
Packaged Length: 22.5 IN Packaged Width: 16.81 IN
Packaged Height: 14 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 4.6/2.3 A Speed: 1185 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 87.5 % Power Factor: 68
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: K
Frame: 100L Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: N
CE: Y IP Code: 55

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 6 Rotation: Reversible
Resistance Main: 4.65 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: IEC Overall Length: 16.33 in
Shaft Diameter: 1.111 in Shaft Extension: 2.36 in
Assembly/Box Mounting: F3

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 16.00 695.0 13.50 205.0 0 42.5 1.50
1/3 15.50 675.0 12.00 180.0 350 1.50
2/3 14.00 610.0 15.00 227.0 350 1.50
Break-Down 7.00 305.0 22.70 342.0 1,055 62.0 1.50
No Load 1.50 65.5 0.00 0.0 1,200 6.5 1.50
Pull-Up 15.00 655.0 12.00 180.0 350 1.50
Full Load 2.30 100.0 6.60 100.0 1,185 68.0 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 1.50 1.60 1.80 2.00 2.30 2.60 2.80
Rated Output (KW) 0.10 0.40 0.65 0.96 1.25 1.40 1.60
Efficiency (%) 0.0 76.5 84.0 87.5 87.5 87.5 87.5
Power Factor (%) 6.5 28.5 47.0 60.0 68.0 70.0 73.0
Speed (RPM) 1,200 1,196 1,192 1,188 1,185 1,182 1,178
Temp. Rise @ FL 0.0 0.0 0.0 0.0 35.0 50.0 60.0
Torque (ft-lbs) 0.00 1.60 3.30 5.00 6.60 7.60 8.40
