/Products/Electric Motors/Single Phase/Leeson/General Purpose, C-Face Less Base/Leeson 131544.00 3HP Electric Motor, 1800RPM

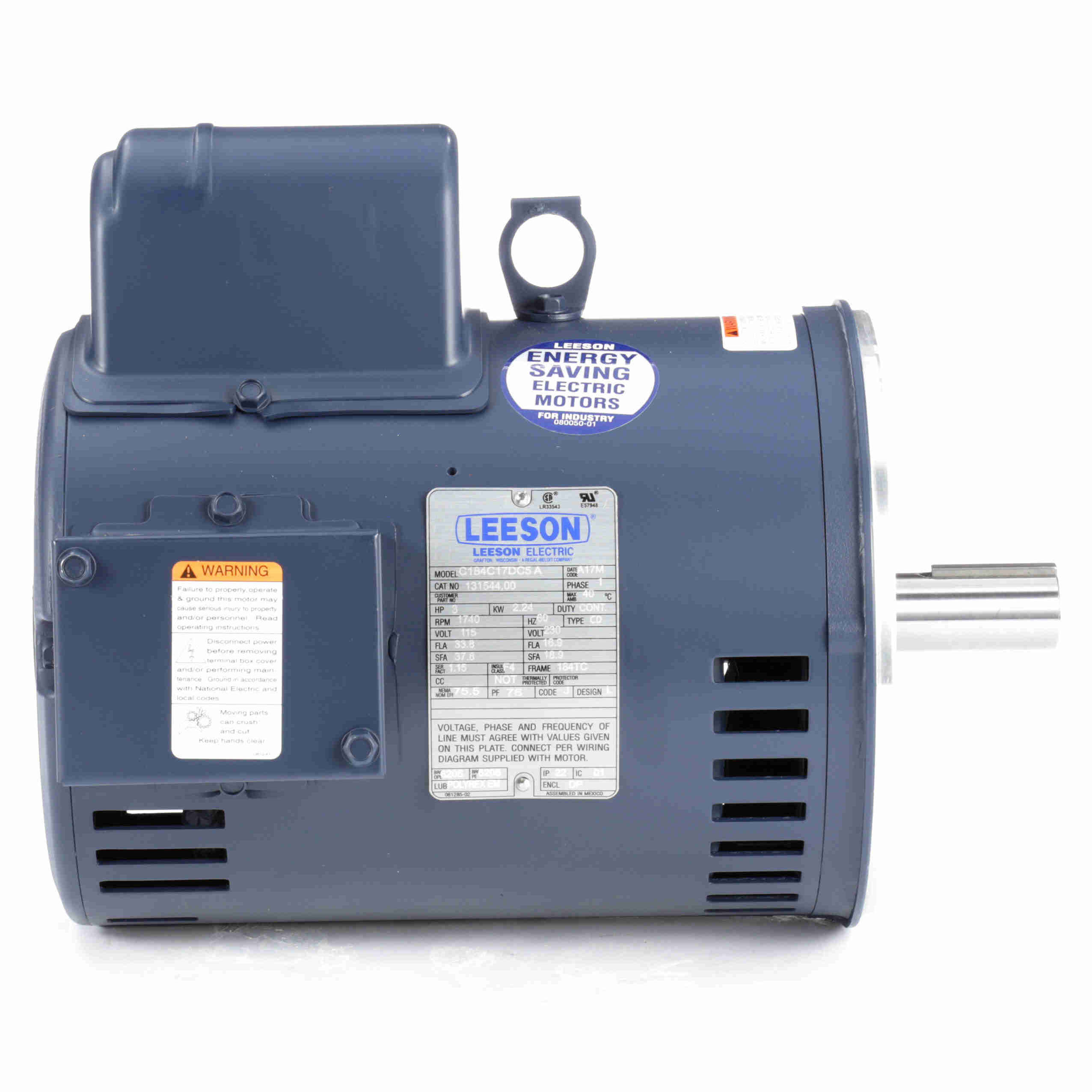

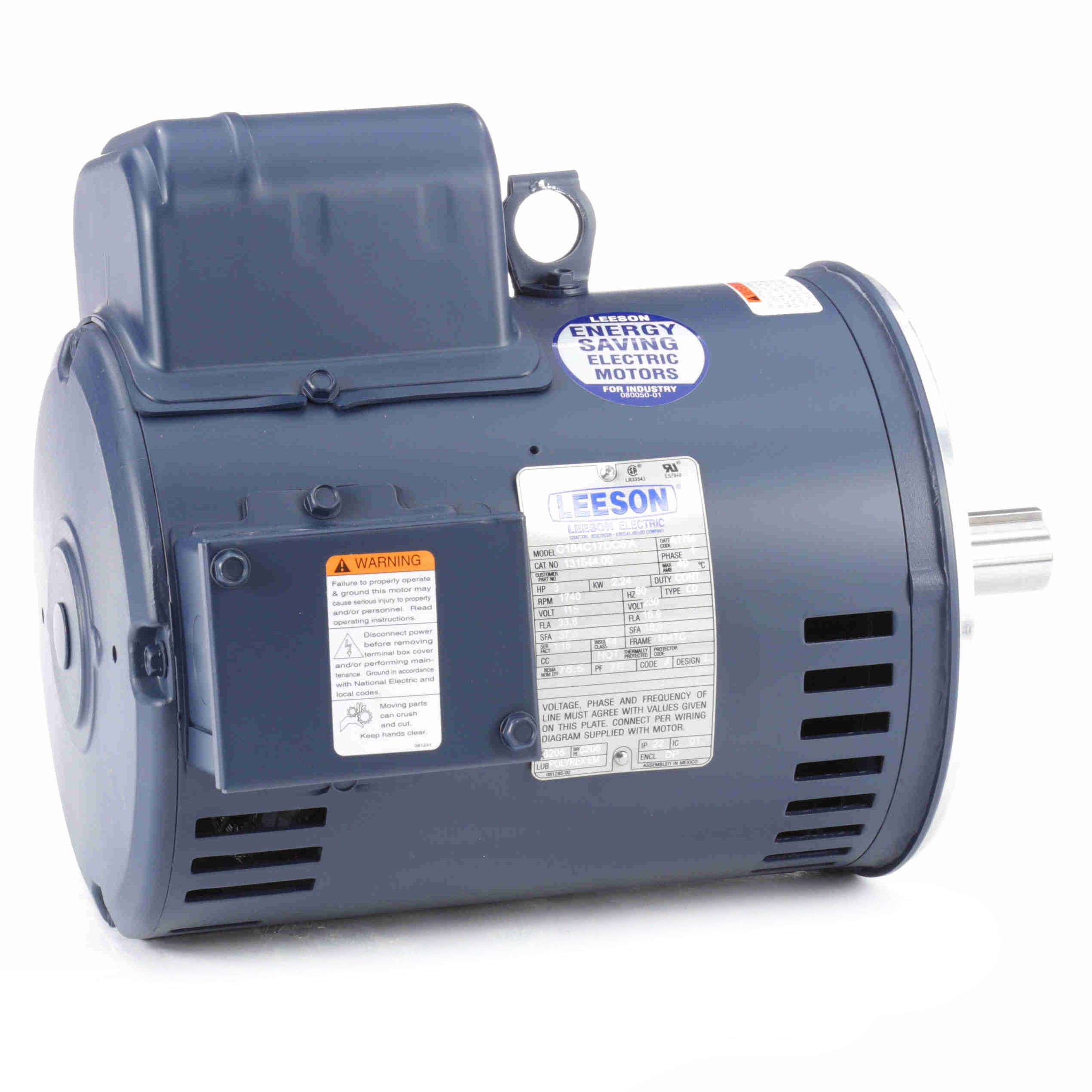

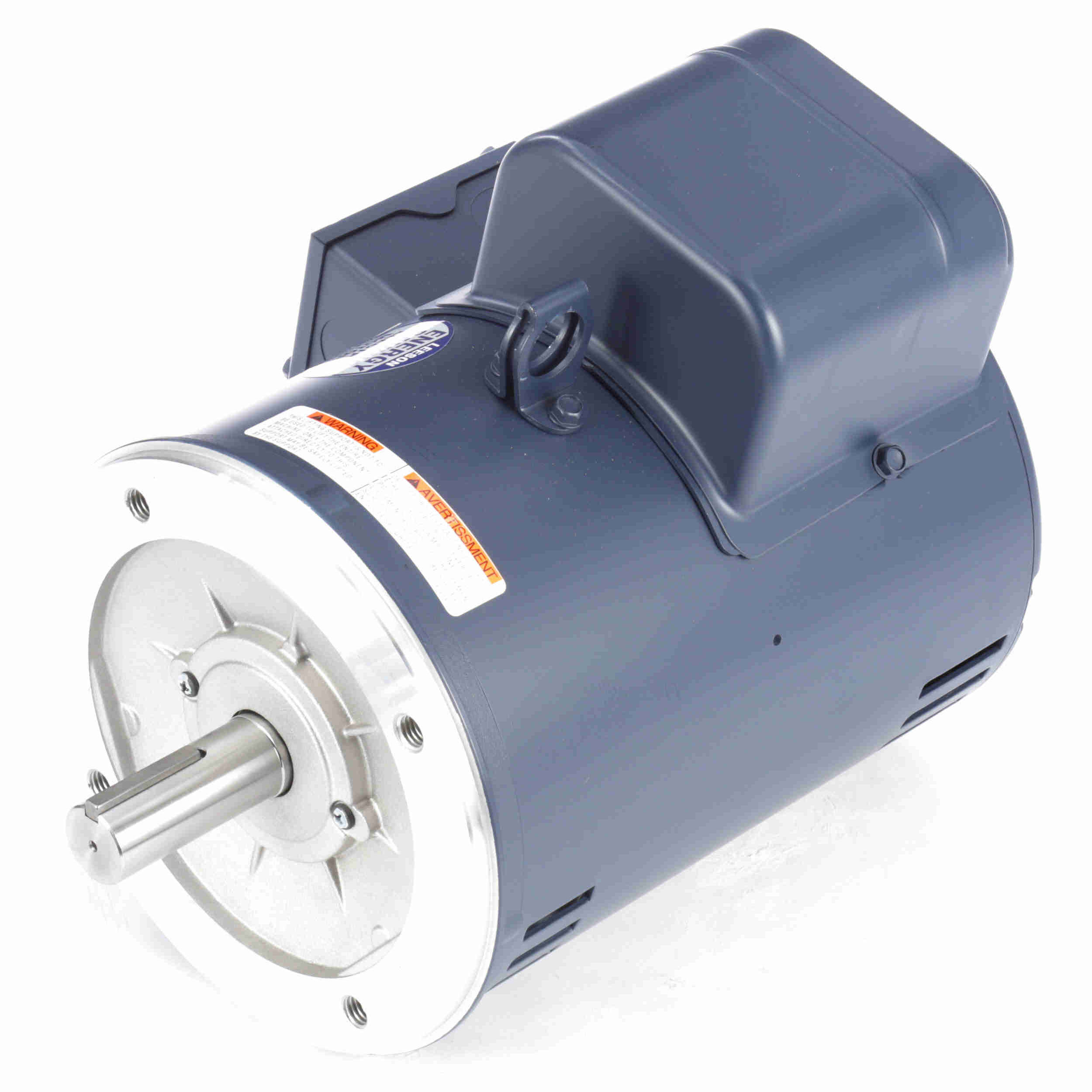

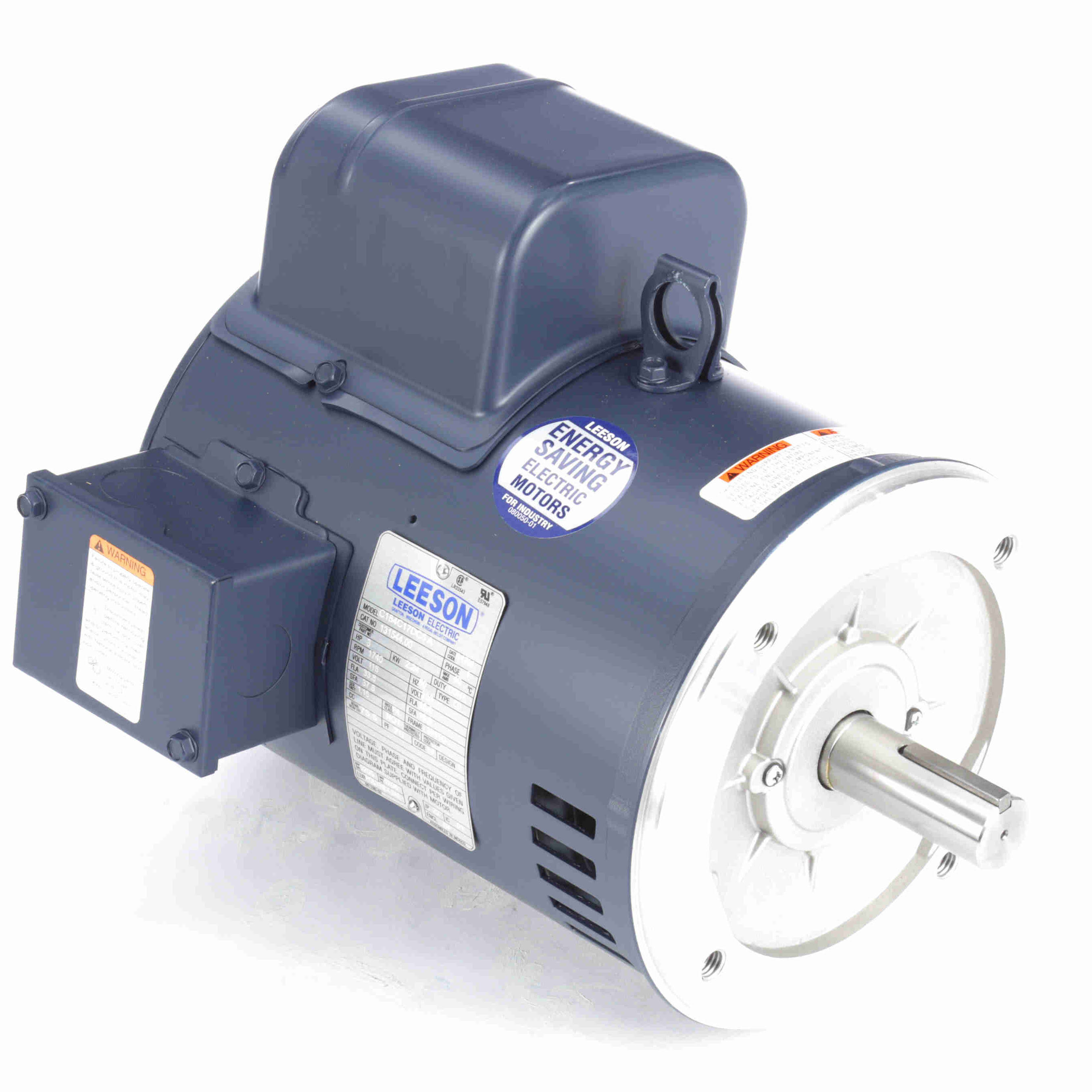

Click Image to Expand

Product ID: 131544.00

Leeson 131544.00 3HP Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 131544.00

Selected accessories will also be added to cart
$807.98 / Each
Quantity:
C184C17DC5A, 184TC Frame, 115/208-230V
General Specifications
Model :C184C17DC5A Catalog No :131544.00
Part Description :3HP..1740RPM.184.DP.115/230V.1PH.60HZ.CONT.NOT.40C.1.15SF.C FACE.GENERAL PURPOSE.C184C17DC5A Category :Open Drip Proof (ODP)
Stock :No
Nameplate Specifications
Output HP :3 Hp Output KW :2.24 kW
Frequency :60 Hz Voltage :115/230 V
Current :33.8/16.9 A Speed :1740 rpm
Service Factor :1.15 Phase :1
Efficiency :75.5 % Duty :CONTINUOUS
Insulation Class :F Design Code :L
KVA Code :J Frame :184TC
Enclosure :DP Overload Protector :NOT
Ambient Temperature :40 °C Drive End Bearing Size :6206
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :N
IP Code :22
Technical Specifications
Electrical Type :CAP START IND RUN Starting Method :ACROSS THE LINE
Poles :4 Rotation :SELECTIVE CCW
Mounting :ROUND Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :ROLLED STEEL Shaft Type :T
Overall Length :14.2 in Frame Length :10 in
Shaft Diameter :1.13 in Shaft Extension :2.75 in
Assembly/Box Mounting :F1 ONLY UPC :691720017920
Weight :76.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down0.000.018.40204.000.000.03.00
Full Load16.60100.09.00100.000.000.03.00
Locked-Rotor90.60546.024.60273.000.000.03.00
Pull-Up0.000.017.50194.000.000.03.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 9.70
  • 0.355
  • 0.0
  • 15.9
  • 1,797
  • 0.0
  • 0.00
  • 25 %
  • 10.30
  • 0.955
  • 63.4
  • 43.0
  • 1,787
  • 0.0
  • 2.25
  • 50 %
  • 11.70
  • 1.556
  • 74.2
  • 71.3
  • 1,775
  • 0.0
  • 4.50
  • 75 %
  • 13.90
  • 2.227
  • 75.5
  • 73.0
  • 1,763
  • 0.0
  • 6.75
  • 100 %
  • 16.90
  • 2.975
  • 75.5
  • 76.0
  • 1,745
  • 65.0
  • 9.00
  • 115 %
  • 18.50
  • 3.260
  • 78.9
  • 81.8
  • 1,735
  • 95.0
  • 10.30
  • 125 %
  • 20.30
  • 3.809
  • 72.5
  • 81.5
  • 1,727
  • 0.0
  • 11.25
  • 150 %
  • 24.90
  • 4.795
  • 68.0
  • 83.7
  • 1,698
  • 0.0
  • 13.50
