/Products/Electric Motors/Single Phase/Lincoln/Extra Hi-Torque TEFC Rigid Base/LM24802 Lincoln 5HP Extra Hi-Torque Agriculture Duty Electric Motor
Click Image to Expand

Product ID: LM24802

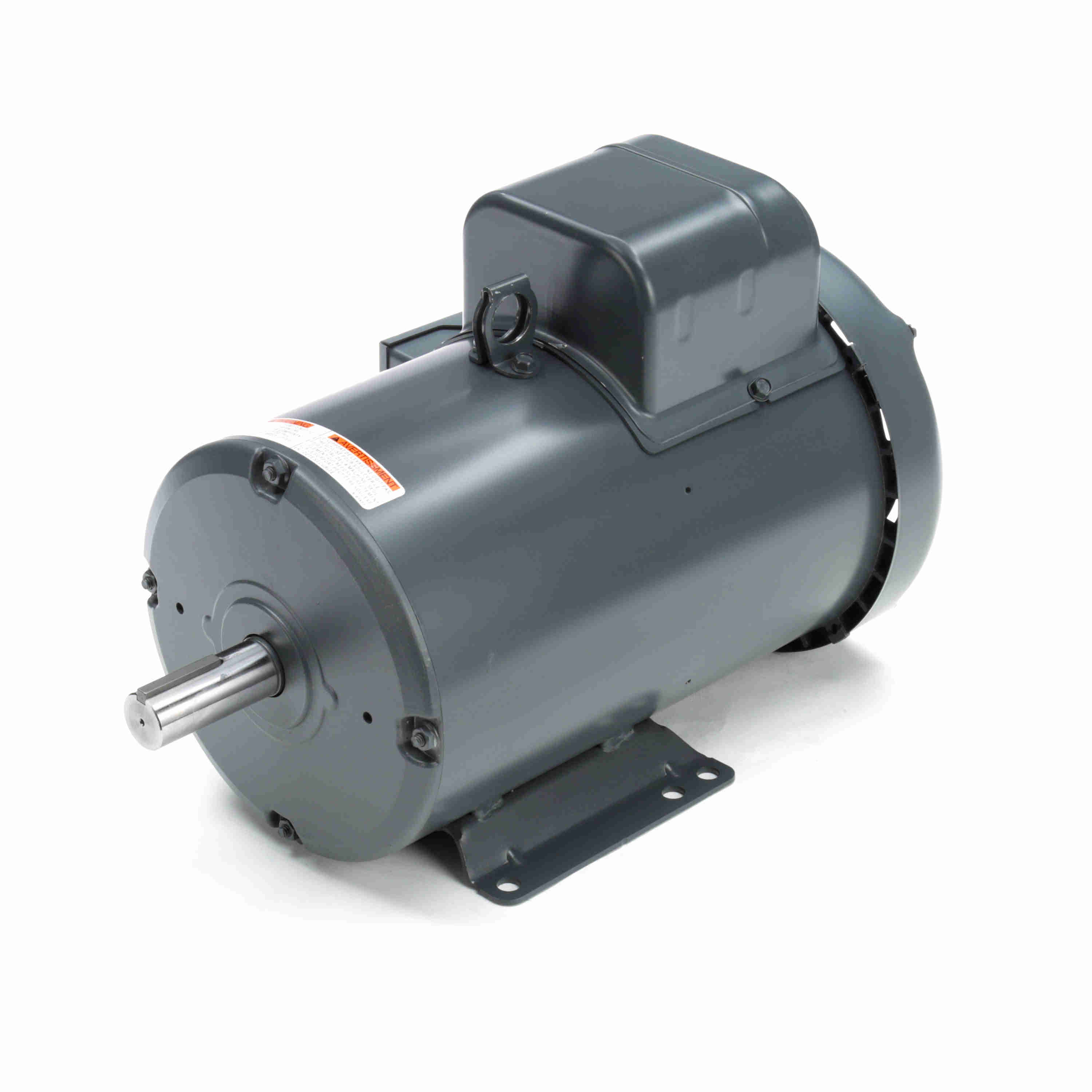

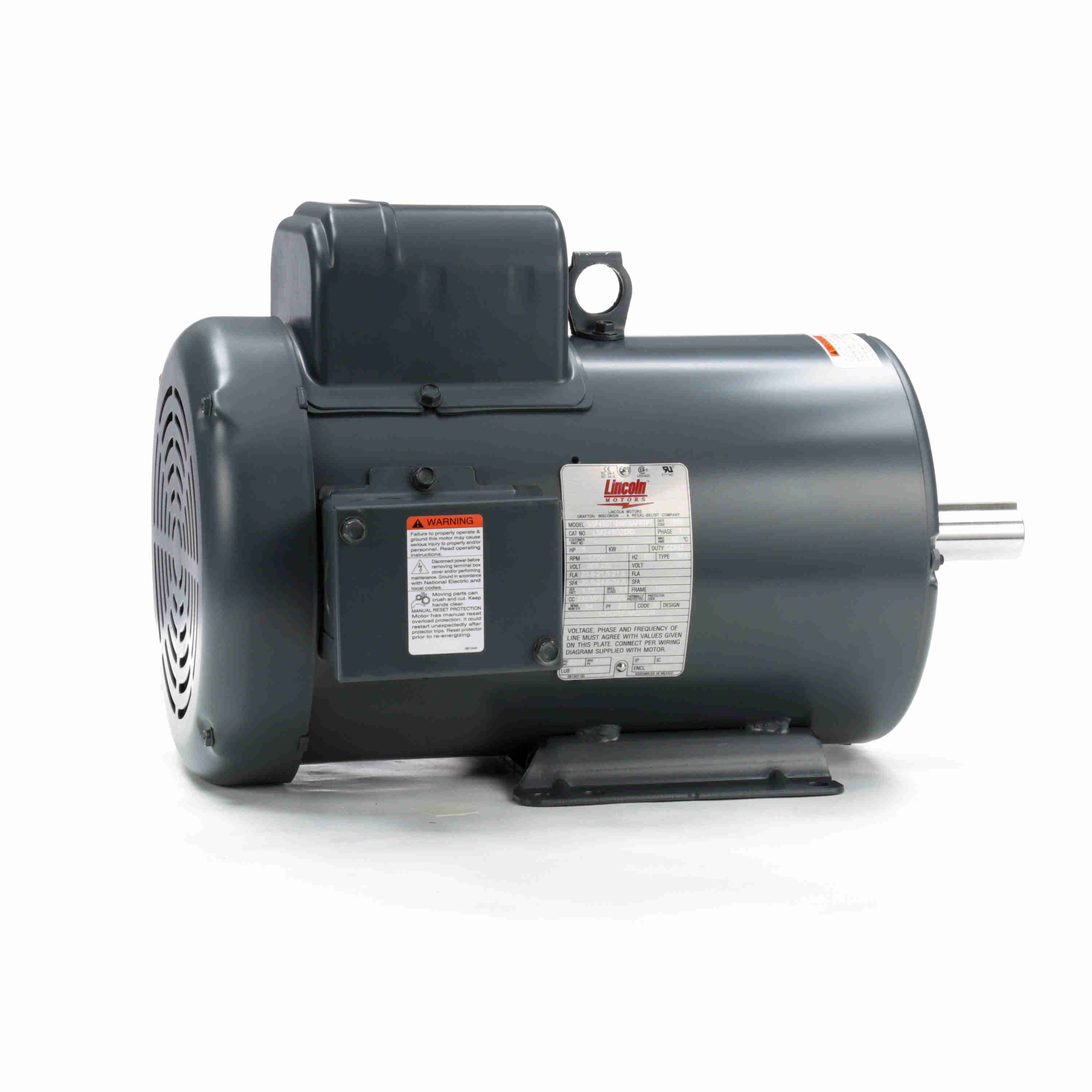

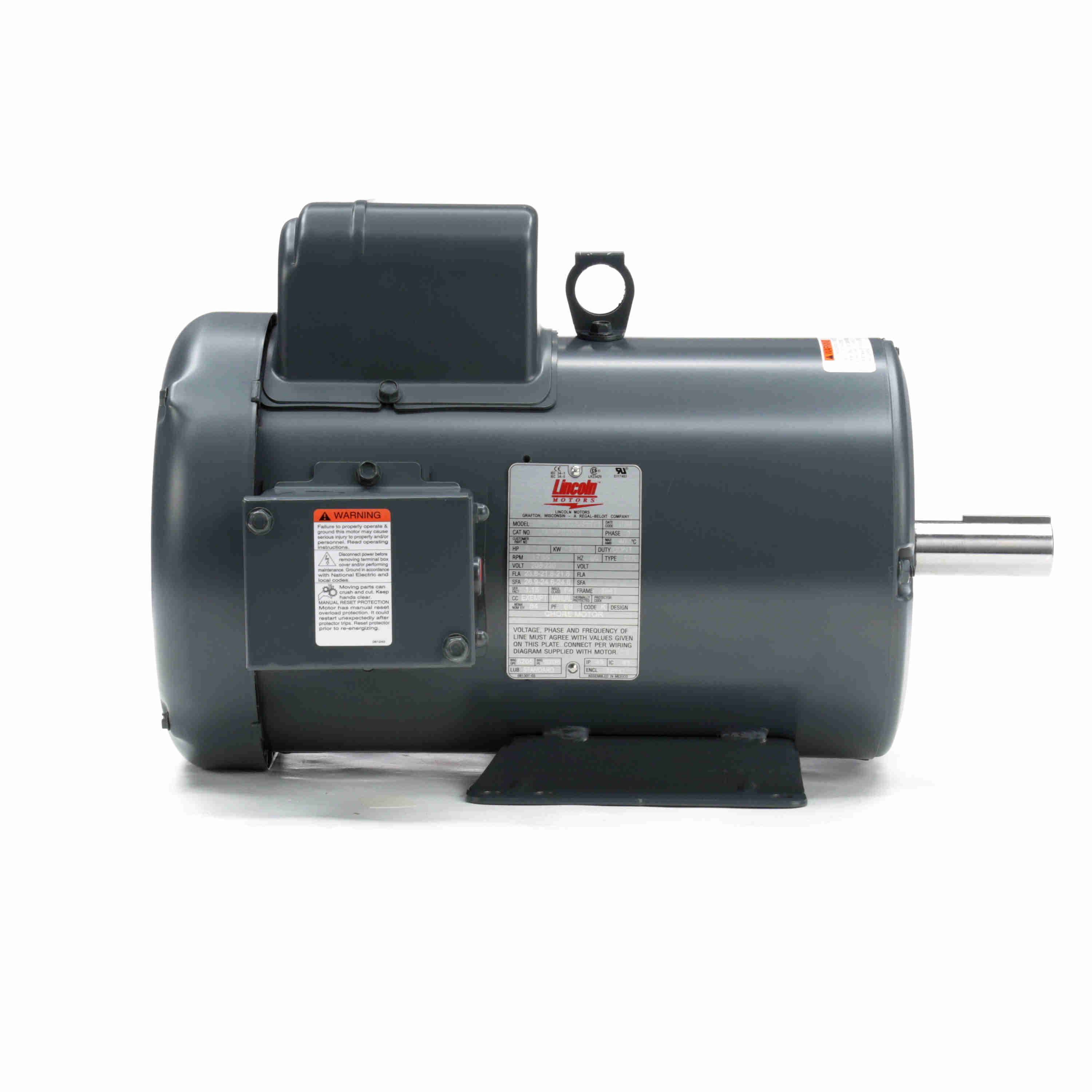

LM24802 Lincoln 5HP Extra Hi-Torque Agriculture Duty Electric Motor

MFG: Lincoln Motors
MFG Part Number: SSF4S5TB6008AP8TP1

Selected accessories will also be added to cart
$881.89 / Each
Quantity:
TEFC, 1800RPM, 184T Frame, 208-230VAC Single Phase 60Hz, SSF4S5T1B6008AP8TP1, Rigid Base, Rolled Steel, 1-1/8" Shaft

Features

Features
  • Premium efficient designs
  • Double sealed ball bearings
  • Shaft flinger - output shaft
  • Normally closed thermostat protected
  • Weep holes provide condensation drains

General Specifications

General Specifications
Model :SSF4S5T1B6008AP8TP1 Catalog No :LM24802
Part Description :5,1800,TEFC,184T,1/60/208-230 Category :Agricultural
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :5 HP Output KW :3.7 kW
Frequency :60 Hz Voltage :208-230 V
Current :23.8-21.8-21.8 A Speed :1755 RPM
Service Factor :1.15 Phase :1
Efficiency :84 % Duty :Continuous
Insulation Class :F Design Code :NO DESIGN CODE
KVA Code :K Frame :184T
Enclosure :Totally Enclosed Fan Cooled Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :6206
Opp Drive End Bearing Size :6205 UL :Recognized ( Not Protector)
CSA :Y CE :Y
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :T
Overall Length :17.46 in Frame Length :12.00 in
Shaft Diameter :1.125 in Shaft Extension :2.75 in
Assembly/Box Mounting :F1 ONLY UPC :691720981511
Weight :139.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up101.00463.044.00293.000.000.05.00
Locked-Rotor178.00817.049.80332.000.000.05.00
Full Load21.80100.015.00100.01,7550.000.05.00
Break-Down96.10441.044.70298.000.000.05.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 8.00
  • 0.460
  • 0.0
  • 25.0
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 9.50
  • 1.360
  • 68.7
  • 62.2
  • 1,788
  • 0.0
  • 3.68
  • 50 %
  • 12.85
  • 2.325
  • 80.4
  • 78.7
  • 1,779
  • 0.0
  • 7.40
  • 75 %
  • 16.90
  • 3.345
  • 83.5
  • 86.1
  • 1,771
  • 0.0
  • 11.10
  • 100 %
  • 21.80
  • 4.420
  • 84.0
  • 89.0
  • 1,755
  • 75.0
  • 14.88
  • 115 %
  • 24.60
  • 5.115
  • 83.5
  • 90.4
  • 1,750
  • 95.0
  • 17.19
  • 125 %
  • 26.70
  • 5.570
  • 83.2
  • 90.7
  • 1,745
  • 0.0
  • 18.70
  • 175 %
  • 31.40
  • 6.820
  • 81.7
  • 94.4
  • 1,735
  • 0.0
  • 22.60
