/Products/Electric Motors/3 Phase/Marathon/Globetrotter General Purpose/TEFC, C-Face, Rigid Base/GT1409A Marathon 3HP Globetrotter Electric Motor, 3600RPM

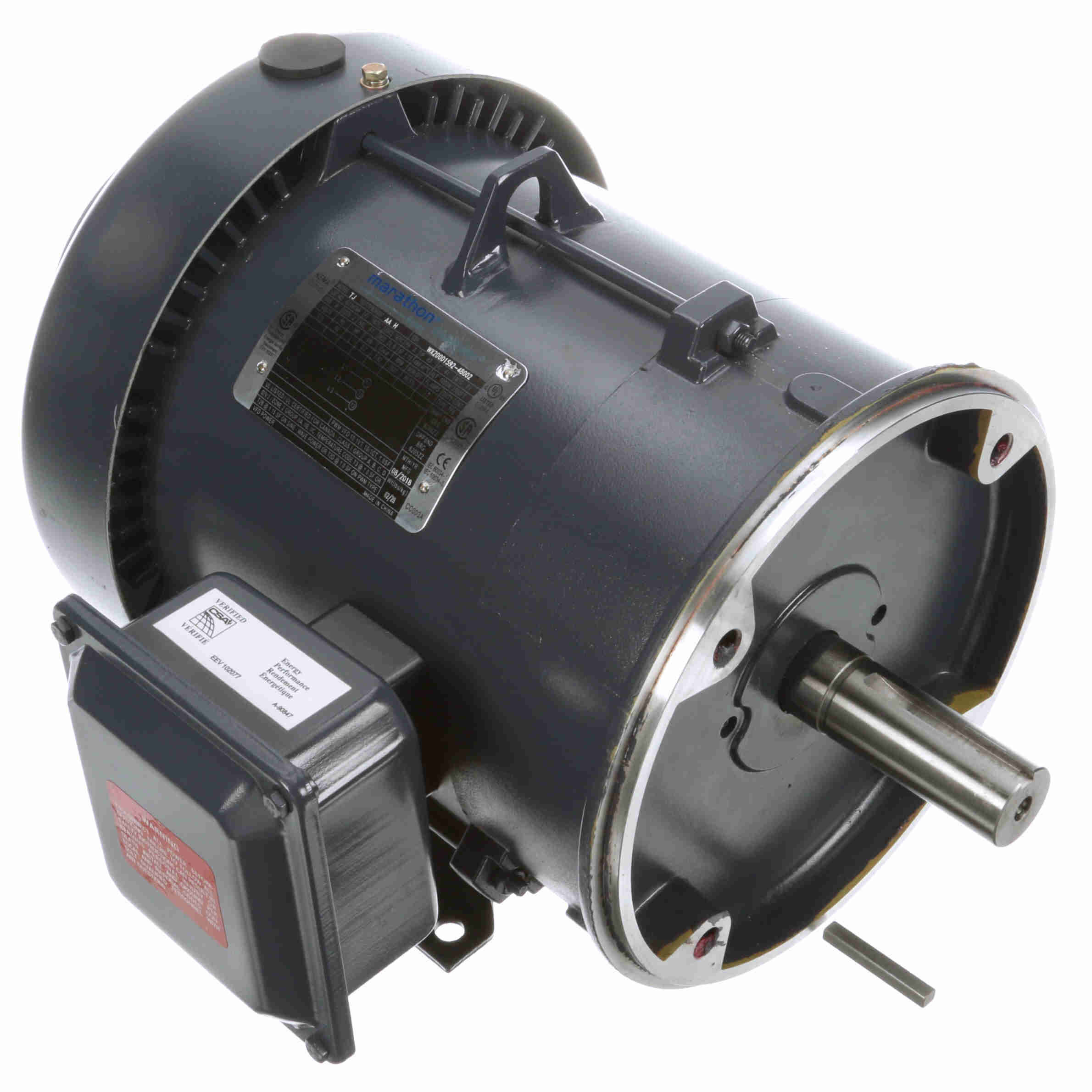

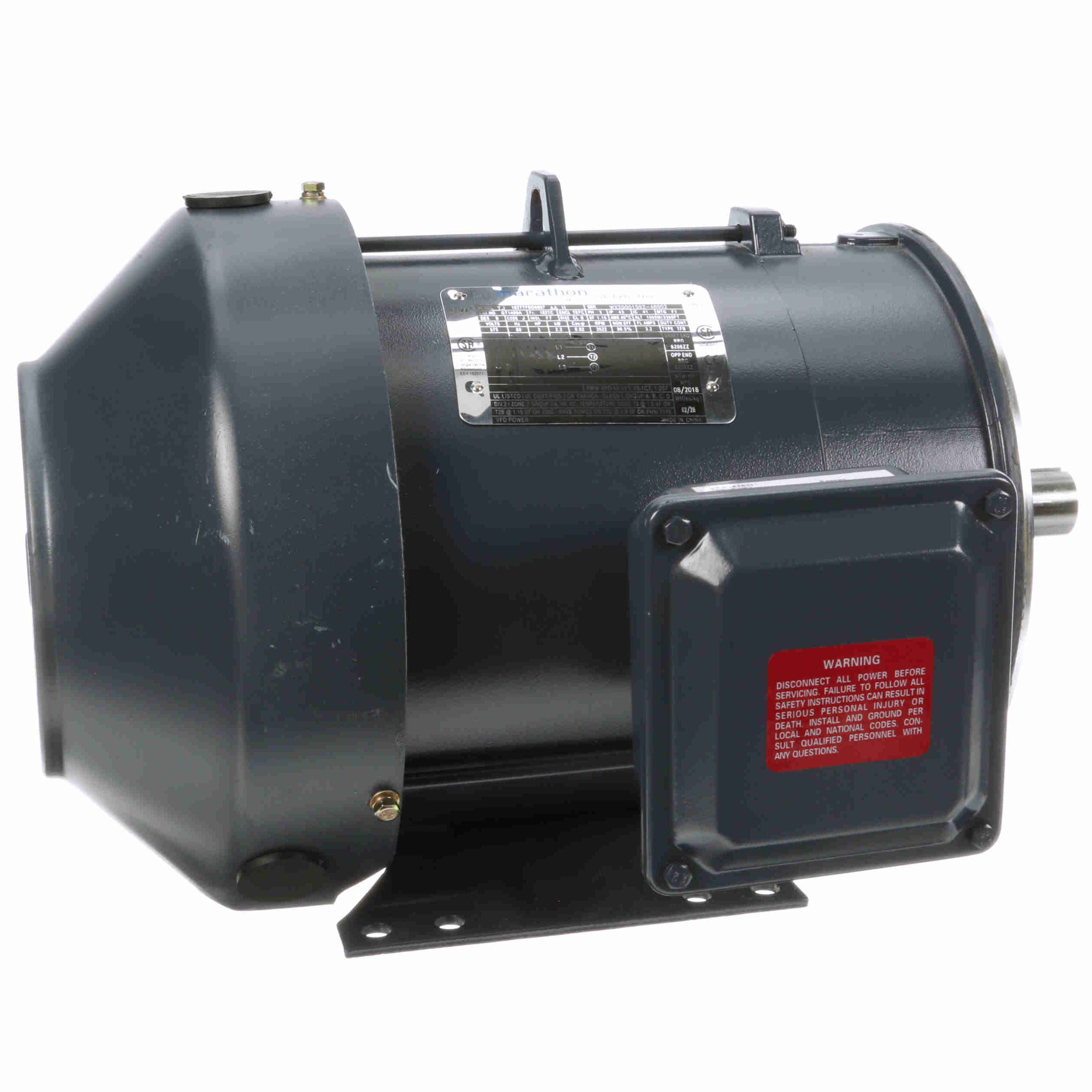

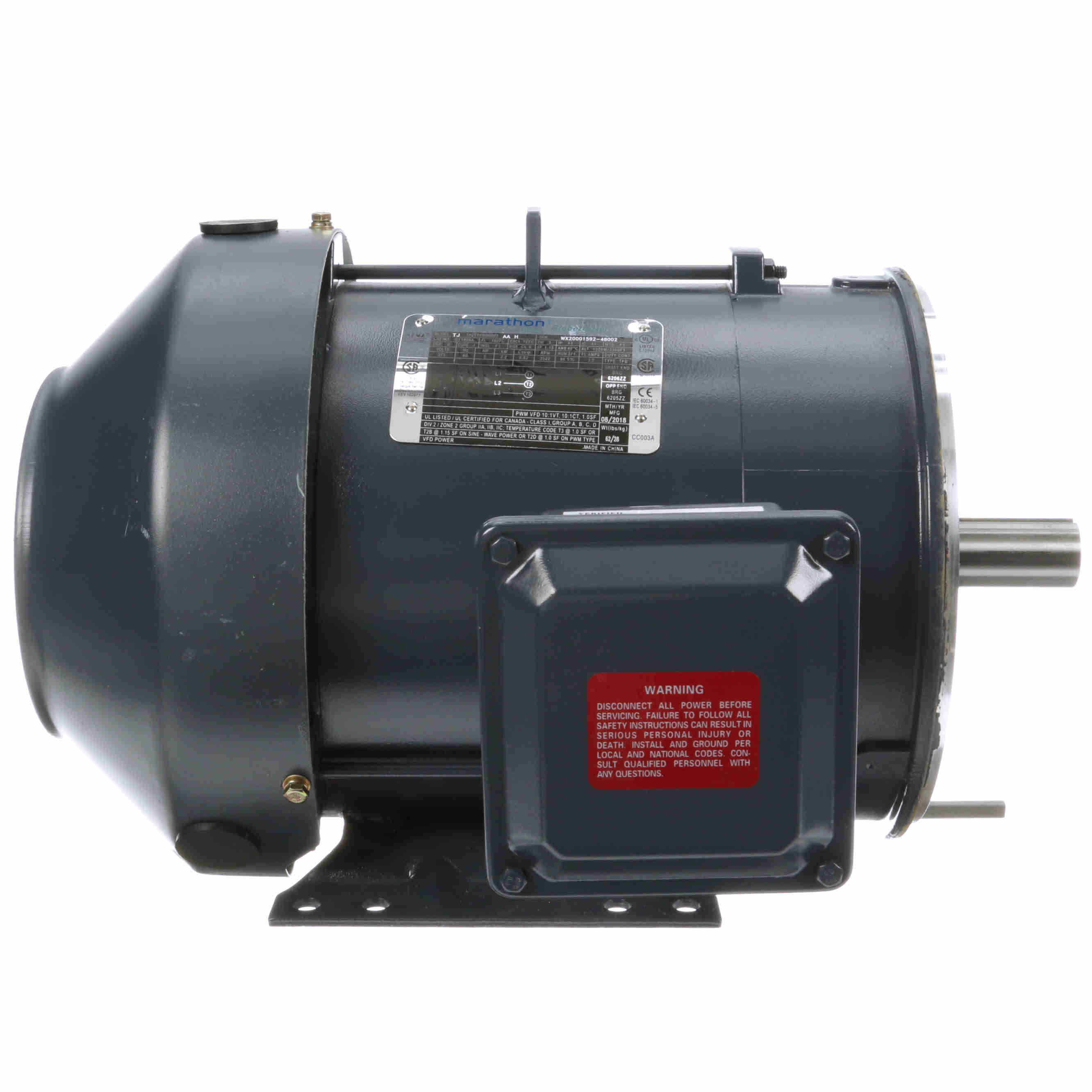

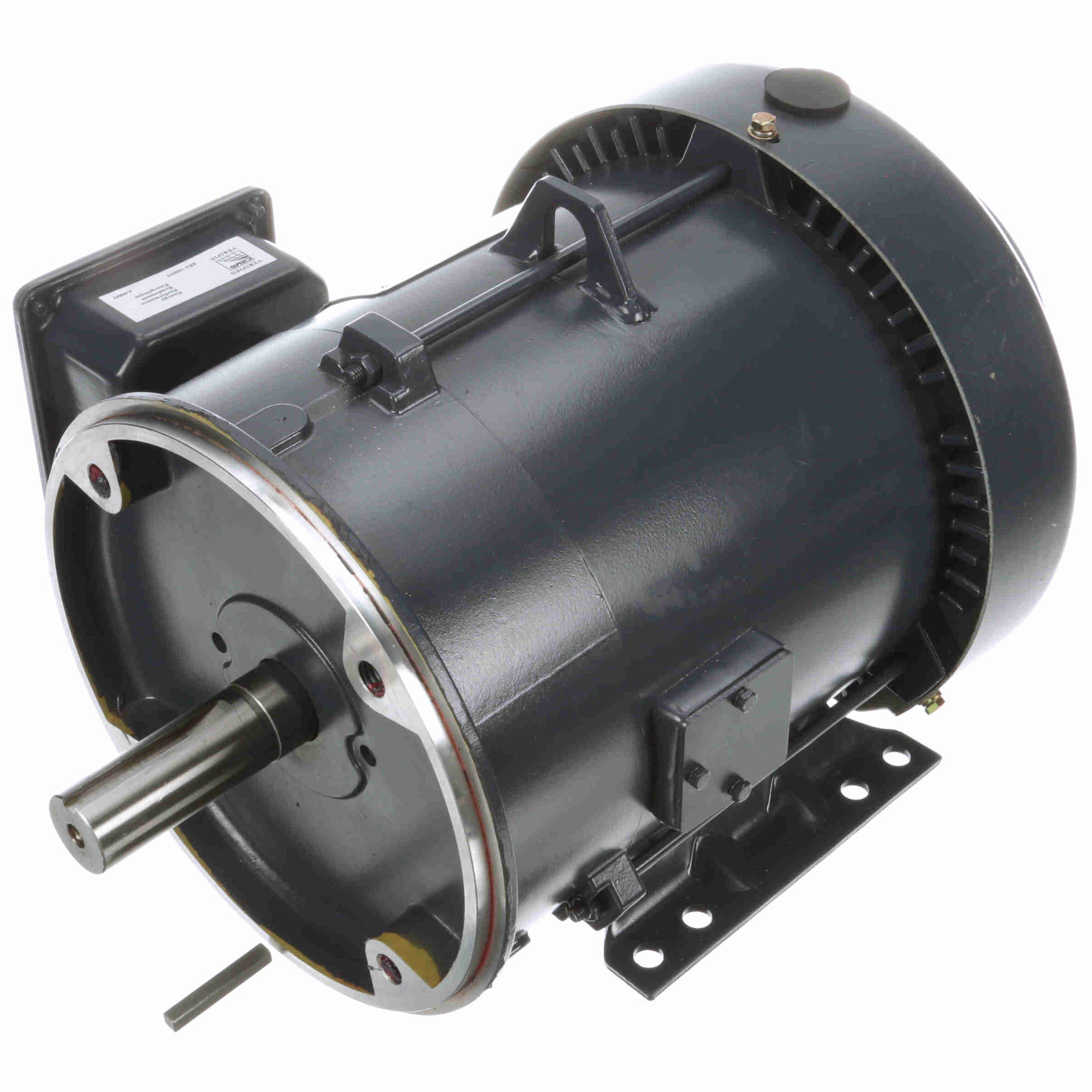

Click Image to Expand

Product ID: GT1409A

GT1409A Marathon 3HP Globetrotter Electric Motor, 3600RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: GT1409A

Selected accessories will also be added to cart
$1,049.97 / Each
Quantity:
TEFC, 182TC Frame, 575VAC 60Hz 3-Phase, 182TTFBD6007, Rigid Base, C-Face, Rolled Steel, 1-1/8" Keyed Shaft

Features

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
  • IP55 enclosure on cast iron frames
  • Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
  • Class F Insulation
  • Standard F1, reversible to F2 assembly. Dual frame mounting holes.

General Specifications

UPC: 722856064684 Weight: 83.00 LB
Packaged Length: 16.53 IN Packaged Width: 14.48 IN
Packaged Height: 18.42 IN

Nameplate Specifications

Output HP: 3 Hp Output KW: 2.2 kW
Frequency: 60 Hz Voltage: 575 V
Current: 3.2 A Speed: 3522 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 86.5 % Power Factor: 82
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: J
Frame: 182TC Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6205
UL: Listed CSA: Y
CE: Y IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 2 Rotation: Reversible
Resistance Main: 5.72 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 15.85 in
Frame Length: 5.85 in Shaft Diameter: 1.125 in
Shaft Extension: 2.75 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 4.00 100.0 4.50 100.0 3,522 0.00 82.0 3.00
1/3 28.50 712.0 7.50 167.0 300 0.00 0.0 3.00
Pull-Up 28.00 700.0 8.00 178.0 900 0.00 0.0 3.00
No Load 2.20 55.0 0.00 0.0 3,600 0.00 10.0 3.00
2/3 26.50 662.0 25.50 567.0 1,500 0.00 0.0 3.00
Break-Down 19.65 491.0 16.00 356.0 3,000 0.00 82.0 3.00
Locked-Rotor 32.00 800.0 9.00 200.0 0 0.00 55.5 3.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 1.60 1.88 2.20 2.64 3.20 3.52 3.76
Rated Output (KW) 0.19 0.77 1.35 1.96 2.59 2.98 3.25
Efficiency (%) 0.0 73.1 82.5 85.5 86.5 86.3 86.1
Power Factor (%) 10.8 40.9 61.6 74.5 82.0 85.0 86.8
Speed (RPM) 3,600 3,585 3,570 3,545 3,535 3,529 3,520
Temp. Rise @ FL 0.0 0.0 0.0 0.0 35.0 55.0 75.0
Torque (ft-lbs) 0.00 1.10 2.20 3.33 4.48 5.15 5.62
