/Products/Electric Motors/Single Phase/Leeson/Grain Drying & Stirring/851034.00 Leeson 16HP Grain Dryer / Centrifugal Fan Electric Motor, 1800RPM

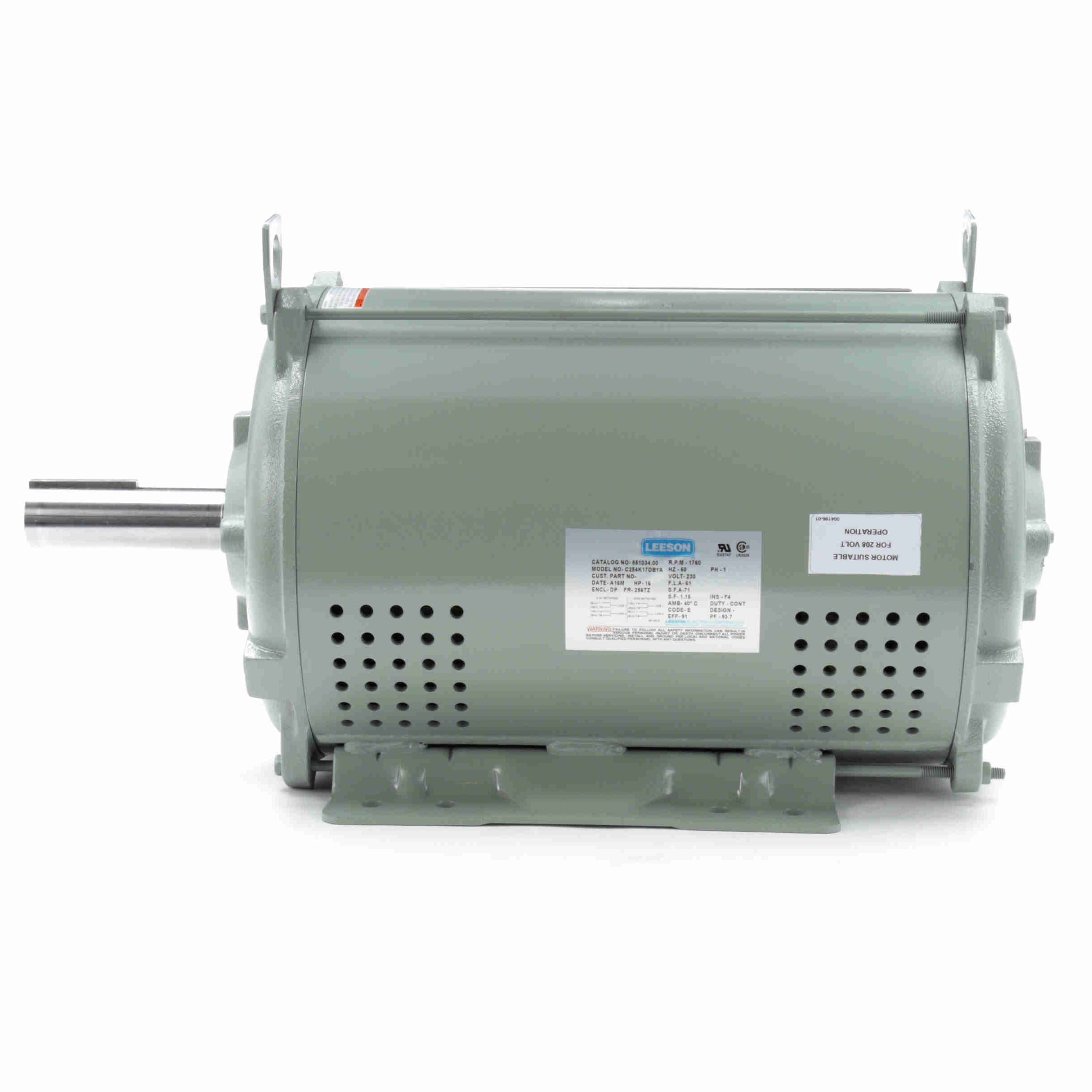

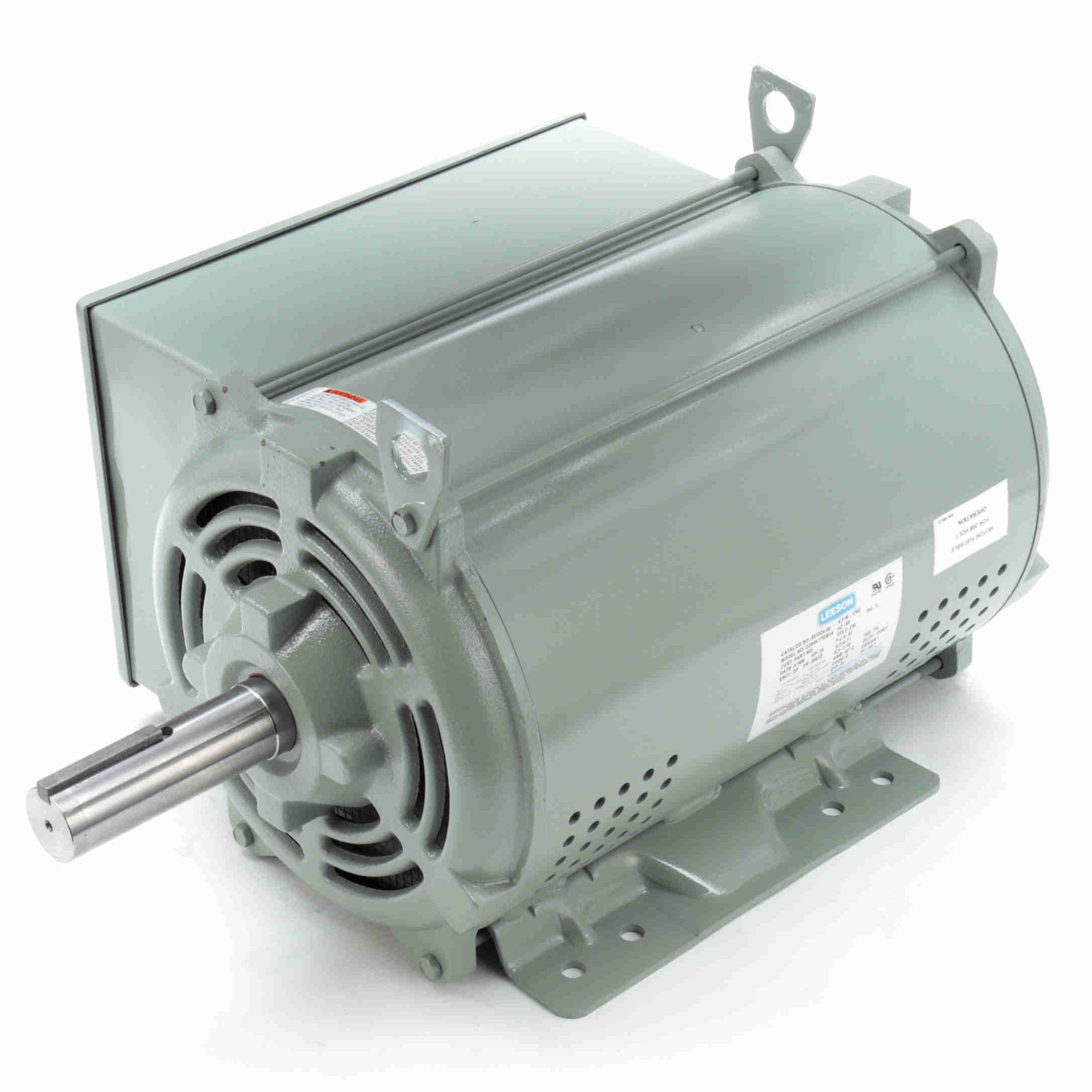

Click Image to Expand

Product ID: 851034.00

851034.00 Leeson 16HP Grain Dryer / Centrifugal Fan Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C254K17DB1

Selected accessories will also be added to cart
$2,352.42 / Each
Quantity:
ODP, 256TZ Frame, 230VAC Single Phase 60Hz, C254K17DB1, Rigid Base, Rolled Steel, 1-5/8" Keyed Shaft

Features

Features
  • Oversized sealed bearings
  • Rodent screen protection
  • Rolled steel frame with cast iron endbells
  • Epoxy Painted
  • 268% starting torque

General Specifications

General Specifications
Model : C256K17DB1A Catalog No : 851034.00
Part Description : ..16HP..1800RPM.256TZ.ODP.208-230V.1PH.60HZ.CONT.40C.1.15SF.RIGID......GRAIN DRYER........ Category : Grain Stirring
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 16 HP Output KW : 11.9 kW
Frequency : 60 Hz Voltage : 208-230 V
Current : 70.0-61.0 A Speed : 1760 RPM
Service Factor : 1.15 Phase : 1
Efficiency : 91 % Duty : Continuous
Insulation Class : F Design Code : NO DESIGN CODE
KVA Code : E Frame : 256TZ
Enclosure : Drip Proof Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6206 UL : Recognized
CSA : Y CE : N
IP Code : 12

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Capacitor Run Starting Method : Across The Line
Poles : 4 Rotation : Selective Counterclockwise
Mounting : Rigid base Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : Single Special Extension
Overall Length : 25.52 in Frame Length : 15.50 in
Shaft Diameter : 1.625 in Shaft Extension : 5 in
Assembly/Box Mounting : F1 ONLY UPC : 691720053553
Weight : 308.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
No Load 9.20 15.0 0.00 0.0 1,800 0.65 30.7 16.00
Locked-Rotor 335.00 549.0 150.00 313.0 0 67.30 87.5 16.00
Full Load 61.00 100.0 47.85 100.0 1,760 13.15 93.7 16.00
Break-Down 203.00 333.0 102.00 213.0 1,600 37.80 80.7 16.00
Pull-Up 275.00 451.0 68.00 142.0 1,350 39.24 62.1 16.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 9.20
  • 0.650
  • 0.0
  • 30.7
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 17.80
  • 3.620
  • 84.1
  • 88.4
  • 1,790
  • 0.0
  • 11.98
  • 50 %
  • 30.70
  • 6.620
  • 90.7
  • 93.8
  • 1,780
  • 0.0
  • 23.74
  • 75 %
  • 45.70
  • 9.940
  • 90.6
  • 94.6
  • 1,770
  • 0.0
  • 35.81
  • 100 %
  • 61.00
  • 13.150
  • 91.0
  • 93.7
  • 1,760
  • 45.0
  • 47.85
  • 115 %
  • 71.00
  • 15.230
  • 90.7
  • 93.3
  • 1,759
  • 75.0
  • 55.30
  • 125 %
  • 79.00
  • 17.000
  • 88.0
  • 93.6
  • 1,745
  • 90.0
  • 60.36
