/Products/Ball Bearings/6300 Series Ball Bearings/63092RDC3 Koyo Ball Bearing, Rubber Sealed
Click Image to Expand

Product ID: 6309-2RS

63092RDC3 Koyo Ball Bearing, Rubber Sealed

MFG: JTEKT Corporation
MFG Part Number: 63092RDC3

Available Stock: 12
Selected accessories will also be added to cart
$53.48 / Each
Quantity:
6309-2RS

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 63092RDC3
Group Deep Groove Ball Bearings

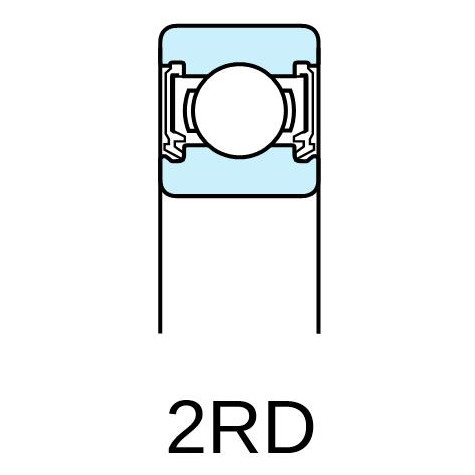

Type Extremely Light Contact Sealed (2RD)

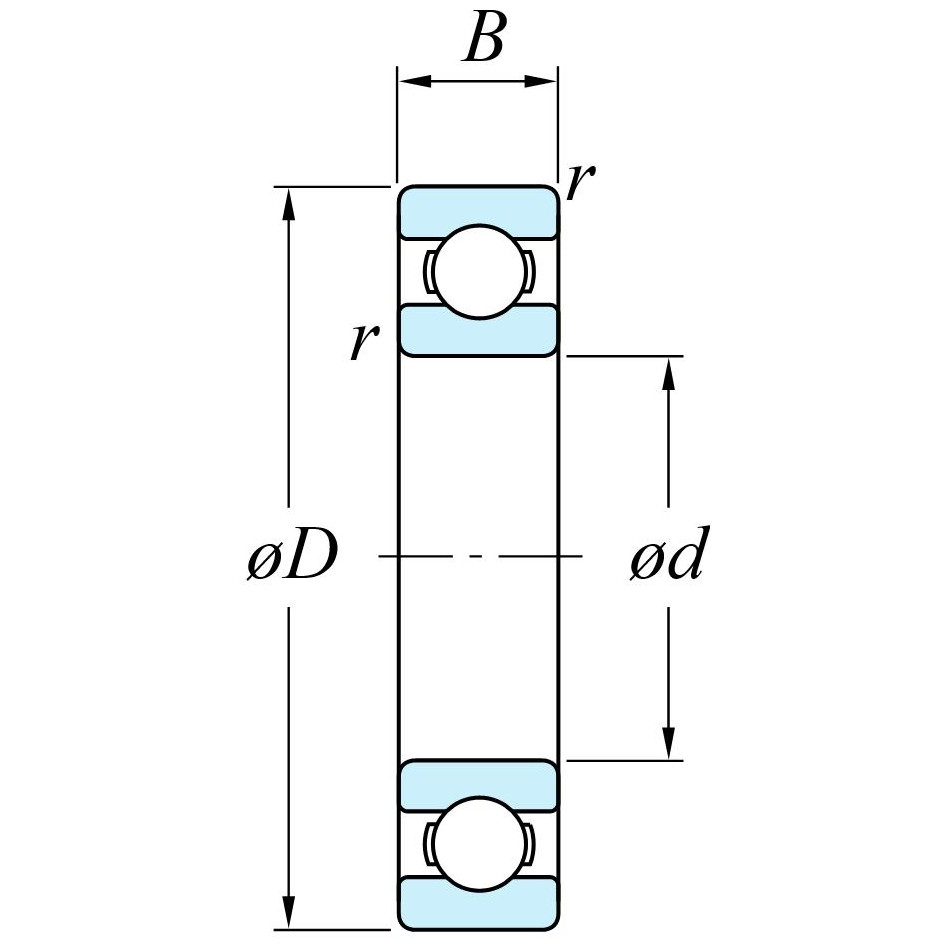

Bore / Inside Diameter (d) 45 mm
Housing / Outside Diameter (D) 100 mm
Width (B) 25 mm
Minimum Radius (r) 1.5 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 48.9 kN
C0r 29.5 kN
Limiting Speeds (Grease Lubrication) 6,100 min-1
Mass .833 kg
1.84 lbs
UPC 4549250171628
Country of Manufacture Japan
