/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, FF-Face, W22/.7518ET3EAL90S/LFF-W WEG 1HP/0.75kW IEC TRU-Metric Electric Motor, 1800RPM

Product ID: .7518ET3EAL90S/LFF-W

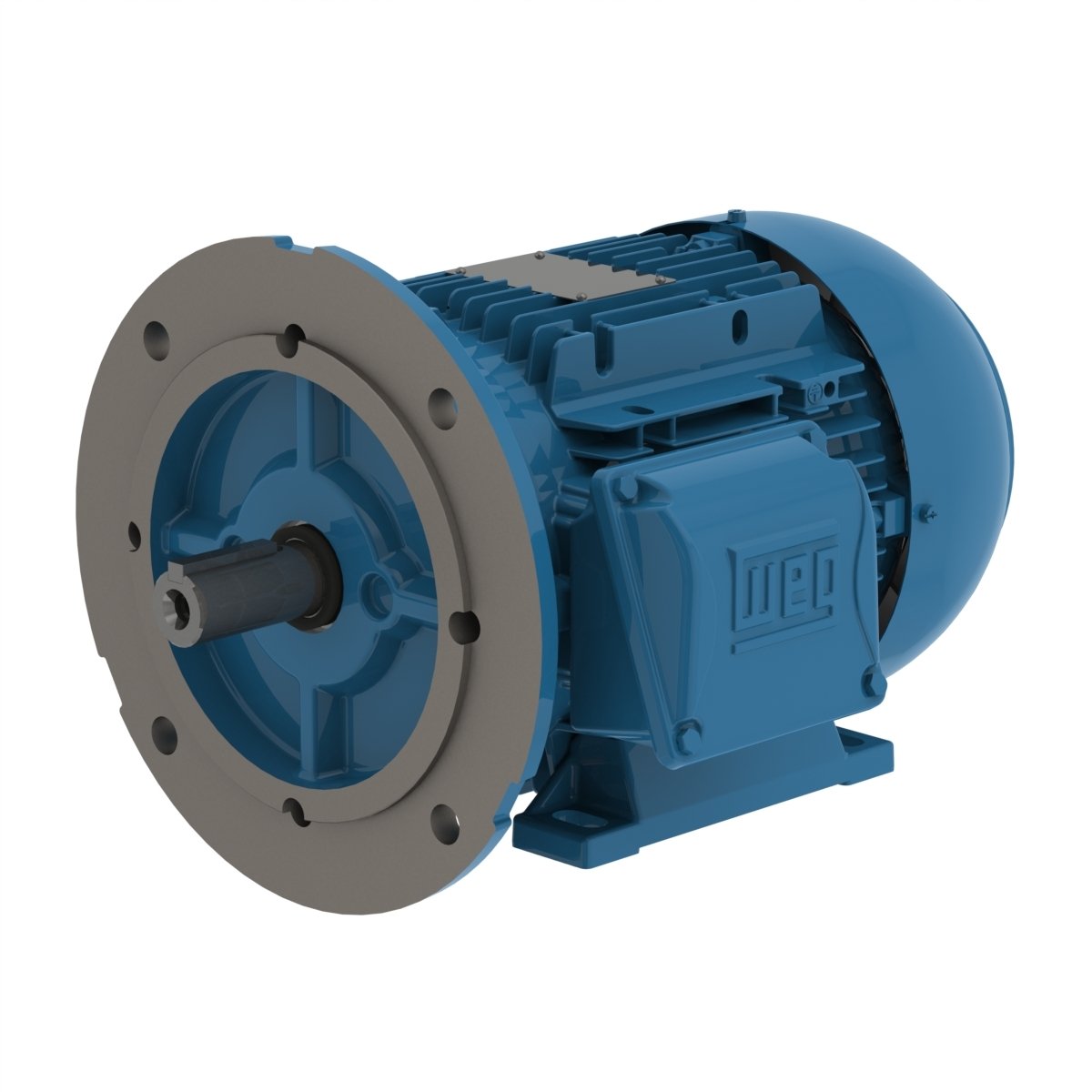

.7518ET3EAL90S/LFF-W WEG 1HP/0.75kW IEC TRU-Metric Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .7518ET3EAL90S/LFF-W

Selected accessories will also be added to cart

$359.25 / Each

Quantity:

IC411-TEFC, IP55, 90S/L Frame, 230/460/380-415VAC 3-Phase 50/60Hz, 14051985, Foot Mount, FF-Flange, Aluminum Frame, 24mm Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	90S/L
Output	1 HP (0.75 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1445 rpm
Slip	3.67 %
Rated voltage	380 V
Rated current	1.75 A
L. R. Amperes	11.2 A
LRC	6.4
No load current	0.950 A
Rated torque	3.59 ft.lb
Locked rotor torque	210 %
Breakdown torque	260 %
Locked rotor time	37s (cold) 21s (hot)

Moment of inertia (J)	0.1163 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	40.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.0	82.5	82.5

Power factor

50%	75%	100%
0.58	0.71	0.79

Frame	90S/L
Output	1 HP (0.75 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1450 rpm
Slip	3.33 %
Rated voltage	400 V
Rated current	1.73 A
L. R. Amperes	11.8 A
LRC	6.8
No load current	1.05 A
Rated torque	3.57 ft.lb
Locked rotor torque	240 %
Breakdown torque	300 %
Locked rotor time	37s (cold) 21s (hot)

Moment of inertia (J)	0.1163 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	40.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.0	82.0	82.5

Power factor

50%	75%	100%
0.53	0.67	0.76

Frame	90S/L
Output	1 HP (0.75 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	415 V
Rated current	1.73 A
L. R. Amperes	12.5 A
LRC	7.2
No load current	1.15 A
Rated torque	3.56 ft.lb
Locked rotor torque	260 %
Breakdown torque	320 %
Locked rotor time	37s (cold) 21s (hot)

Moment of inertia (J)	0.1163 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	40.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.0	82.0	82.5

Power factor

50%	75%	100%
0.50	0.63	0.73

Frame	90S/L
Output	1 HP (0.75 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1760 rpm
Slip	2.22 %
Rated voltage	230/460 V
Rated current	3.02/1.51 A
L. R. Amperes	24.2/12.1 A
LRC	8.0
No load current	1.90/0.950 A
Rated torque	2.94 ft.lb
Locked rotor torque	280 %
Breakdown torque	360 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.1163 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	40.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.0	84.0	84.0

Power factor

50%	75%	100%
0.51	0.65	0.74

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xM25x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
