Products
/
Ball Bearings
/
6200 Series Ball Bearings
/
6204ZZC3 Koyo Ball Bearing, Shielded
Click Image to Expand
Previous
Next
Product ID: 6204-ZZC3

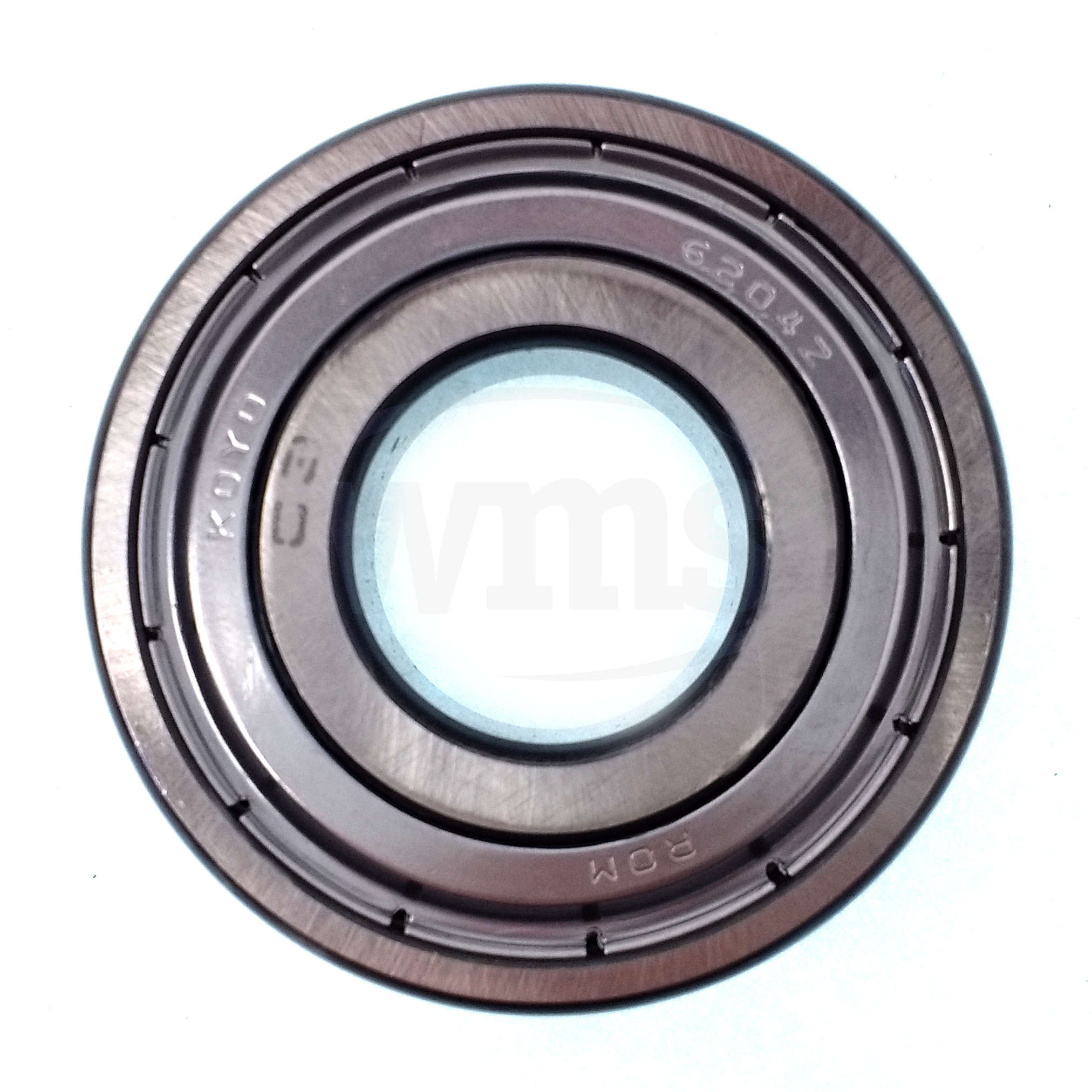

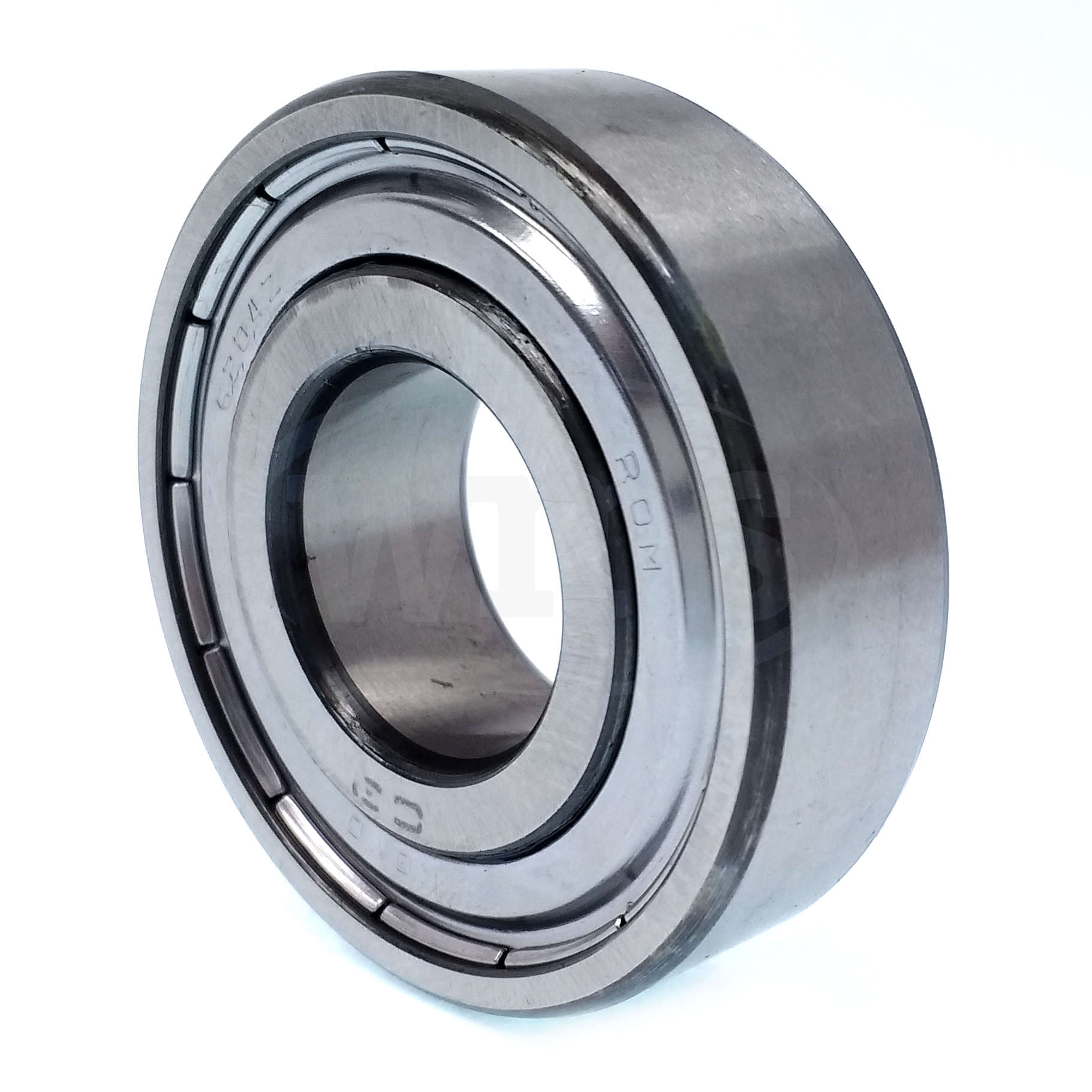

6204ZZC3 Koyo Ball Bearing, Shielded
MFG: JTEKT Corporation
MFG Part Number: 6204ZZC3
Available Stock:
11
Selected accessories will also be added to cart
$8.61 / Each
Quantity:
6204-ZZC3, 20mm x 47mm x 14mm
Details
Specifications
Brand
Koyo Seiko Company, LTD
Manufacturer Part Number
6204ZZC3
Group
Deep Groove Ball Bearings
Type

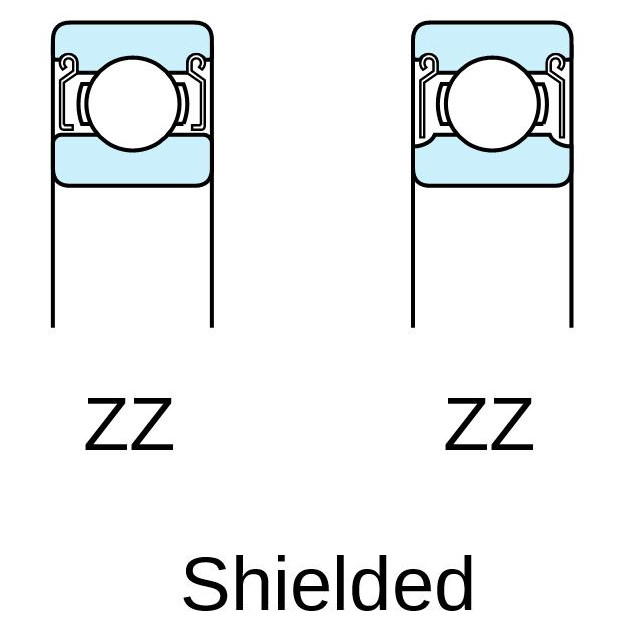

Shielded (ZZ)
Bore / Inside Diameter (d)
20 mm
Housing / Outside Diameter (D)
47 mm
Width (B)
14 mm
Minimum Radius (r)
1 mm
Operating Temperature
-30 to 110°C
Cage Type
Pressed Steel Cage
Configuration
Single-row
Tolerances
JIS B 1514
Allowable Misalignment
.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating
C
r
12.8 kN
C
0r
6.65 kN
Fatigue Load Limit (C
u
)
0.510 kN
Factor (f0)
13.2
Limiting Speeds (Grease Lubrication)
15,000 min
-1
Shaft Shoulder Mounting Dimension (d
a
)
25 mm Minimum
26.5 mm Maximum
Housing Shoulder Mounting Dimension (D
a
)
42 mm Maximum
Shoulder Radius (r
a
)
1 mm Maximum
Mass
0.106 kg
0.24 lbs
UPC
Country of Manufacture
Japan
