/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/.7512ET3WAL90S-W22 WEG 1HP/0.75kW IEC TRU-Metric Electric Motor, 1200RPM

Product ID: .7512ET3WAL90S-W22

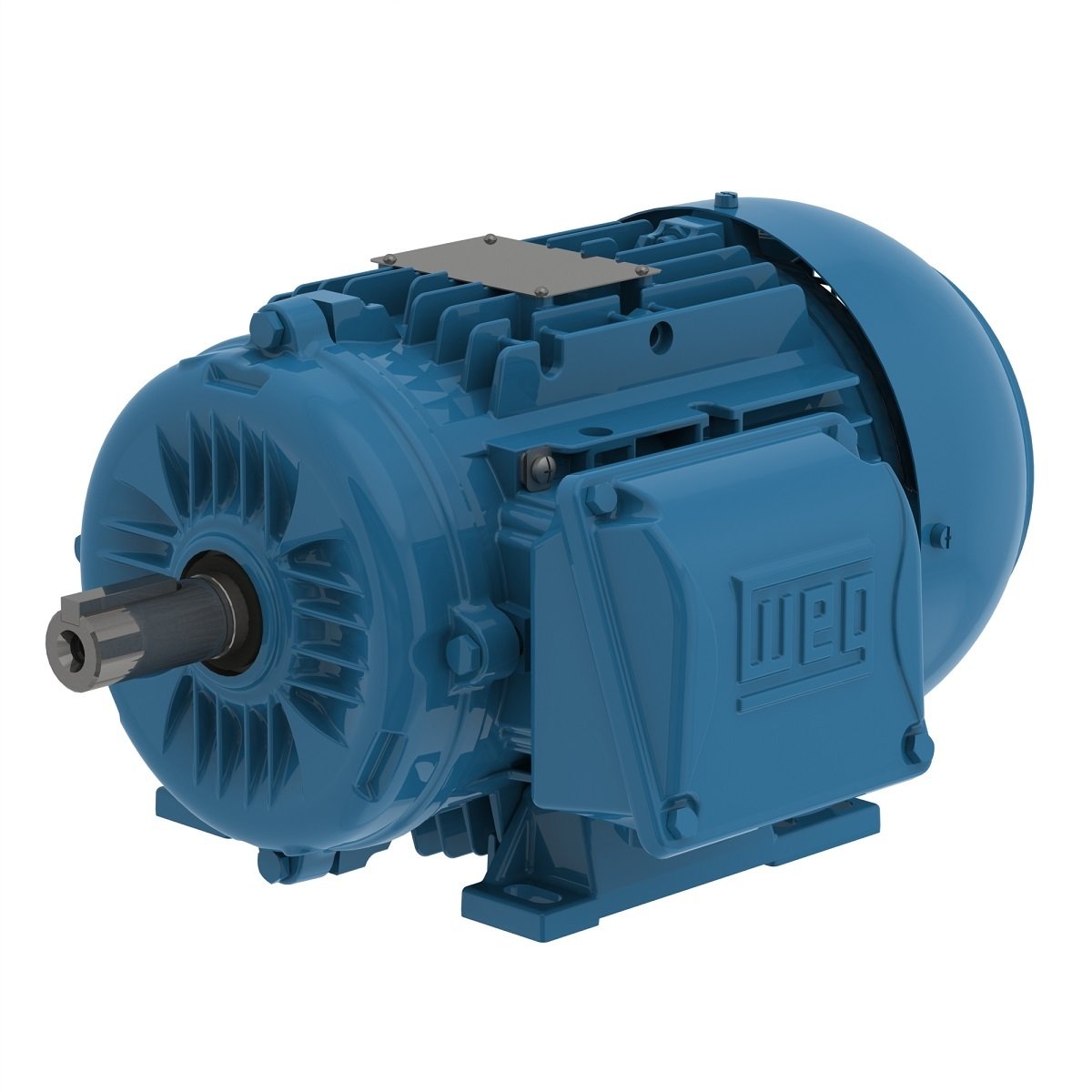

.7512ET3WAL90S-W22 WEG 1HP/0.75kW IEC TRU-Metric Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: .7512ET3WAL90S-W22

Selected accessories will also be added to cart

$402.75 / Each

Quantity:

IC411-TEFC, IP55, 90S/L Frame, 460/220240/380-415VAC 3-Phase 50/60Hz, 13984000, Foot Mounted, Multimounting, Aluminum Frame, 24mm Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	90S/L
Output	1 HP (0.75 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	940 rpm
Slip	6.00 %
Rated voltage	220/380 V
Rated current	3.28/1.90 A
L. R. Amperes	16.4/9.50 A
LRC	5.0
No load current	2.09/1.21 A
Rated torque	5.51 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	0.1561 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	45.0 dB(A)
Approx. weight³	47.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
78.9	80.5	79.8

Power factor

50%	75%	100%
0.52	0.67	0.75

Frame	90S/L
Output	1 HP (0.75 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	945 rpm
Slip	5.50 %
Rated voltage	230/400 V
Rated current	3.25/1.87 A
L. R. Amperes	17.9/10.3 A
LRC	5.5
No load current	2.30/1.32 A
Rated torque	5.48 ft.lb
Locked rotor torque	260 %
Breakdown torque	300 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	0.1561 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	45.0 dB(A)
Approx. weight³	47.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
78.0	80.5	80.5

Power factor

50%	75%	100%
0.49	0.63	0.72

Frame	90S/L
Output	1 HP (0.75 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	950 rpm
Slip	5.00 %
Rated voltage	240/415 V
Rated current	3.18/1.84 A
L. R. Amperes	18.5/10.7 A
LRC	5.8
No load current	2.42/1.40 A
Rated torque	5.45 ft.lb
Locked rotor torque	290 %
Breakdown torque	330 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	0.1561 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	45.0 dB(A)
Approx. weight³	47.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
77.2	80.2	80.8

Power factor

50%	75%	100%
0.47	0.60	0.70

Frame	90S/L
Output	1 HP (0.75 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1155 rpm
Slip	3.75 %
Rated voltage	460 V
Rated current	1.68 A
L. R. Amperes	10.8 A
LRC	6.4
No load current	1.23 A
Rated torque	4.49 ft.lb
Locked rotor torque	300 %
Breakdown torque	350 %
Locked rotor time	64s (cold) 36s (hot)

Moment of inertia (J)	0.1561 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	50.0 dB(A)
Approx. weight³	47.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
77.0	81.5	82.5

Power factor

50%	75%	100%
0.46	0.59	0.68

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xM25x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
