/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, FF-Face, W22/.5518EP3EAL80FF-W22 WEG 0.75HP/0.55kW IEC TRU-Metric Electric Motor, 1800RPM

Product ID: .5518EP3EAL80FF-W22

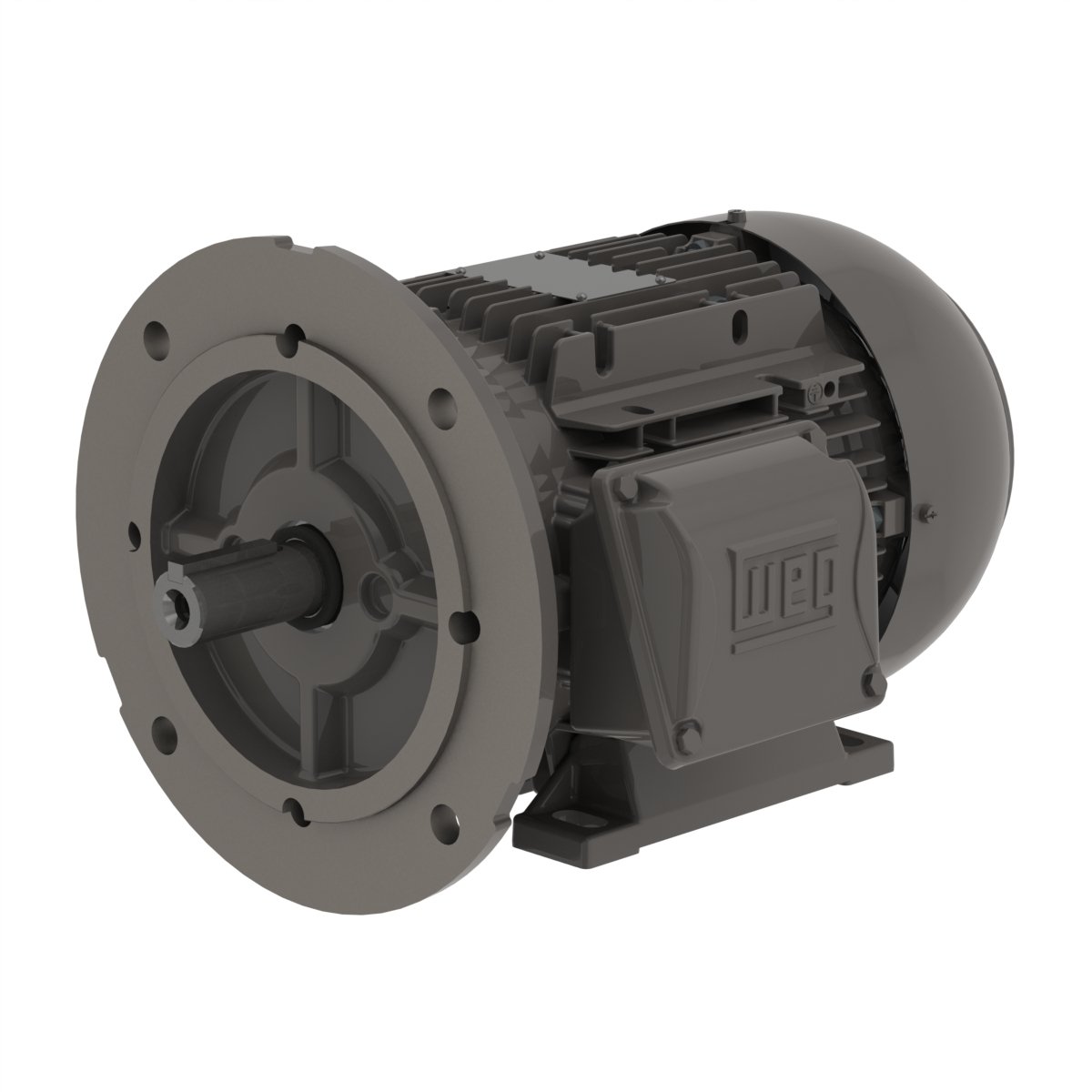

.5518EP3EAL80FF-W22 WEG 0.75HP/0.55kW IEC TRU-Metric Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .5518EP3EAL80FF-W22

Selected accessories will also be added to cart

$287.25 / Each

Quantity:

IC411-TEFC, IP55, 80 Frame, 230/460/380-415VAC 3-Phase 50/60Hz, 14051984, Foot Mount, FF-Flange, Aluminum Frame, 19mm Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	80
Output	0.75 HP (0.550 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1410 rpm
Slip	6.00 %
Rated voltage	380 V
Rated current	1.35 A
L. R. Amperes	7.70 A
LRC	5.7
No load current	0.900 A
Rated torque	2.76 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	0.0574 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	44.0 dB(A)
Approx. weight³	29.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
71.0	76.0	77.1

Power factor

50%	75%	100%
0.62	0.74	0.80

Frame	80
Output	0.75 HP (0.550 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1435 rpm
Slip	4.33 %
Rated voltage	400 V
Rated current	1.31 A
L. R. Amperes	7.47 A
LRC	5.7
No load current	1.00 A
Rated torque	2.71 ft.lb
Locked rotor torque	250 %
Breakdown torque	270 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	0.0574 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	44.0 dB(A)
Approx. weight³	29.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
71.5	76.3	77.7

Power factor

50%	75%	100%
0.58	0.71	0.78

Frame	80
Output	0.75 HP (0.550 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	415 V
Rated current	1.30 A
L. R. Amperes	7.41 A
LRC	5.7
No load current	1.10 A
Rated torque	2.67 ft.lb
Locked rotor torque	280 %
Breakdown torque	290 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	0.0574 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	44.0 dB(A)
Approx. weight³	29.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
72.0	76.5	78.3

Power factor

50%	75%	100%
0.53	0.67	0.75

Frame	80
Output	0.75 HP (0.550 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1740 rpm
Slip	3.33 %
Rated voltage	230/460 V
Rated current	2.50/1.25 A
L. R. Amperes	18.8/9.38 A
LRC	7.5
No load current	1.76/0.880 A
Rated torque	2.23 ft.lb
Locked rotor torque	320 %
Breakdown torque	360 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	0.0574 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	48.0 dB(A)
Approx. weight³	29.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
72.0	76.5	77.0

Power factor

50%	75%	100%
0.50	0.63	0.72

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	BMC - 6 pins
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 7022 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
