/Products/Electric Motors/3 Phase/Leeson/Grain Dryer / Stirring/171847.60 Leeson 7.5HP Grain Dryer / Centrifugal Fan Electric Motor, 1800RPM
Click Image to Expand

Product ID: 171847.60

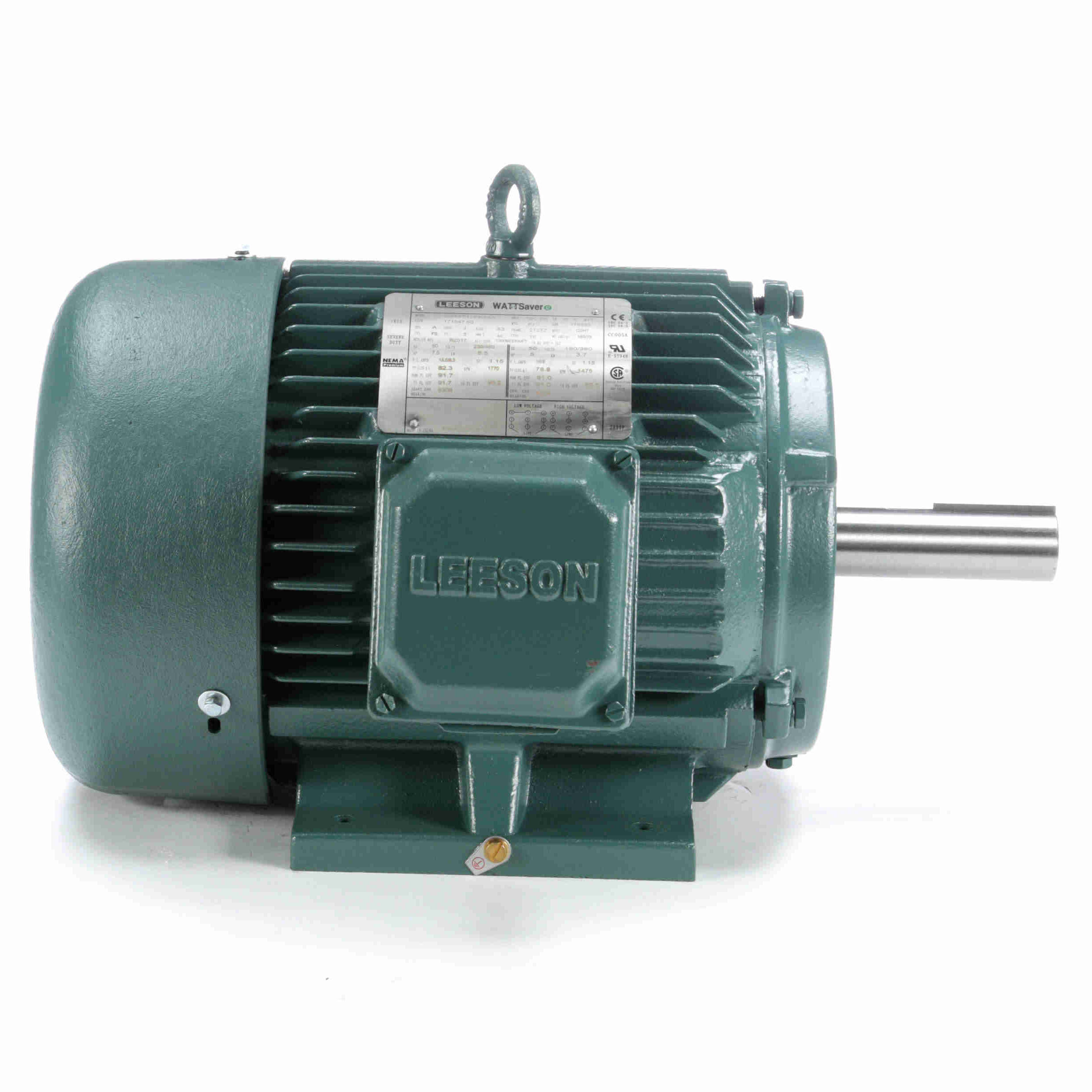

171847.60 Leeson 7.5HP Grain Dryer / Centrifugal Fan Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C213T17FK48

Selected accessories will also be added to cart
$1,178.76 / Each
Quantity:
TEFC, 213TZ Frame, 230/460VAC 3-Phase 60Hz
Features
  • 1" longer shaft than NEMA standard
  • Shaft seals both ends
  • Premium efficient
  • Epoxy Painted
  • Normally closed T-stats
  • Cast iron construction
General Specifications
Model :C213T17FK48A Catalog No :171847.60
Part Description :..7.5HP..1800RPM.213TZ.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......GRAIN DRYER........ Category :Grain Stirring
Stock :No
Nameplate Specifications
Output HP :7.50 Hp Output KW :5.6 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :20.0-18.6/9.3 A Speed :1770 rpm
Service Factor :1.15 Phase :3
Efficiency :91.7 % Duty :Continuous
Insulation Class :F Design Code :A
KVA Code :J Frame :213TZ
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6308
Opp Drive End Bearing Size :6306 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Inverter Rated Starting Method :Line Or Inverter
Poles :4 Rotation :Reversible
Mounting :Rigid base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Cast Iron Shaft Type :Single Special Extension
Overall Length :19.37 in Shaft Diameter :1.375 in
Shaft Extension :4.38 in Assembly/Box Mounting :F1/F2 CAPABLE
UPC :691720053621 Weight :156.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor74.50793.049.50220.0035.07.50
Break-Down48.50516.081.00360.01,55068.07.50
No Load4.4547.00.000.01,8005.87.50
Pull-Up71.00755.042.00187.09007.50
Full Load9.40100.022.50100.01,77082.07.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.45
  • 0.209
  • 0.0
  • 5.8
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 4.85
  • 1.647
  • 85.5
  • 42.6
  • 1,793
  • 0.0
  • 5.53
  • 50 %
  • 6.04
  • 3.136
  • 90.2
  • 65.2
  • 1,786
  • 0.0
  • 11.20
  • 75 %
  • 7.62
  • 4.645
  • 91.7
  • 76.5
  • 1,778
  • 0.0
  • 16.83
  • 100 %
  • 9.30
  • 6.155
  • 91.7
  • 82.3
  • 1,770
  • 35.0
  • 22.50
  • 115 %
  • 11.20
  • 7.050
  • 91.7
  • 83.5
  • 1,765
  • 45.0
  • 25.90
  • 125 %
  • 12.00
  • 7.675
  • 91.6
  • 84.9
  • 1,761
  • 0.0
  • 28.10
  • 150 %
  • 13.52
  • 9.290
  • 90.3
  • 86.2
  • 1,751
  • 0.0
  • 33.70
