/Products/Ball Bearings/6300 Series Ball Bearings/63062RDC3 Koyo Ball Bearing, Rubber Sealed
Click Image to Expand

Product ID: 6306-2RS

63062RDC3 Koyo Ball Bearing, Rubber Sealed

MFG: JTEKT Corporation
MFG Part Number: 63062RDC3

Available Stock: 9
Selected accessories will also be added to cart
$24.85 / Each
Quantity:

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 63062RDC3
Group Deep Groove Ball Bearings

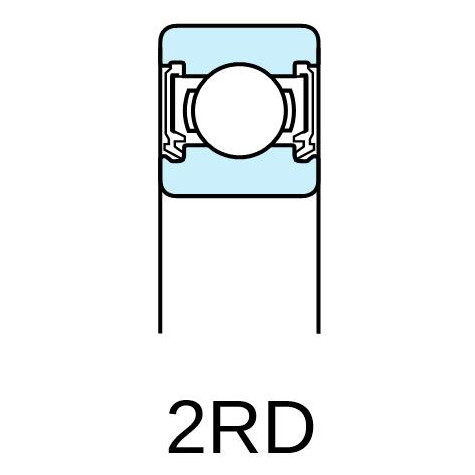

Type Extremely Light Contact Sealed (2RD)

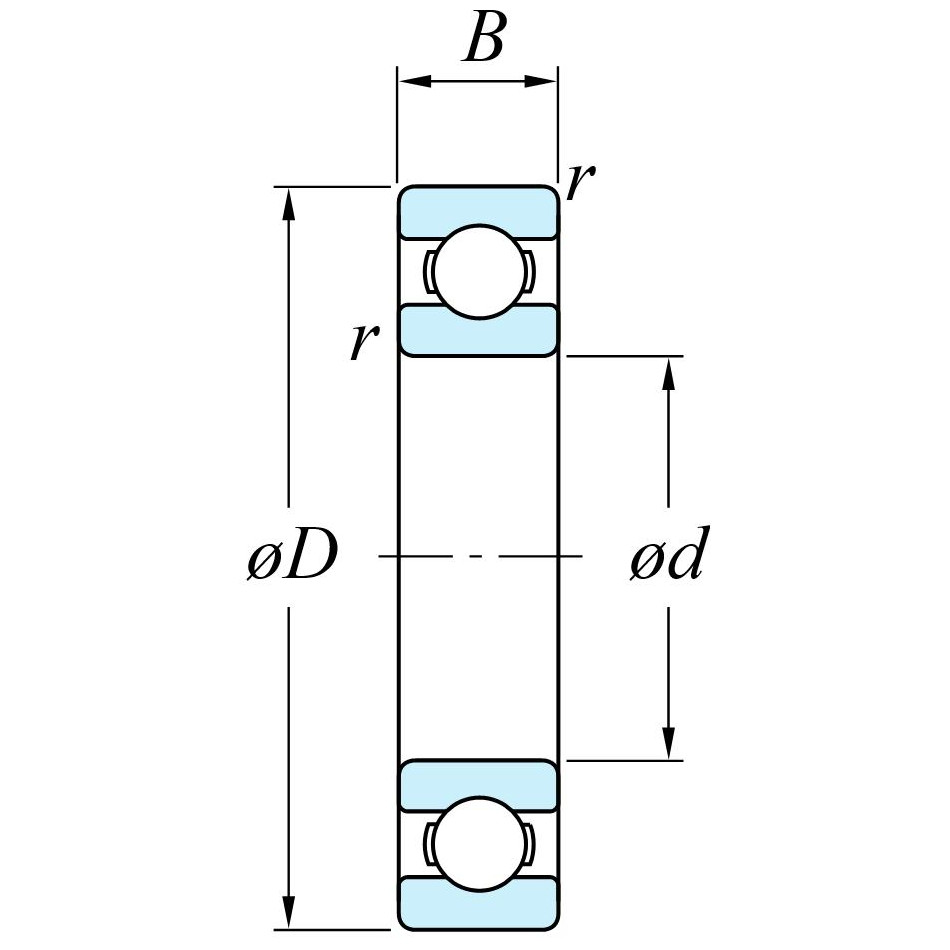

Bore / Inside Diameter (d) 30 mm
Housing / Outside Diameter (D) 72 mm
Width (B) 19 mm
Minimum Radius (r) 1.1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 26.7 kN
C0r 15.0 kN
Limiting Speeds (Grease Lubrication) 8,600 min-1
Mass .346 kg
0.77 lbs
UPC 4549250169458
Country of Manufacture Japan
