/Products/Electric Motors/3 Phase/Leeson/Grain Dryer / Stirring/171845.60 Leeson 3HP Grain Dryer / Centrifugal Fan Electric Motor, 1800RPM

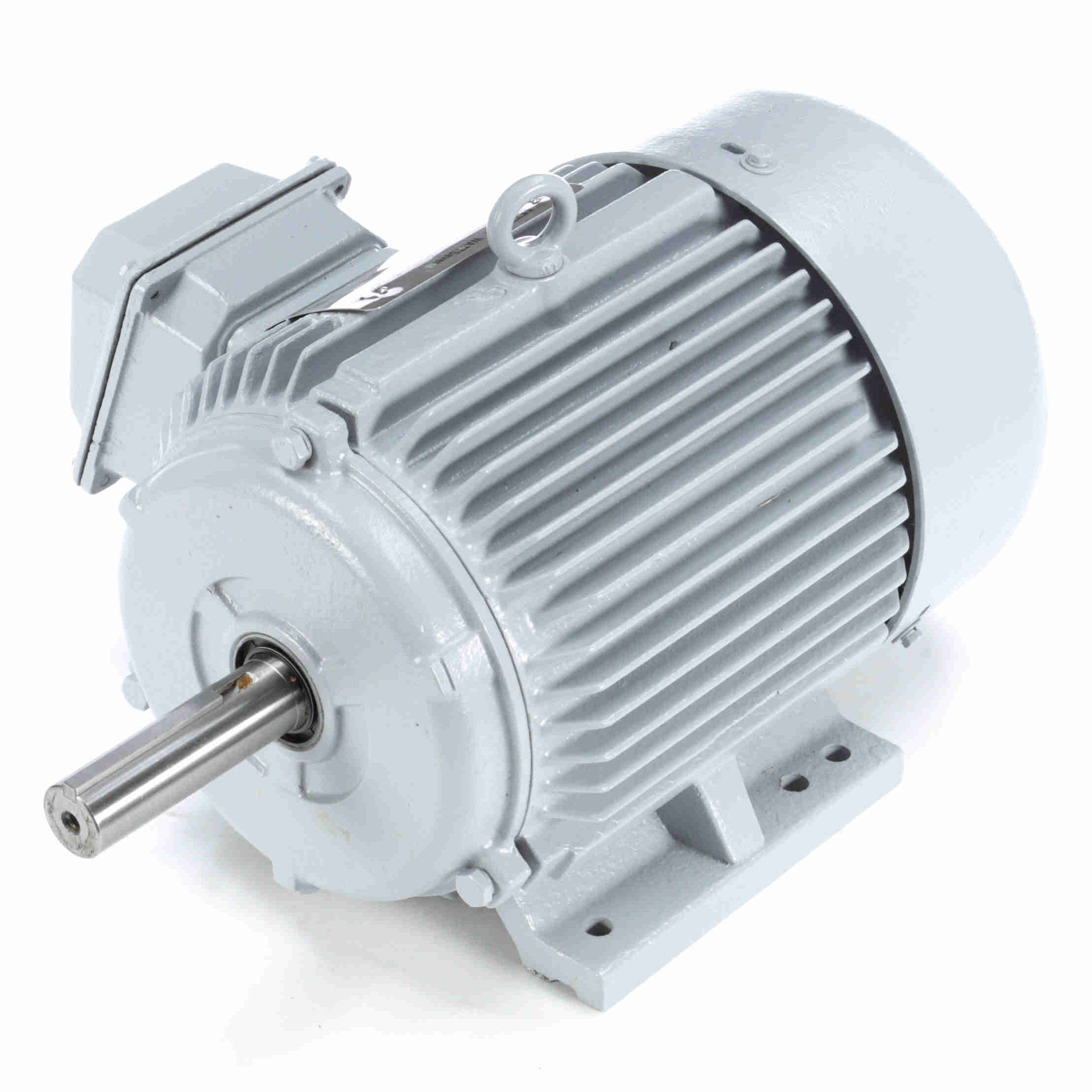

Click Image to Expand

Product ID: 171845.60

171845.60 Leeson 3HP Grain Dryer / Centrifugal Fan Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: c182T17FK49

Selected accessories will also be added to cart
$923.40 / Each
Quantity:
TEFC, 182TZ Frame, 230/460VAC 3-Phase 60Hz
Features
  • 1" longer shaft than NEMA standard
  • Shaft seals both ends
  • Premium efficient
  • Epoxy Painted
  • Normally closed T-stats
  • Cast iron construction
General Specifications
Model :C182T17FK49A Catalog No :171845.60
Part Description :..3HP..1800RPM.182TZ.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......GRAIN DRYER........ Category :Grain Stirring
Stock :No
Nameplate Specifications
Output HP :3 Hp Output KW :2.2 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :8.3-7.8/3.9 A Speed :1770 rpm
Service Factor :1.15 Phase :3
Efficiency :89.5 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :J Frame :182TZ
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6206
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Inverter Rated Starting Method :Line Or Inverter
Poles :4 Rotation :Reversible
Mounting :Rigid base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Cast Iron Shaft Type :Single Special Extension
Overall Length :17.10 in Shaft Diameter :1.125 in
Shaft Extension :3.755 in Assembly/Box Mounting :F1/F2 CAPABLE
UPC :691720053607 Weight :113.00 LB
