/Products/Electric Motors/3 Phase/Leeson/Grain Dryer / Stirring/171841.60 Leeson 15HP Grain Dryer / Centrifugal Fan Electric Motor, 1800RPM
Click Image to Expand

Product ID: 171841.60

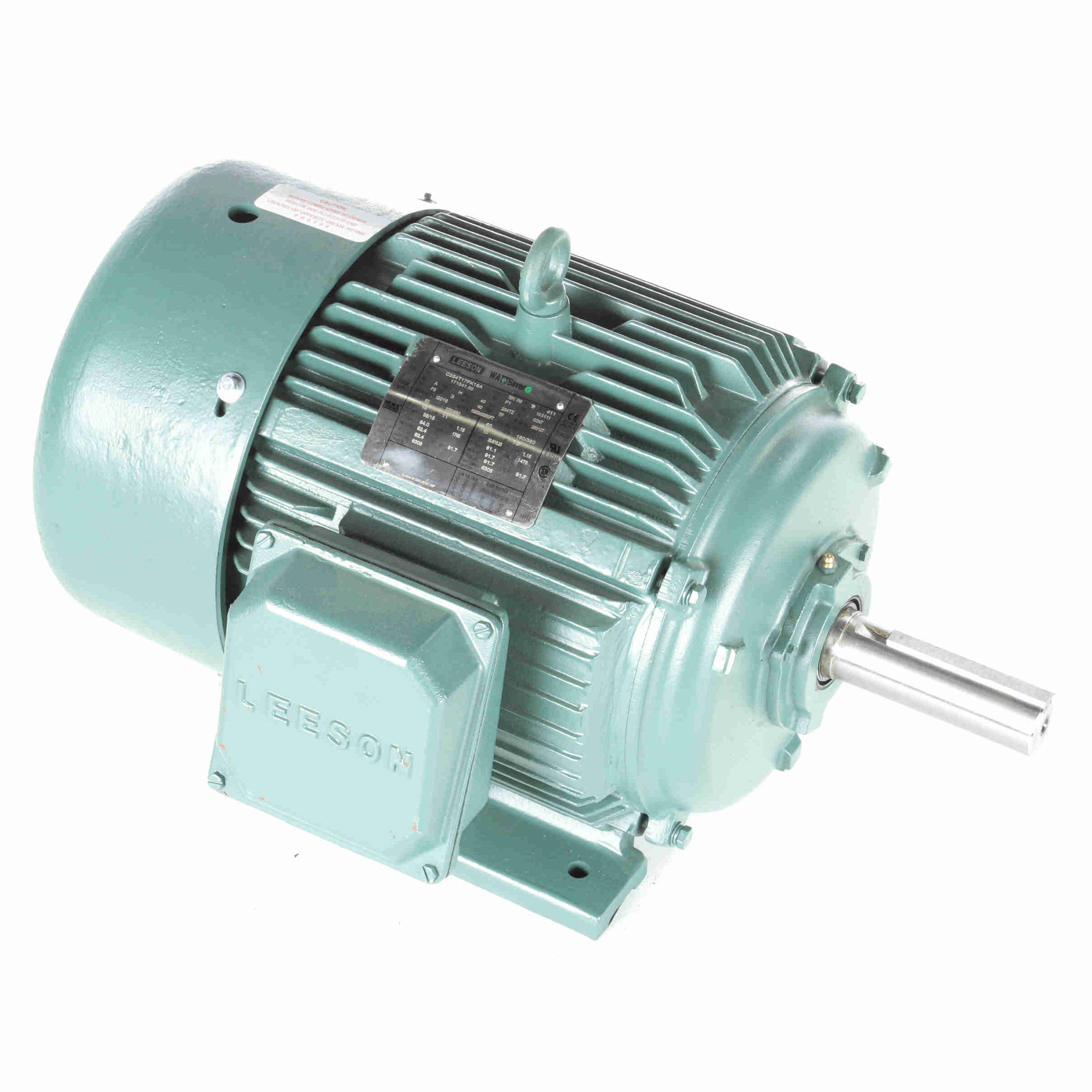

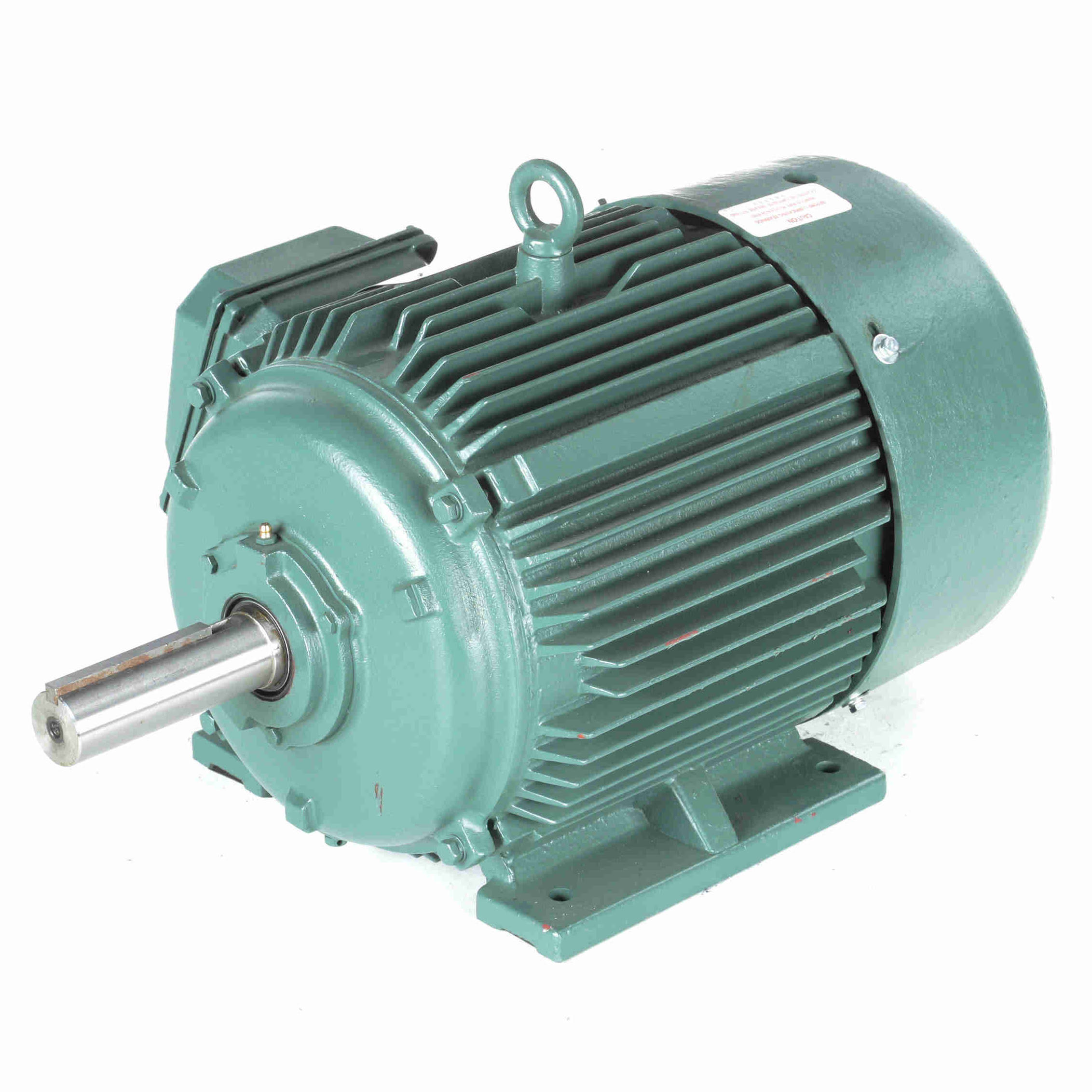

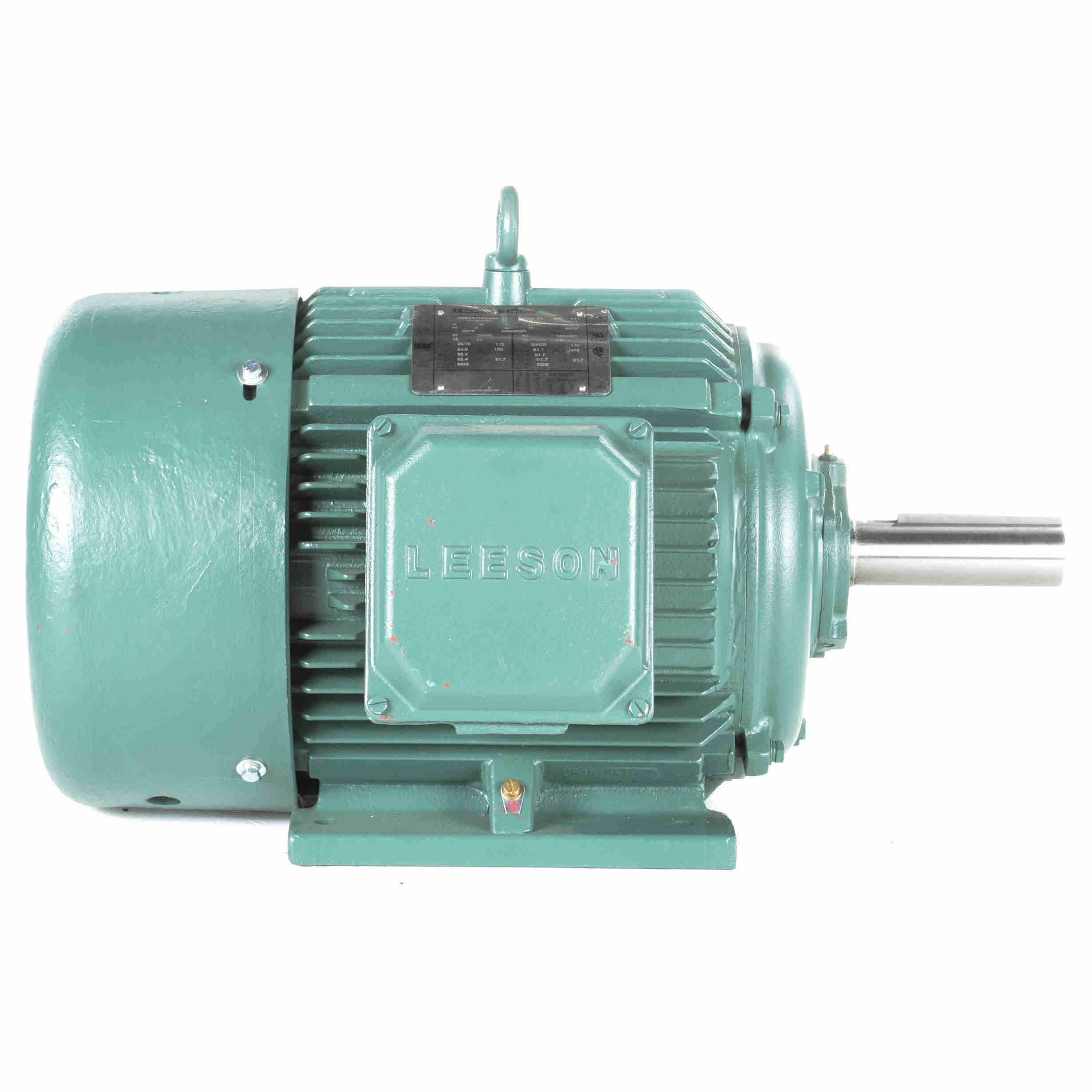

171841.60 Leeson 15HP Grain Dryer / Centrifugal Fan Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C254T17FK18

Selected accessories will also be added to cart
$2,171.02 / Each
Quantity:
TEFC, 254TZ Frame, 230/460VAC 3-Phase 60Hz
Features
  • 1" longer shaft than NEMA standard
  • Shaft seals both ends
  • Premium efficient
  • Epoxy Painted
  • Normally closed T-stats
  • Cast iron construction
General Specifications
Model :C254T17FK18A Catalog No :171841.60
Part Description :..15HP..1800RPM.254TZ.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......GRAIN DRYER........ Category :Grain Stirring
Stock :No
Nameplate Specifications
Output HP :15 Hp Output KW :11.2 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :40.0-36.0/18.0 A Speed :1765 rpm
Service Factor :1.15 Phase :3
Efficiency :92.4 % Duty :Continuous
Insulation Class :F Design Code :A
KVA Code :H Frame :254TZ
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6309
Opp Drive End Bearing Size :6308 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Inverter Rated Starting Method :Wye Start Delta Run Or Inverter
Poles :4 Rotation :Reversible
Mounting :Rigid base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Cast Iron Shaft Type :Single Special Extension
Overall Length :24.72 in Shaft Diameter :1.625 in
Shaft Extension :4.99 in Assembly/Box Mounting :F1/F2 CAPABLE
UPC :691720053560 Weight :295.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor140.00757.0126.00284.0015.00
Pull-Up130.00703.098.50222.046715.00
Break-Down79.50430.0154.00347.01,62015.00
Full Load18.50100.044.50100.01,77515.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 8.00
  • 0.380
  • 0.0
  • 6.0
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 9.30
  • 3.200
  • 86.5
  • 43.5
  • 1,794
  • 0.0
  • 11.00
  • 50 %
  • 11.50
  • 6.100
  • 91.7
  • 67.5
  • 1,788
  • 0.0
  • 22.00
  • 75 %
  • 14.60
  • 9.100
  • 92.4
  • 78.0
  • 1,780
  • 0.0
  • 33.20
  • 100 %
  • 18.00
  • 12.100
  • 92.4
  • 84.0
  • 1,775
  • 45.0
  • 44.60
  • 115 %
  • 21.00
  • 14.000
  • 91.7
  • 85.0
  • 1,770
  • 60.0
  • 51.30
  • 125 %
  • 22.50
  • 15.200
  • 91.7
  • 85.5
  • 1,765
  • 0.0
  • 55.70
  • 150 %
  • 27.10
  • 18.420
  • 91.0
  • 87.0
  • 1,760
  • 0.0
  • 67.20
