/Products/Electric Motors/Single Phase/Leeson/Air Compressor/140155.00 Leeson 7.5HP Compressor Duty Electric Motor, 1740 RPM

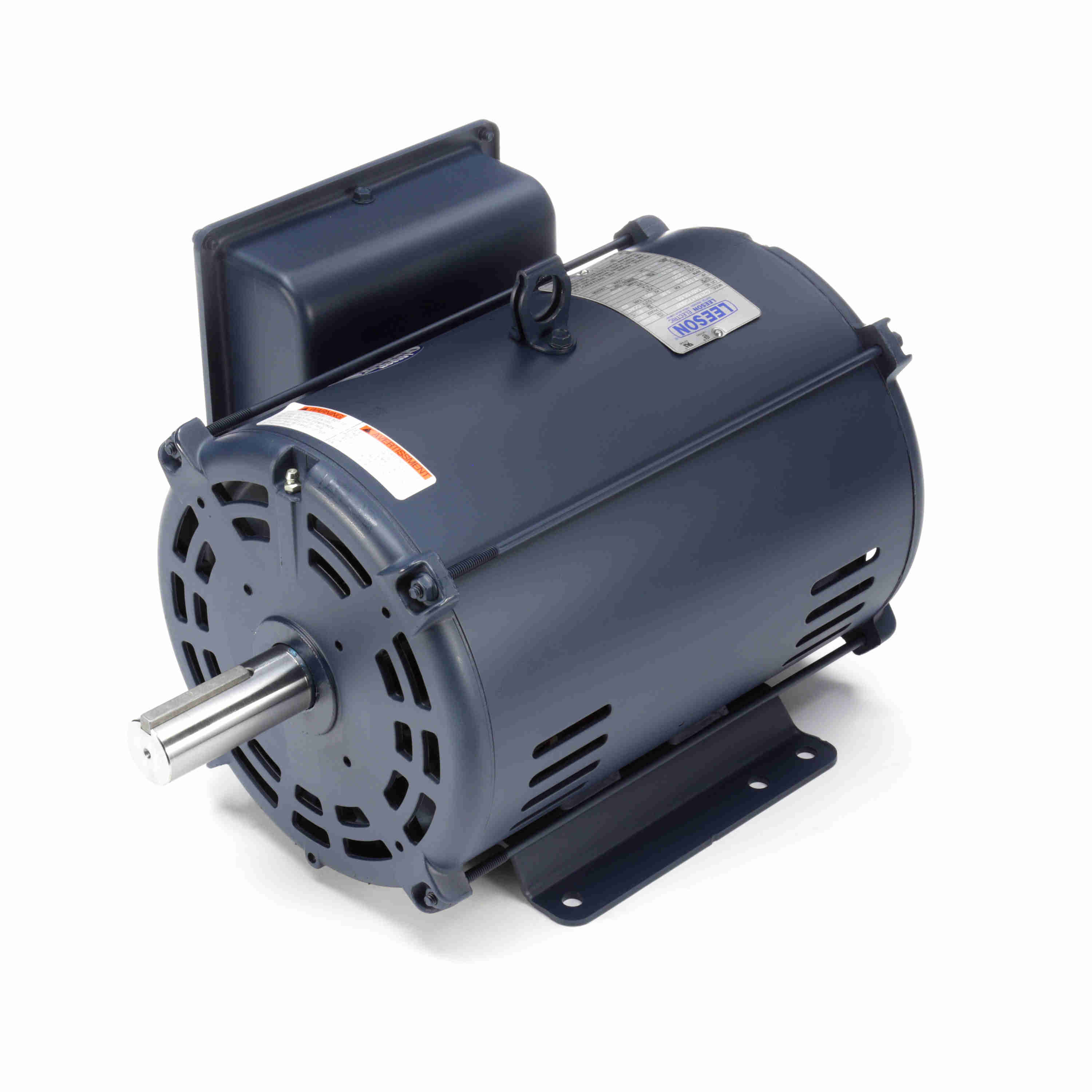

Click Image to Expand

Product ID: 140155.00

140155.00 Leeson 7.5HP Compressor Duty Electric Motor, 1740 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 140155.00

Selected accessories will also be added to cart
$978.47 / Each
Quantity:
Drip Proof, 215T Frame, 230VAC 60Hz Single Phase, Rigid Base, C215K17DB2F

Features

Features
  • Double shielded ball bearings
  • Designed for belted loads
  • High starting and breakdown torque
  • Dual rotation

General Specifications

General Specifications
Model :C215K17DB2F Catalog No :140155.00
Part Description :..7 1/2HP..1740RPM.215.DP./230V.1PH.60HZ.CONT.40C.1.15SF.RIGID.C215K17DB2F.....GENERAL PURPOSE.NOT....... Category :Air Compressor
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :7.50 Hp Output KW :5.6 kW
Frequency :60 Hz Voltage :230 V
Current :36.0 A Speed :1740 rpm
Service Factor :1.15 Phase :1
Efficiency :81.5 % Duty :Continuous
Insulation Class :F Design Code :L
KVA Code :G Frame :215T
Enclosure :Drip Proof Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6207
Opp Drive End Bearing Size :6206 UL :Recognized
CSA :Y CE :N
IP Code :22

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :17.26 in Frame Length :12.00 in
Shaft Diameter :1.375 in Shaft Extension :3.38 in
Assembly/Box Mounting :F1 ONLY UPC :691720018958
Weight :116.00 LB
