/Products/Electric Motors/Single Phase/Leeson/TEFC, Rigid Base/131637.00 Leeson 3HP General Purpose Electric Motor, 3450RPM
Click Image to Expand

Product ID: 131637.00

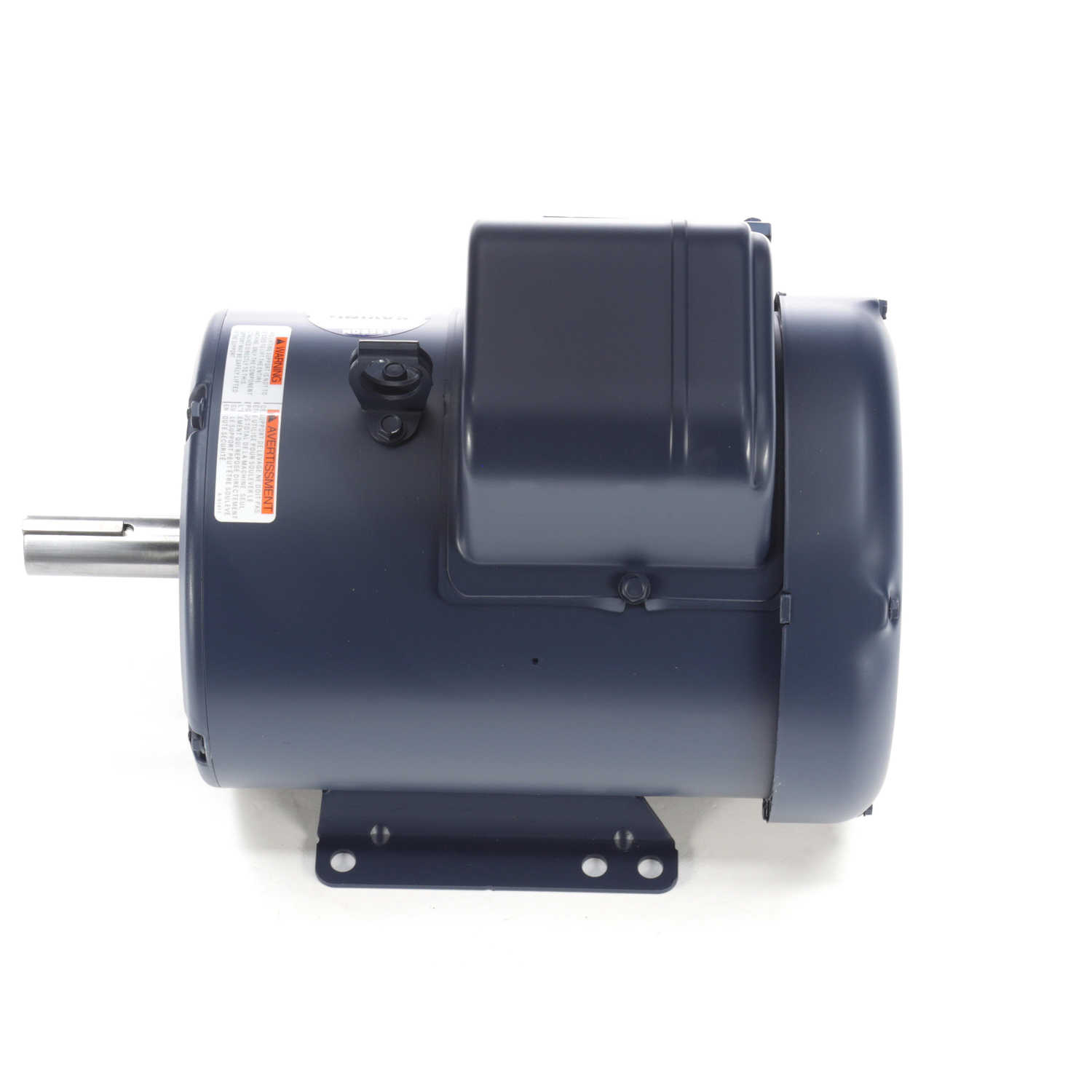

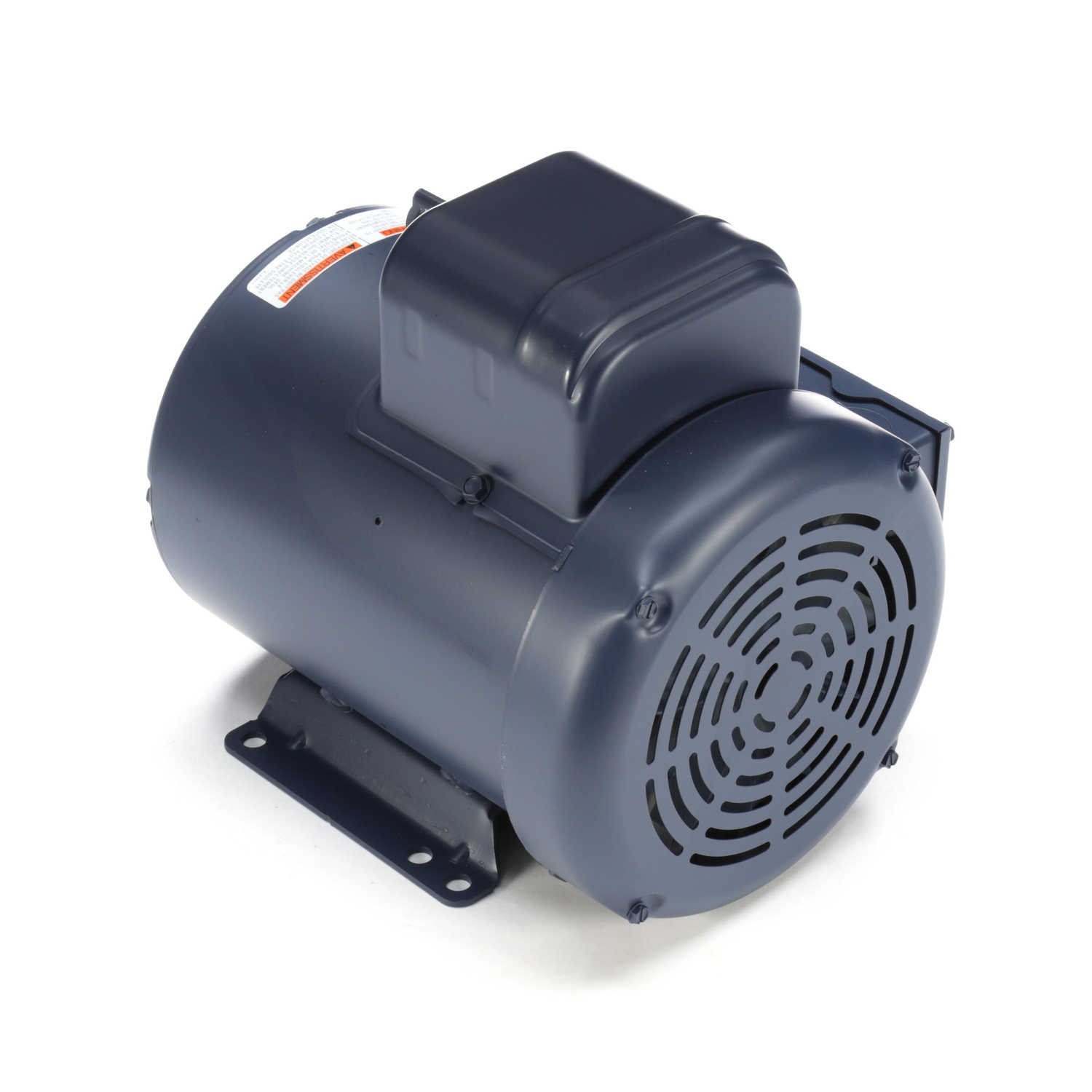

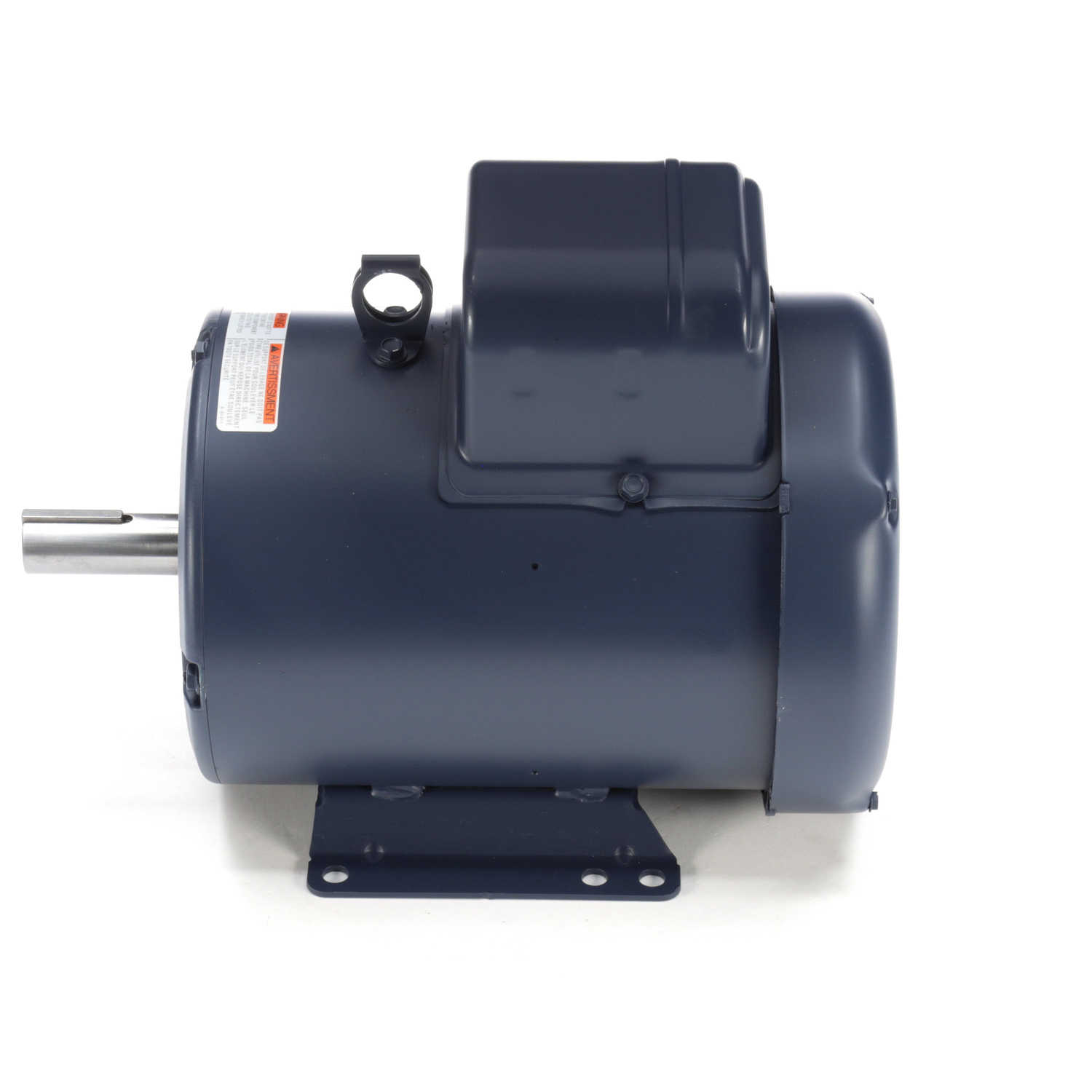

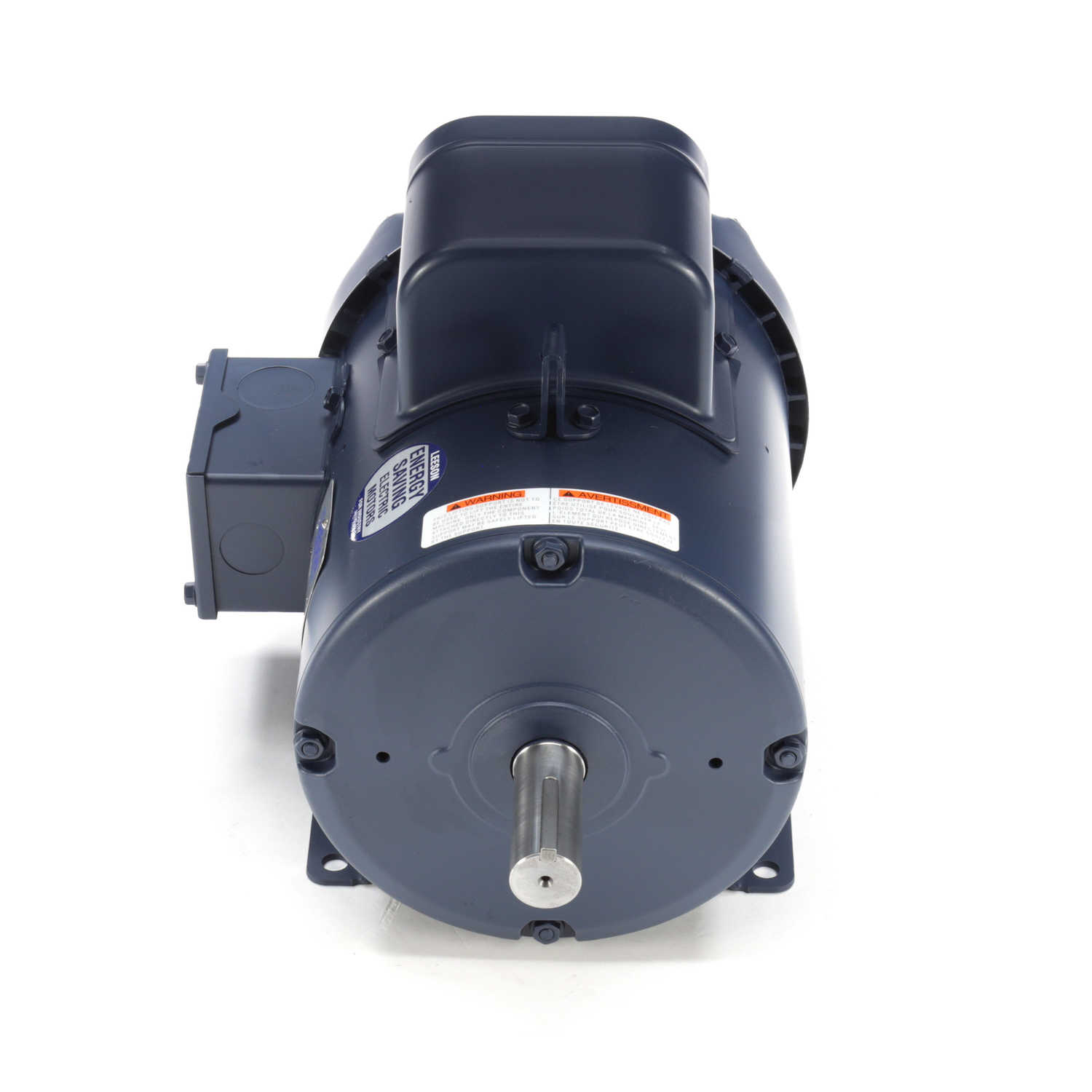

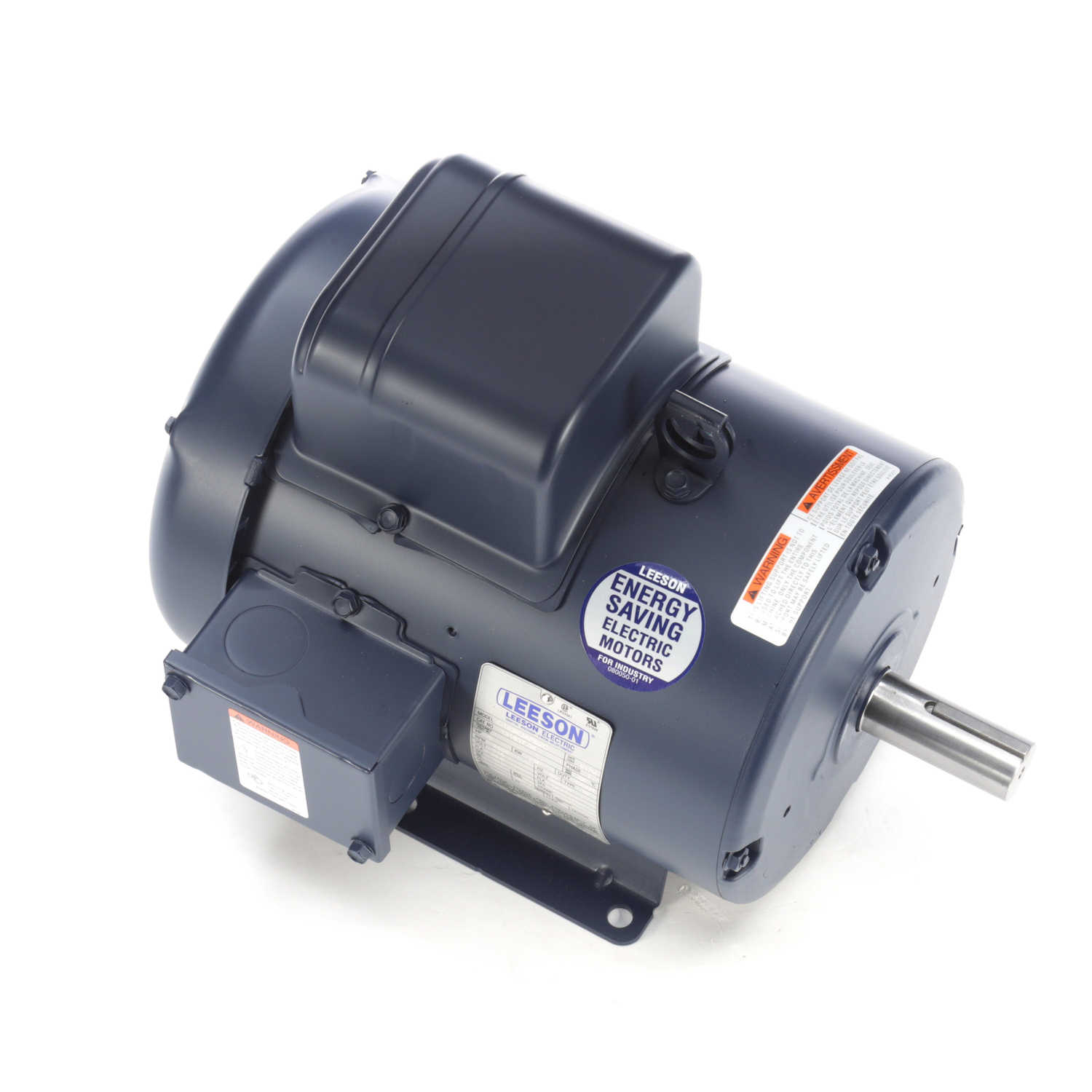

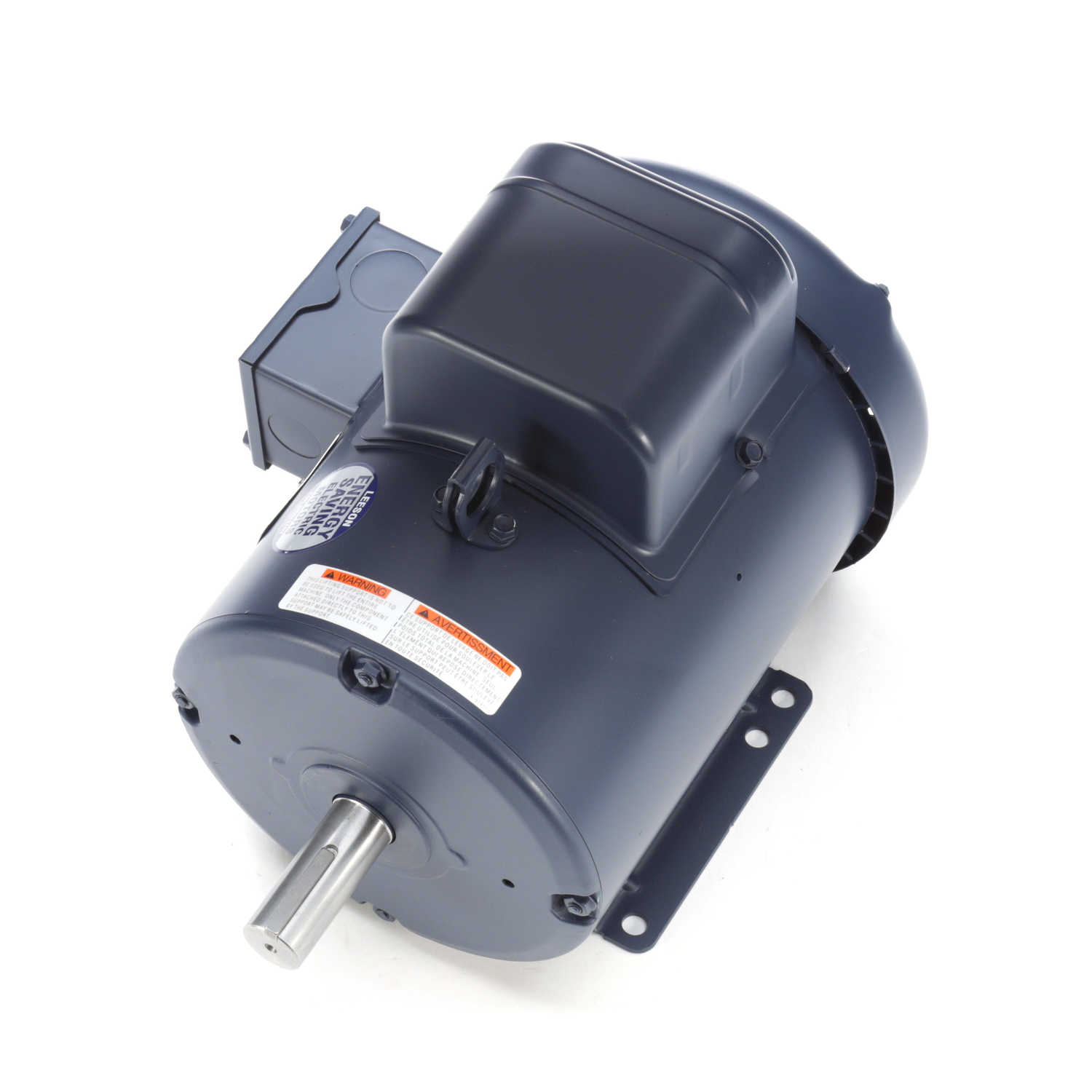

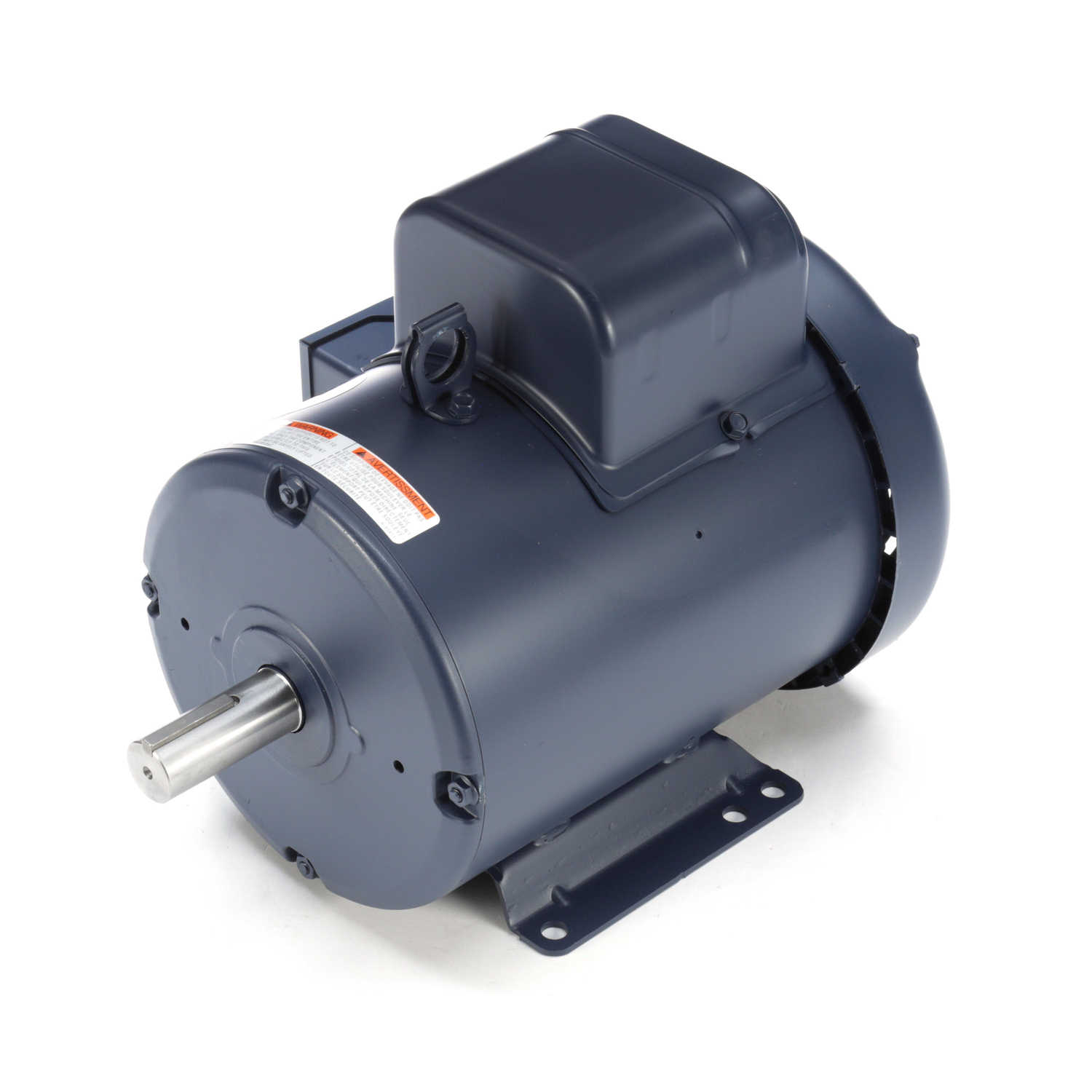

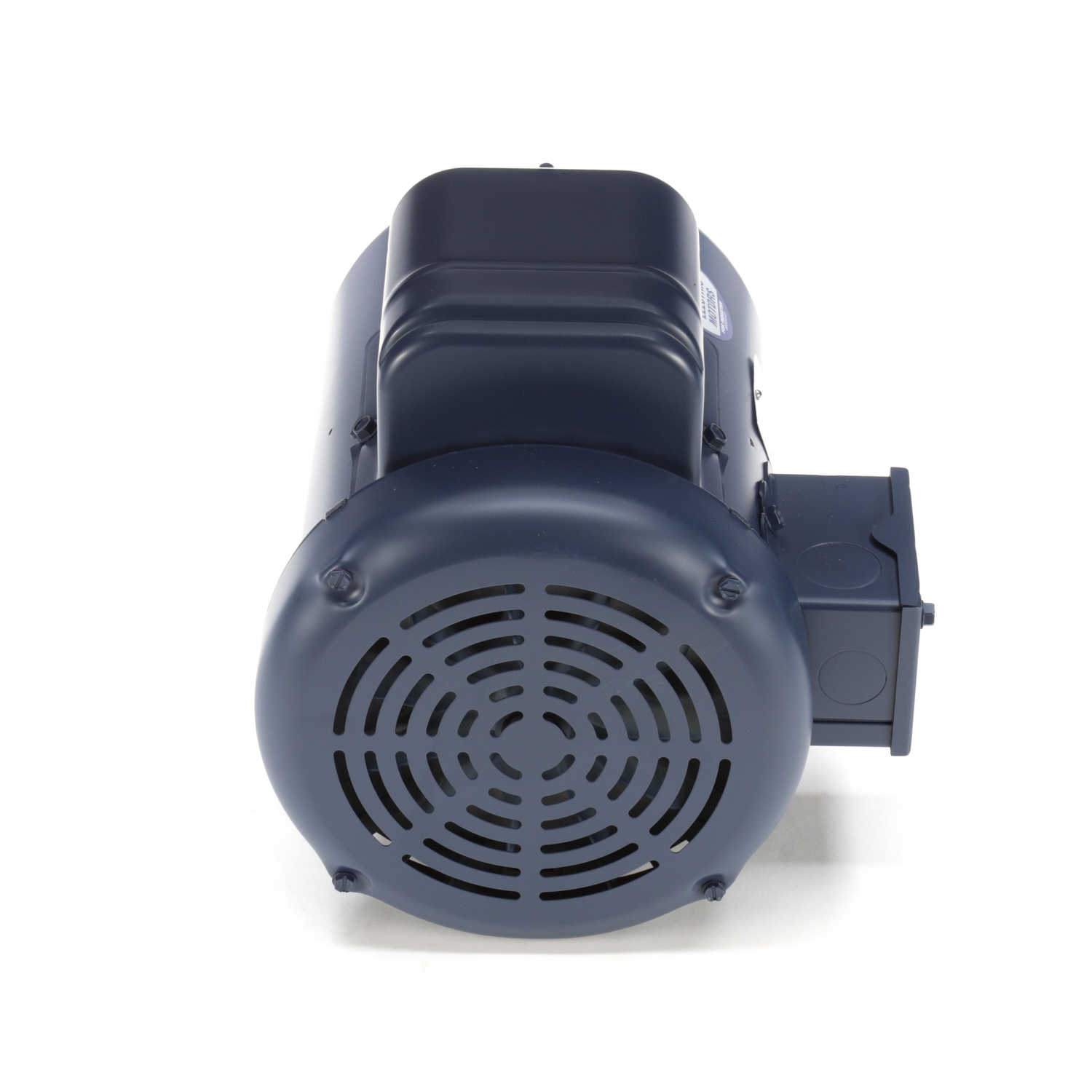

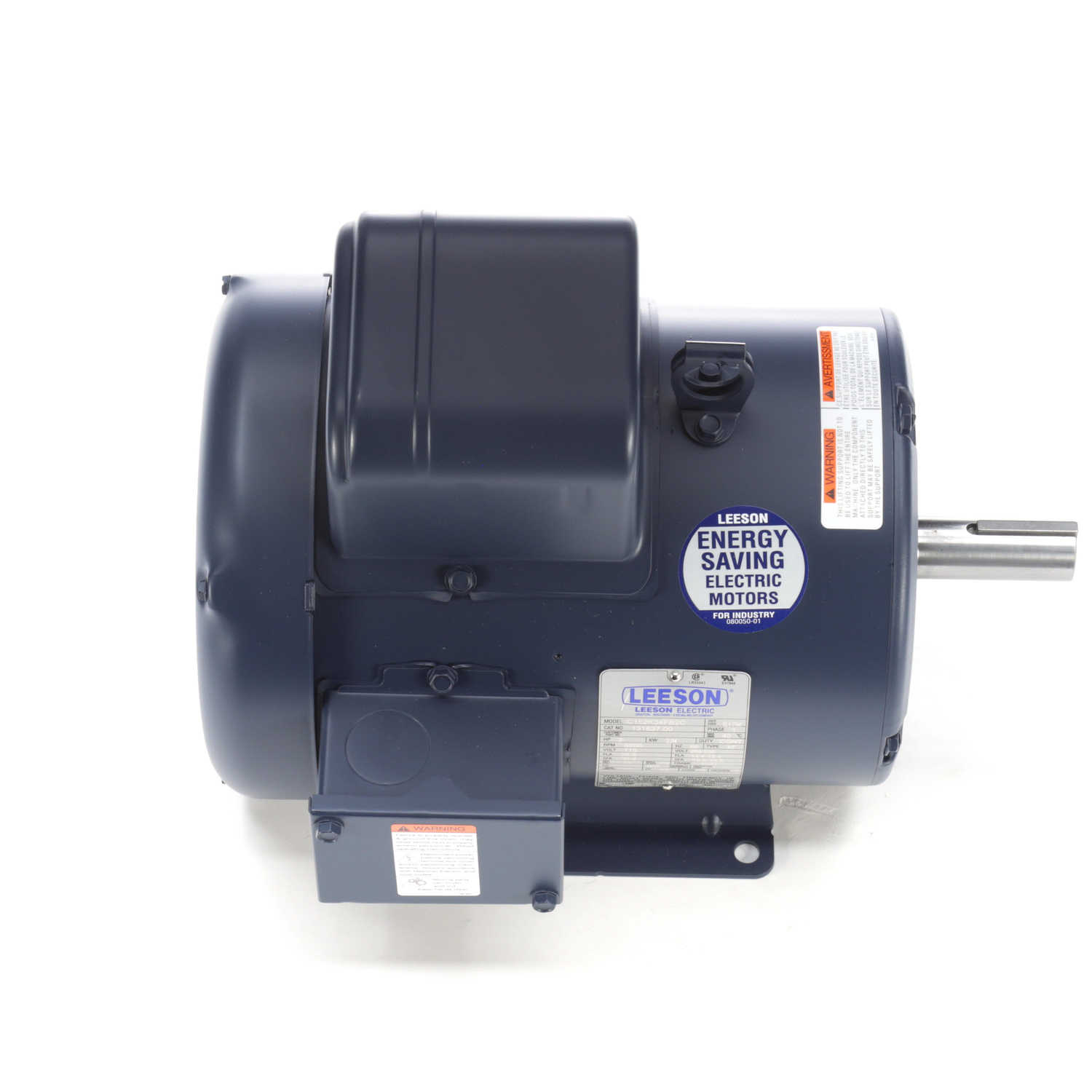

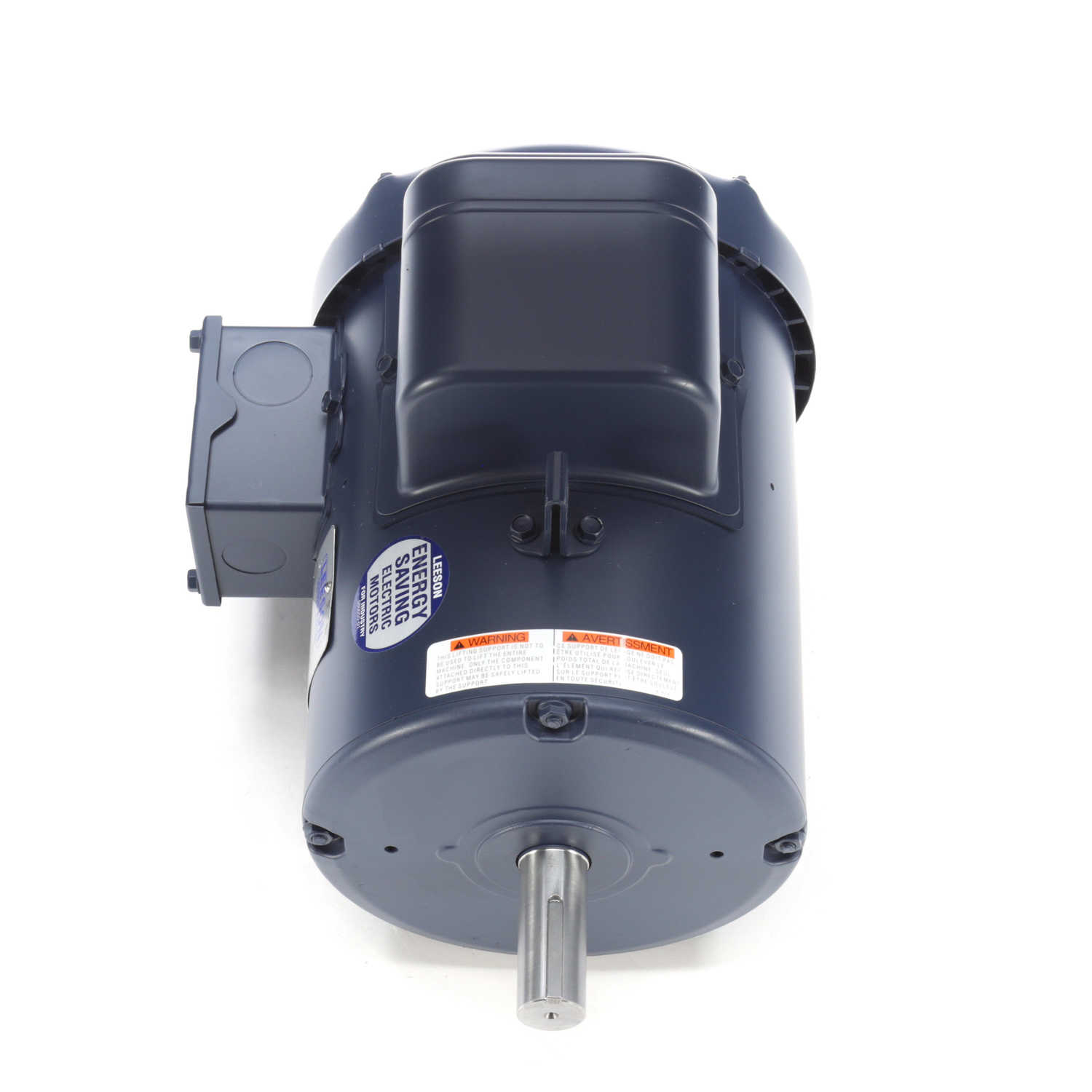

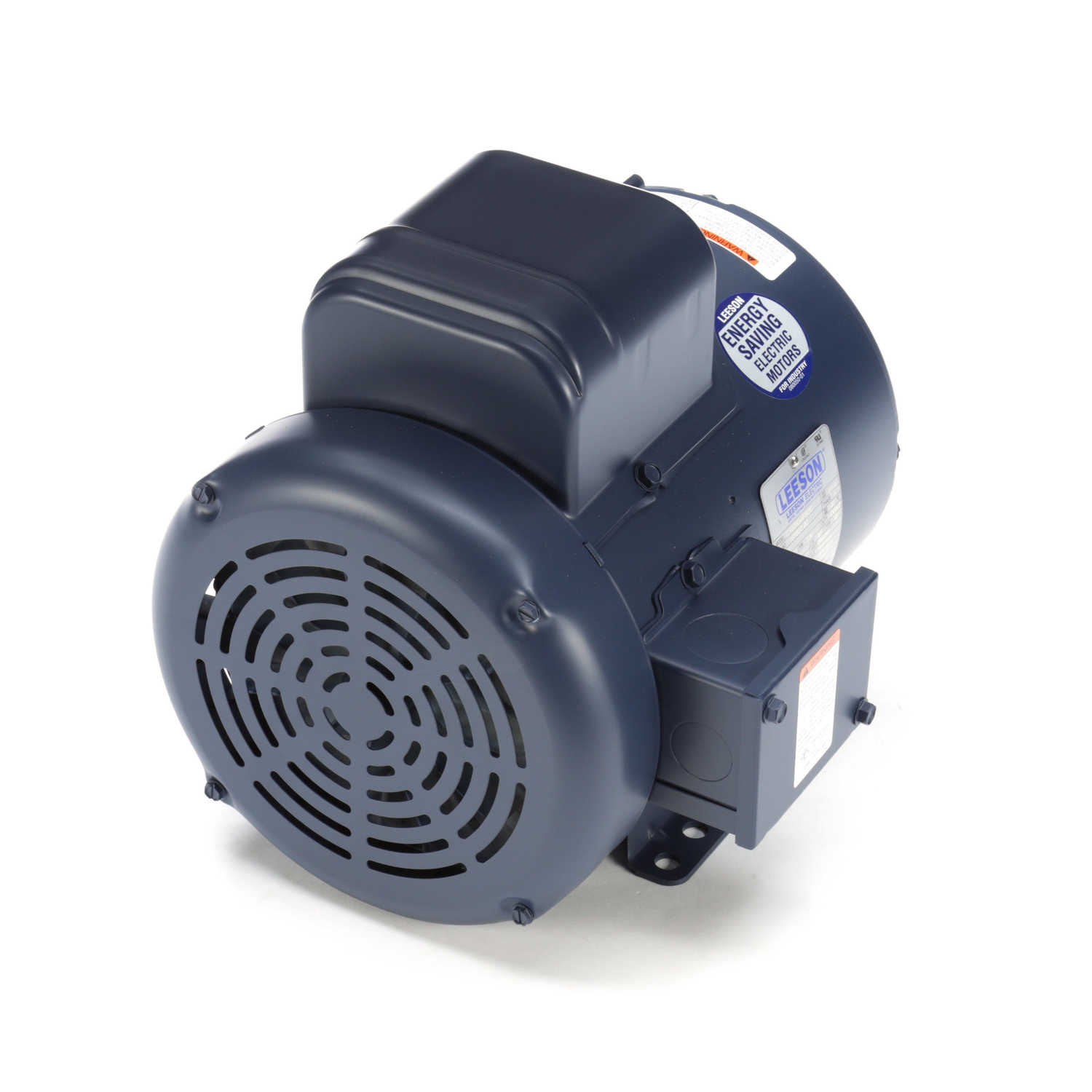

131637.00 Leeson 3HP General Purpose Electric Motor, 3450RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 131637.00

Selected accessories will also be added to cart
$699.97 / Each
Quantity:
TEFC, 182T Frame, 115/208-230VAC 60Hz Single Phase, Rigid Base, Rolled Steel, 1-1/8" Keyed Shaft

Features

  • Durable rolled steel construction
  • NEMA Design B performance
  • Double shielded ball bearings
  • Continuous duty
  • UL recognized component listing and CSA certified

General Specifications

UPC: 691720018576 Weight: 81.00 LB
Packaged Length: 17.94 IN Packaged Width: 13.06 IN
Packaged Height: 12.88 IN

Nameplate Specifications

Output HP: 3 Hp Output KW: 2.2 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 26.8/14.4-13.4 A Speed: 3500 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 80 % Power Factor: 89
Duty: Continuous Insulation Class: F
Design Code: L KVA Code: G
Frame: 182T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 2 Rotation: Selective Counterclockwise
Resistance Main: .12 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 14.96 in
Frame Length: 9.50 in Shaft Diameter: 1.125 in
Shaft Extension: 2.75 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 102.00 761.0 10.40 231.0 0 17.50 0.0 3.00
Full Load 13.40 100.0 4.50 100.0 0 0.00 0.0 3.00
Pull-Up 76.50 571.0 10.00 222.0 2,600 13.21 0.0 3.00
Break-Down 57.90 432.0 12.80 284.0 3,100 11.10 0.0 3.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 4.80 6.14 8.30 10.80 13.40 16.70 20.10
Rated Output (KW) 0.33 0.92 1.52 2.15 2.80 3.50 4.22
Efficiency (%) 0.0 62.4 70.8 79.2 80.0 79.9 79.2
Power Factor (%) 29.9 65.2 79.6 86.6 89.0 91.0 91.3
Speed (RPM) 3,596 3,580 3,565 3,548 3,530 3,510 3,485
Temp. Rise @ FL 0.0 0.0 0.0 0.0 56.0 69.0 0.0
Torque (ft-lbs) 0.00 1.13 2.25 3.38 4.50 5.60 6.75
