/Products/Electric Motors/Single Phase/Leeson/TEFC, Rigid Base/131549.00 Leeson 5HP General Purpose Electric Motor, 3600 RPM
Click Image to Expand

Product ID: 131549.00

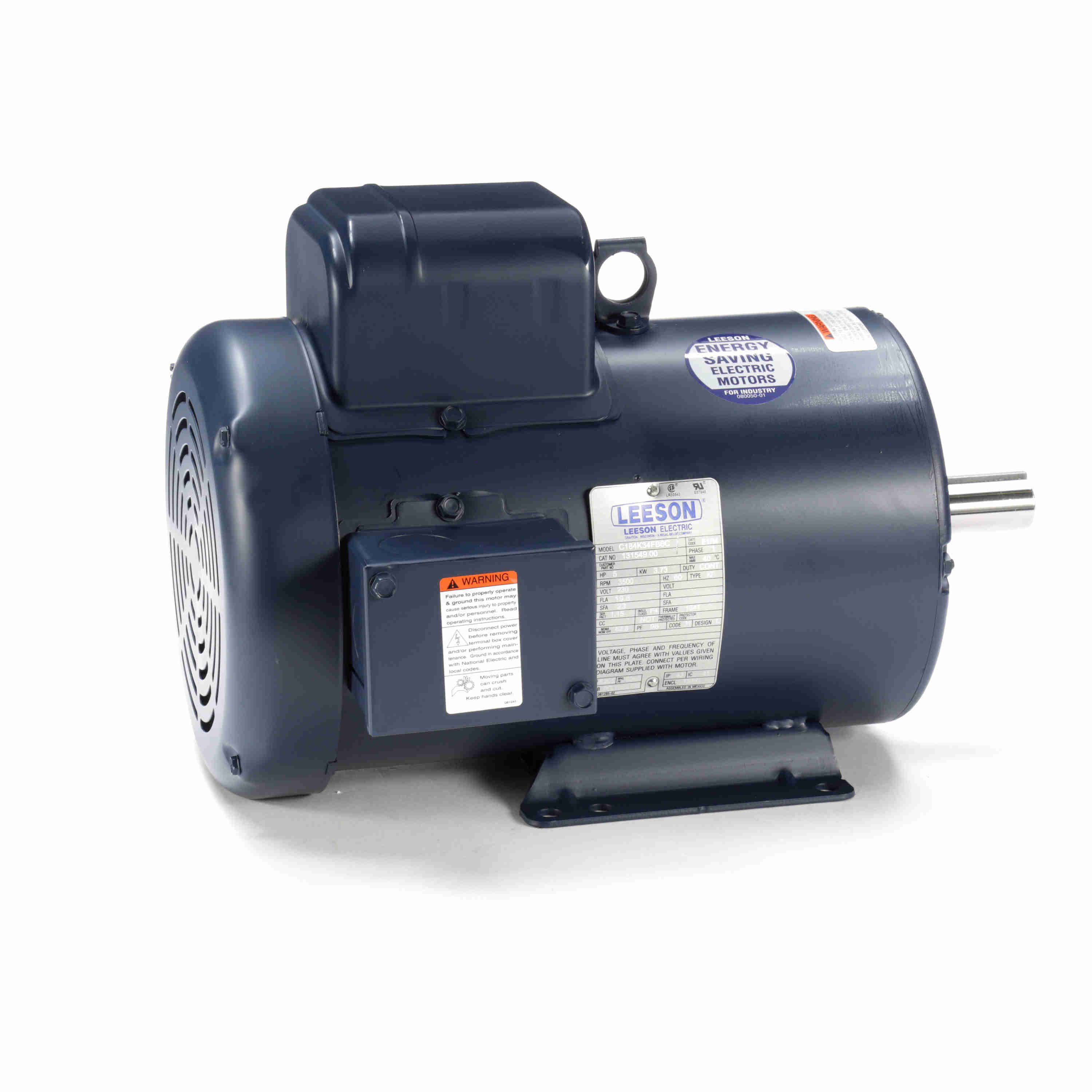

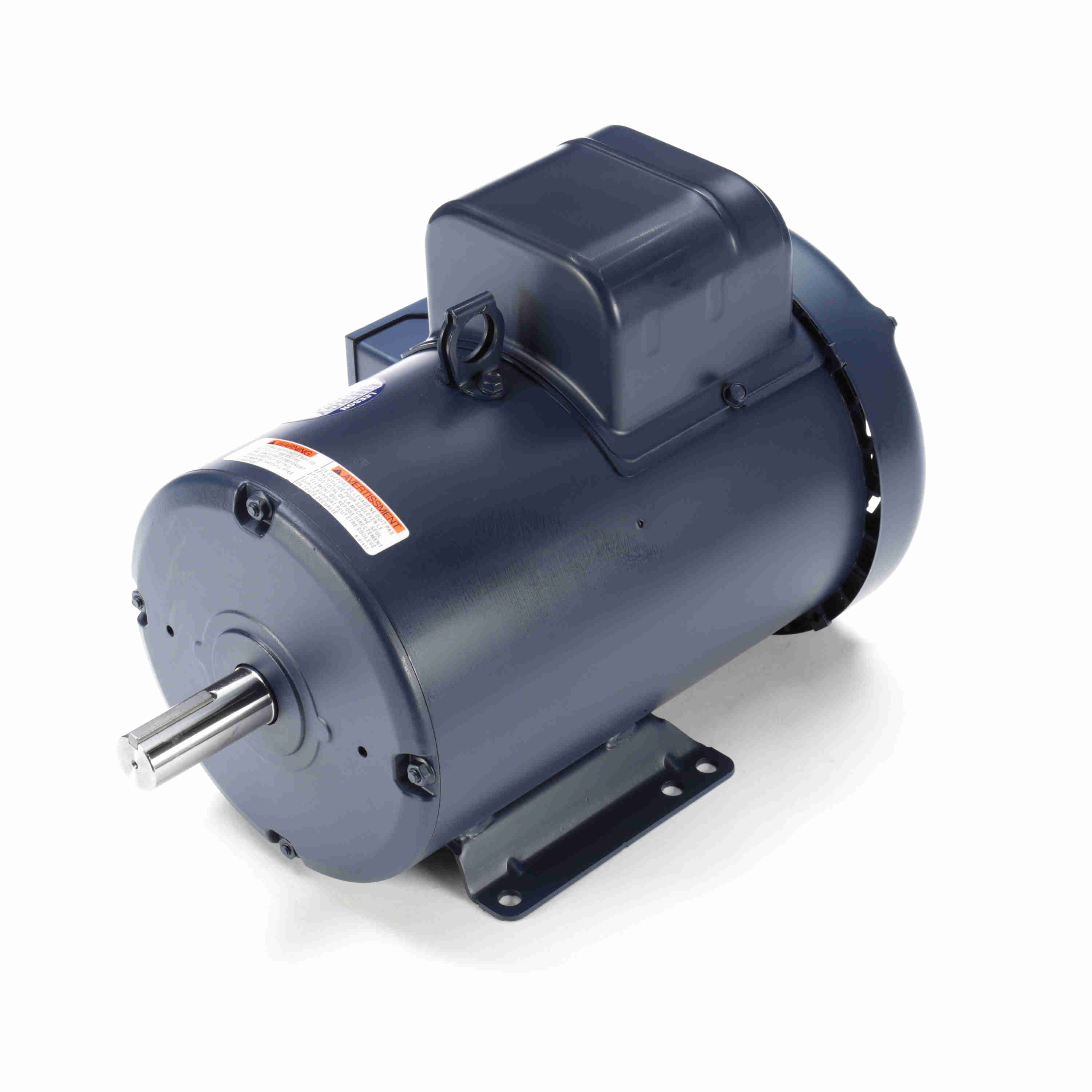

131549.00 Leeson 5HP General Purpose Electric Motor, 3600 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 131549.00

Selected accessories will also be added to cart
$989.97 / Each
Quantity:
TEFC, 184T Frame, 230V 1-Phase 60Hz, Rigid Base

Features

Features
  • Durable rolled steel construction
  • NEMA Design B performance
  • Double shielded ball bearings
  • Continuous duty
  • 1-year warranty on general purpose motors

General Specifications

General Specifications
Model :C184K34FB6C Catalog No :131549.00
Part Description :5HP..3500RPM.184.TEFC./230V.1PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.GENERAL PURPOSE.C184K34FB6C Category :Totally Enclosed Fan Cooled (TEFC)
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :5 Hp Output KW :3.7 kW
Frequency :60 Hz Voltage :230 V
Current :19.8 A Speed :3500 rpm
Service Factor :1.15 Phase :1
Efficiency :82.5 % Duty :Continuous
Insulation Class :F Design Code :L
KVA Code :H Frame :184T
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6206
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :2 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :16.96 in Frame Length :11.50 in
Shaft Diameter :1.125 in Shaft Extension :2.75 in
Assembly/Box Mounting :F1 ONLY UPC :691720017968
Weight :96.00 LB
