/Products/Electric Motors/Single Phase/Leeson/Extra Hi-Torque TEFC Rigid Base/131542.00 Leeson 3HP Extra Hi-Torque Agriculture Duty Electric Motor, 1800RPM

Click Image to Expand

Previous Next

Product ID: 131542.00

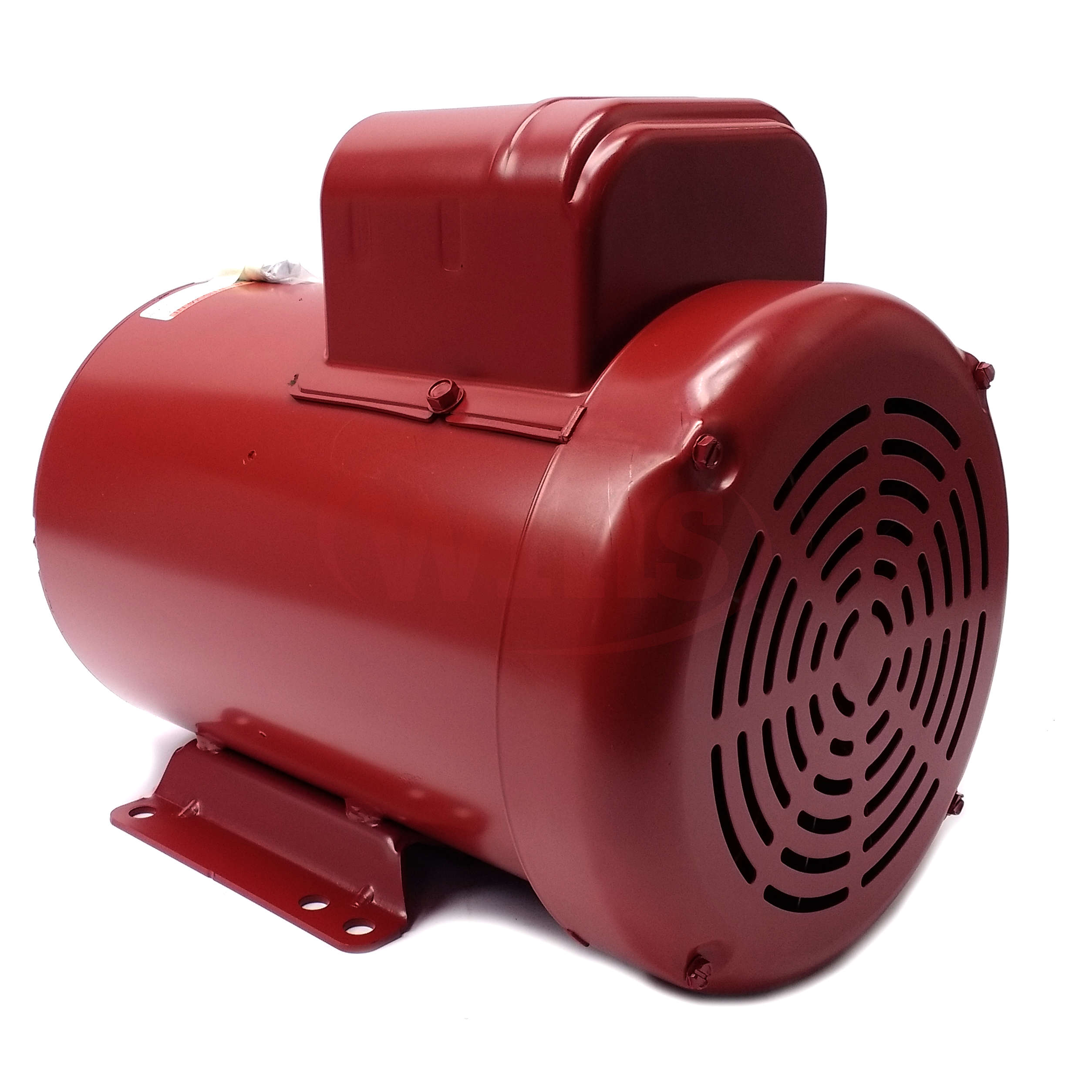

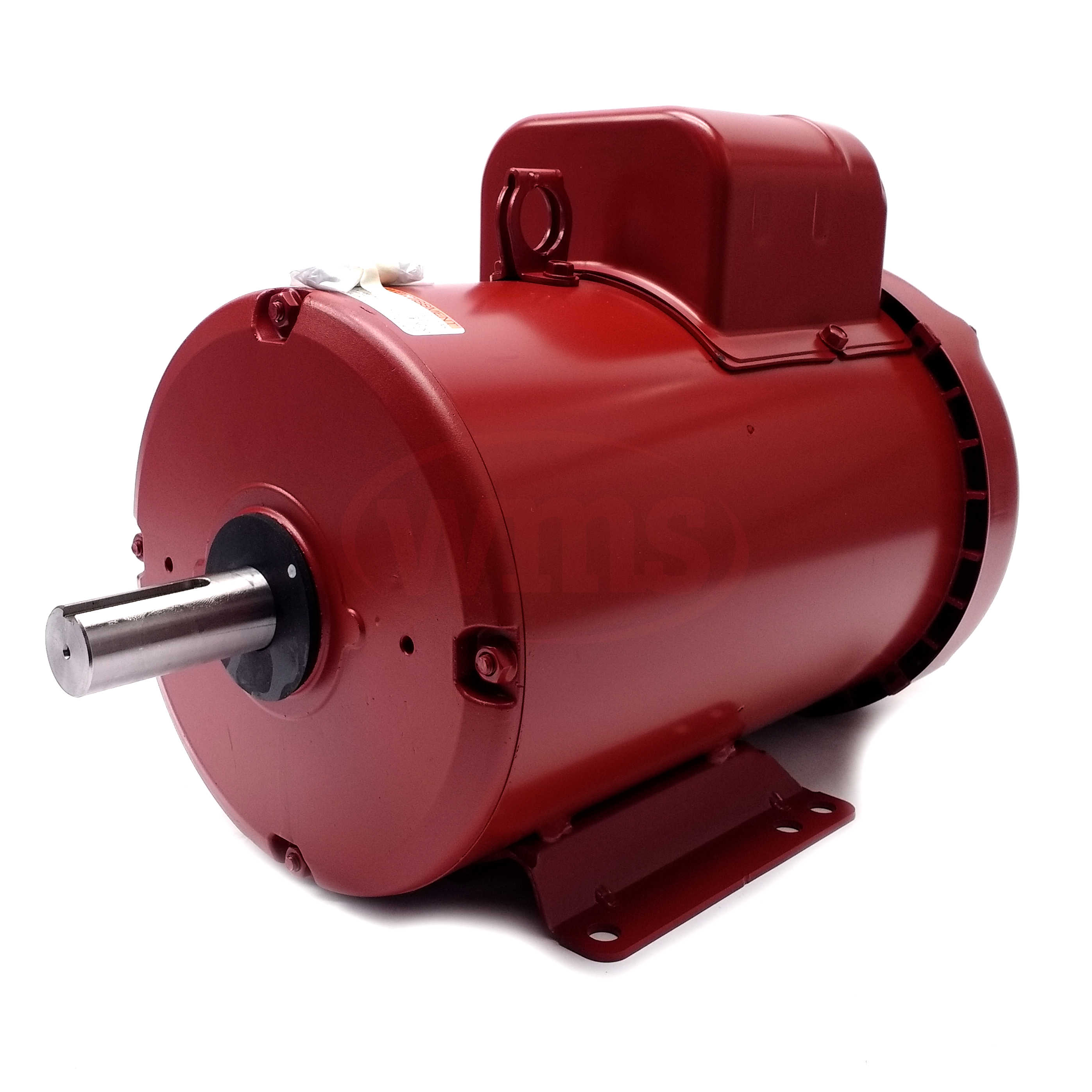

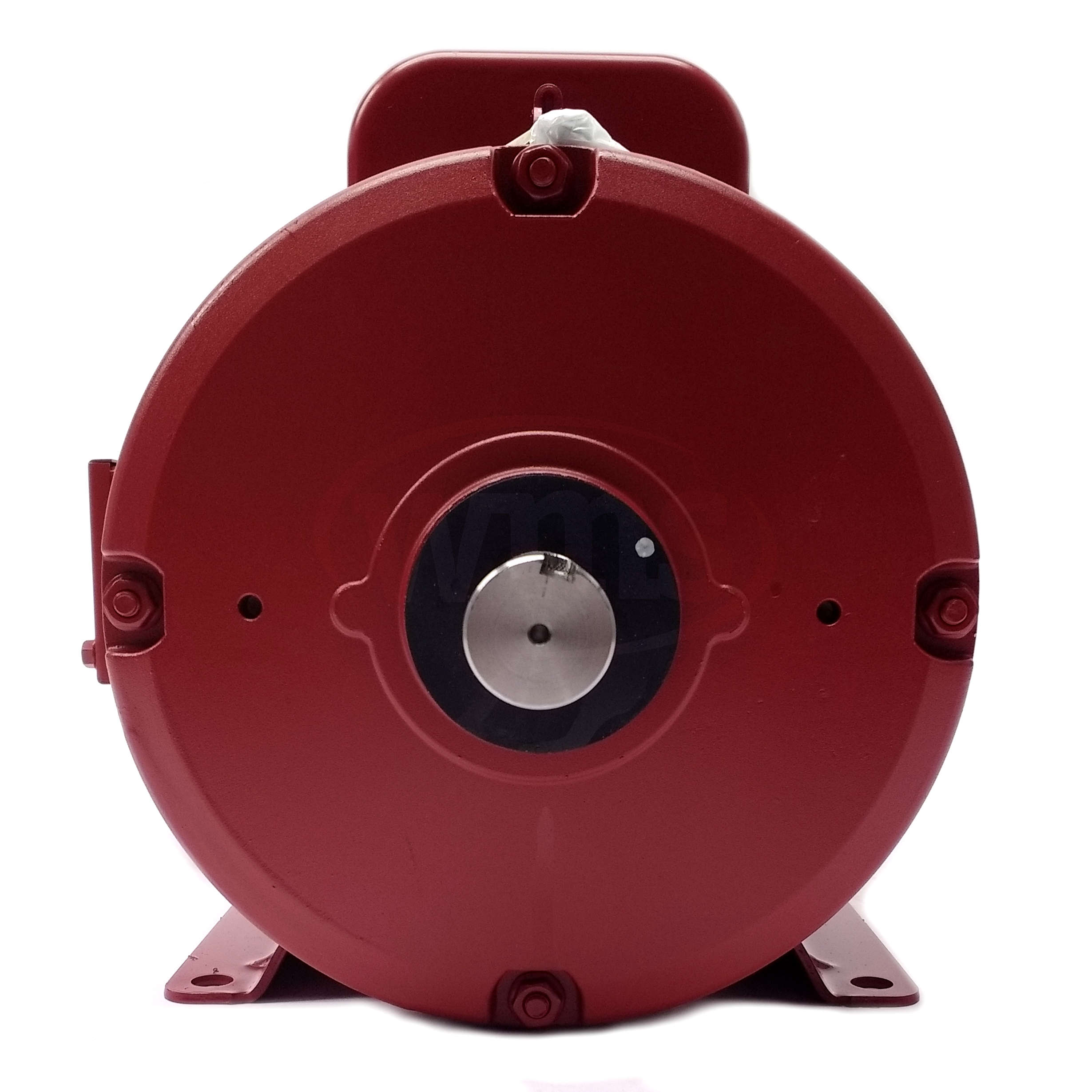

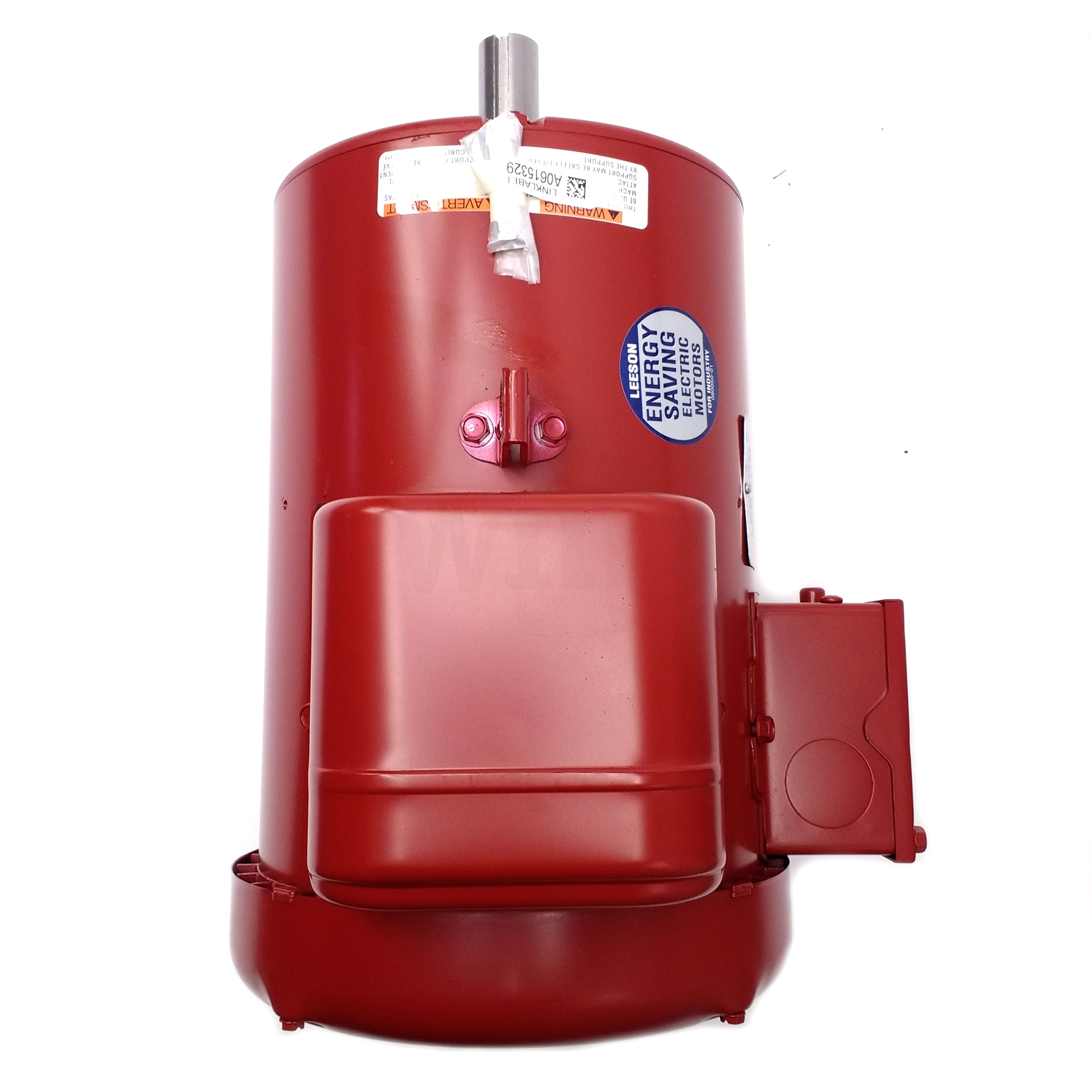

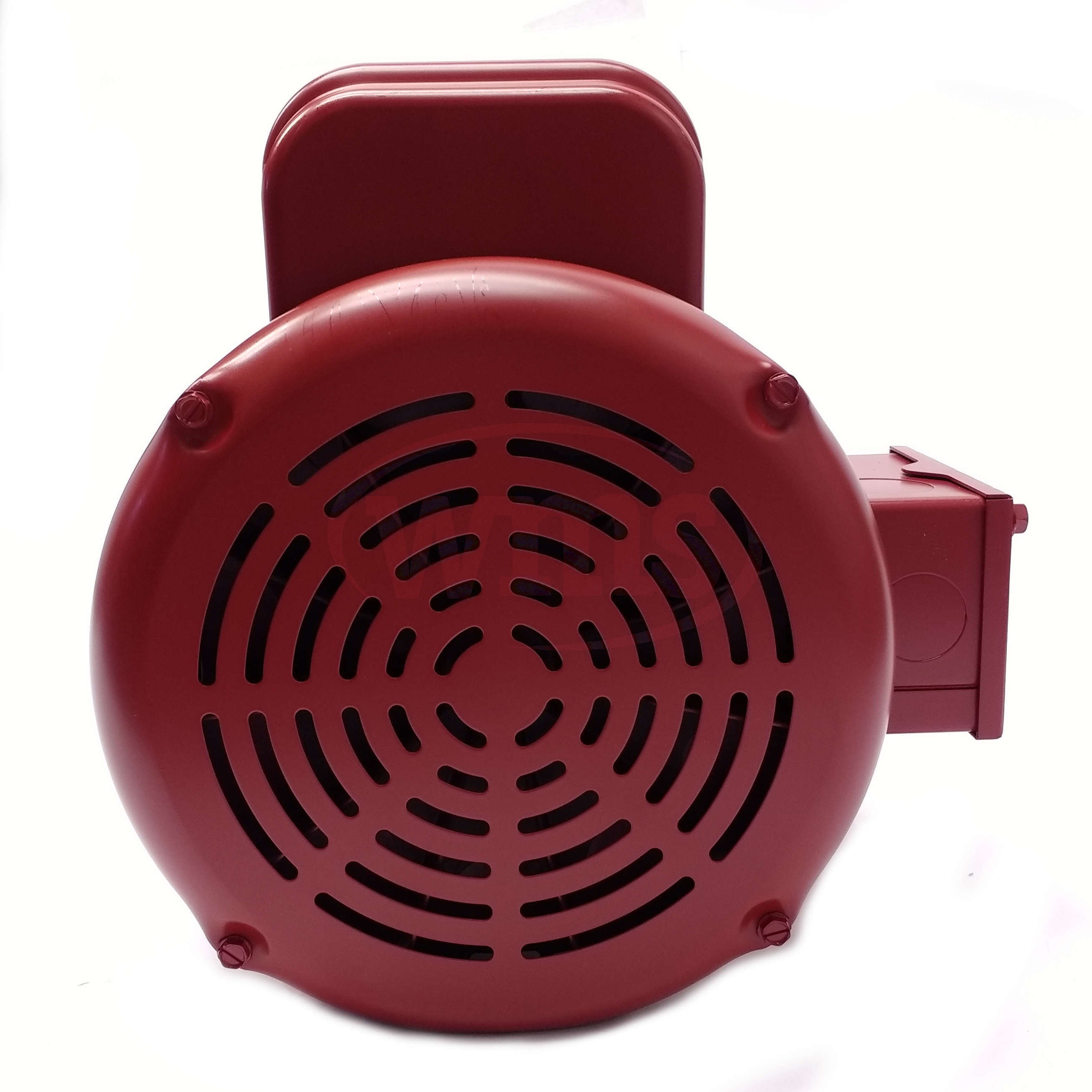

131542.00 Leeson 3HP Extra Hi-Torque Agriculture Duty Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: P182C17FB13

Selected accessories will also be added to cart

$687.55 / Each

Quantity:

TEFC, 184T Frame, 230VAC Single Phase 60Hz, P184C17FB13C, Rigid Base, Rolled Steel, 1-1/8" Shaft

Details
Purchase Components

Features

Gasketed capacitor cases and conduit box covers
Meets or exceeds NEMA service factors
Double sealed ball bearings
Single phase designs
Condensate drains on general purpose Ag motors
Low temperature manual overload protected
High starting torque ratings

General Specifications

Model :	P184C17FB13C	Catalog No :	131542.00
Part Description :	3HP..1740RPM.184.TEFC./230V.1PH.60HZ.CONT.MANUAL.40C.1.15SF.RIGID.AG - FARM DUTY/GENERAL PURPOSE.P184C17FB13C	Category :	Agricultural
Stock :	No

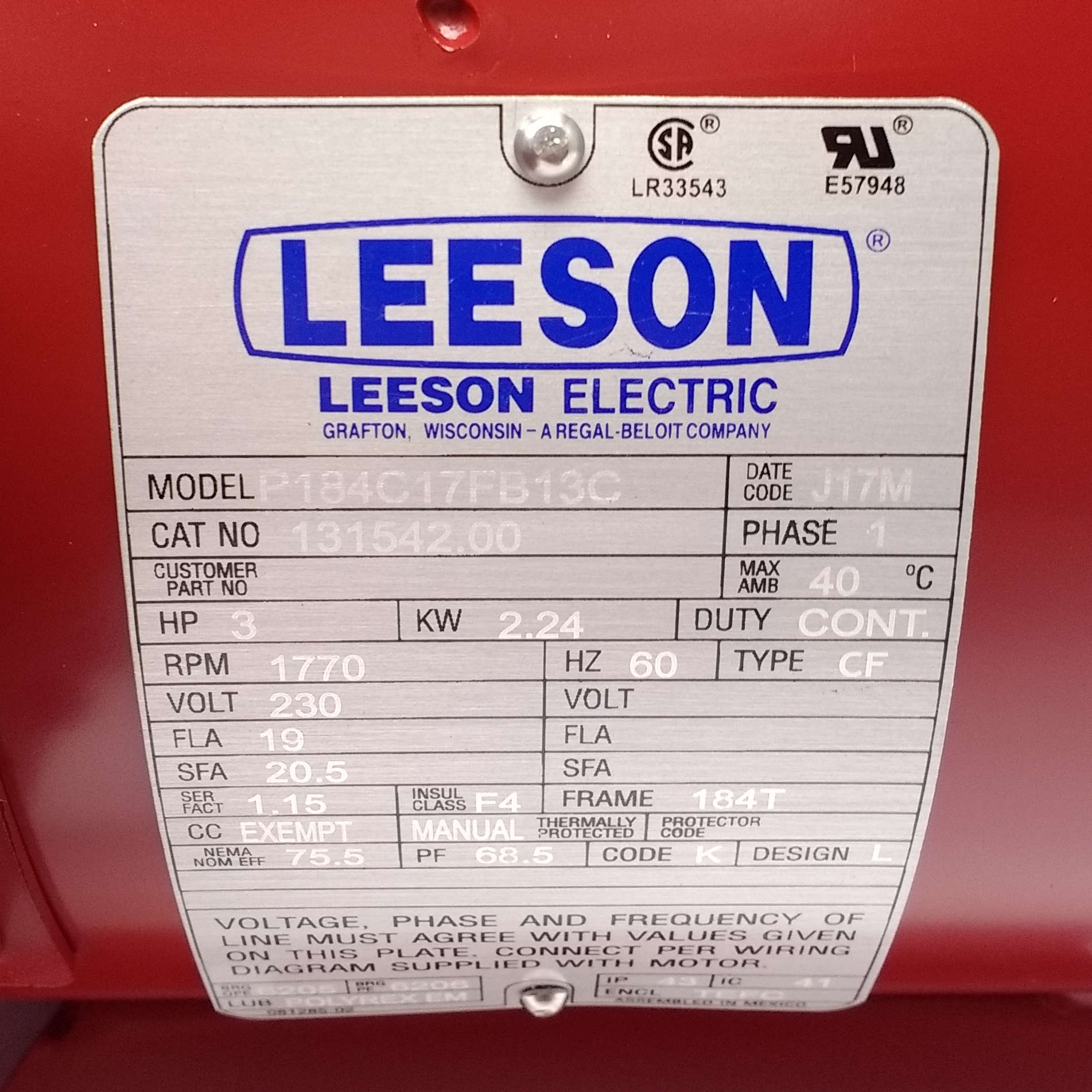

Nameplate Specifications

Output HP :	3 HP	Output KW :	2.2 kW
Frequency :	60 Hz	Voltage :	230 V
Current :	19.0 A	Speed :	1740 RPM
Service Factor :	1.15	Phase :	1
Efficiency :	75.5 %	Duty :	Continuous
Insulation Class :	F	Design Code :	L
KVA Code :	K	Frame :	184T
Enclosure :	Totally Enclosed Fan Cooled	Overload Protector :	Manual
Ambient Temperature :	40 °C	Drive End Bearing Size :	6206
Opp Drive End Bearing Size :	6205	UL :	Recognized
CSA :	Y	CE :	N
IP Code :	43

Technical Specifications

Electrical Type :	Capacitor Start Induction Run	Starting Method :	Across The Line
Poles :	4	Rotation :	Selective Counterclockwise
Mounting :	Rigid Base	Motor Orientation :	Horizontal
Drive End Bearing :	Ball	Opp Drive End Bearing :	Ball
Frame Material :	Rolled Steel	Shaft Type :	T
Overall Length :	16.46 in	Frame Length :	11.00 in
Shaft Diameter :	1.125 in	Shaft Extension :	2.75 in
Assembly/Box Mounting :	F1 ONLY	UPC :	691720017906
Weight :	86.00 LB

Speed & Load Characteristics

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Full Load	19.00		9.00	100.0	1,769			3.00
Pull-Up	0.00		23.50	261.0	0			3.00
Locked-Rotor	136.00		37.45	416.0	0			3.00
Break-Down	0.00		27.85	309.0	0			3.00
