/Products/Electric Motors/Single Phase/Leeson/General Purpose, C-Face Less Base/131539.00 Leeson 5HP ecoSaver Electric Motor, 1740RPM
Click Image to Expand

Product ID: 131539.00

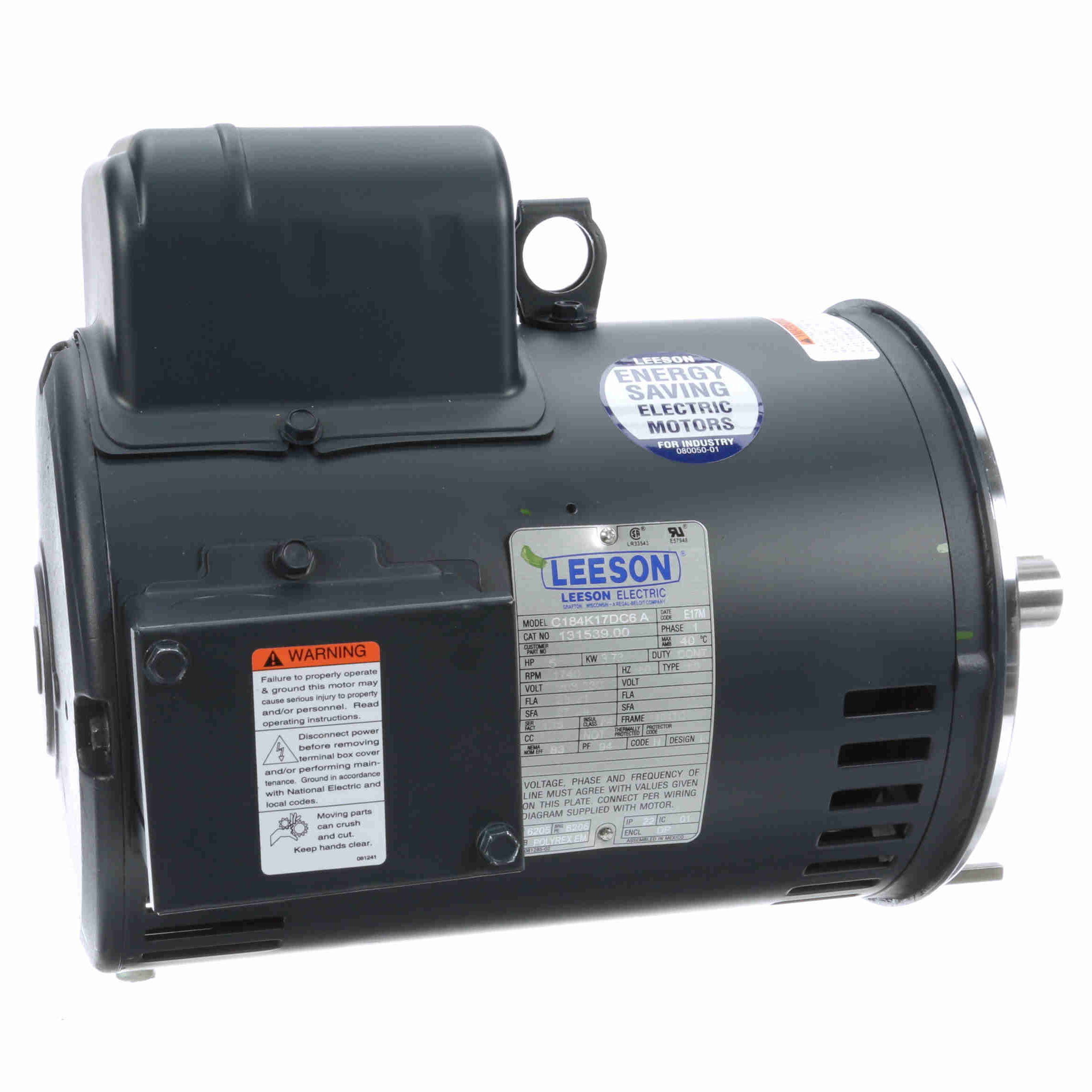

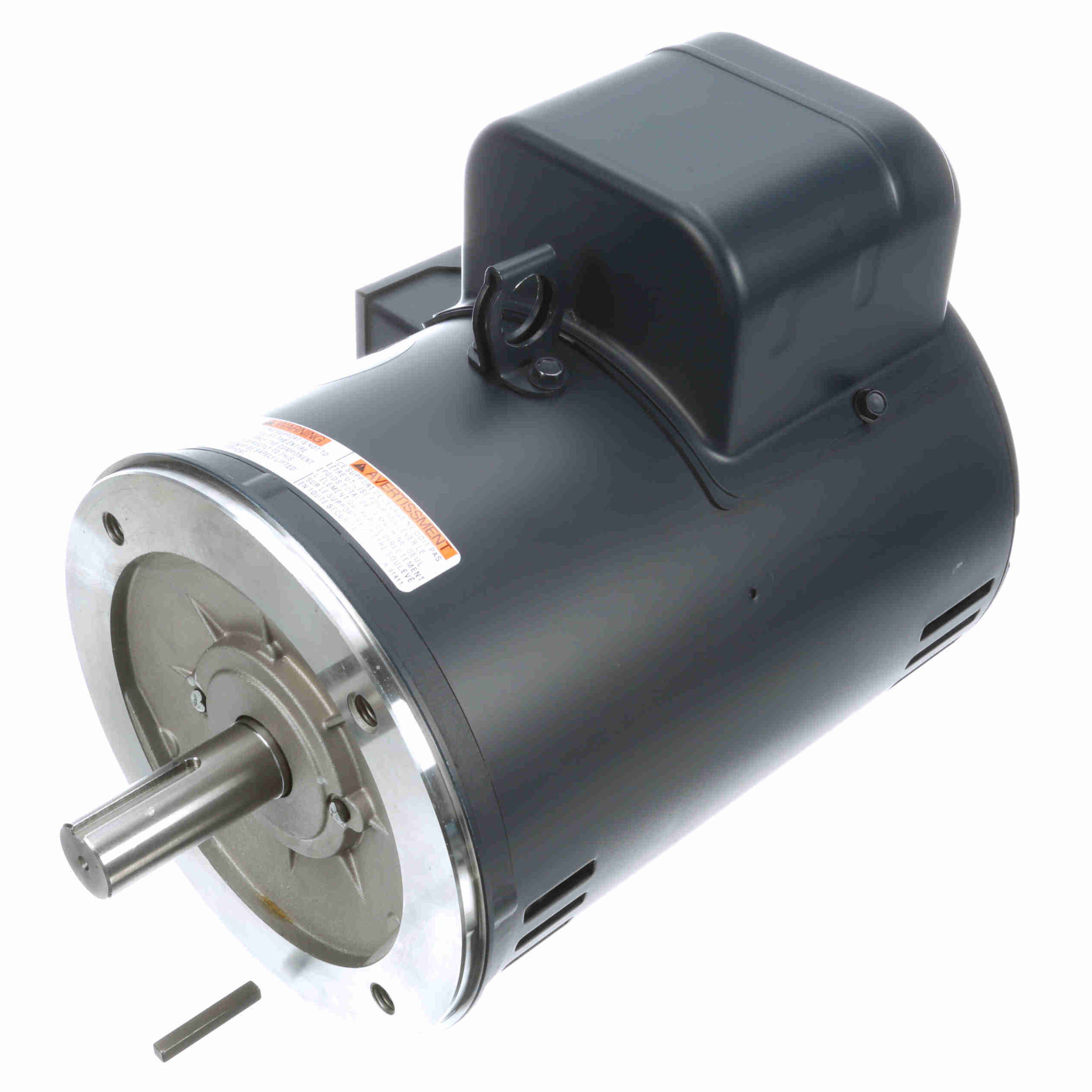

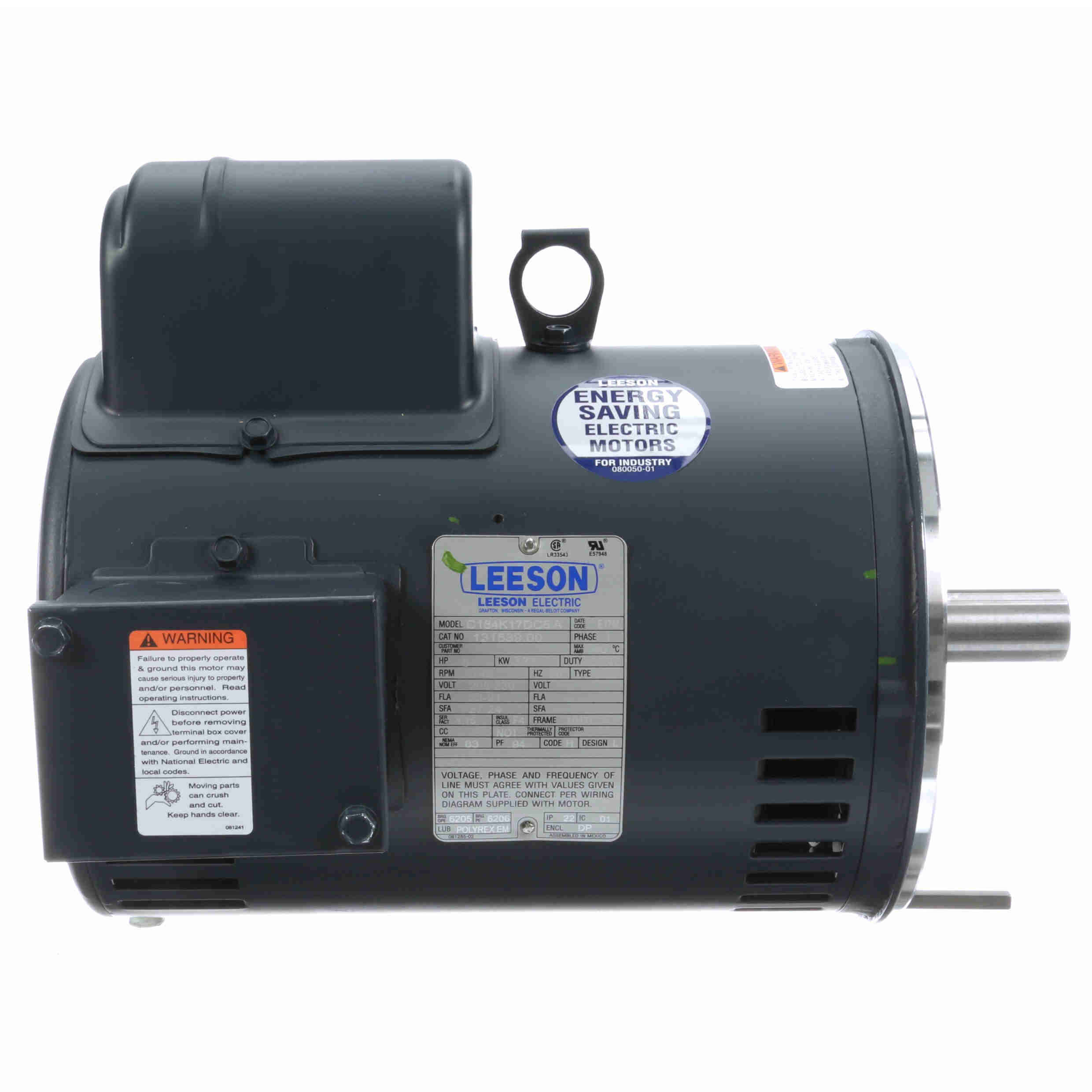

131539.00 Leeson 5HP ecoSaver Electric Motor, 1740RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 131539.00

Selected accessories will also be added to cart
$1,126.55 / Each
Quantity:
DP, 184TC Frame, 208-230VAC Single Phase 60Hz, C184K17DC6A, C-Face less Base, Rolled Steel, 1-1/8" Shaft

Features

Features
  • Durable rolled steel construction
  • NEMA design B performance
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

General Specifications

General Specifications
Model : C184K17DC6A Catalog No : 131539.00
Part Description : 5HP..1740RPM.184.DP./208-230V.1PH.60HZ.CONT.NOT.40C.1.15SF.C FACE.GENERAL PURPOSE.C184K17DC6A Category : Open Drip Proof (ODP)
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 5 HP Output KW : 3.7 kW
Frequency : 60 Hz Voltage : 208-230 V
Current : 23.0-21.0 A Speed : 1740 RPM
Service Factor : 1.15 Phase : 1
Efficiency : 83 % Duty : Continuous
Insulation Class : F Design Code : L
KVA Code : H Frame : 184TC
Enclosure : Drip Proof Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6206
Opp Drive End Bearing Size : 6205 UL : Recognized
CSA : Y CE : N
IP Code : 22

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Capacitor Run Starting Method : Across The Line
Poles : 4 Rotation : Selective Counterclockwise
Mounting : Round Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : T
Overall Length : 14.70 in Frame Length : 10.50 in
Shaft Diameter : 1.125 in Shaft Extension : 2.75 in
Assembly/Box Mounting : F1 ONLY UPC : 691720017876
Weight : 84.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 0.0 32.50 191.0 0 0.00 0.0 5.00
Full Load 21.00 100.0 15.00 100.0 0 0.00 0.0 5.00
Locked-Rotor 138.00 468.0 41.10 242.0 0 0.00 0.0 5.00
Pull-Up 0.00 0.0 28.90 170.0 0 0.00 0.0 5.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 5.90
  • 0.600
  • 0.0
  • 44.2
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 8.68
  • 1.512
  • 63.0
  • 75.7
  • 1,789
  • 0.0
  • 3.75
  • 50 %
  • 11.90
  • 2.453
  • 77.2
  • 89.6
  • 1,778
  • 0.0
  • 7.50
  • 75 %
  • 16.04
  • 3.450
  • 81.9
  • 93.5
  • 1,768
  • 0.0
  • 11.25
  • 100 %
  • 20.85
  • 4.510
  • 83.0
  • 94.0
  • 1,756
  • 72.0
  • 15.00
  • 115 %
  • 23.50
  • 5.200
  • 78.6
  • 96.2
  • 1,745
  • 95.0
  • 16.50
  • 125 %
  • 26.00
  • 5.690
  • 81.5
  • 95.2
  • 1,741
  • 0.0
  • 18.75
  • 150 %
  • 32.00
  • 7.110
  • 77.4
  • 96.5
  • 1,722
  • 0.0
  • 22.50
