/Products/Electric Motors/Single Phase/Leeson/TEFC, Rigid Base/131538.00 Leeson 5HP General Purpose Electric Motor, 1800RPM
Click Image to Expand

Product ID: 131538.00

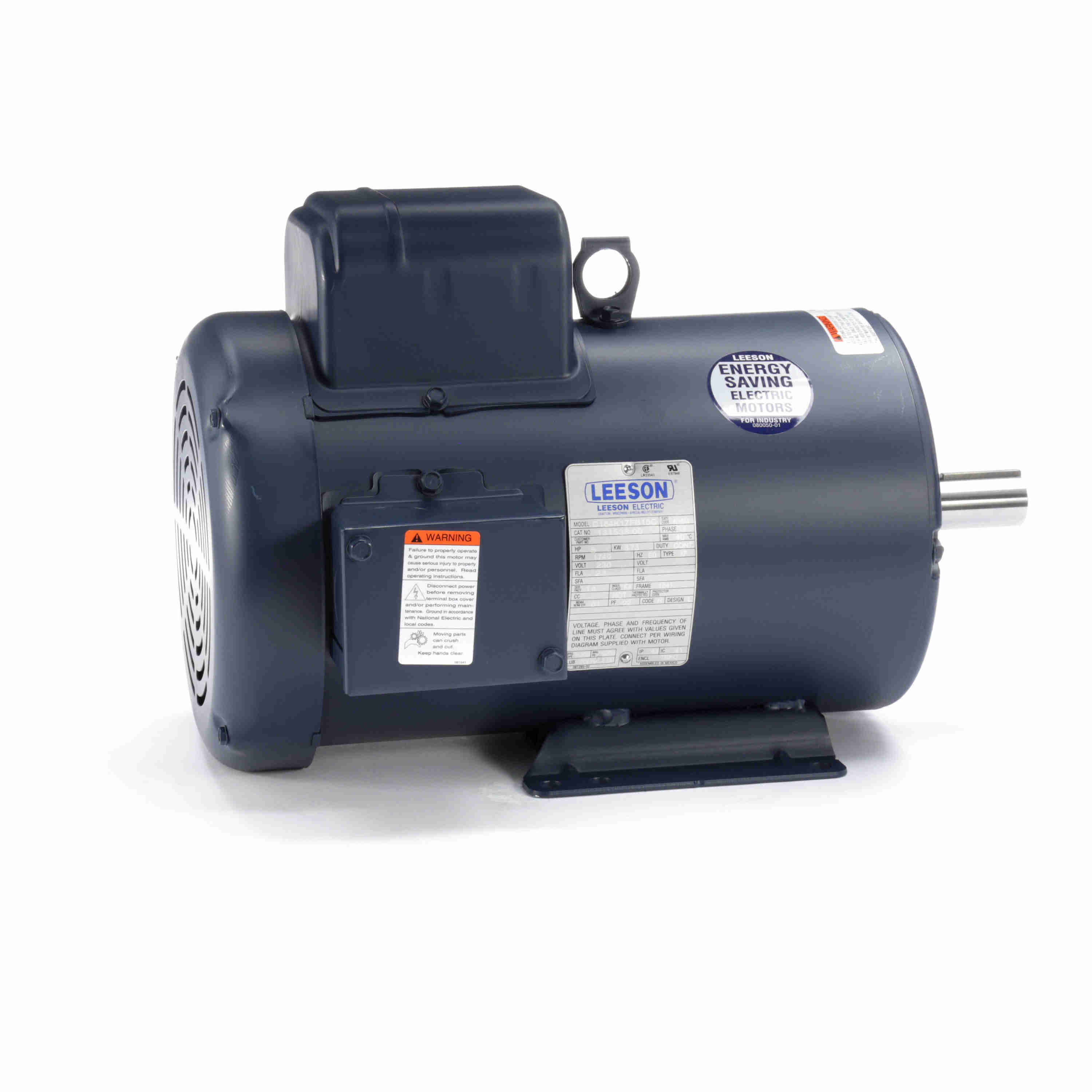

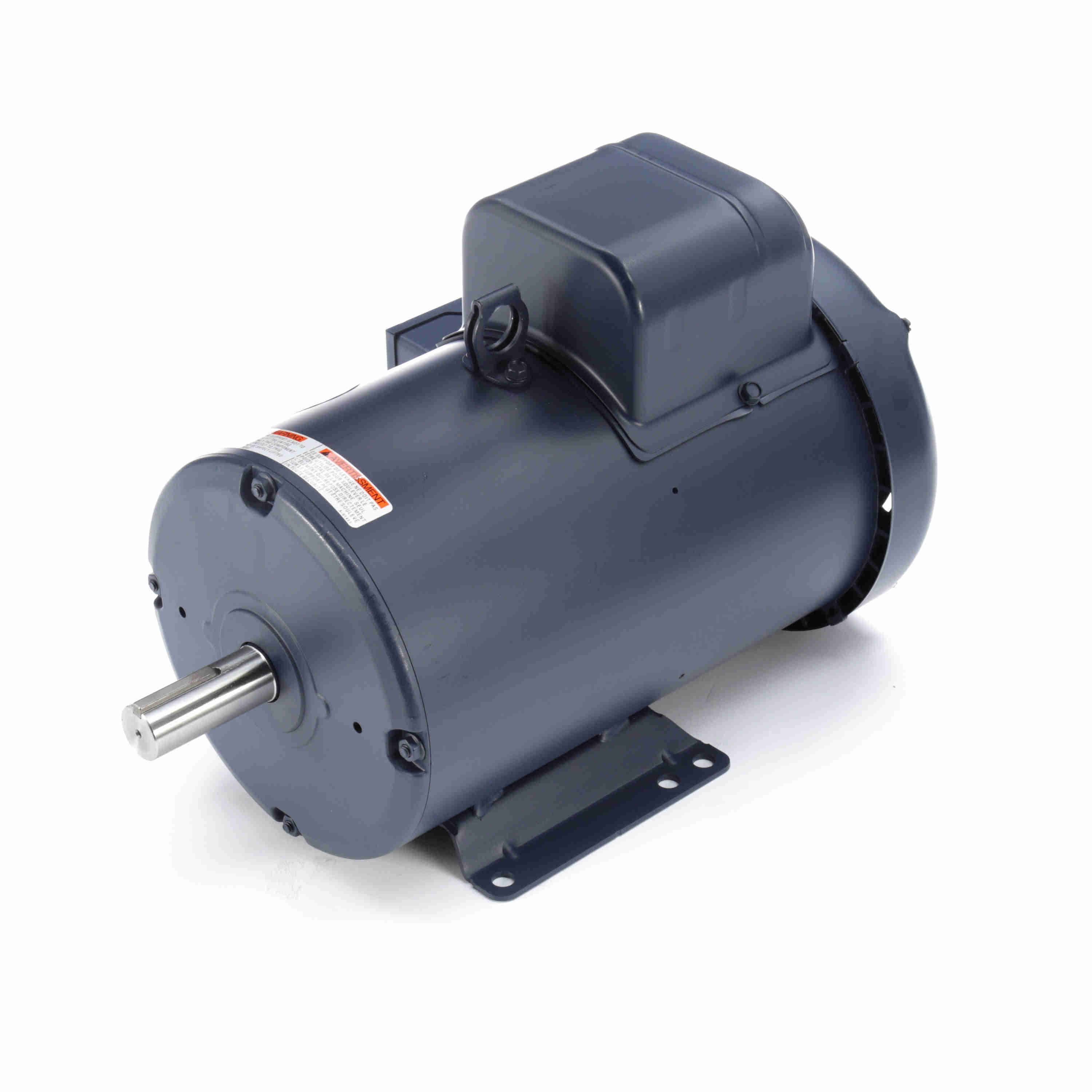

131538.00 Leeson 5HP General Purpose Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 131538.00

Selected accessories will also be added to cart
$1,199.97 / Each
Quantity:
TEFC, 184T Frame, 230VAC Single Phase 60Hz, Rigid Base, Rolled Steel, 1-1/8" Keyed Shaft

Features

  • Durable rolled steel construction
  • NEMA Design B performance
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings

General Specifications

UPC: 691720017869 Weight: 98.00 LB
Packaged Length: 20.13 IN Packaged Width: 14.63 IN
Packaged Height: 12.38 IN

Nameplate Specifications

Output HP: 5 Hp Output KW: 3.7 kW
Frequency: 60 Hz Voltage: 230 V
Current: 23.0 A Speed: 1740 rpm
Service Factor: 1 Phase: 1
Efficiency: 81 % Power Factor: 92
Duty: Continuous Insulation Class: F
Design Code: L KVA Code: H
Frame: 184T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 17.46 in
Frame Length: 12.00 in Shaft Diameter: 1.125 in
Shaft Extension: 2.75 in Assembly/Box Mounting: F1 ONLY

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 23.00 15.00 100.0 0 5.00
Pull-Up 0.00 30.50 203.0 0 5.00
Locked-Rotor 149.00 46.50 310.0 0 5.00
Break-Down 0.00 35.30 235.0 0 5.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 7.70 8.98 12.61 16.75 21.70 27.54 34.35
Rated Output (KW) 0.43 1.29 2.31 3.39 4.59 5.74 7.17
Efficiency (%) 0.0 73.9 82.3 83.6 81.6 80.9 77.1
Power Factor (%) 24.3 62.5 79.5 87.9 92.0 90.6 90.8
Speed (RPM) 1,798 1,790 1,781 1,771 1,758 1,744 1,728
Temp. Rise @ FL 0.0 0.0 0.0 0.0 98.0 0.0 0.0
Torque (ft-lbs) 0.00 3.75 7.50 11.25 15.00 18.75 22.50
