/Products/Electric Motors/3 Phase/WEG/Air Handling/Cooling Tower/TEAO, F-2 Mounting/05018AT3PCT326T-W22 WEG 5HP Cooling Tower Electric Motor, 1800RPM

Product ID: 05018AT3PCT326T-W22

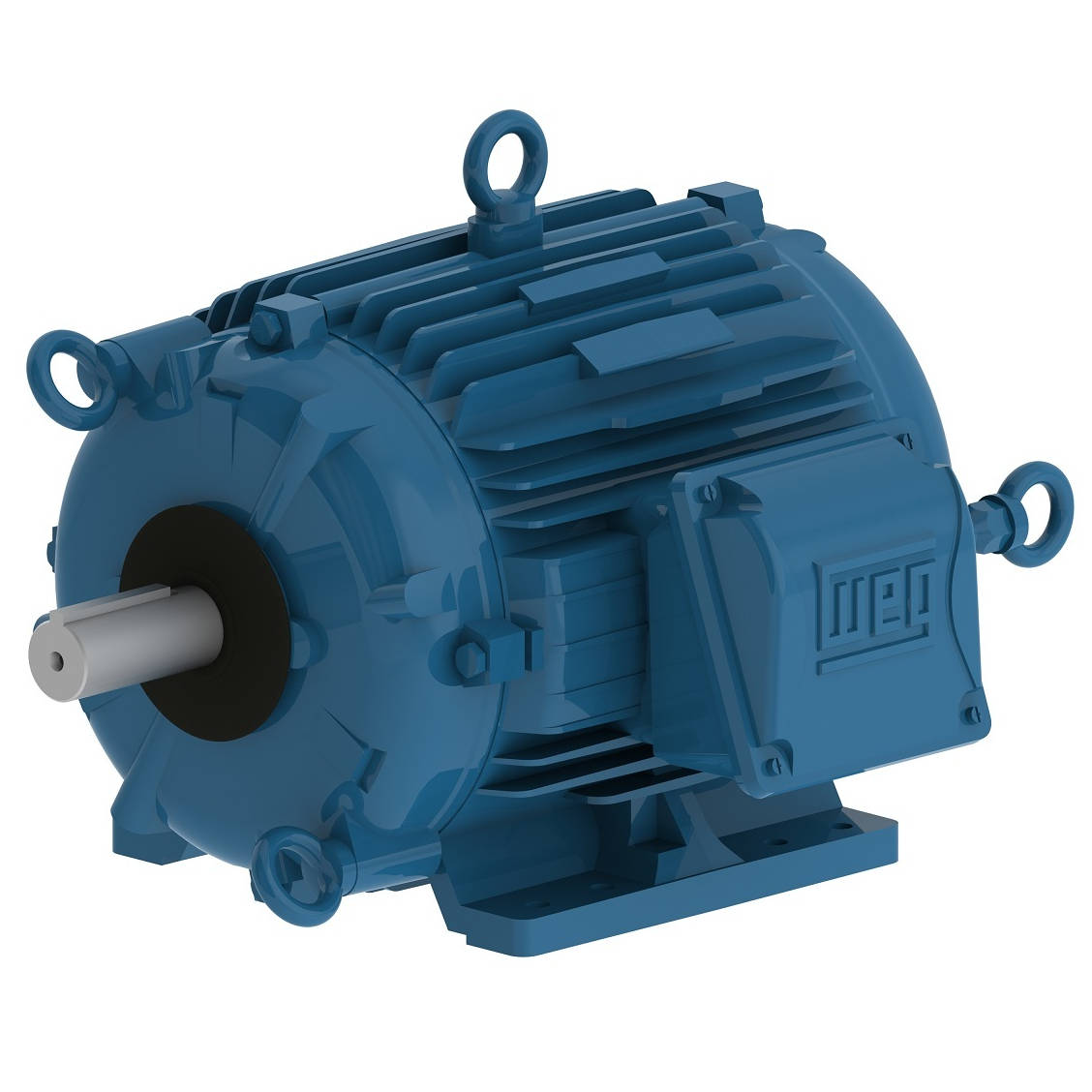

05018AT3PCT326T-W22 WEG 5HP Cooling Tower Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 05018AT3PCT326T-W22

Selected accessories will also be added to cart

$4,530.75 / Each

Quantity:

IC410 - TEAO, IP55, 324T/326T Frame, 200VAC 60Hz 3 Phase, 14382891, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F2 Box Mounting, 2-1/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	324/6T
Output	50 HP (37 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1775 rpm
Slip	1.39 %
Rated voltage	200 V
Rated current	136 A
L. R. Amperes	844 A
LRC	6.2x(Code G)
No load current	54.0 A
Rated torque	148 ft.lb
Locked rotor torque	229 %
Breakdown torque	270 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	66.0 dB(A)
Approx. weight³	536 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	94.1	94.5

Power factor

50%	75%	100%
0.66	0.77	0.83

Features

Frame Material	Cast Iron
Impregnation Method	Double impregnation polyester
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
