/Products/Ball Bearings/6200 Series Ball Bearings/62122RDC3 Koyo Ball Bearing, Rubber Sealed
Click Image to Expand

Product ID: 6212-2RS

62122RDC3 Koyo Ball Bearing, Rubber Sealed

MFG: JTEKT Corporation
MFG Part Number: 62122RDC3

Available Stock: 2
Selected accessories will also be added to cart
$68.02 / Each
Quantity:
6212-2RS

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 62122RDC3
Group Deep Groove Ball Bearings

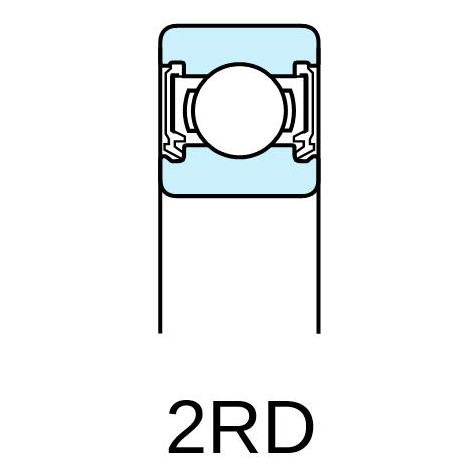

Type Extremely Light Contact Sealed (2RD)

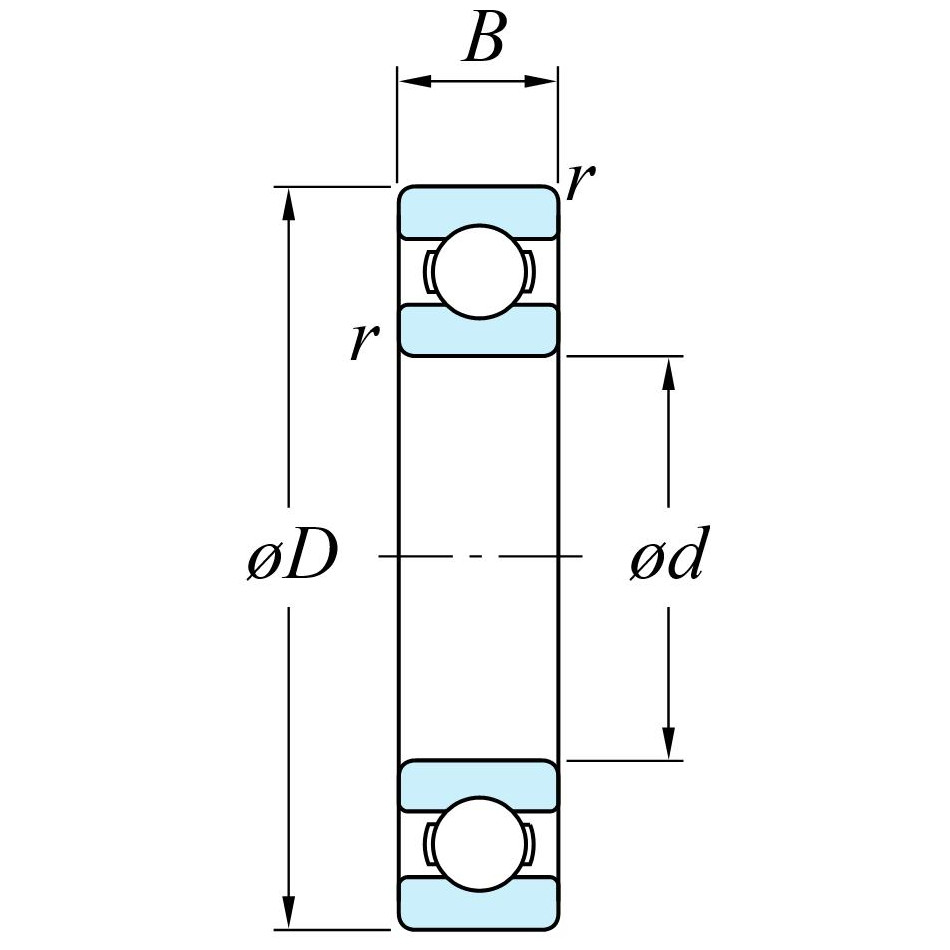

Bore / Inside Diameter (d) 60 mm
Housing / Outside Diameter (D) 110 mm
Width (B) 22 mm
Minimum Radius (r) 1.5 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 52.4 kN
C0r 36.2 kN
Limiting Speeds (Grease Lubrication) N/A
Mass 0.783 kg
1.73 lbs
UPC 4549250160684
Country of Manufacture Japan
