/Products/Electric Motors/3 Phase/WEG/Air Handling/Cooling Tower/TEAO, F-2 Mounting/05018AT3ECT326T-W22 WEG 50HP Cooling Tower Electric Motor, 1800RPM

Product ID: 05018AT3ECT326T-W22

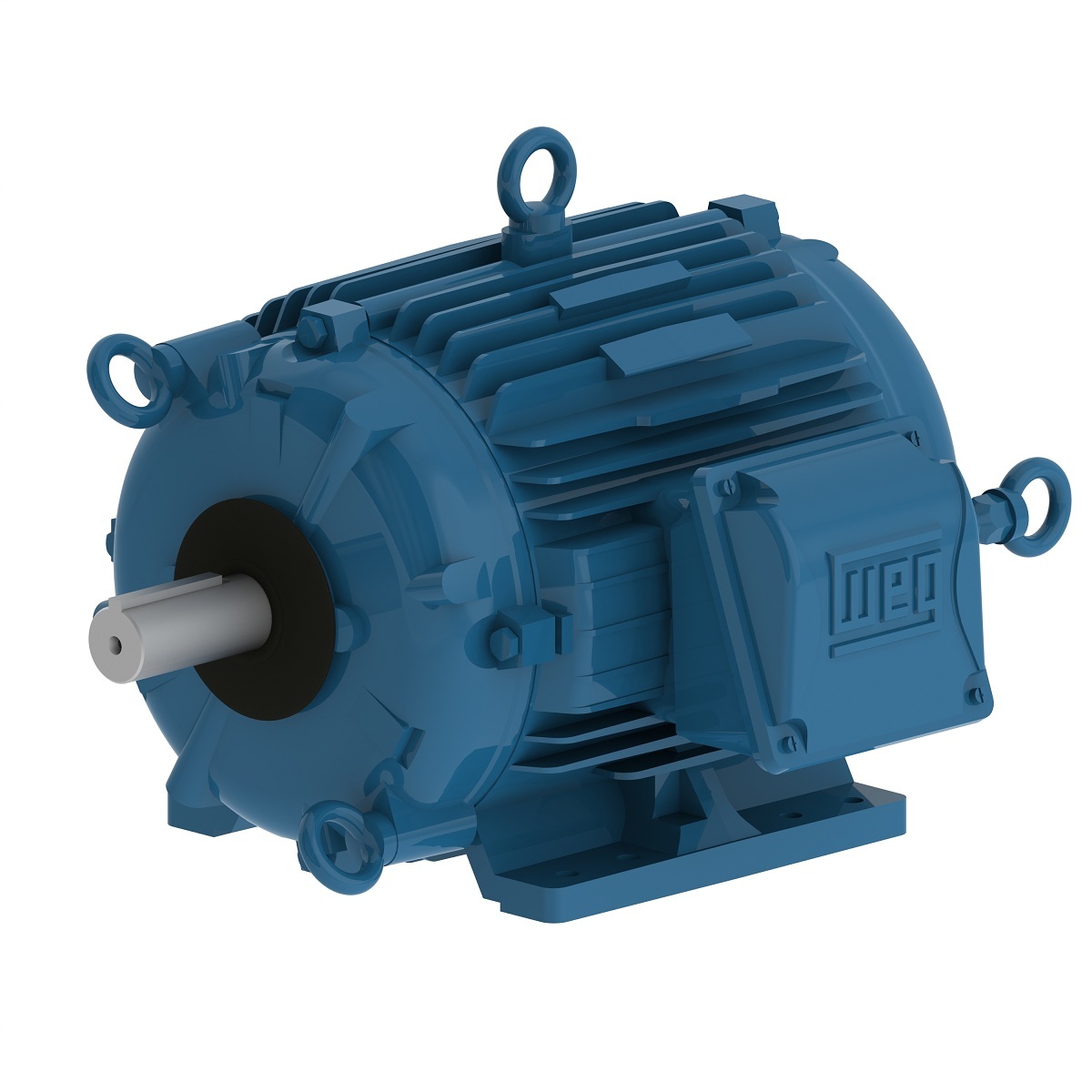

05018AT3ECT326T-W22 WEG 50HP Cooling Tower Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 05018AT3ECT326T-W22

Selected accessories will also be added to cart

$4,530.75 / Each

Quantity:

IC410 - TEAO, IP55, 324T/326T Frame, 208-230/460/380VAC 50/60Hz 3 Phase, 12469153, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-1/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	324/6T
Output	50 HP (37 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1775 rpm
Slip	1.39 %
Rated voltage	208-230/460 V
Rated current	131-118/59.2 A
L. R. Amperes	812-734/367 A
LRC	6.2x(Code G)
No load current	40.5-47.0/23.5 A
Rated torque	148 ft.lb
Locked rotor torque	229 %
Breakdown torque	270 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	66.0 dB(A)
Approx. weight³	580 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	94.1	94.5

Power factor

50%	75%	100%
0.66	0.77	0.83

Frame	324/6T
Output	40 HP (30 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	58.7 A
L. R. Amperes	376 A
LRC	6.4x(Code G)
No load current	23.0 A
Rated torque	143 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	580 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.5	93.1	93.6

Power factor

50%	75%	100%
0.64	0.77	0.83

Frame	324/6T
Output	40 HP (30 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	57.1 A
L. R. Amperes	400 A
LRC	7.0x(Code H)
No load current	24.0 A
Rated torque	142 ft.lb
Locked rotor torque	250 %
Breakdown torque	300 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	580 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.5	92.8	93.6

Power factor

50%	75%	100%
0.60	0.73	0.81

Frame	324/6T
Output	40 HP (30 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1478 rpm
Slip	1.47 %
Rated voltage	415 V
Rated current	56.4 A
L. R. Amperes	417 A
LRC	7.4x(Code J)
No load current	25.0 A
Rated torque	142 ft.lb
Locked rotor torque	260 %
Breakdown torque	330 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	580 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.5	93.0	93.6

Power factor

50%	75%	100%
0.57	0.70	0.79

Frame	324/6T
Output	50 HP (37 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	380 V
Rated current	71.6 A
L. R. Amperes	372 A
LRC	5.2x(Code E)
No load current	23.0 A
Rated torque	180 ft.lb
Locked rotor torque	180 %
Breakdown torque	210 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	580 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.0	92.4

Power factor

50%	75%	100%
0.72	0.81	0.85

Frame	324/6T
Output	50 HP (37 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	400 V
Rated current	68.4 A
L. R. Amperes	397 A
LRC	5.8x(Code F)
No load current	24.0 A
Rated torque	179 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	580 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.0	93.0

Power factor

50%	75%	100%
0.68	0.79	0.84

Frame	324/6T
Output	50 HP (37 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	66.3 A
L. R. Amperes	411 A
LRC	6.2x(Code G)
No load current	25.0 A
Rated torque	179 ft.lb
Locked rotor torque	210 %
Breakdown torque	260 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	580 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.0	93.5

Power factor

50%	75%	100%
0.65	0.76	0.83

Features

Frame Material	Cast Iron
Impregnation Method	Double impregnation polyester
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
