/Products/Electric Motors/3 Phase/WEG/Fire Pump/Foot Mount, C-Face, Cast Iron/02536OP3EFP256TC-W40 WEG 25HP Fire Pump Electric Motor, 3600RPM

Product ID: 02536OP3EFP256TC-W40

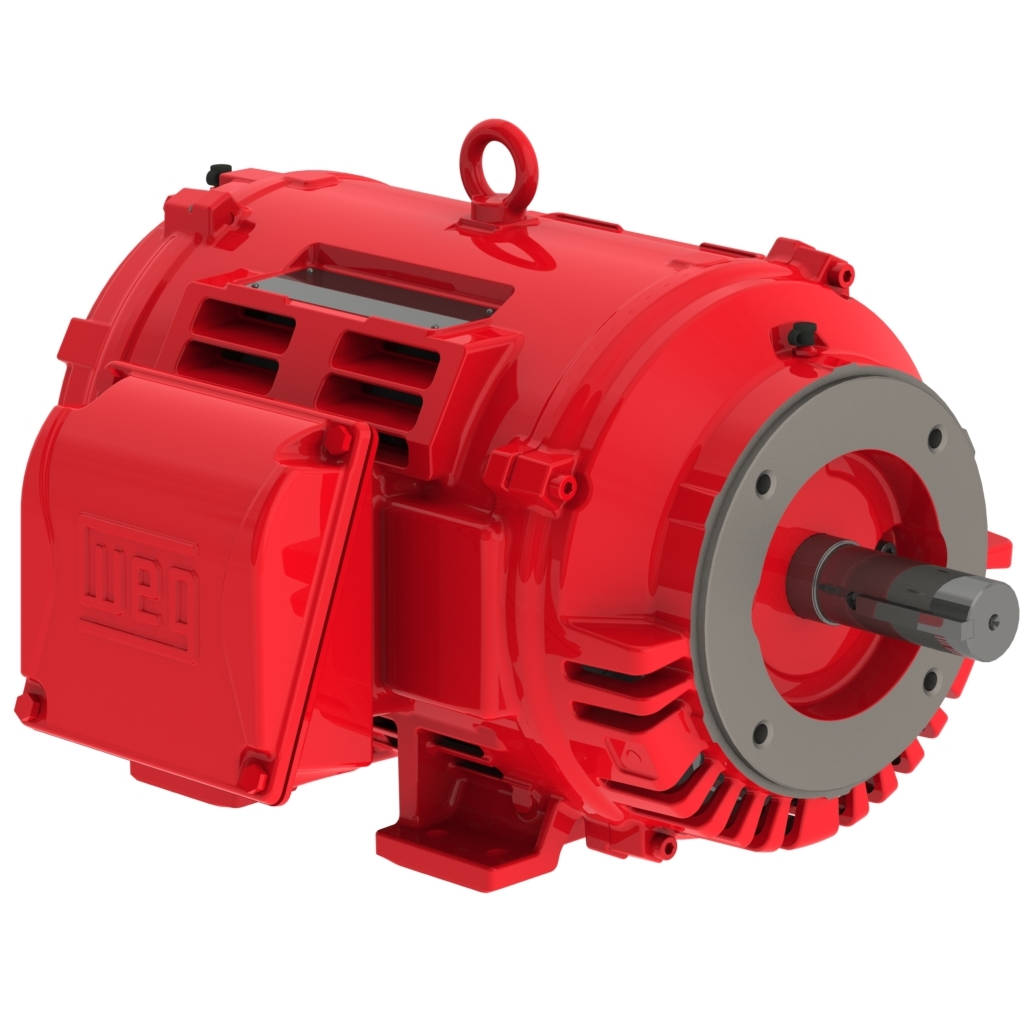

02536OP3EFP256TC-W40 WEG 25HP Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02536OP3EFP256TC-W40

Selected accessories will also be added to cart

$1,337.25 / Each

Quantity:

IC01 - ODP, IP23, 254TC/256TC Frame, 230/460VAC 60Hz 3 Phase, 14491557, High Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 1-5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	254/6TC
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3530 rpm
Slip	1.94 %
Rated voltage	230/460 V
Rated current	59.4/29.7 A
L. R. Amperes	362/181 A
LRC	6.1x(Code G)
No load current	18.0/9.00 A
Rated torque	37.2 ft.lb
Locked rotor torque	190 %
Breakdown torque	260 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.9592 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	252 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	91.0	91.0

Power factor

50%	75%	100%
0.72	0.82	0.86

Frame	254/6TC
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2890 rpm
Slip	3.67 %
Rated voltage	380 V
Rated current	35.5 A
L. R. Amperes	202 A
LRC	5.7x(Code F)
No load current	9.00 A
Rated torque	45.4 ft.lb
Locked rotor torque	130 %
Breakdown torque	200 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	0.9592 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	252 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.4	88.5	88.9

Power factor

50%	75%	100%
0.79	0.86	0.89

Frame	254/6TC
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2900 rpm
Slip	3.33 %
Rated voltage	400 V
Rated current	34.3 A
L. R. Amperes	213 A
LRC	6.2x(Code G)
No load current	10.0 A
Rated torque	45.3 ft.lb
Locked rotor torque	140 %
Breakdown torque	210 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	0.9592 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	252 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.4	89.4

Power factor

50%	75%	100%
0.73	0.83	0.87

Frame	254/6TC
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2915 rpm
Slip	2.83 %
Rated voltage	415 V
Rated current	33.8 A
L. R. Amperes	216 A
LRC	6.4x(Code G)
No load current	11.0 A
Rated torque	45.0 ft.lb
Locked rotor torque	150 %
Breakdown torque	229 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	0.9592 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	252 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.6

Power factor

50%	75%	100%
0.68	0.79	0.85

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3002 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
