/Products/Ball Bearings/6300 Series Ball Bearings/6309ZZC3 Koyo Ball Bearing, Double Shielded
Click Image to Expand

Product ID: 6309-ZZC3

6309ZZC3 Koyo Ball Bearing, Double Shielded

MFG: JTEKT Corporation
MFG Part Number: 6309ZZC3

Available Stock: 5
Selected accessories will also be added to cart
$50.02 / Each
Quantity:
6309-ZZC3
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6309ZZC3
Group Deep Groove Ball Bearings
Type Shielded (ZZ)

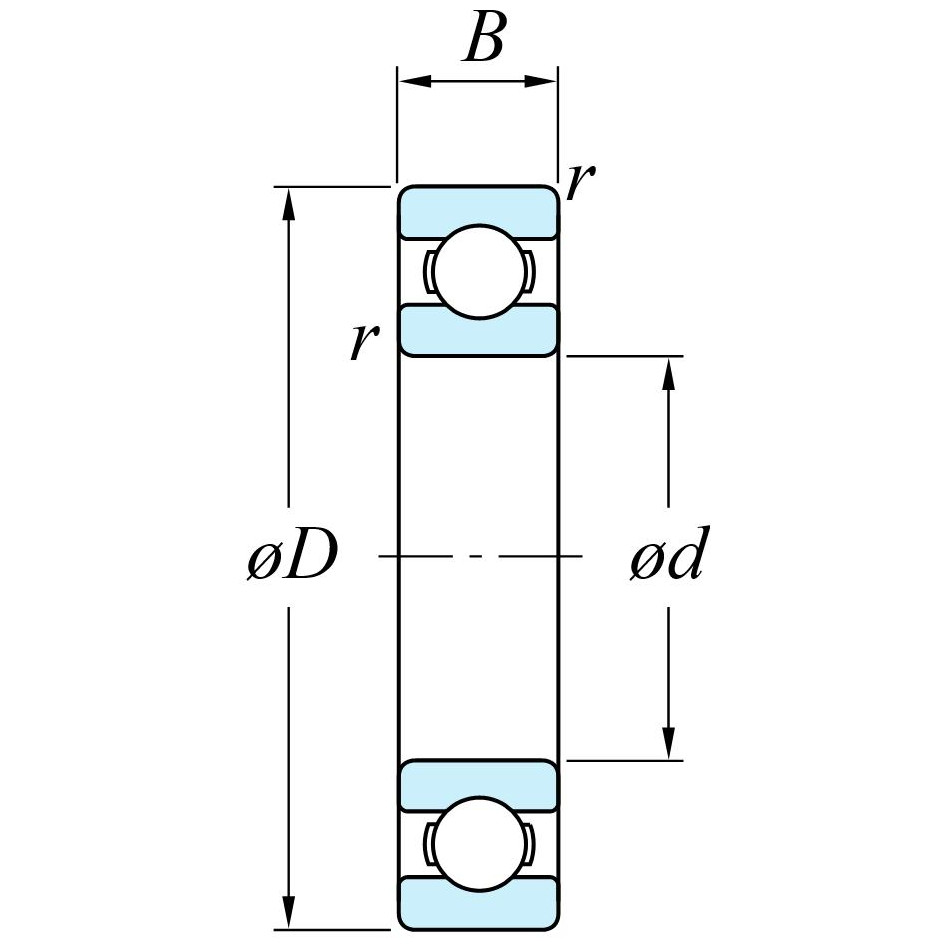

Bore / Inside Diameter (d) 45 mm
Housing / Outside Diameter (D) 100 mm
Width (B) 25 mm
Minimum Radius (r) 1.5 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 48.9 kN
C0r 29.5 kN
Fatigue Load Limit (Cu) 2.25 kN
Factor (f0) 13.3
Limiting Speeds (Grease Lubrication) 6,800 min-1

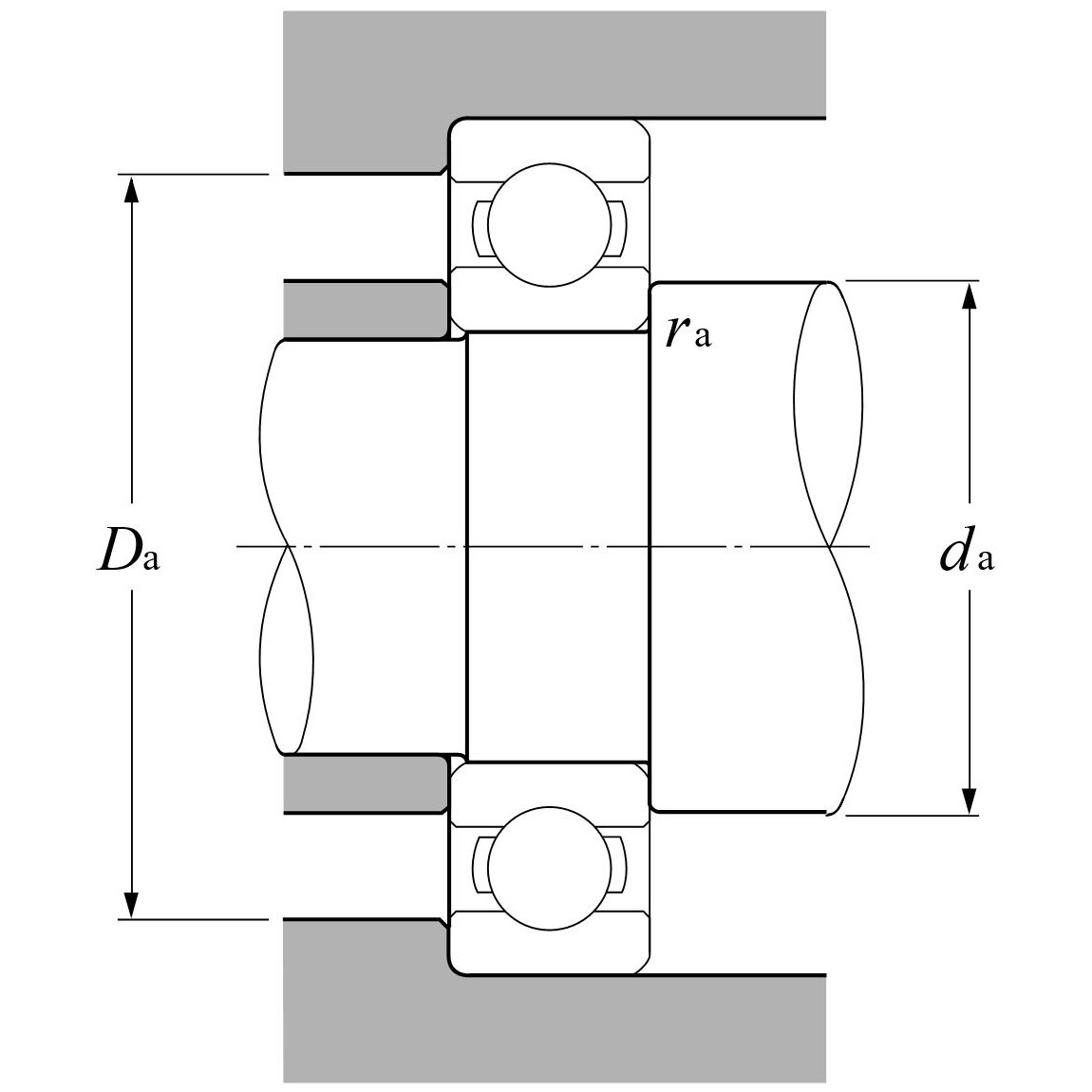

Shaft Shoulder Mounting Dimension (da) 53 mm Minimum
59.5 mm Maximum
Housing Shoulder Mounting Dimension (Da) 92 mm Maximum
Shoulder Radius (ra) 1.5 mm Maximum
Mass 0.833 kg
1.84 lbs
UPC 4549250171536
Country of Manufacture Japan
