/Products/Ball Bearings/6200 Series Ball Bearings/6209ZZC3 Koyo Ball Bearing, Shielded
Click Image to Expand

Product ID: 6209-ZZC3

6209ZZC3 Koyo Ball Bearing, Shielded

MFG: JTEKT Corporation
MFG Part Number: 6209ZZC3

Available Stock: 5
Selected accessories will also be added to cart
$30.08 / Each
Quantity:
6209-ZZC3
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6209ZZC3
Group Deep Groove Ball Bearings

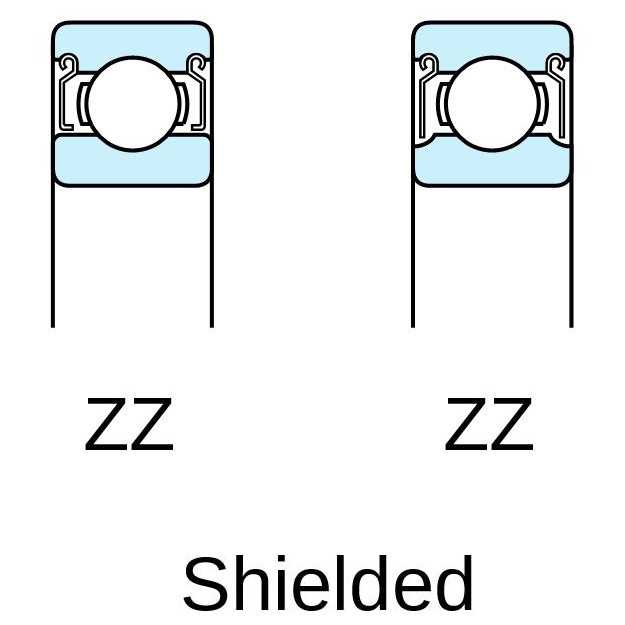

Type Shielded (ZZ)
Bore / Inside Diameter (d) 45 mm
Housing / Outside Diameter (D) 85 mm
Width (B) 19 mm
Minimum Radius (r) 1.1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 32.7 kN
C0r 20.3 kN
Fatigue Load Limit (Cu) 1.40 kN
Factor (f0) 14.0
Limiting Speeds (Grease Lubrication) 6,800 min-1
Shaft Shoulder Mounting Dimension (da) 51.5 mm Minimum
53.5 mm Maximum
Housing Shoulder Mounting Dimension (Da) 78.5 mm Maximum
Shoulder Radius (ra) 1 mm Maximum
Mass 0.407 kg
0.90 lbs
UPC 4549250158926
Country of Manufacture Japan
