/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount/02036OT3E254T-W40 WEG 20HP, General Purpose Electric Motor, 3600RPM

Product ID: 02036OT3E254T-W40

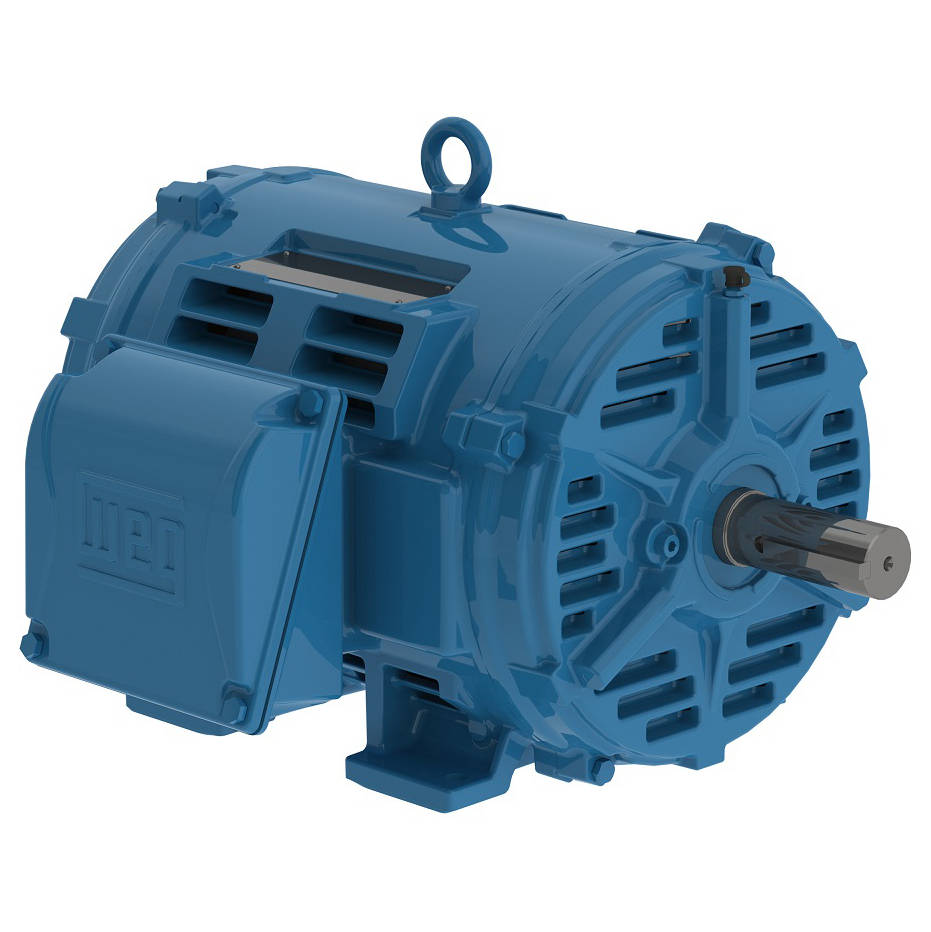

02036OT3E254T-W40 WEG 20HP, General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02036OT3E254T-W40

Selected accessories will also be added to cart

$1,320.00 / Each

Quantity:

IC01 - ODP, IP23, 254T Frame, 230/460VAC 60Hz 3 Phase, 14446703, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	254T
Output	20 HP (15 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3535 rpm
Slip	1.81 %
Rated voltage	230/460 V
Rated current	48.6/24.3 A
L. R. Amperes	306/153 A
LRC	6.3x(Code G)
No load current	16.8/8.40 A
Rated torque	29.7 ft.lb
Locked rotor torque	200 %
Breakdown torque	280 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.8718 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	207 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.0	91.0

Power factor

50%	75%	100%
0.72	0.82	0.85

Frame	254T
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2945 rpm
Slip	1.83 %
Rated voltage	380 V
Rated current	21.6 A
L. R. Amperes	147 A
LRC	6.8x(Code H)
No load current	8.00 A
Rated torque	26.7 ft.lb
Locked rotor torque	200 %
Breakdown torque	290 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	0.8718 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	207 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.0	88.5	91.2

Power factor

50%	75%	100%
0.69	0.80	0.85

Frame	254T
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2950 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	21.2 A
L. R. Amperes	142 A
LRC	6.7x(Code H)
No load current	9.30 A
Rated torque	26.7 ft.lb
Locked rotor torque	220 %
Breakdown torque	320 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.8718 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	207 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.1	88.6	91.2

Power factor

50%	75%	100%
0.62	0.75	0.82

Frame	254T
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2955 rpm
Slip	1.50 %
Rated voltage	415 V
Rated current	21.5 A
L. R. Amperes	148 A
LRC	6.9x(Code J)
No load current	10.3 A
Rated torque	26.7 ft.lb
Locked rotor torque	229 %
Breakdown torque	350 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.8718 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	207 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.2	88.7	91.2

Power factor

50%	75%	100%
0.57	0.70	0.78

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
