/Products/Electric Motors/3 Phase Explosion Proof/WEG/C-Face, Footless/02018XT3ER256TC WEG 20HP Explosion Proof Electric Motor, 1800RPM

Product ID: 02018XT3ER256TC

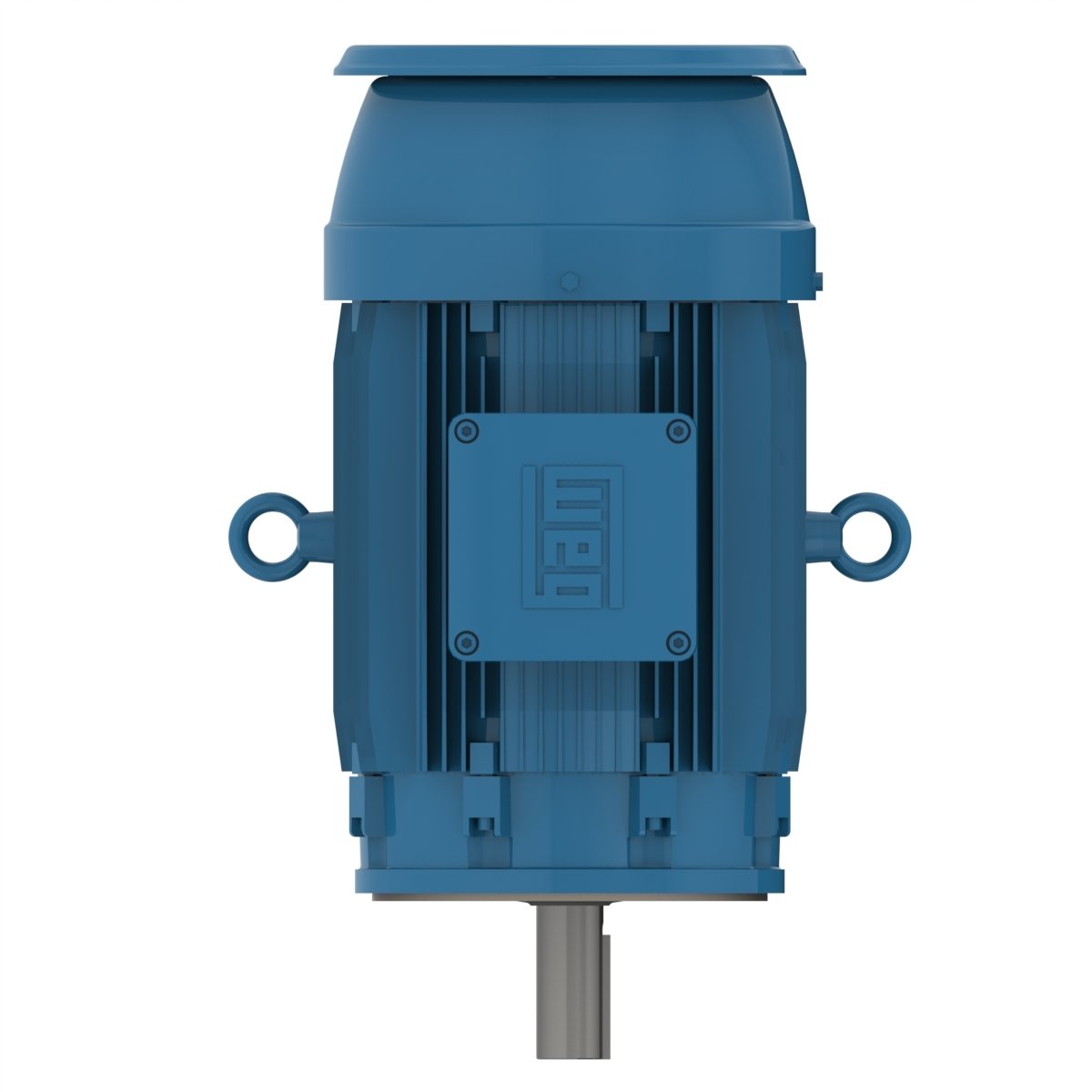

02018XT3ER256TC WEG 20HP Explosion Proof Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02018XT3ER256TC

Selected accessories will also be added to cart
$2,543.25 / Each
Quantity:
IC411 - TEFC, IP55, 256TC Frame, 208-230/460VAC 3-Phase 60Hz, 14407501, C-Face, Footless, Cast Iron Frame, NEMA Premium Efficiency, 1-5/8" Keyed Shaft

Electric Motors

Frame 256TC
Output 20 HP (15 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 208-230/460 V
Rated current 55.3-50.0/25.0 A
L. R. Amperes 415-375/188 A
LRC 7.5x(Code J)
No load current 20.3-23.6/11.8 A
Rated torque 58.5 ft.lb
Locked rotor torque 300 %
Breakdown torque 300 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 2.89 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 394 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.7  92.4  93.0

Power factor

50% 75% 100%
0.63  0.75  0.81
Frame 256TC
Output 20 HP (15 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 380 V
Rated current 29.8 A
L. R. Amperes 173 A
LRC 5.8x(Code G)
No load current 11.7 A
Rated torque 71.2 ft.lb
Locked rotor torque 210 %
Breakdown torque 220 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 2.89 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 394 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  91.7  91.0

Power factor

50% 75% 100%
0.69  0.79  0.84
Frame 256TC
Output 20 HP (15 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 400 V
Rated current 29.0 A
L. R. Amperes 186 A
LRC 6.4x(Code H)
No load current 12.8 A
Rated torque 71.0 ft.lb
Locked rotor torque 240 %
Breakdown torque 240 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 2.89 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 394 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.7  91.7  91.0

Power factor

50% 75% 100%
0.65  0.77  0.82
Frame 256TC
Output 20 HP (15 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 415 V
Rated current 28.4 A
L. R. Amperes 199 A
LRC 7.0x(Code J)
No load current 13.8 A
Rated torque 70.7 ft.lb
Locked rotor torque 260 %
Breakdown torque 260 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 2.89 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 394 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.7  91.7  91.7

Power factor

50% 75% 100%
0.62  0.74  0.80

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Drain Sinterized, Exd
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202P (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermostat - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover With
Overload protector (phenolic) Without overload protector
