/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/JP Close-Coupled Pump/01536ET3H254JP-W22 WEG 15HP JP Close Coupled Pump Electric Motor, 3600RPM

Product ID: 01536ET3H254JP-W22

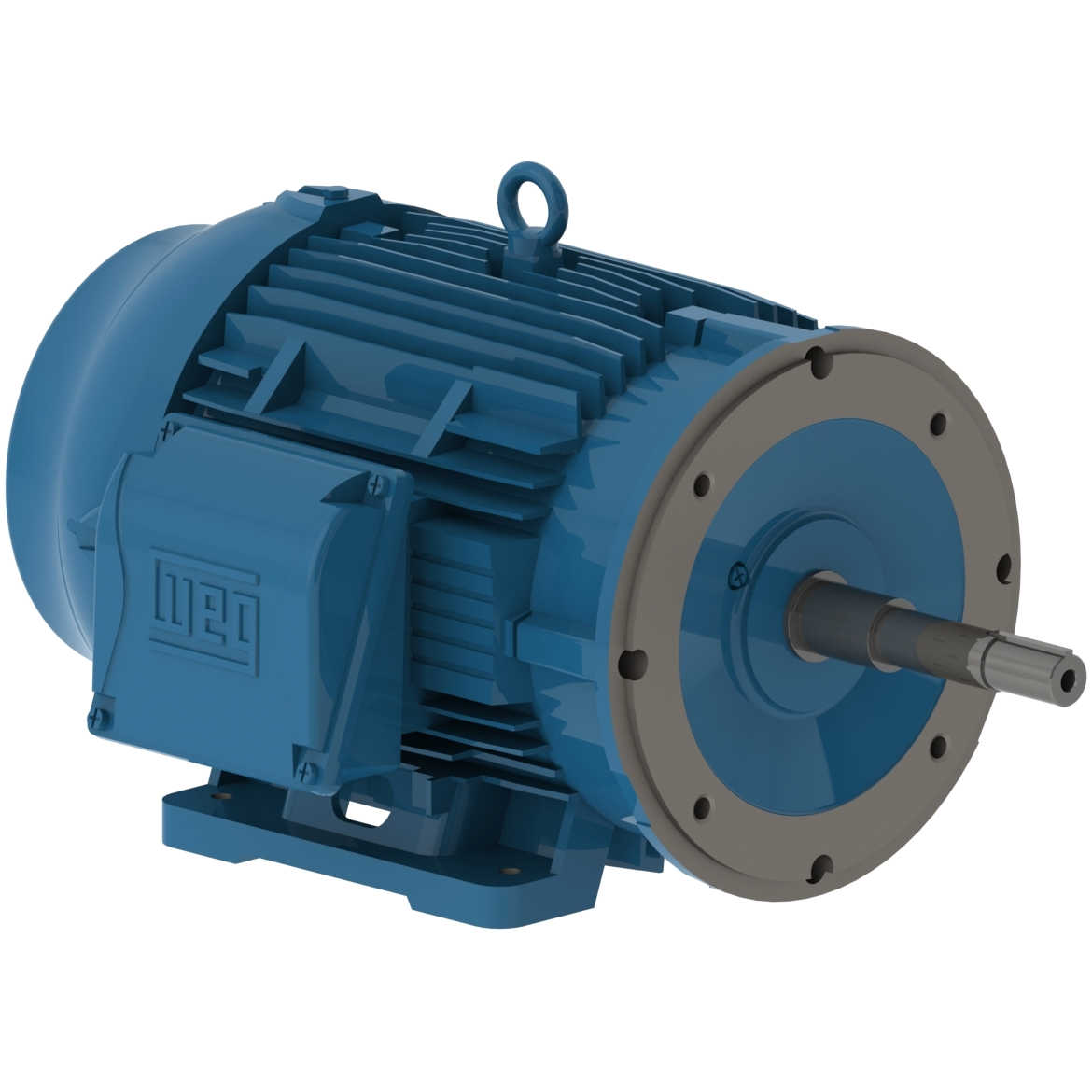

01536ET3H254JP-W22 WEG 15HP JP Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01536ET3H254JP-W22

Selected accessories will also be added to cart

$1,971.75 / Each

Quantity:

IC411 - TEFC, IP55, 254JP/256JP Frame, 575VAC 60Hz 3 Phase, 12712071, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Details
Purchase Components

Electric Motors

Frame	254/6JP
Output	15 HP (11 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3535 rpm
Slip	1.81 %
Rated voltage	575 V
Rated current	13.8 A
L. R. Amperes	92.2 A
LRC	6.7x(Code G)
No load current	3.68 A
Rated torque	22.3 ft.lb
Locked rotor torque	220 %
Breakdown torque	270 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	1.26 sq.ft.lb
Design	B
Insulation Class	F
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	72.0 dB(A)
Approx. weight³	325 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	91.0	91.0

Power factor

50%	75%	100%
0.77	0.85	0.88

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Pump Seal	Gasket
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6
