/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/JP Close-Coupled Pump/01536ET3E215JP-W22 WEG 15HP JP Close Coupled Pump Electric Motor, 3600RPM

Product ID: 01536ET3E215JP-W22

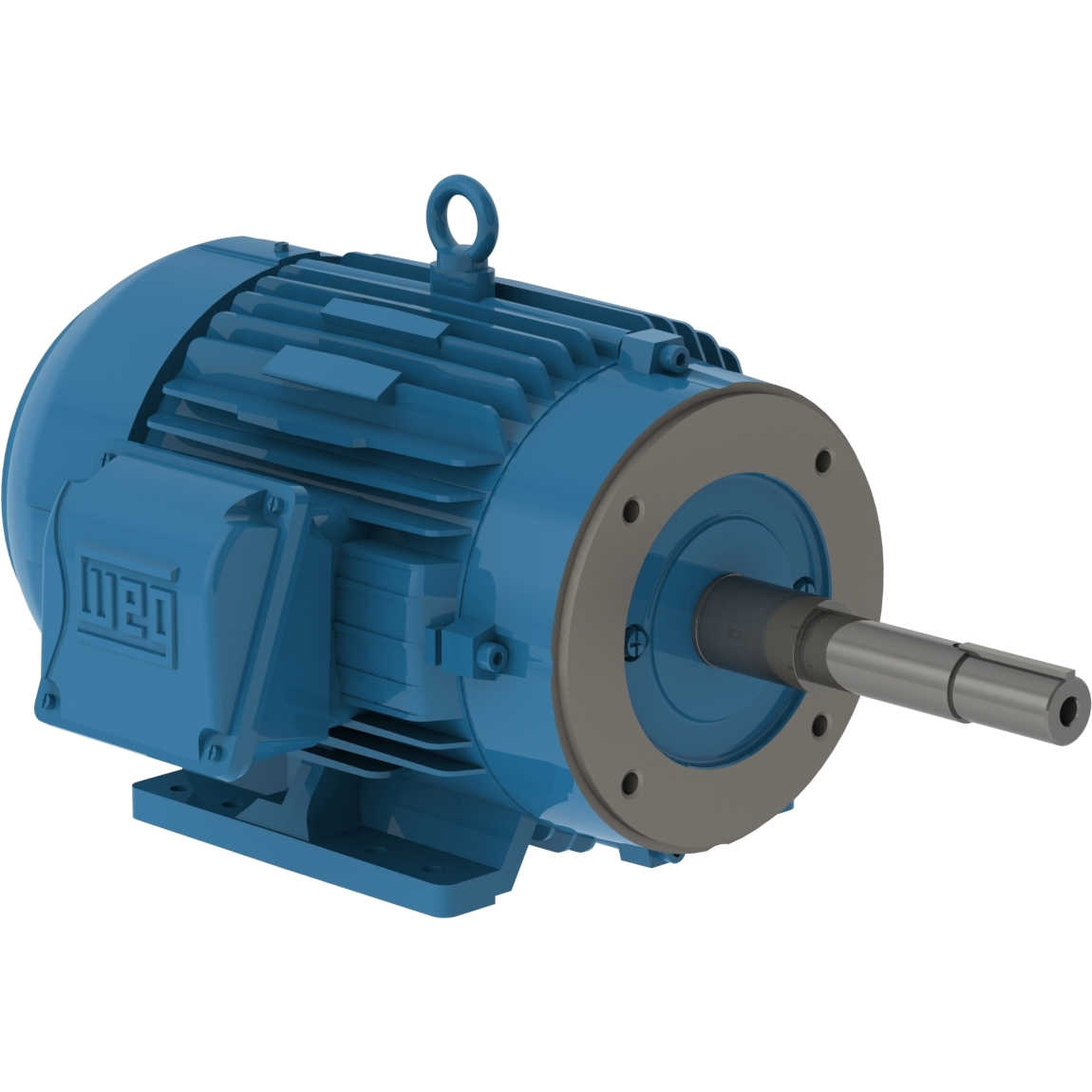

01536ET3E215JP-W22 WEG 15HP JP Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01536ET3E215JP-W22

Selected accessories will also be added to cart

$1,574.25 / Each

Quantity:

IC411 - TEFC, IP55, 213JP/215JP Frame, 208-230/460/380VAC 50/60Hz 3 Phase, 13472774, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Details
Purchase Components

Electric Motors

Frame	213/5JP
Output	15 HP (11 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3520 rpm
Slip	2.22 %
Rated voltage	230/460 V
Rated current	34.0/17.0 A
L. R. Amperes	269/134 A
LRC	7.9x(Code J)
No load current	11.6/5.80 A
Rated torque	22.4 ft.lb
Locked rotor torque	240 %
Breakdown torque	280 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.6362 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.0	91.0

Power factor

50%	75%	100%
0.76	0.85	0.89

Frame	213/5JP
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2940 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	14.5 A
L. R. Amperes	125 A
LRC	8.6x(Code K)
No load current	5.60 A
Rated torque	17.9 ft.lb
Locked rotor torque	280 %
Breakdown torque	340 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.6362 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	90.1	90.1

Power factor

50%	75%	100%
0.72	0.82	0.87

Frame	213/5JP
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2945 rpm
Slip	1.83 %
Rated voltage	400 V
Rated current	14.1 A
L. R. Amperes	133 A
LRC	9.4x(Code L)
No load current	6.20 A
Rated torque	17.8 ft.lb
Locked rotor torque	320 %
Breakdown torque	380 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.6362 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.0	90.1	90.1

Power factor

50%	75%	100%
0.68	0.79	0.85

Frame	213/5JP
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2950 rpm
Slip	1.67 %
Rated voltage	415 V
Rated current	14.0 A
L. R. Amperes	140 A
LRC	10.0x(Code M)
No load current	6.70 A
Rated torque	17.8 ft.lb
Locked rotor torque	340 %
Breakdown torque	420 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.6362 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	90.1	90.1

Power factor

50%	75%	100%
0.64	0.77	0.83

Frame	213/5JP
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2885 rpm
Slip	3.83 %
Rated voltage	380 V
Rated current	20.6 A
L. R. Amperes	134 A
LRC	6.5x(Code G)
No load current	5.60 A
Rated torque	27.3 ft.lb
Locked rotor torque	190 %
Breakdown torque	220 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	0.6362 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.0	89.0

Power factor

50%	75%	100%
0.81	0.88	0.91

Frame	213/5JP
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2900 rpm
Slip	3.33 %
Rated voltage	400 V
Rated current	19.7 A
L. R. Amperes	142 A
LRC	7.2x(Code H)
No load current	6.20 A
Rated torque	27.2 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	0.6362 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.0	89.5	89.7

Power factor

50%	75%	100%
0.78	0.86	0.90

Frame	213/5JP
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	415 V
Rated current	19.3 A
L. R. Amperes	149 A
LRC	7.7x(Code J)
No load current	6.70 A
Rated torque	27.1 ft.lb
Locked rotor torque	240 %
Breakdown torque	280 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	0.6362 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	90.0	90.0

Power factor

50%	75%	100%
0.75	0.84	0.88

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Pump Seal	Gasket
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
