/Products/Ball Bearings/6200 Series Ball Bearings/6207ZZC3 Koyo Ball Bearing, Shielded
Click Image to Expand

Product ID: 6207-ZZC3

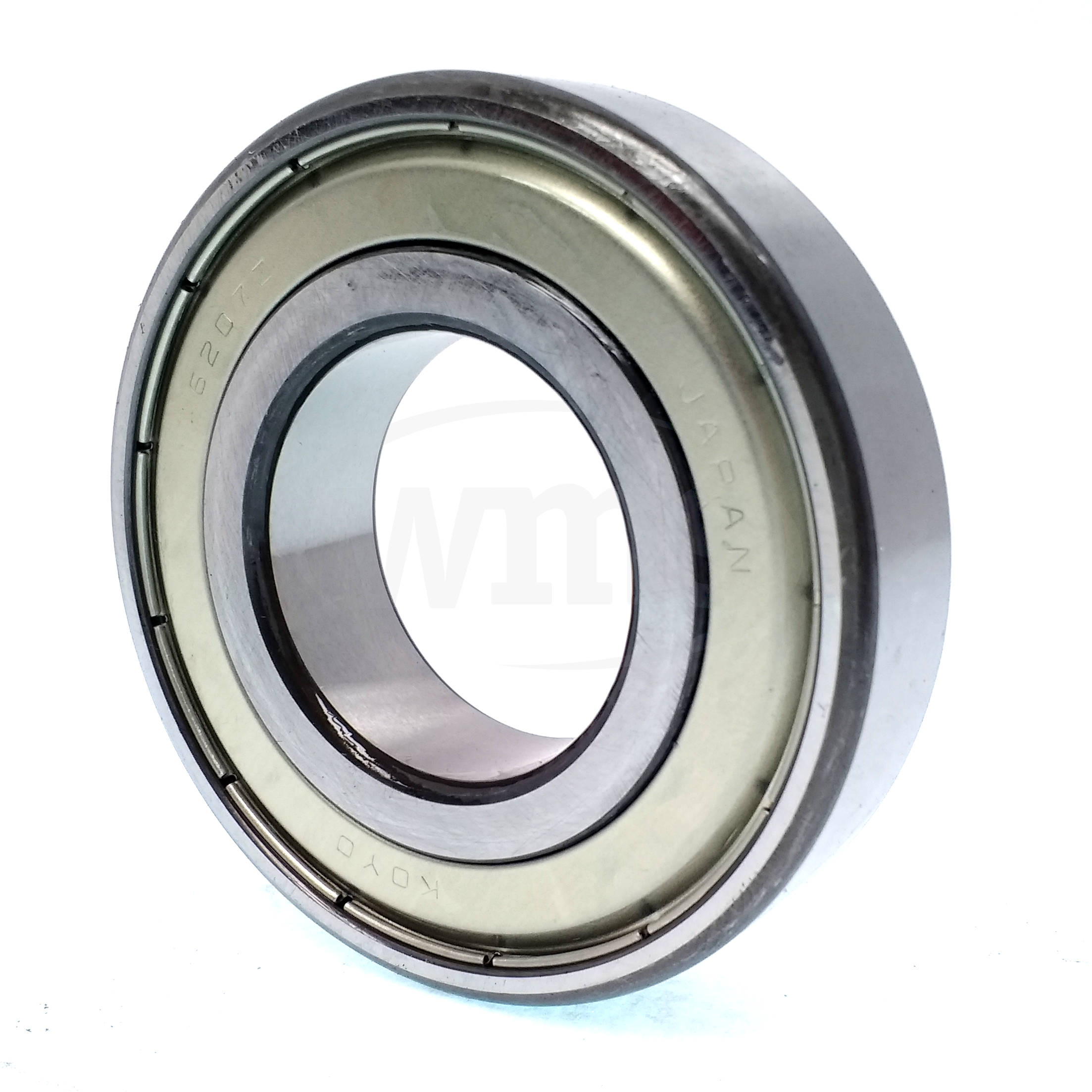

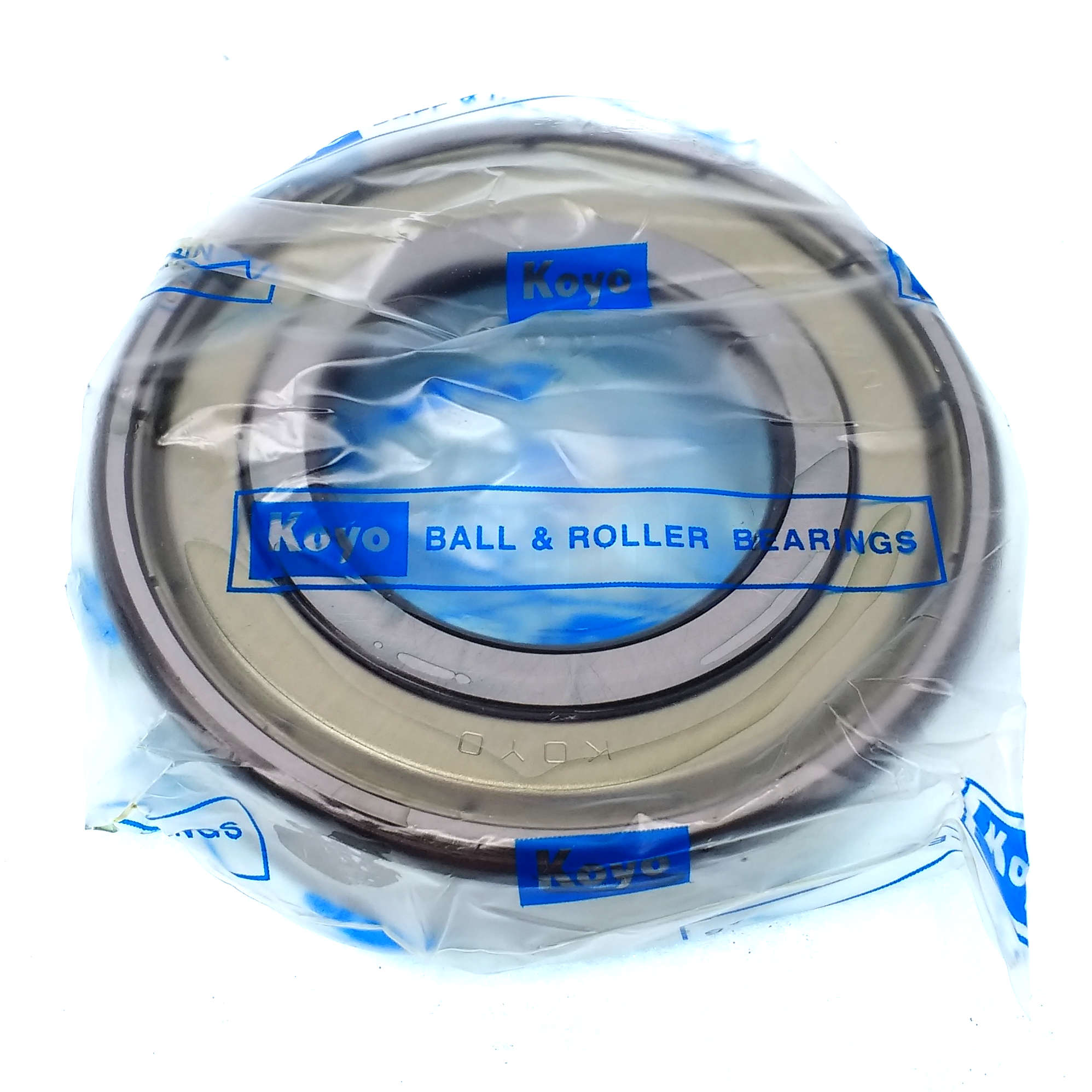

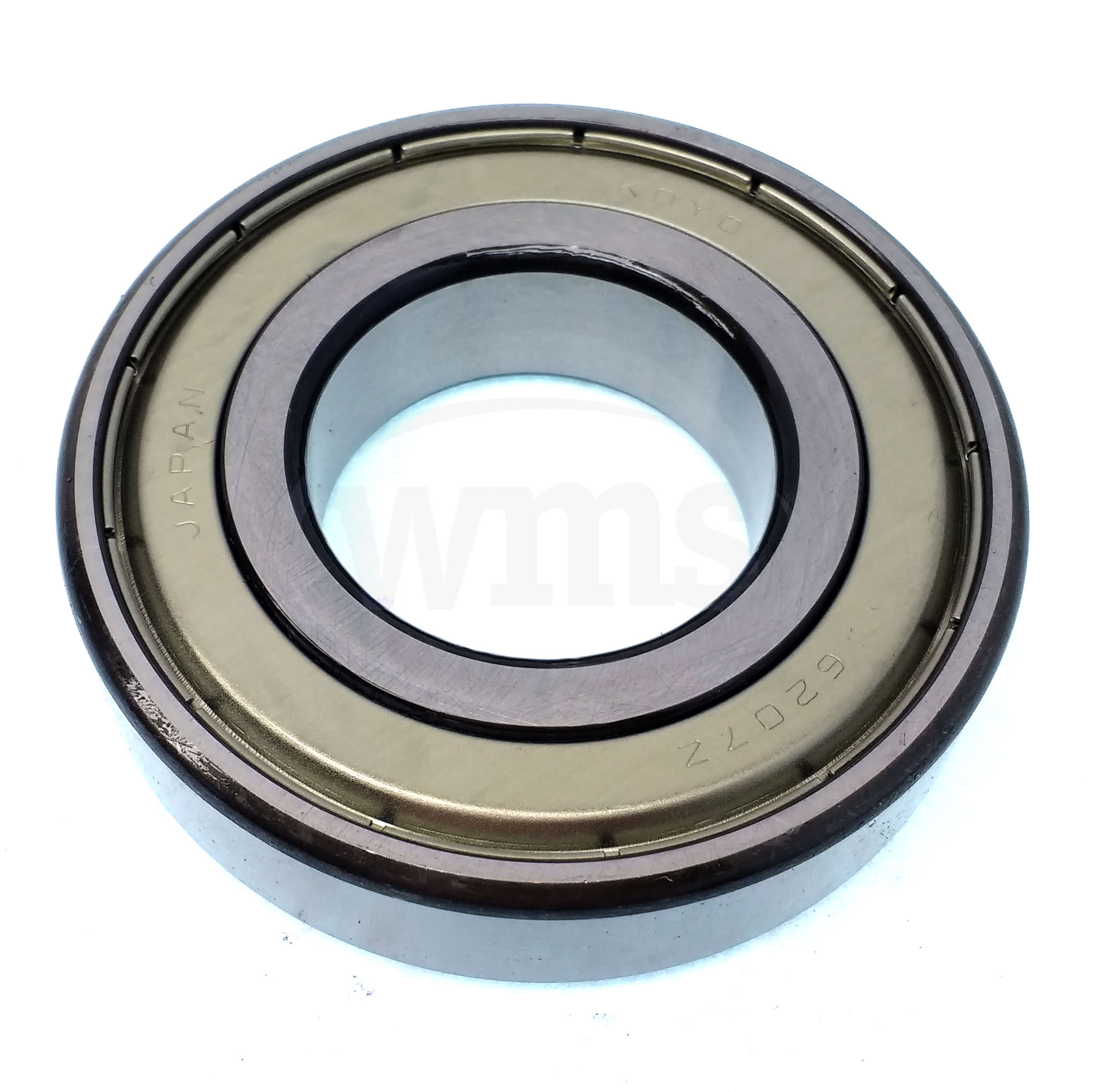

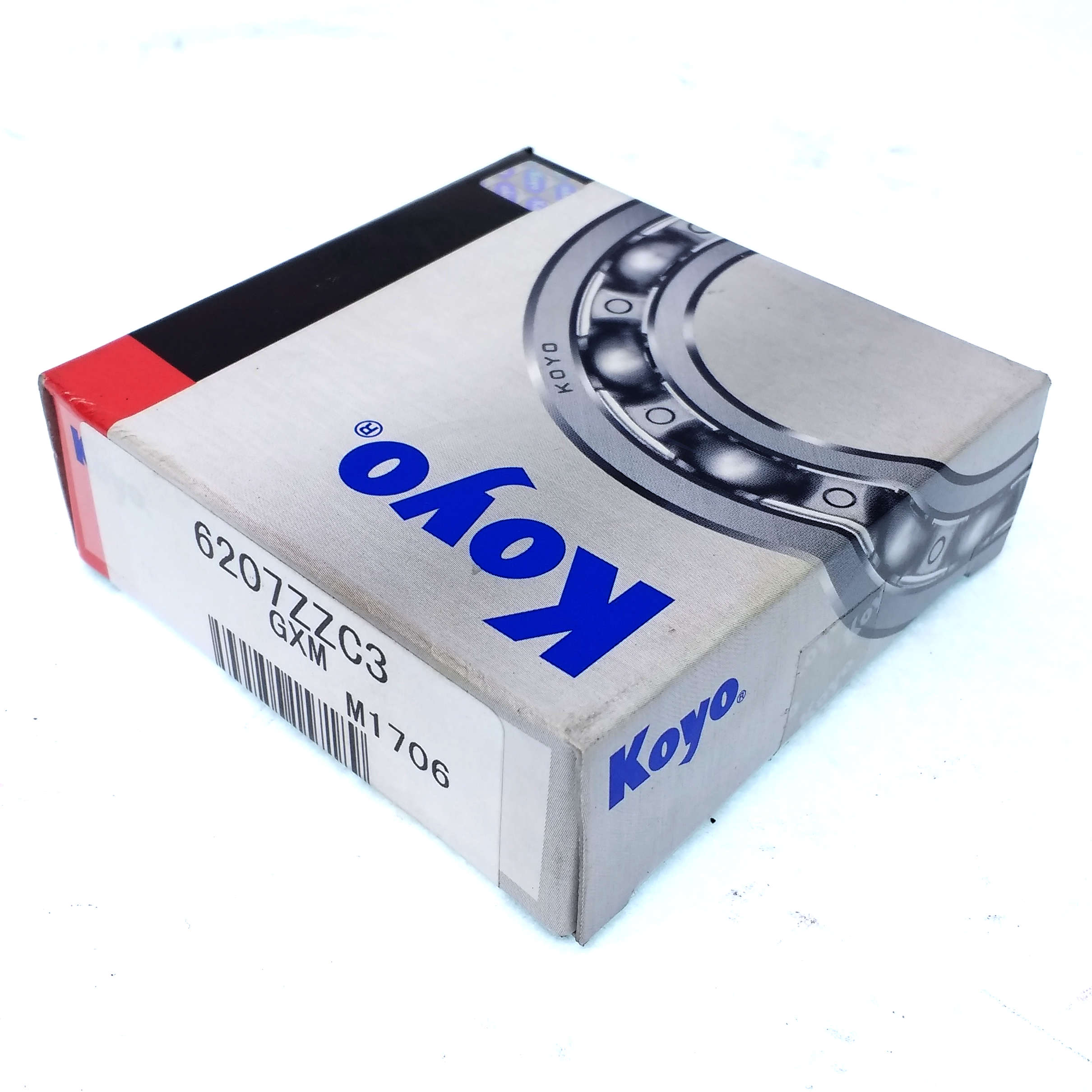

6207ZZC3 Koyo Ball Bearing, Shielded

MFG: JTEKT Corporation
MFG Part Number: 6207ZZC3

Available Stock: 4
Selected accessories will also be added to cart
$17.24 / Each
Quantity:
6207-ZZC3, 35mm x 72mm x 17mm
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6207ZZC3
Group Deep Groove Ball Bearings

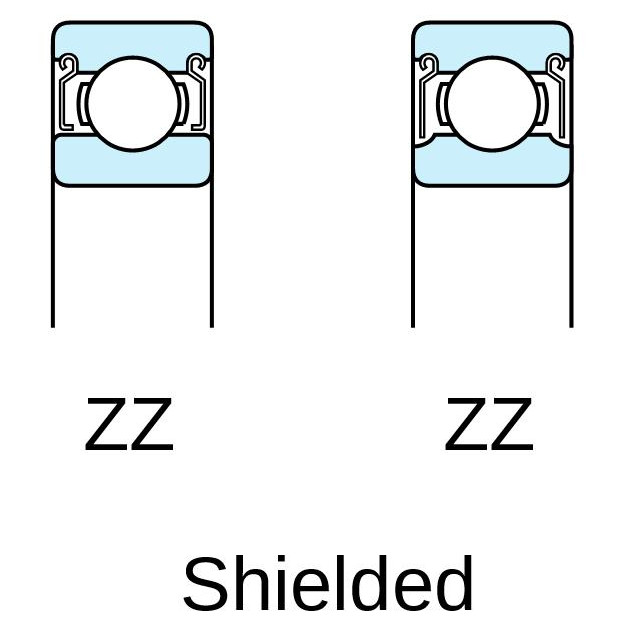

Type Shielded (ZZ)

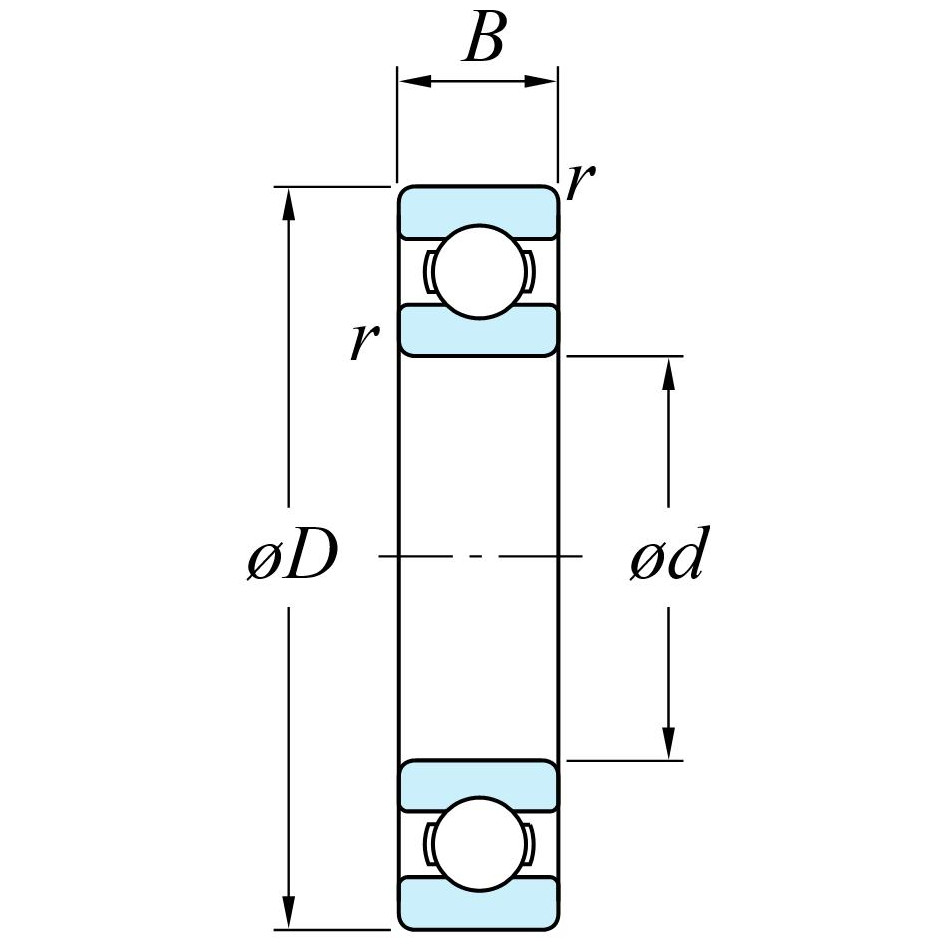

Bore / Inside Diameter (d) 35 mm
Housing / Outside Diameter (D) 72 mm
Width (B) 17 mm
Minimum Radius (r) 1.1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 25.7 kN
C0r 15.4 kN
Fatigue Load Limit (Cu) 1.10 kN
Factor (f0) 13.9
Limiting Speeds (Grease Lubrication) 9,200 min-1
Shaft Shoulder Mounting Dimension (da) 41.5 mm Minimum
43.5 mm Maximum
Housing Shoulder Mounting Dimension (Da) 65.5 mm Maximum
Shoulder Radius (ra) 1 mm Maximum
Mass 0.288 kg
0.64 lbs
UPC 4549250157189
Country of Manufacture Japan
